Hobart AM16SCB-16 Warewash - Flow Dishwashers
Hobart AM16SCB-16 Warewash - Flow Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Hobart AM16SCB “Warewash – Flow” Door-Type Dishwasher
Chemical-sanitizing • Sense-A-Temp™ 30 °F booster • ENERGY STAR®Built for high-volume foodservice, the Hobart AM16SCB Warewash – Flow powers through up to 72 racks every hour while sipping just 0.67 gal of water per rack. Intuitive smart controls, Wi-Fi connectivity and rugged stainless-steel construction make it the most efficient way to keep dishes, sheet pans and cutting boards spotless shift after shift.
Key Features
- High-speed chemical sanitizing — 72 racks/hr
- Ultra-low water use — 0.67 gal/rack pumped final rinse
- Sense-A-Temp™ 30 °F-rise electric booster for code-compliant 180 °F rinse

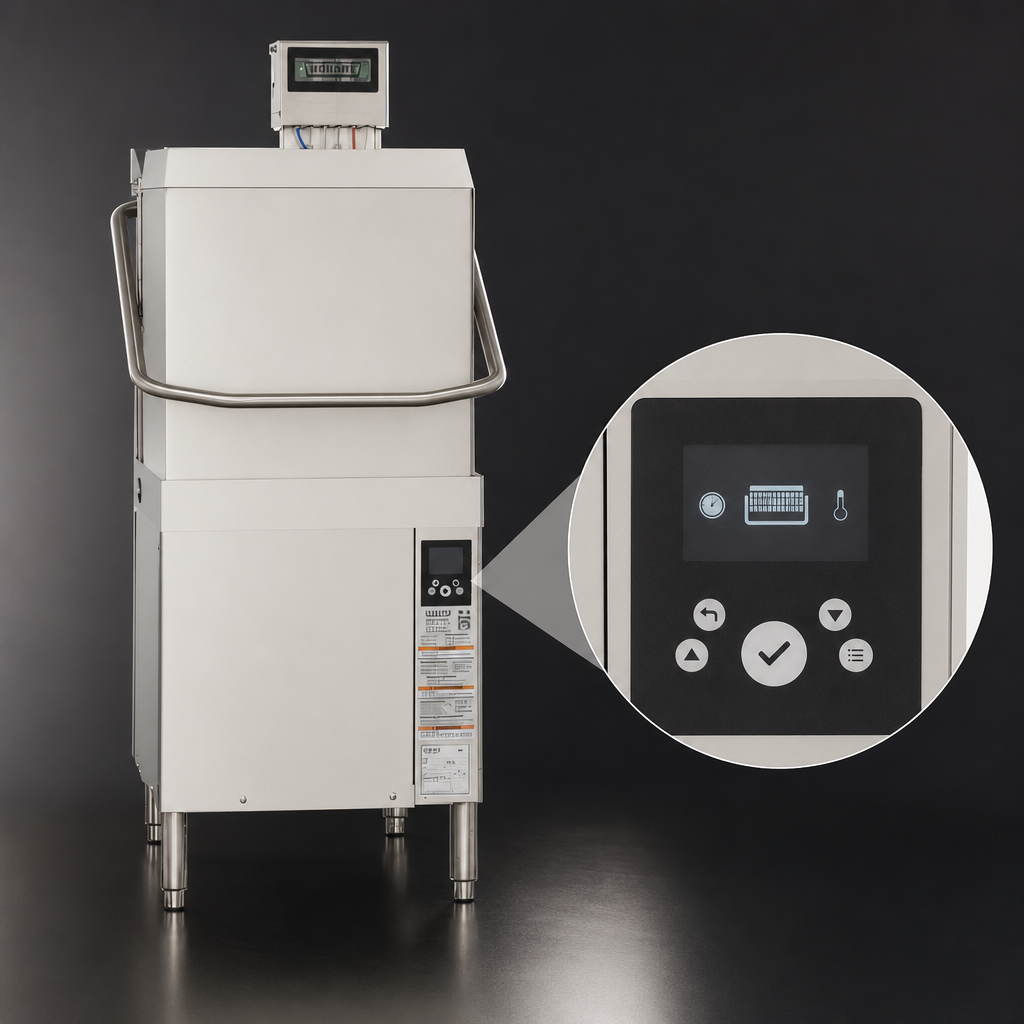

- 4.3" color touchscreen with cycle timer, temp assurance & diagnostics
- Wi-Fi + SmartConnect cloud app for live status, temp logs & usage analytics
- Integrated chemical pumps with temperature & chemical lockouts
- Programmable 1-, 2-, 4- or 6-minute wash cycles (NSF pot-&-pan approved)
- Pillar-less 17" door opening fits 18" × 26" sheet pans & 30" cutting boards
- Five-sided insulated hood, two-stage filtration & self-draining 2 HP wash pump
- Auto Fill, Door-Actuated Start & AutoClean for hands-off operation
- Pumped drain & single-point 208/240 V connection speed up installation
- Straight-through or corner configuration; stainless tank, chamber & frame
- ENERGY STAR®, NSF & cULus certified — qualifies for many utility rebates
Performance & Utility Data
Maximum racks per hour | 72 |
---|---|
Cycle lengths | 1, 2, 4 or 6 minutes |
Final rinse water use | 0.67 gal/rack • 47.9 gal/hr |
Wash tank capacity | 10.5 gal |
Door opening | 17" |
Electrical | 208/240 V, 60 Hz, 1 ph, 25.6/27.7 A (single-point) |
Booster / tank heat | 4.3 kW each |
Pump horsepower | Wash 2 HP • Rinse 0.18 HP • Drain 0.21 HP |
Water inlet | 3⁄4" GHT hose, 120 °F recommended, 15–65 psi |
Drain | 5⁄8" pumped hose, max outlet height 40" |
Rack size | 19 3⁄4" × 19 3⁄4" |
Shipping weight | ≈ 330 lb |
Certifications | ENERGY STAR, NSF, cULus |
Warranty | 1-year parts & labor |
Why It Stands Out
- Smarter maintenance: built-in delime cycle with on-screen alerts prevents downtime.
- Cleaner results: X-shaped anti-clog wash arms and interchangeable rinse arms attack soil from every angle.
- Greener operation: ENERGY STAR efficiency plus low water & chemical use slash utility costs.
Need tabling, racks or sink integration? Compatible accessories are available — ask our team for a complete dishroom solution.
