Hobart AM16-BAS-4 Warewash Dishwashers
Hobart AM16-BAS-4 Warewash Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

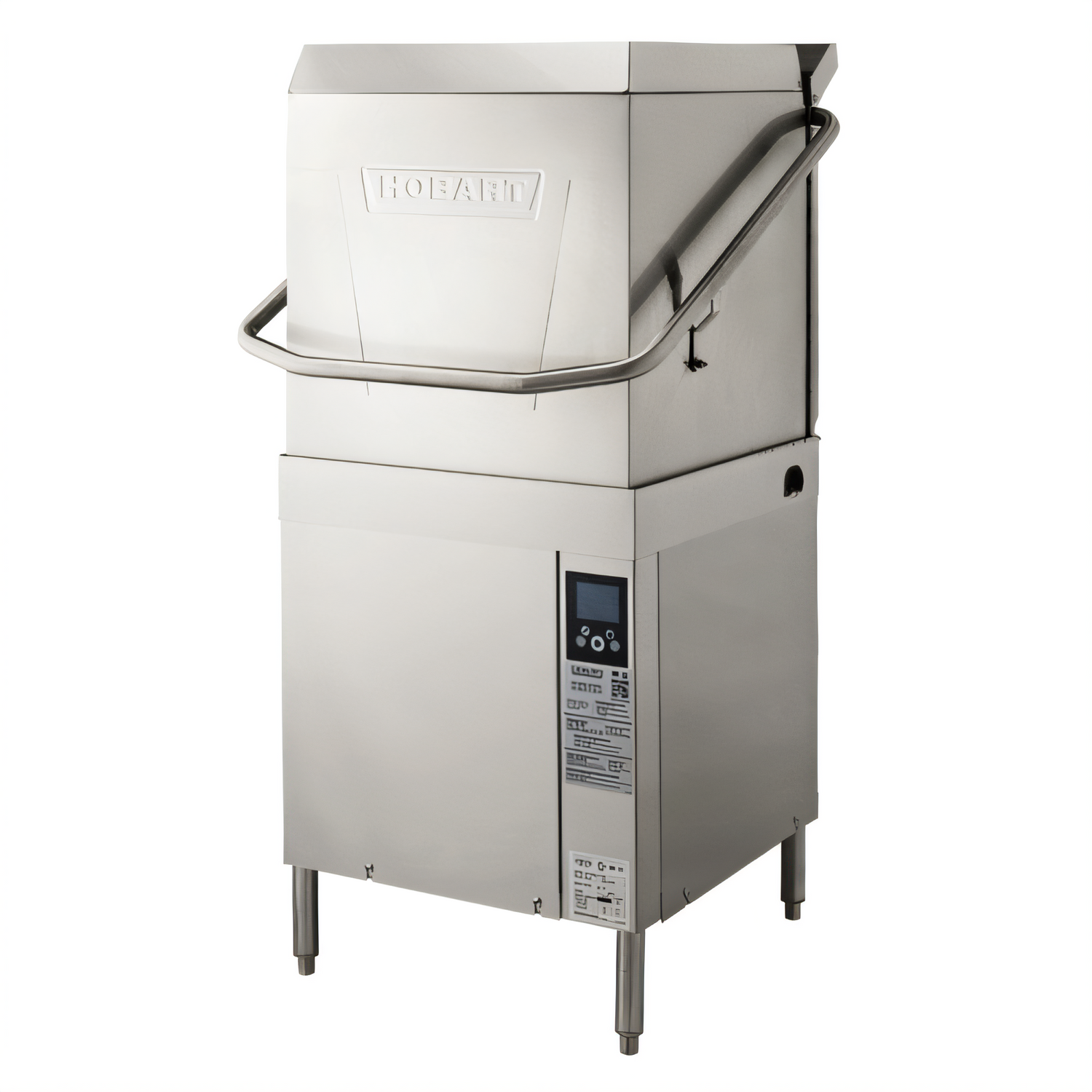

Hobart AM16 “Warewash” High-Temp Door-Type Dishwasher
60 racks/hr • 0.67 gal/rack • 480 V / 60 Hz / 3-Ph • ENERGY STAR®Engineered for serious volume and sparkling results, the Hobart AM16 turns out up to 60 spotless racks every hour while using just 0.67 gallons of final-rinse water per rack. Smart touchscreen controls, on-board Wi-Fi and Hobart’s Sense-A-Temp™ booster make it the easiest, most energy-efficient way to keep dishes, glassware and cookware kitchen-ready around the clock.
Key Performance Features
- High-temperature sanitizing with built-in Sense-A-Temp™ 70 °F-rise booster – no chemical sanitizer required.
- 60 racks per hour (≈1,500 dishes / 2,700 glasses).
- Ultra-low 0.67 gal pumped final rinse—meets the latest ENERGY STAR® criteria.
- Timed wash cycles of 1, 2, 4 or 6 minutes, NSF-rated for pot & pan duty.
- Pillarless 17" door opening accommodates full-size sheet pans and stock pots.
- Two-stage filtration, X-shaped anti-clog wash arms and slanted scrap basket for consistent cleaning.
- Pumped rinse & pumped drain maintain proper pressures and allow flexible installation.
Smart Technology & Control
- 4.3" full-color touchscreen with icon-driven navigation—train staff in minutes.
- Factory-installed Wi-Fi connects to the Hobart SmartConnect cloud for live machine status, temperature logs, usage analytics and error alerts.
- Delime Notification with one-touch Delime Cycle protects the booster and preserves wash performance.
- AutoClean, service diagnostics and temperature/chemical lock-outs keep the machine running at peak efficiency.
Built for Busy Kitchens
- 5-sided insulated hood locks heat in and energy costs down.
- All-stainless tank, chamber, frame, doors & feet—nothing to rust, peel or flake.
- Spring-balanced hood with reinforced thermo-plastic rollers for effortless lifting.
- Straight-thru or corner configuration; single-point electrical connection is field-convertible to dual-point or single-phase.
- Automatic fill and door-actuated start save time on every cycle.
At-a-Glance Specifications
Model | AM16-BAS (Electric) |
---|---|
Sanitizing Method | High-temp, 180 °F final rinse |
Rated Capacity | 60 racks/hr |
Water Consumption | 0.67 gal per rack (40.2 gal/hr) |
Wash Tank Volume | 10.5 gal |
Cycle Times | 1, 2, 4 or 6 min (selectable) |
Door Opening | 17" H |
Electrical | 480 V / 60 Hz / 3-Ph, 23.4 A (single-point connection) |
Booster Heater | 7.1 kW electric |
Tank Heat | 5.4 kW electric |
Exhaust Requirement | 450 CFM (when vent hood required) |
Net / Shipping Weight | 295 lb / 312 lb |
Rack Size | 19 ¾" × 19 ¾" |
Certifications | cULus, NSF, ENERGY STAR® |
Warranty | 1 year parts & labor |
Compliance & Certifications
- cULus listed for electrical safety.
- NSF certified for sanitation—including NSF pot & pan rating.
- ENERGY STAR® qualified for superior water and energy efficiency.
Need chemical pumps, tabling or a drain tempering kit? A full line of factory-approved accessories is available—ask your sales consultant for details.
