Hobart AM16-BAS-2 Warewash Dishwashers
Hobart AM16-BAS-2 Warewash Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

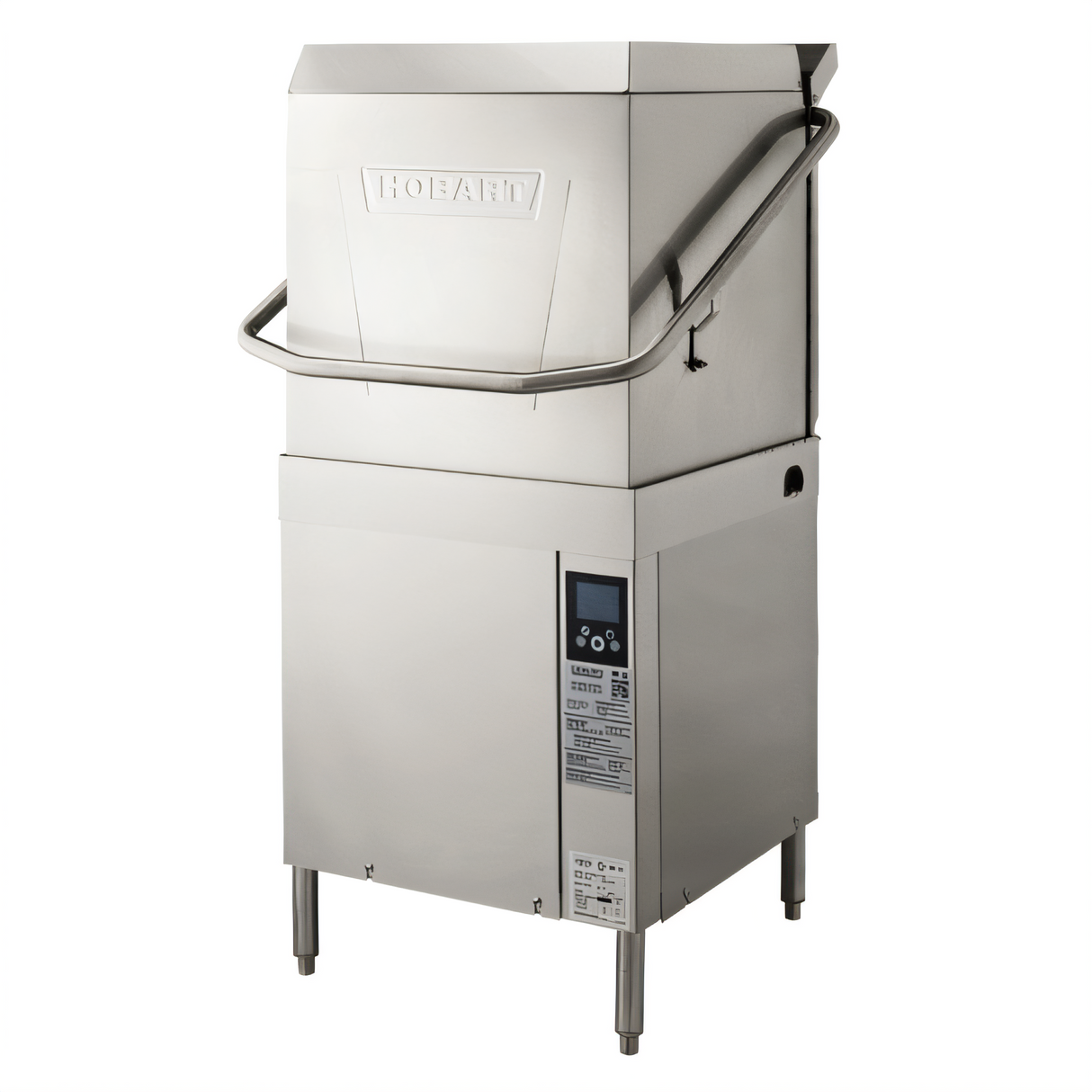

Hobart AM16 Warewash High-Temp Door-Type Dishwasher
Model AM16-BAS • ENERGY STAR® QualifiedDesigned for the busiest kitchens, the Hobart AM16 Warewash delivers high-temperature sanitation, ultra-low water consumption and smart cloud connectivity—all in a versatile door-type footprint that can be installed straight-thru or in a corner.

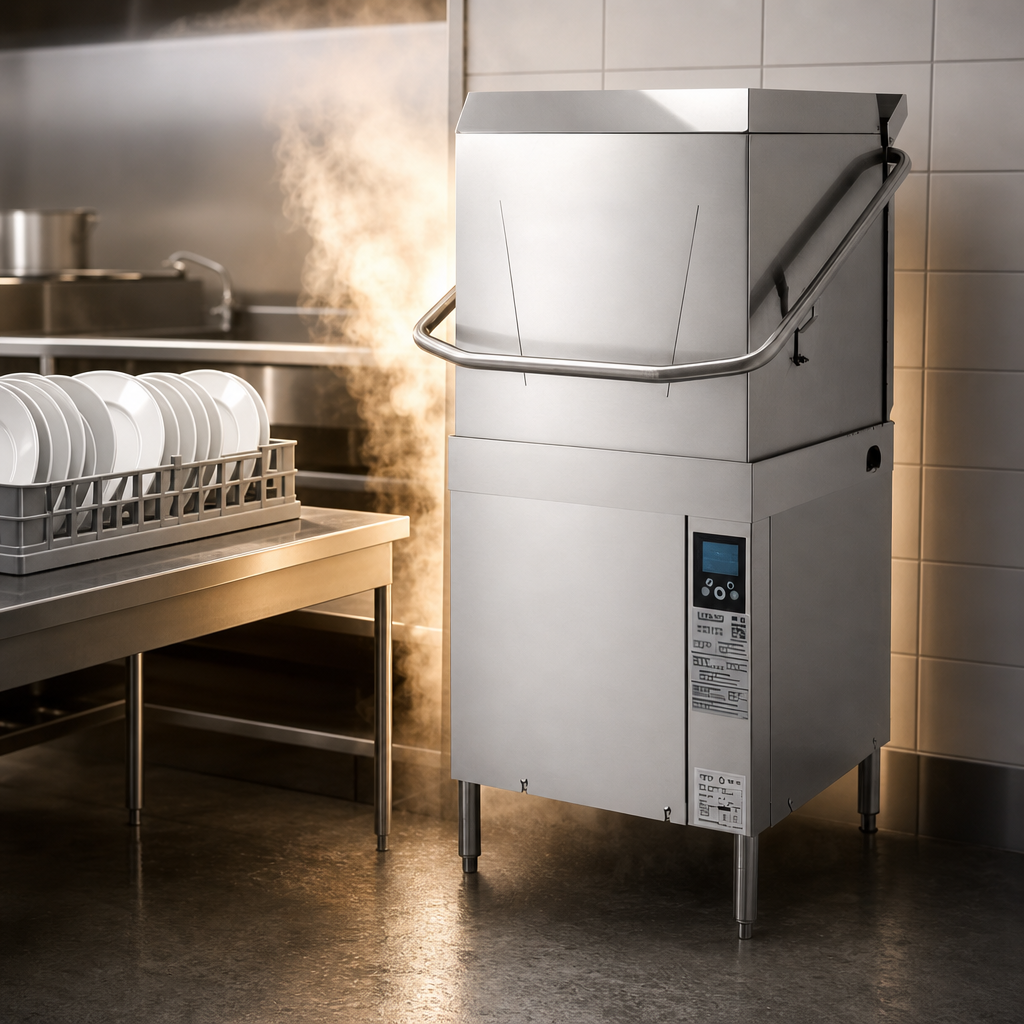

Key Features & Benefits- High-temperature sanitizing—no chemical sanitizer required.
- 60 racks per hour (≈1,500 dishes / 2,700 glasses).
- Just 0.67 gal of water per rack—cuts utility costs.
- User-friendly smart touchscreen with cycle countdown & temperature read-outs.
- Built-in Wi-Fi with SmartConnect cloud for remote monitoring, temperature logs and usage analytics.

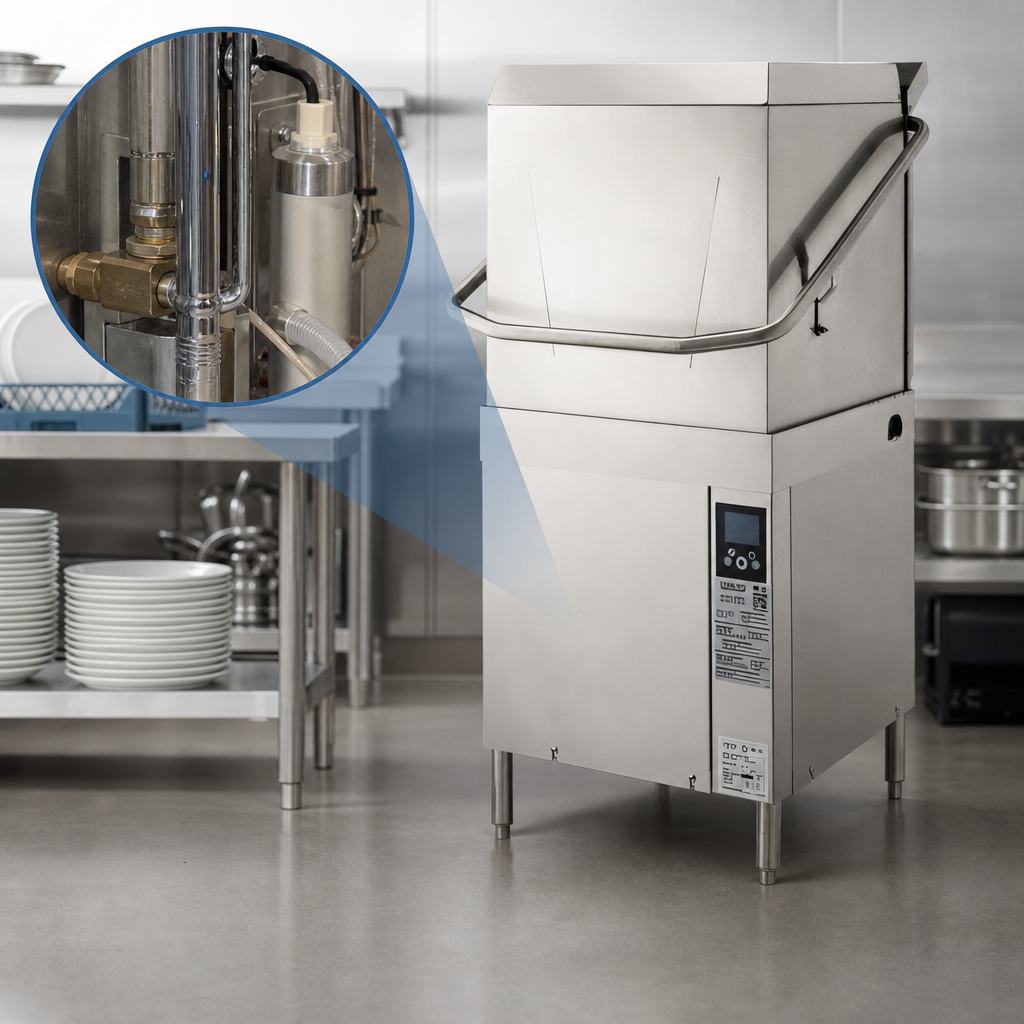

- Sense-A-Temp™ 7.1 kW booster guarantees a consistent 180 °F final rinse.
- Pumped rinse and pumped drain—install without a floor drain.
- Pillarless 17″ opening fits full-size sheet pans; NSF pot & pan rated (2, 4 & 6-min cycles).
- Automatic fill & door-actuated start speed up workflow.
- Delime notification & cycle help prevent scale build-up.
- Two-stage filtration, X-shaped self-cleaning wash arms and AutoClean program keep maintenance to a minimum.
- 5-sided insulated hood reduces heat loss and noise.
- All-stainless tank, chamber, doors, frame & feet for long-term durability.
- Field-convertible: single- or three-phase, single- or dual-point electrical.
Sanitizing method | High-temperature (180 °F final rinse) |
---|---|
Racks per hour | 60 |
Water use | 0.67 gal per rack | 40.2 gal per hour max |
Wash tank capacity | 10.5 gal |
Selectable cycle times | 1, 2, 4 or 6 minutes |
Door opening | 17″ |
Booster heater | Sense-A-Temp™ 7.1 kW, 70 °F rise |
Main wash heat | 5.4 kW electric tank heater |
Electrical | 208-240 V / 60 Hz / 3 ph (field convertible to 1 ph) |
Amps @ 208-240 V 3 ph | 26.9 – 30 A (single-point connection) |
Construction | Stainless steel tank, chamber, doors, frame & feet |
Certifications | cULus, NSF, ENERGY STAR® |
Warranty | 1-year parts & labor |
- Restaurants & cafés
- Hotels & resorts
- Catering venues & banquet halls
- Schools & universities
- Healthcare & long-term care facilities
Need chemical pumps, seismic feet or tabling? A full range of factory-approved accessories is available—ask us for a customized quote.
