Hobart  |  Warewash  |  SKU: AM16-BAS-10

Hobart AM16-BAS-10 Warewash Dishwashers

$18,466.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

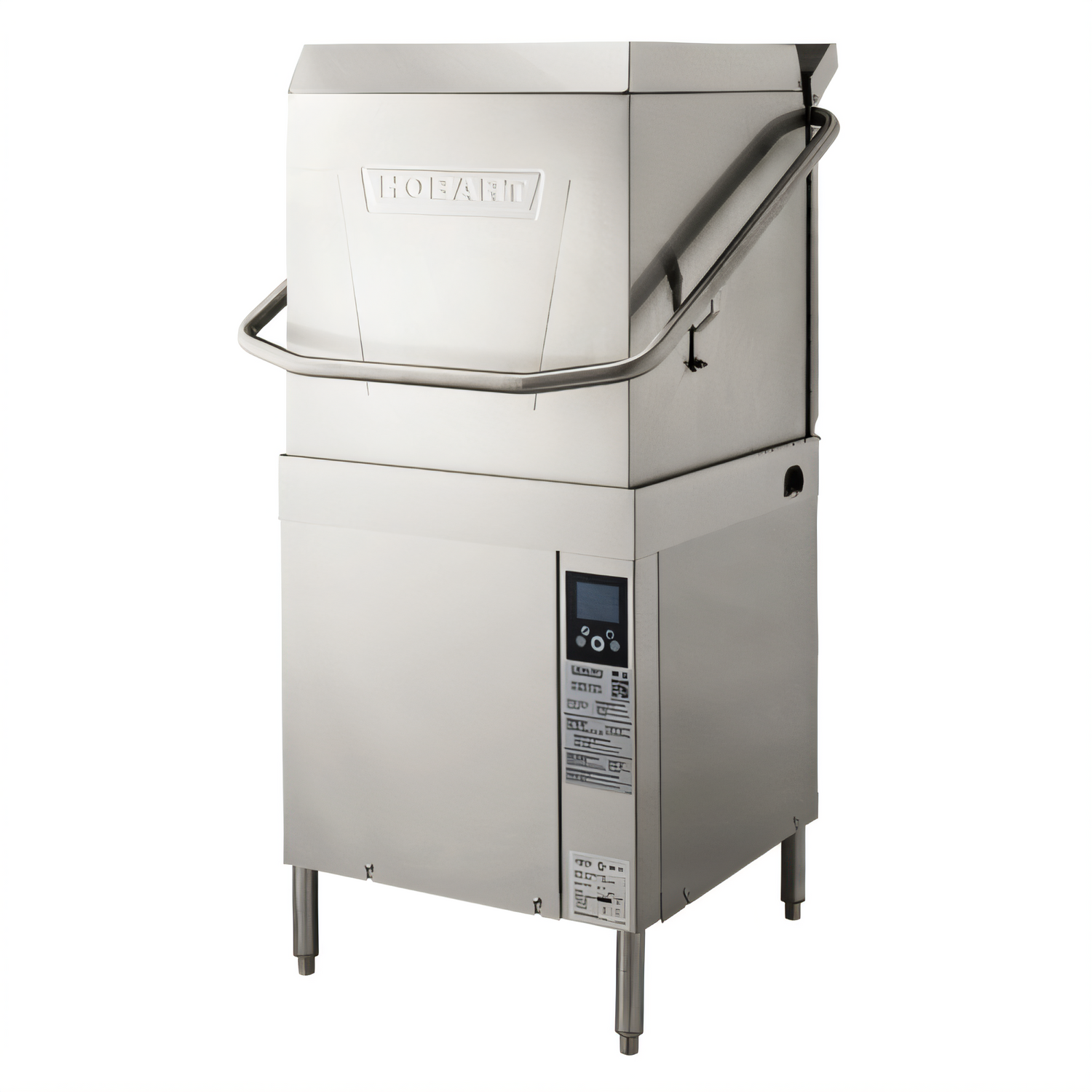

Hobart AM16 “Warewash” High-Temperature Door-Style Dishwasher

SmartConnect-Enabled • 60 Racks/Hour • ENERGY STAR®

Designed for hard-working commercial kitchens that refuse to compromise on sanitation, throughput or sustainability, the AM16 Warewash delivers a full high-temp clean using only 0.67 gal of water per rack. Add Hobart’s intuitive touchscreen control-panel, built-in Wi-Fi, and the industry-leading Sense-A-Temp™ 70 °F-rise booster and you have a powerhouse that keeps dishes spotless while keeping operating costs under control.

Why You’ll Love It

  • High-temp sanitizing (no chemicals required) handles up to 60 racks per hour.
  • Ultra-low water use: 0.67 gal per rack – slashes utility costs and earns ENERGY STAR® status.

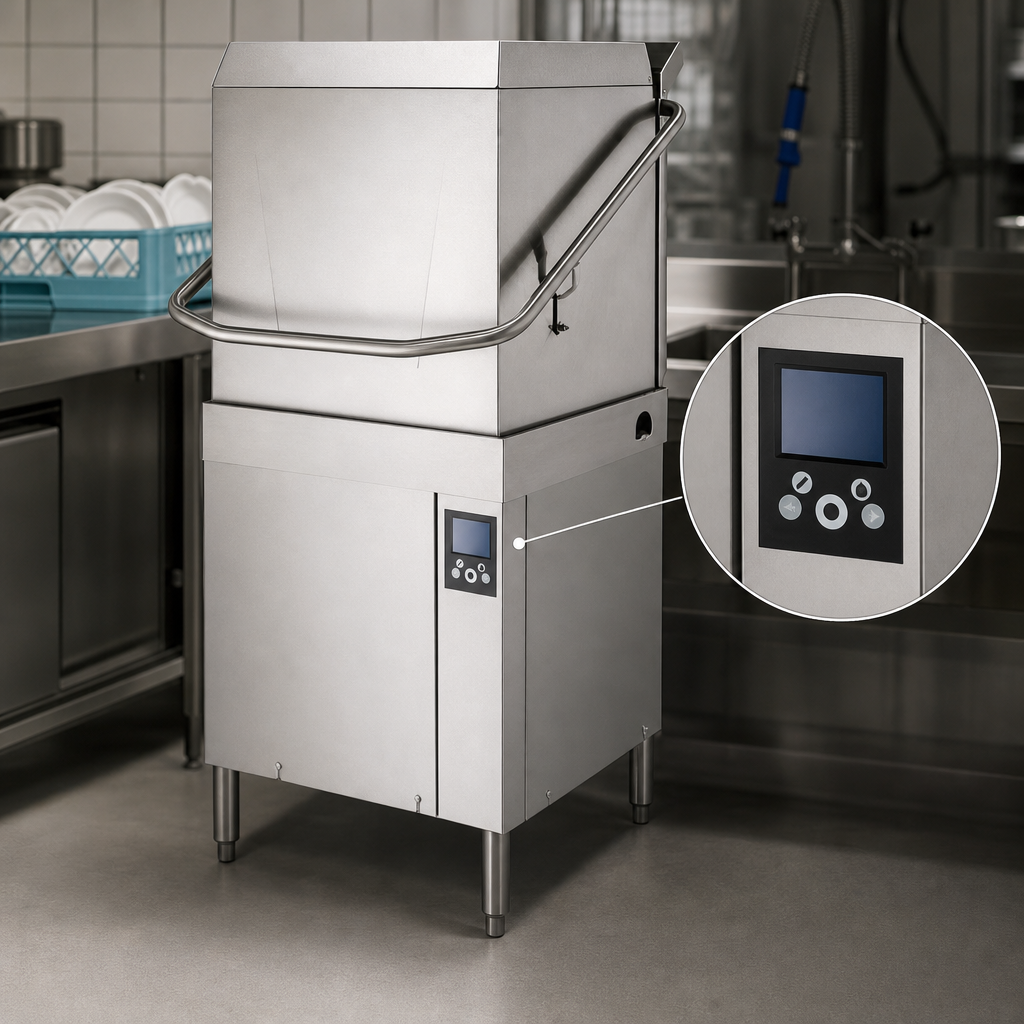

  • Smart touchscreen with color icons, cycle countdown and multilingual prompts.
  • On-board Wi-Fi with SmartConnect cloud app for temperature logs, usage analytics and remote service diagnostics.
  • Four programmable cycles (1, 2, 4 or 6 min) with NSF-certified pot-&-pan setting.
  • Automatic fill plus door-actuated start speeds operation; pumped rinse & pumped drain simplify installation.
  • Sense-A-Temp™ 7.1 kW booster heater guarantees a constant 180 °F final rinse.
  • Stainless-steel tank, frame, doors & feet stand up to the heaviest commercial abuse.
  • Pillar-less, 17-inch opening accepts full-size sheet pans, mixing bowls and stock pots.
  • Acoustic-dampening, 5-sided insulated hood keeps the dishroom cooler and quieter.
  • Field-convertible for straight-thru or corner installation—no extra kit required.
  • Built-in Delime notification & cycle protect your investment from hard-water scale.

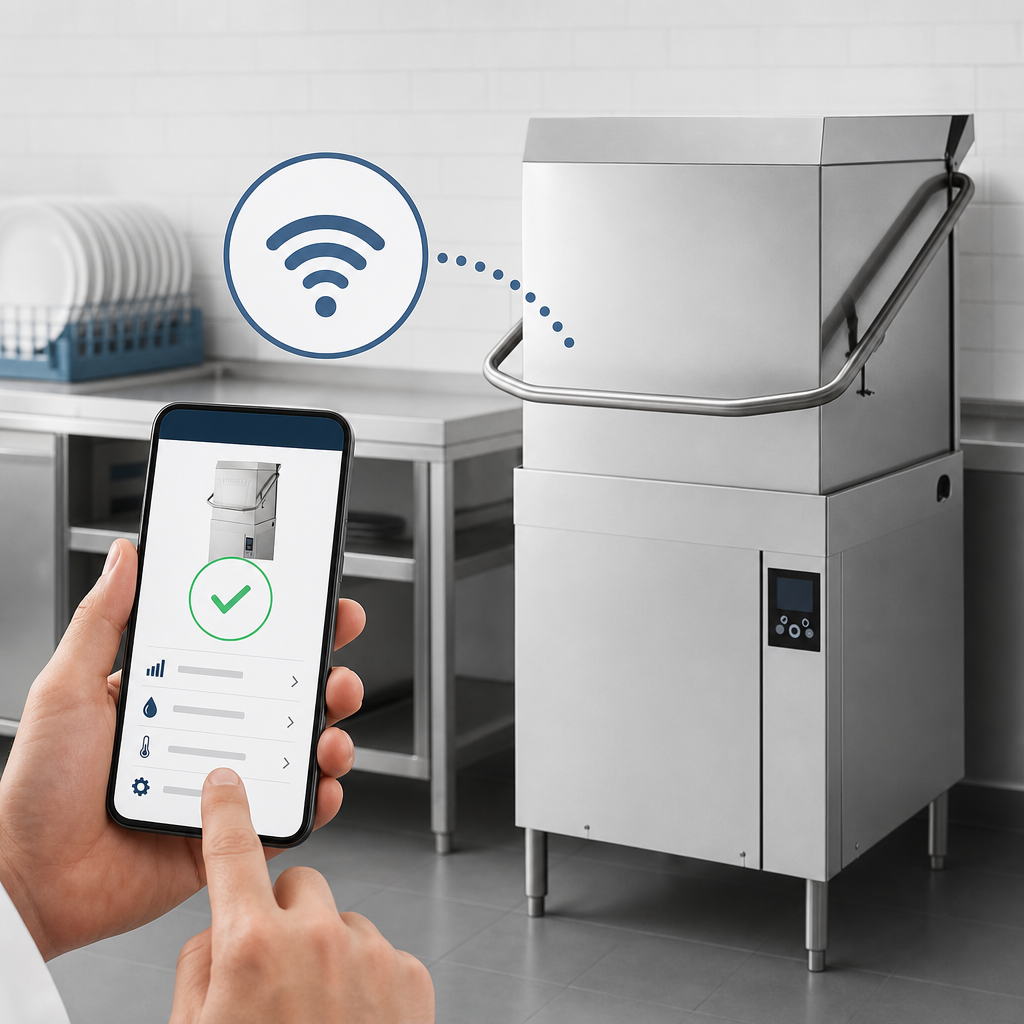

Connected Intelligence

Every AM16 Warewash ships Wi-Fi ready. Pair it once with the free Hobart SmartConnect app and you can:

  • View live machine status & cycle counts from any device.
  • Download automatic temperature & compliance reports.
  • Receive alerts for error codes, deliming or preventative-maintenance needs.
  • Track water, energy & chemical consumption to uncover extra savings.

Technical Specifications

Capacity 60 racks/hr • up to 1,500 dishes/hr
Water Usage 0.67 gal per rack (40.2 gal/hr max)
Cycle Times 1, 2, 4, 6 min selectable
Wash Tank Volume 10.5 gal
Booster Heater 7.1 kW Sense-A-Temp™ (70 °F rise)
Tank Heat 5.4 kW electric
Electrical 380-415 V / 50 Hz / 3-ph, 20 A max (single-point connection)
Dimensions (W × D) 25 3⁄16 " × 30 "
Height 59 " (door closed) • 78 ½ " (door open)
Door Opening 17 "
Exhaust Requirement 450 CFM (vent-hood when required)
Certifications NSF, cULus, ENERGY STAR®
Warranty 1 year parts & labor

What’s in the Box

  • (1) AM16 Warewash dishwasher with 6 ft hot-water hose
  • (1) Stainless scrap screen & basket
  • (1) Standard dish rack
  • Installation & operation manual
Important: Factory-supplied ¾-inch hot-water hose requires 110 °F water at 20-65 psi and hardness ≤ 3 grains for optimal performance. Professional installation by a licensed technician is recommended.

Need help configuring tabling, chemical pumps or drain-water tempering kits? Our food-service specialists are happy to assist—just hit “Add to Quote” and include your questions in the notes.

Features & Specs

Manufacturer

Hobart

Brand_name

Warewash

Design

universal (straight-thru/corner)

Energy Efficiency

ENERGY STAR®

Rack Capacity

approximately (60) racks/hour

Construction

stainless steel

Temperature

high temp with booster

Tank Heat

electric

Specifications

Dishwasher, door type, high temp sanitizing, 380-415/50/3, 60 racks/hour, straight-thru or corner, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app, Delime Notification with Cycle, Sense-A-Temp™ booster, electric tank heat, pumped rinse, pumped drain, auto-fill, stainless steel tank, frame, doors & feet, NSF, ENERGY STAR®
