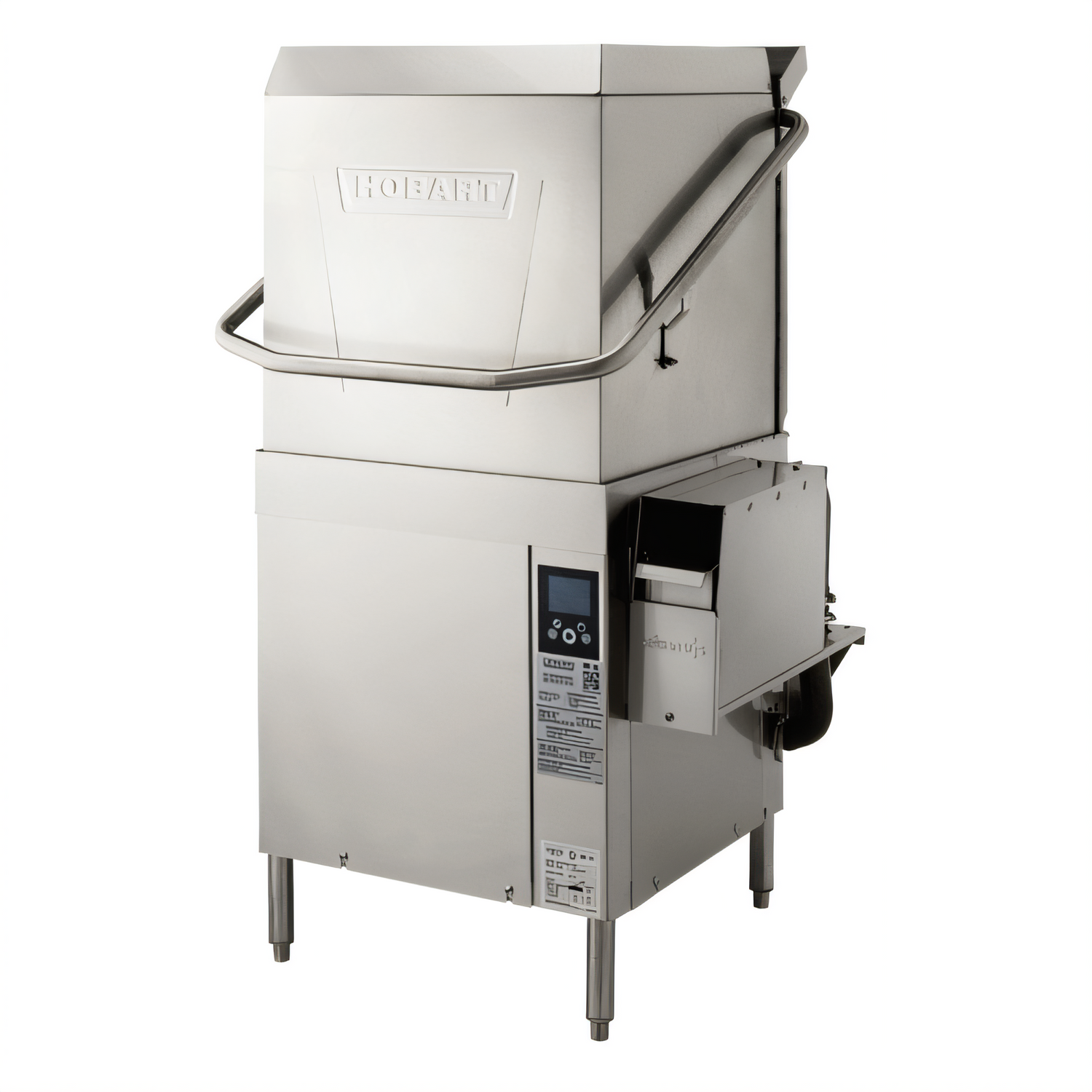

Hobart AM16-ASR Warewash Door-Type Dishwasher
High-Temperature • Automatic Soil Removal • Wi-Fi ConnectedTackle peak-hour rushes without breaking a sweat. Engineered around Hobart’s proven AM16 platform, the AM16-ASR delivers up to 52 sanitized racks every hour while using just 0.67 gal of final-rinse water per rack— the lowest in its class. Smart touchscreen controls, built-in Wi-Fi and Hobart’s Automatic Soil Removal (ASR) system combine to slash labor, water and chemical costs, all in a rugged stainless-steel package that installs straight-thru or in a corner.
Key Performance Features

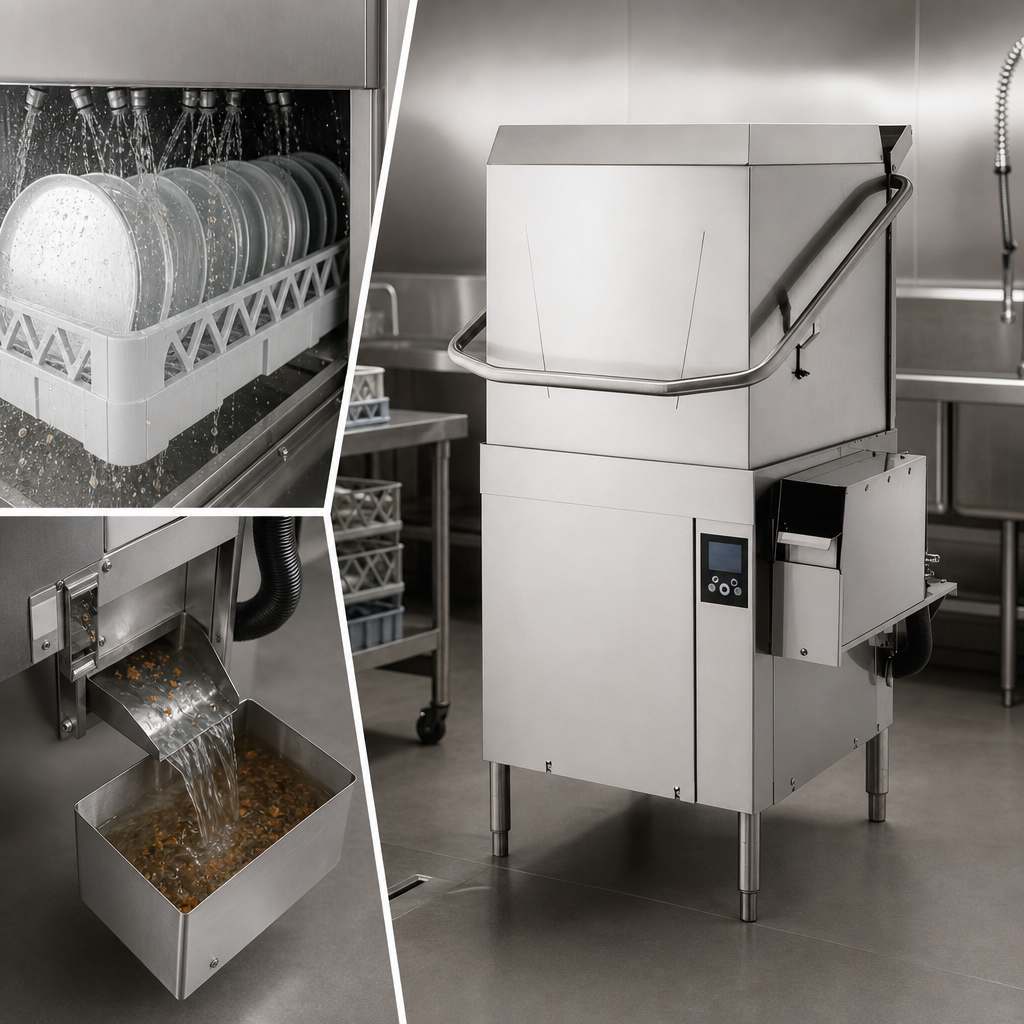

- Automatic Soil Removal (ASR) continuously pulls food soil out of the wash water, extending wash quality and reducing pre-scrapping labor.

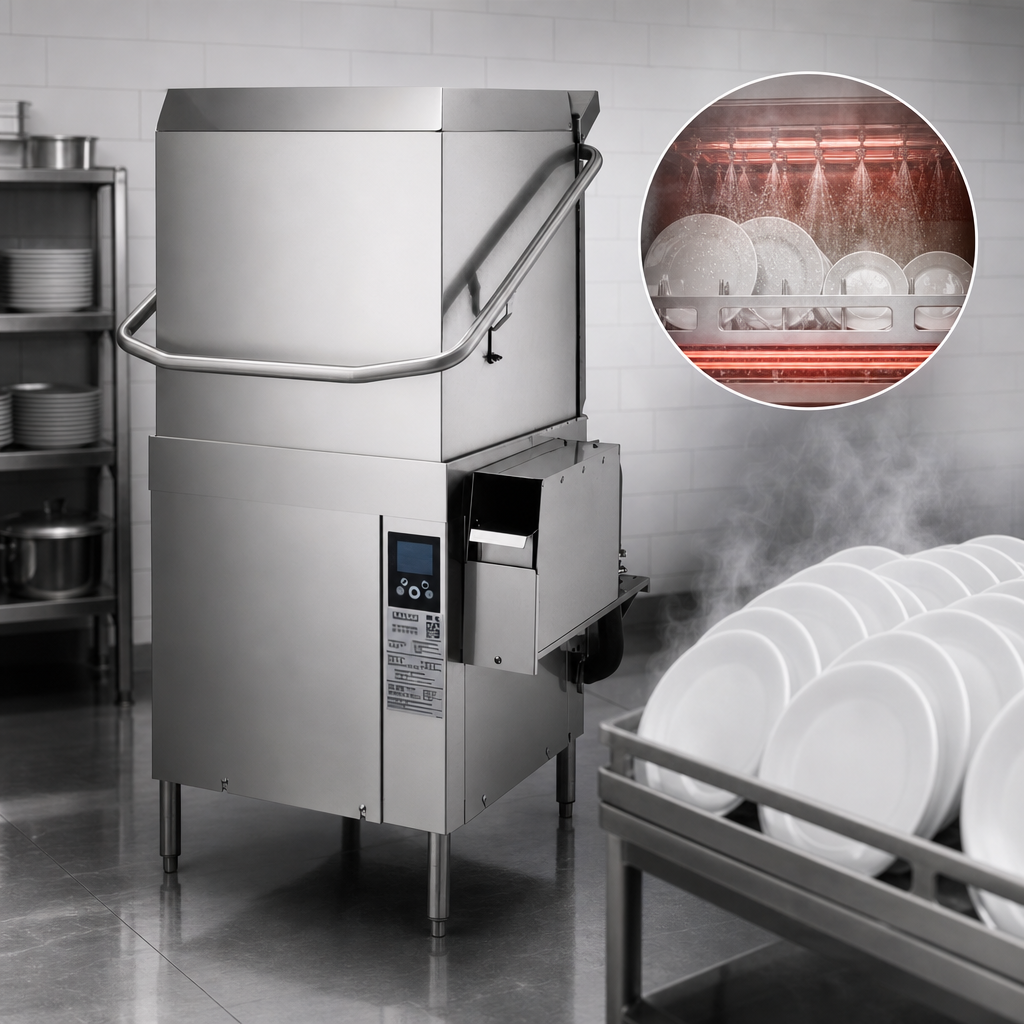

- High-Temp Sanitizing with Sense-A-Temp™ 70 °F-rise electric booster and Booster Guard™ for assured 180 °F final rinse every cycle.
- Ultra-low water & energy – just 0.67 gal/rack; ENERGY STAR® qualified.
- Smart Touchscreen + Wi-Fi gives you live status, temperature logs, usage analytics and error alerts through the SmartConnect cloud/app.
- Complete Delime™ cycle with Delime Notification and built-in auto-dispensing protects your investment from scale.
- Door-actuated start + automatic fill speeds work flow; pillarless 17" opening eases loading of sheet pans and stock pots.
- X-shaped anti-clog wash arms and interchangeable rinse arms ensure full-coverage cleaning.
- Five-sided insulated hood keeps heat & noise in the machine, not the dishroom.
- Durable all-stainless construction – tank, chamber, trim panels, frame and feet.
- Single-point electrical connection ships 208-240/60/3 and is field-convertible to single phase.
Technical Specifications
| Capacity | 52 racks/hr | ≈1,300 dishes/hr | ≈2,340 glasses/hr |
|---|---|
| Cycle Times | 1, 2, 4 or 6 minutes (NSF Pot & Pan certified) |
| Final Rinse Water | 0.67 gal/rack (34.84 gal/hr max) |
| Wash Tank Volume | 10.5 gal |
| Electrical | 208-240 V / 60 Hz / 3 ph (field-convertible to 1 ph) • 53.5 A single-point |
| Heating | Tank 5.4 kW | Booster 7.1 kW |
| Motors | Wash 2 HP • Rinse 0.18 HP • ASR 0.18 HP • Drain 0.21 HP |
| Water Connections | 3⁄4" GHT hot (110 °F) & 3⁄4" GHT cold for drain tempering |
| Drain | Pumped drain with NSF air-gap • Peak 18.5 GPM |
| Dimensions (H×W×D) | 78 ½" door open / 65 ⅛" closed × 25 3⁄16" × 24 7⁄16" |
| Certifications | cULus • NSF • ENERGY STAR® |
What’s Included
- Automatic Soil Removal module
- Pumped drain with drain-water tempering kit
- Complete Delime™ system with notification
- Factory startup – FREE within 100 mi of a Hobart Service office*
- User manual & owner’s toolkit
Popular Accessories (sold separately)
- Peg, combination & stem-glass racks
- Splash shield for corner installations
- Chemical pump kit
- Flanged / seismic feet
- Door lock or prison package
