Henny Penny HHC990.0-SB SmartHold Proofing Cabinets
Description

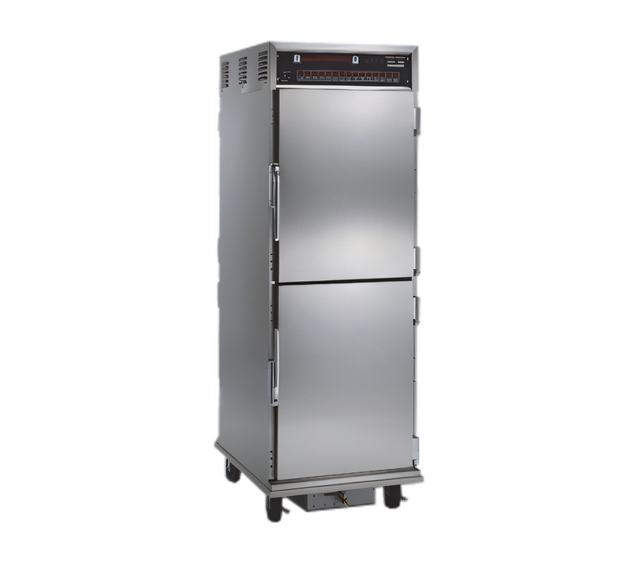

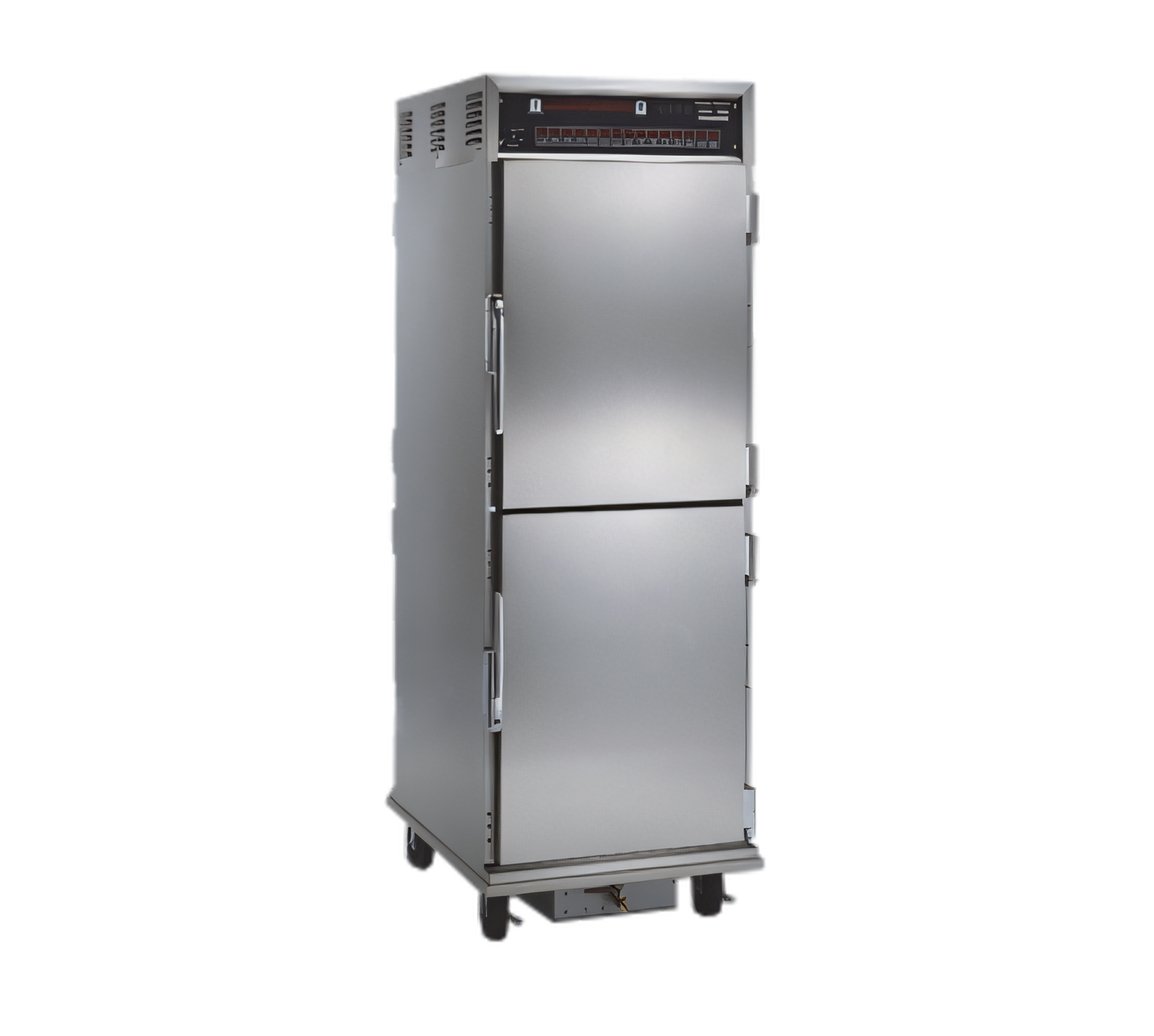

Henny Penny SmartHold® HHC-990 Holding Cabinet
Narrow Full-Size • Automatic Humidity Control • Proof & Hold in OneHold fried chicken, ribs, vegetables, baked goods and more for hours—sometimes overnight—without sacrificing texture, temperature or taste. The SmartHold HHC-990 pairs precise humidity control (10 - 90 % RH) with gentle, even heat to extend hold times up to twice as long as conventional cabinets, cutting food waste and labor while boosting throughput.
Key Advantages
- Patented closed-loop system automatically adjusts water-pan heat, fans and venting to your exact humidity set-point in 1 % increments.
- Dual-mode operation: Proof at 80 – 140 °F (27 – 60 °C) then switch to holding at 160 – 210 °F (71 – 99 °C) in the same cabinet.
- Electric touch-pad controller with separate humidity & temperature settings plus low-water warning.
- Auto vent prevents condensation build-up, preserving crisp or dry products.
- Programmable countdown timers (select 5 or 15) start/stop/abort with one button—time up to 15 shelves individually.
- Self-closing, lift-off stainless-steel door (front only) stays open past 90° for fast loading; magnetic latch seals tight when closed.
- 300-grade stainless steel inside and out, fully insulated doors, sidewalls and control module for energy-efficient performance.
- Dual heavy-duty blower motors and ventilated side racks keep cabinet temperatures uniform from top to bottom.
- Mounted on 5 in (127 mm) swivel casters, 2 locking, for effortless mobility and cleaning.
Pan Capacity (18 × 26 in / 457 × 660 mm)
- 10 pans on 4.88 in (124 mm) centers
- 13 pans on 3.75 in (95 mm) centers
- 15 pans on 3.25 in (83 mm) centers
Technical Specifications
| Model | HHC-990 SmartHold |
|---|---|
| Cabinet Footprint | 24.75 × 31.75 in (628 × 806 mm) |
| Overall Height | 72.25 in (1835 mm) including casters |
| Temperature Range | Proof 80 – 140 °F • Hold 160 – 210 °F |
| Humidity Range | 10 – 90 % RH, adjustable in 1 % steps |
| Water-Pan Capacity | 3 gal (11.4 L) recessed stainless steel pan with external drain |
| Electrical | Single-phase, 2.68 – 2.88 kW; 120, 200, 208, 220-240 V, 50/60 Hz (see spec sheet for amp draw and cord options) |
| Crated Weight | 367 lb (167 kg) |
| Construction | 300-series stainless steel; fully insulated doors, sidewalls & control module |
| Mobility | (4) 5 in (127 mm) casters — 2 locking |
| Certifications | cULus • UL EPH • CE |
What’s Included
- SmartHold HHC-990 cabinet with touch-pad controls
- Front stainless-steel door (field-selectable left/right hinge)
- Water pan & automatic humidity vent system
- Choice of countdown timer package (5 or 15)
- Heavy-duty pan racks (10, 13 or 15 levels)
Warranty
Covered by Henny Penny’s limited 2-year parts & labor warranty (excludes lamps / fuses). See full warranty statement for complete terms.
Continuing product improvement may cause specifications to change without notice.
