Henny Penny HHC990.0-PT SmartHold Proofing Cabinets
Description

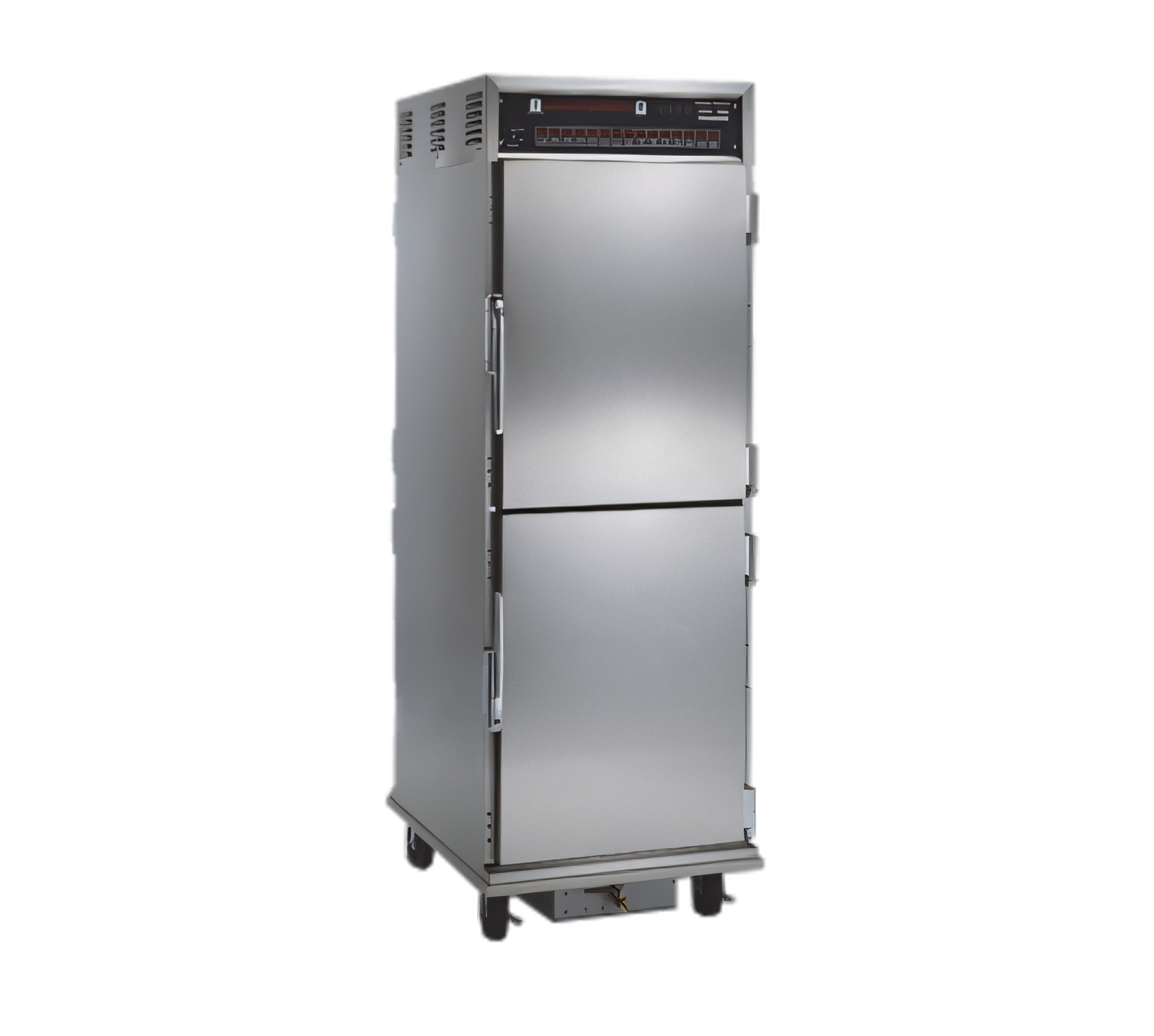

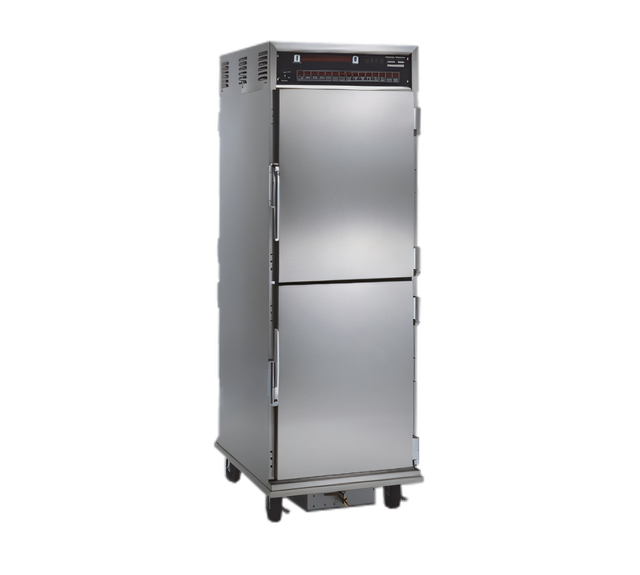

Henny Penny SmartHold® HHC-990 Pass-Thru Holding Cabinet
Narrow full-size | Automatic humidity control | Proof-and-hold in one unitServe food that looks and tastes freshly prepared—no matter when it was cooked. The Henny Penny SmartHold HHC-990 couples precise temperature management with patented closed-loop humidity control, letting you hold virtually any hot menu item for hours (even overnight) without loss of quality or yield.
Why SmartHold?
- Patented system maintains 10 – 90 % RH in 1 % increments—no guesswork, no dry-outs.
- Dual modes: Proof (80 – 140 °F) or Hold (160 – 210 °F) at the touch of a button.
- 3 gal recessed water pan with quick-response steam generation and low-water warning.
- Heavy-duty blower motors and ventilated side racks deliver consistent cabinet-wide airflow.
- Fully insulated 300-grade stainless-steel construction for energy efficiency and easy clean-up.
- Self-closing, lift-off pass-thru doors stay open past 90° for fast loading on the kitchen side and easy retrieval on the service side.
- Programmable countdown timers (choice of 5 or 15) start/stop with one switch and keep every shelf on schedule.
- Magnetic door latches, full-perimeter gaskets and automatic venting preserve heat & humidity, slash utility costs and cut food waste.
- Mounted on 5 in (127 mm) swivel casters—two locking—for effortless mobility during cleaning or line changes.
Capacity Options
- 10 full-size sheet pans (18 × 26 in) on 4.88 in centers
- 13 full-size sheet pans on 3.72 in centers
- 15 full-size sheet pans on 3.25 in centers
At-a-Glance Specifications
| Exterior dimensions | 24.75 W × 31.75 D × 72.25 H in (628 × 806 × 1835 mm) |
|---|---|
| Construction | 300-series stainless steel, fully insulated doors, sidewalls & control module |
| Temperature range | Proof 80 – 140 °F (27 – 60 °C) | Hold 160 – 210 °F (71 – 99 °C) |
| Humidity range | 10 % – 90 % RH (user adjustable in 1 % increments) |
| Water pan capacity | 3 gal (11.4 L) recessed; external drain connection |
| Electrical (single-phase) |
120 V | 2.68–2.88 kW | 22.3–24.0 A 208 V | 2.88 kW | 13.8 A 220–240 V | 2.79 kW | 11.6 A (Cord & NEMA plug supplied for U.S./Canada models.) |
| Uncrated weight | 367 lb (167 kg) |
| Agency listings | cULus, UL EPH, CE |
| Warranty | 2-year parts, 1-year labor (excludes lamps & fuses) See full Henny Penny limited warranty for details. |
Operational Advantages
- Hold fried chicken up to 50 % longer, ribs up to 200 % longer, and still plate with just-cooked flavor.
- Cook in large batches during off-peak hours, then load SmartHold to meet service peaks without extra staff.
- Proof, hold and serve from the same cabinet—freeing floor space and eliminating a dedicated proof box.
- Pass-thru design streamlines kitchen-to-service flow and improves food safety by reducing traffic cross-over.
Need help selecting rack configurations, power requirements or accessories? Contact our equipment specialists—we’re ready to tailor a SmartHold solution for your operation.
