Henny Penny EEG244.0 Evolution Elite Gas Fryers
Description

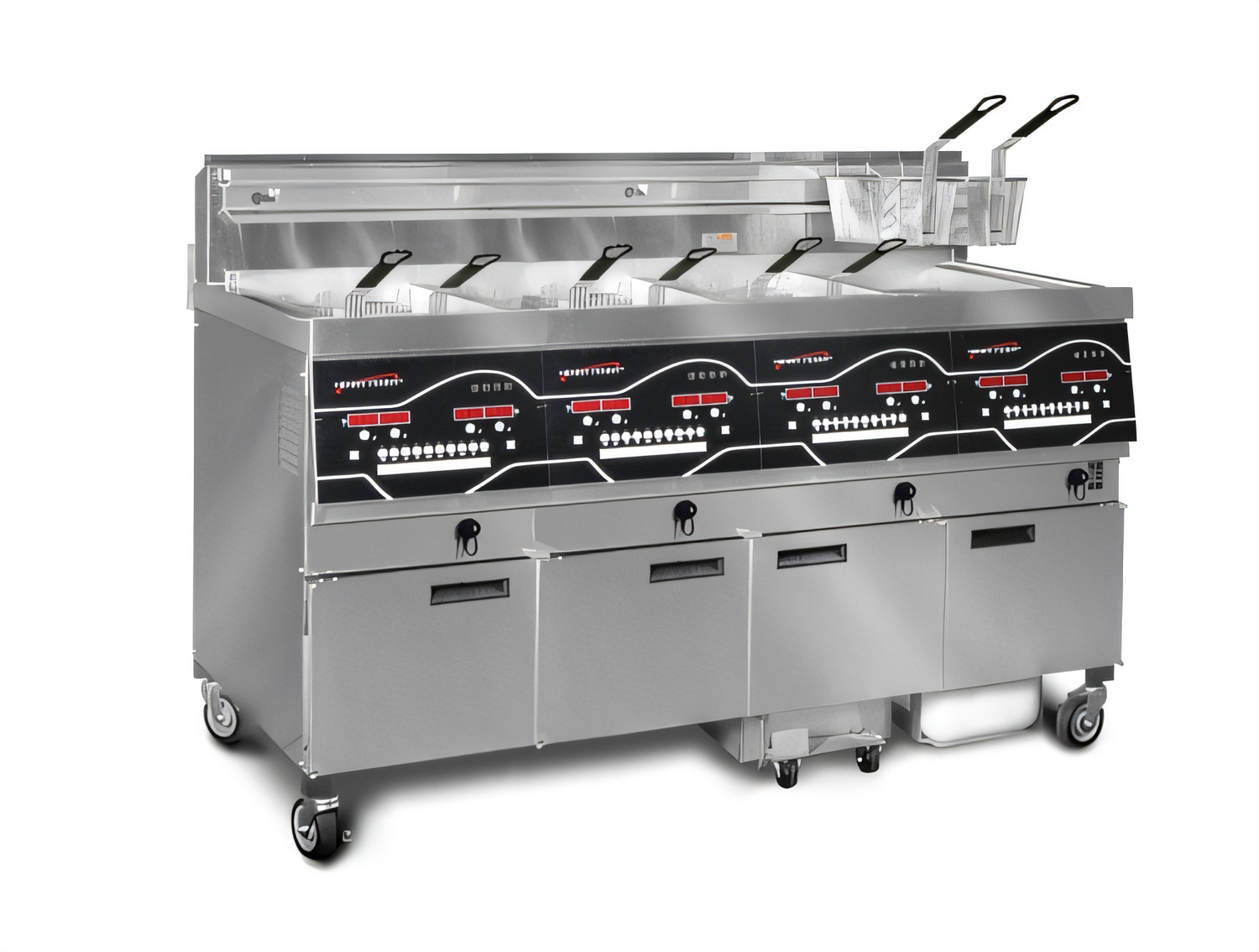

Henny Penny Evolution Elite® EEG 244 Gas 4-Well Open Fryer
30 lb reduced-oil vats | Smart Touch Filtration | ENERGY STAR® qualifiedDesigned for high-volume, freezer-to-fryer operations, the Evolution Elite® EEG 244 cooks the same load as a traditional 50-lb fryer while using 40 % less oil. Four independent 30 lb vats let you run separate menus or staging programs side by side, and the built-in Oil Guardian™ and Smart Touch Filtration work together to keep oil fresh, flavor locked-in, and costs way down.
Key advantages
- Four full-size 30 lb (15 L) vats = 120 lb total reduced-oil platform.
- Oil Guardian™ sensor-activated top-off replaces manual add-backs automatically.
- Smart Touch Filtration filters any single vat in ≤4 minutes while the others keep cooking.
- iControl™ stores up to 40 cooking programs, with idle, melt, load-compensation & USB support.
- High-efficiency burners (300,000 BTU/hr) deliver fast recovery and ENERGY STAR® savings.
- 7-year fry-vat warranty backed by heavy-gauge stainless steel construction.
- Mounted on four swivel casters (2 locking) for easy cleaning and service access.
Smart oil & energy management
- Melt mode gradually heats solid shortenings without scorching.
- Idle mode lowers set-point during slow periods to cut energy use and extend oil life.
- Filter tracking, prompts and lock-out customize filter frequency to your operation.
- Proportional control prevents temperature overshoot for consistent, crispy results.
Specifications
| Model | EEG 244 (gas, open) |
|---|---|
| Wells / vats | 4 full vats (independent) |
| Oil capacity | 30 lb (15 L) per vat • 120 lb (60 L) total |
| Heat source | Natural or LP gas • 16 burners / 300,000 BTU hr (79.2 kW) |
| Controls | iControl™ LED interface, up to 40 programs, USB port |
| Filtration | SmartFilter Express™ system w/ 2 filter pads & Filter Beacon® |
| Exterior dimensions* | 63.0 W × 33.14 D × 46.47 H in (1600 × 842 × 1180 mm) |
| Gas connection | 1 in NPT, 7.5 in WC nat gas / 11 in WC LP typical |
| Electrical | 120 V, 1 ph, 60 Hz, 12.2 A (cord & plug may ship loose) |
| Shipping weight | ≈ 795 lb (361 kg) crated |
| Certifications | cULus, UL EPH, CE, ENERGY STAR® |
*Add 10.25 in (260 mm) height and 5 in (127 mm) depth if ordered with optional auto-lift.
Standard shipment
- (4) full baskets or (8) half baskets & basket supports
- Lock-in drain pan on casters with “pan not latched” sensor
- (2) SmartFilter™ pads installed
- Installation & operating manual
Popular options
- Auto-lift (one lift per vat)
- ODS-310 50-lb bulk-oil disposal shuttle
- Fry-well covers
- Additional SmartFilter™ pads or paper
- Oil dispensing jug
Installation clearances
- Sides: 2 in (51 mm) from combustible materials.
- Back: 6 in (152 mm) for airflow & connections.
- Front: 30 in (762 mm) to remove drain pan.
- Flue must remain unobstructed.
Peace-of-mind warranty
- 7-year fry-vat replacement warranty
- 2-year parts & 1-year labor on entire unit
ENERGY STAR® and the ENERGY STAR mark are registered US marks. Oil Guardian™, SmartFilter Express™, Filter Beacon® and Evolution Elite® are trademarks of Henny Penny Corp.
