Hatco  |  Ultra-Glo®  |  SKU: UGAL-72

Hatco UGAL-72 Ultra-Glo® Heat Lamps

$1,222.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Parts list Owner's manual Catalog brochure
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

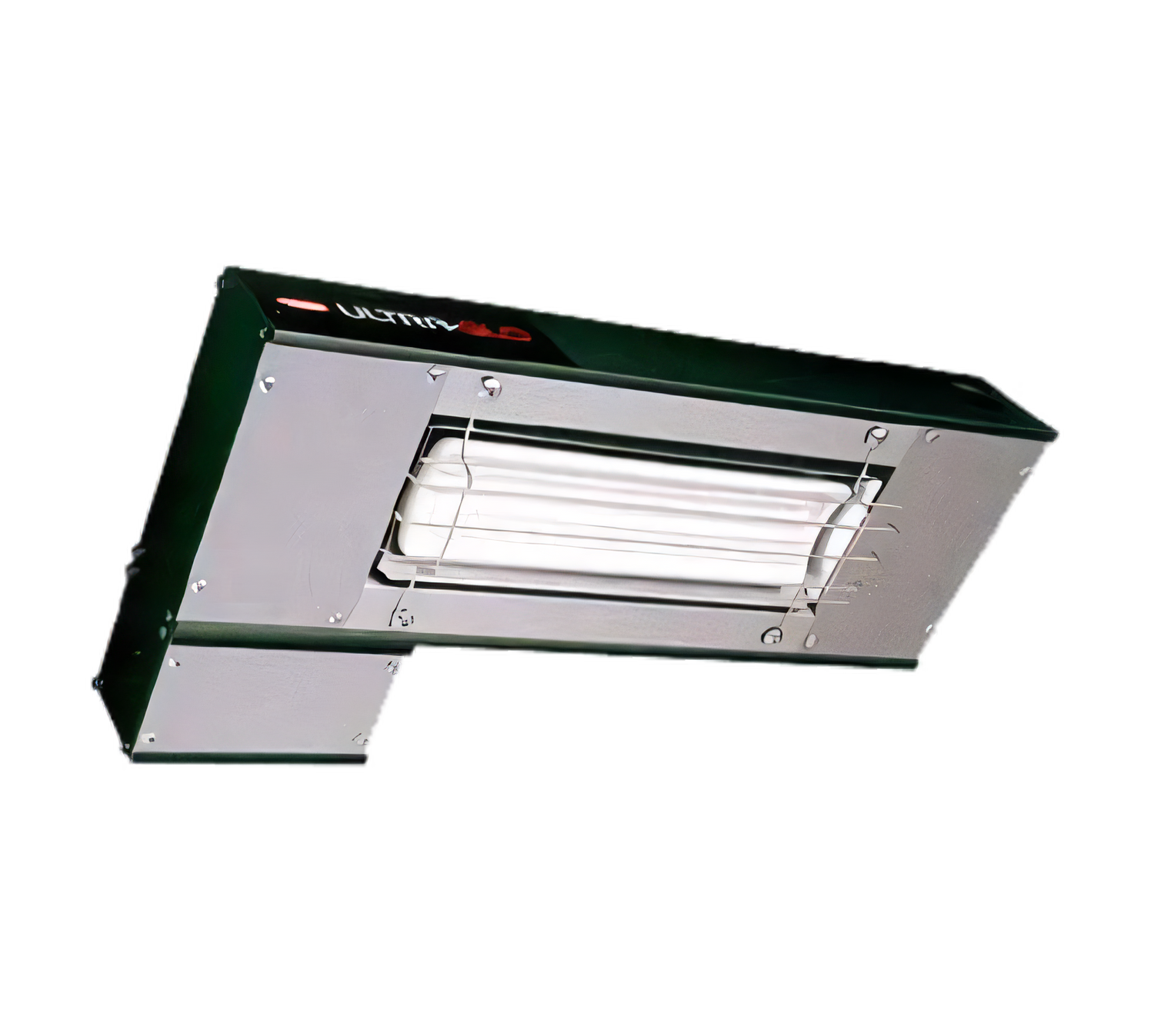

Hatco Ultra-Glo® 72" Ceramic Infrared Strip Heater – Standard Wattage with Lights

Model UGAL-72 | Single Ceramic Tile | Remote or Attached Controls

Give every plate the perfect finish and keep buffet lines camera-ready with Hatco’s longest Ultra-Glo® strip heater. The 72 inch model delivers an even, pre-focused blanket of ceramic infrared heat while integrated display lights showcase food in its best light—all in a sleek, sag-proof aluminum housing that mounts exactly where you need it.

Key advantages

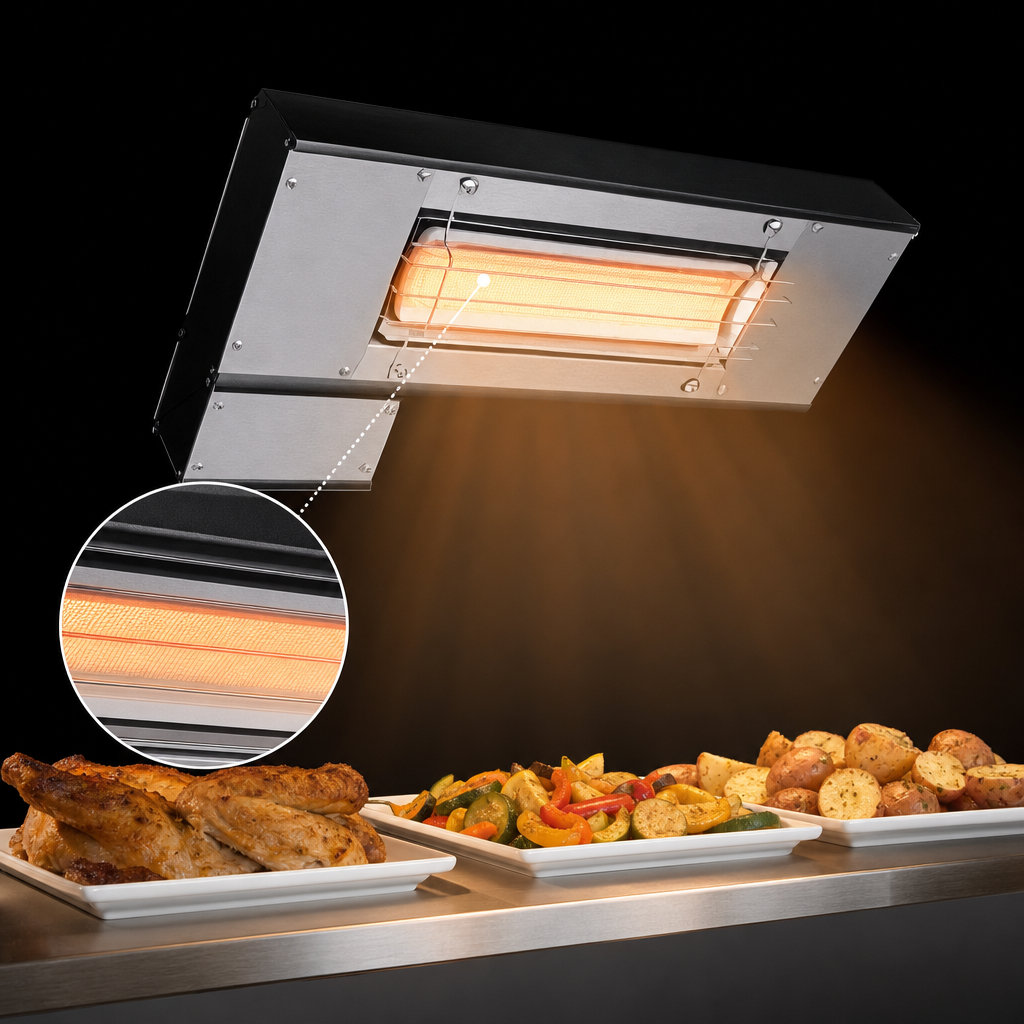

  • Full-length heat zone: Single ceramic emitter concentrates heat to the edges where loss is greatest, covering the entire 6 ft holding area.
  • Higher working clearance: Ceramic technology allows mounting 14-18" (356-457 mm) above the pass shelf for easier plating and safer service.

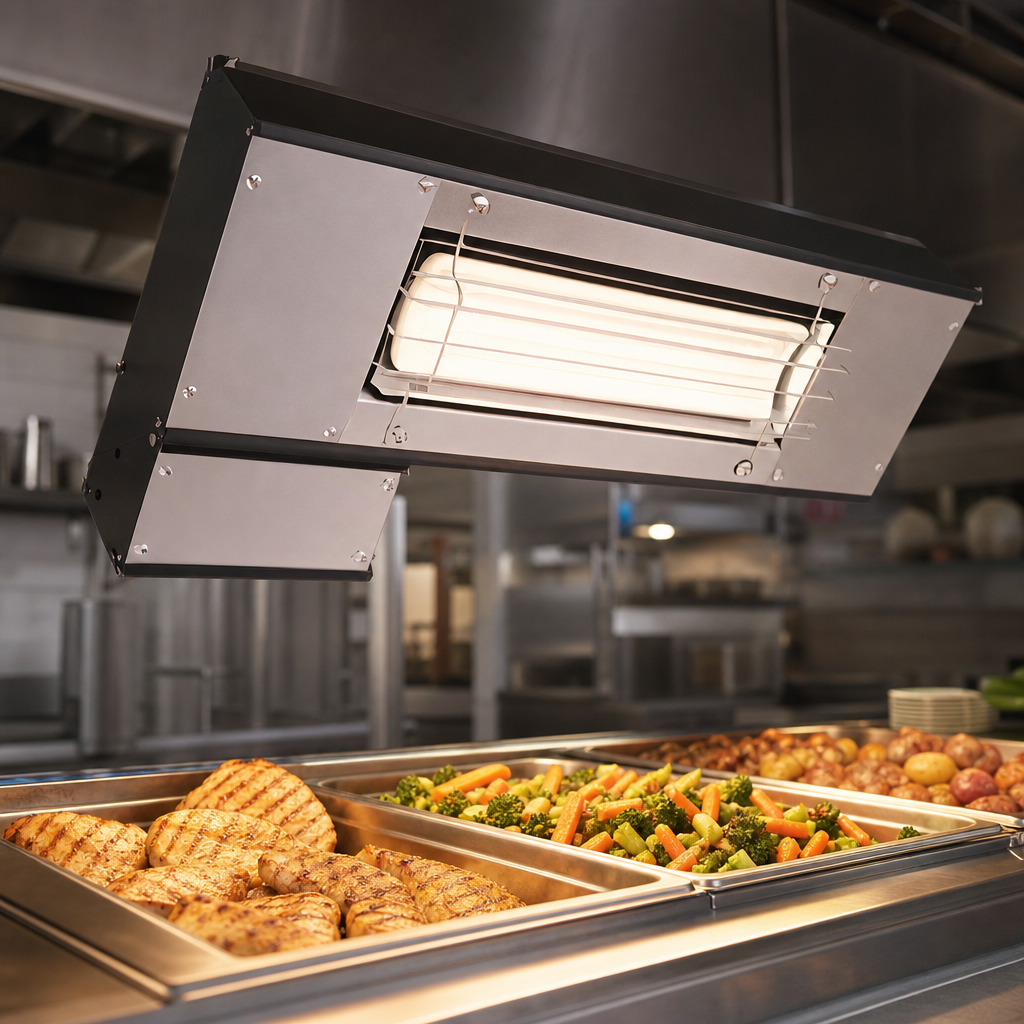

  • Built-in lighting: Factory-installed 60 W display lamps attractively illuminate food while employees clearly see portion sizes.
  • Rock-solid construction: Continuous extruded aluminum housing eliminates sag—even at 72 inches.
  • Flexible controls: Choose either an attached toggle control box or a separate remote control enclosure to suit your layout.
  • Easy aiming: Adjustable angle brackets (included) let you direct heat precisely where it’s needed.
  • NSF & cULus listed: Engineered for front- or back-of-house use and made in the USA for worry-free reliability.

Standard equipment

  • 72" Ultra-Glo® ceramic infrared strip heater – standard watt
  • (2) factory-installed display lamps (60 W each)
  • Adjustable angle mounting brackets
  • 3 ft (914 mm) flexible metal conduit with leads
  • Attached toggle control box or remote control enclosure (select at checkout)

Popular options (factory-installed)

  • Designer Color or Gloss housing finishes (Warm Red, Black, Gray Granite, Brilliant Blue, and more)
  • Halogen bulbs in lieu of standard lamps
  • Extra display lamps (max two per foot, less one)
  • Non-adjustable tubular stands (14"–22") for countertop use
  • Extended power leads up to 20 ft (6 m)

Optional colors & accessories are non-returnable and must be specified at time of order.

Technical specifications

Overall length 72 in / 1829 mm
Depth × Height 9 in × 2.5 in (227 × 64 mm) – with lights
Mounting height (std. watt) 14 – 18 in (356 – 457 mm) above shelf
Housing material Anodized aluminum (continuous extrusion)
Electrical (selectable) 120/208 V – 2320 W – 12.4 A
120/240 V – 2360 W – 11.3 A
240 V – 2360 W – 9.8 A
220 V – 2820 W – 12.8 A
Phase Single
Shipping weight Approx. 32 lb / 15 kg
Certifications NSF, cULus
Country of origin Made in USA
Important : Ultra-Glo® heaters must be installed in non-combustible surroundings only. Follow Hatco installation guidelines and keep the specified clearance above food for optimum performance.

Backed by Hatco’s 24/7 parts & service assistance (U.S. & Canada). See manufacturer’s documentation for full warranty details.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, cULus, Made in USA

Height

3.9in

Width

72.0in

Depth

9.0in

Shipping Weight

32.0lbs

Size

single

Type of element

ceramic heating

Finish

aluminum

Type

lighted

Length

67 - 72"

Specifications

Ultra-Glo® Infrared Strip Heater, 72" W, standard wattage, with lights, single ceramic tile with aluminum housing, with remote or attached control box, adjustable angle brackets, NSF, cULus, Made in USA
