Hatco  |  Ultra-Glo®  |  SKU: UGAL-66

Hatco UGAL-66 Ultra-Glo® Heat Lamps

$1,184.83
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

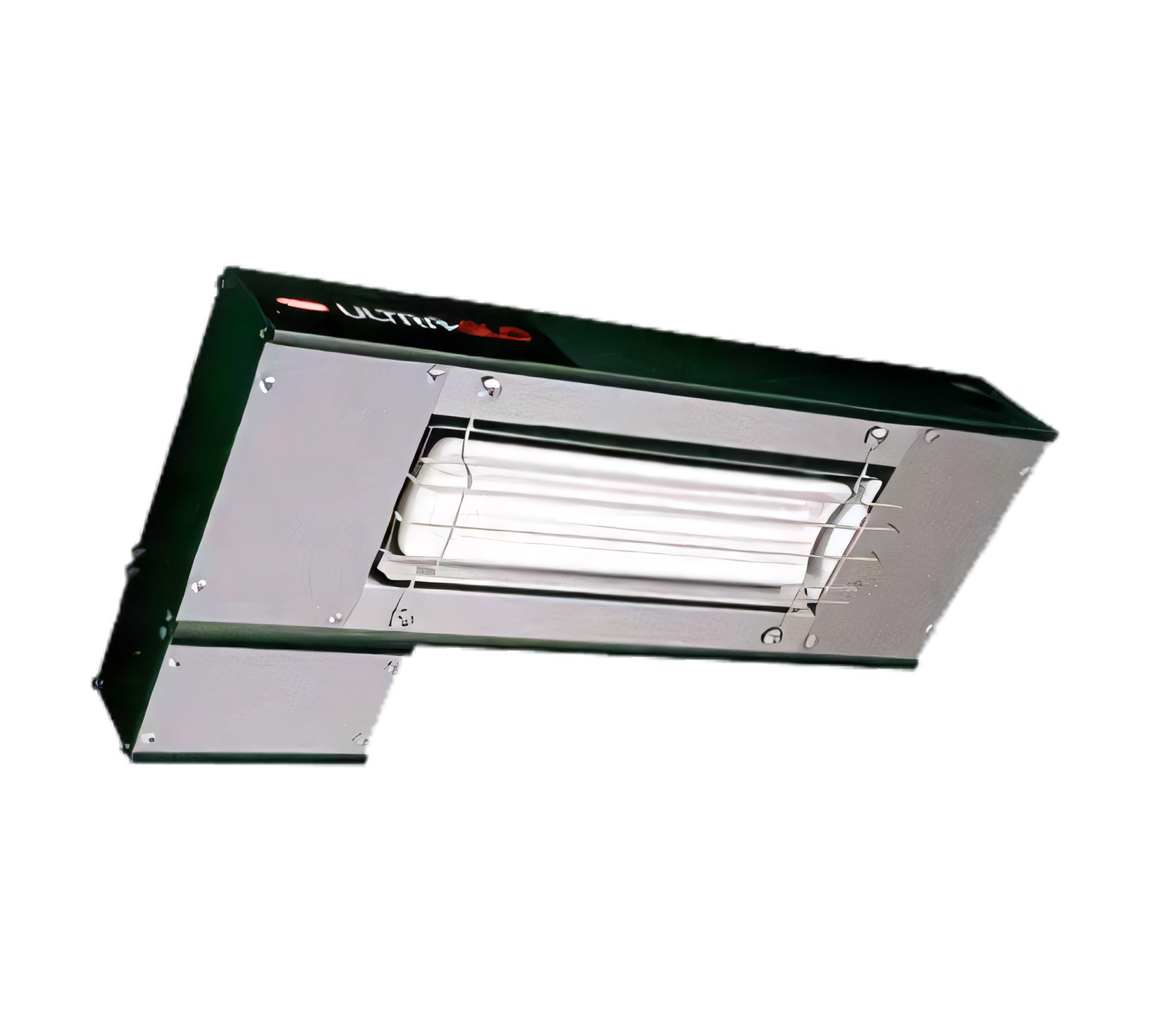

Hatco Ultra-Glo® 66" Ceramic Infrared Strip Heater – Standard Watt w/ Lights

Model UGAL-66 | Remote or Attached Controls

Bring consistent, edge-to-edge heat to wide holding pans, carving stations and buffet runs with Hatco’s flagship Ultra-Glo® ceramic strip heater. The 66-inch standard-watt model blankets your entire serving zone in focused infrared warmth while integrated display lights keep food looking fresh and appetizing.

Top benefits at a glance

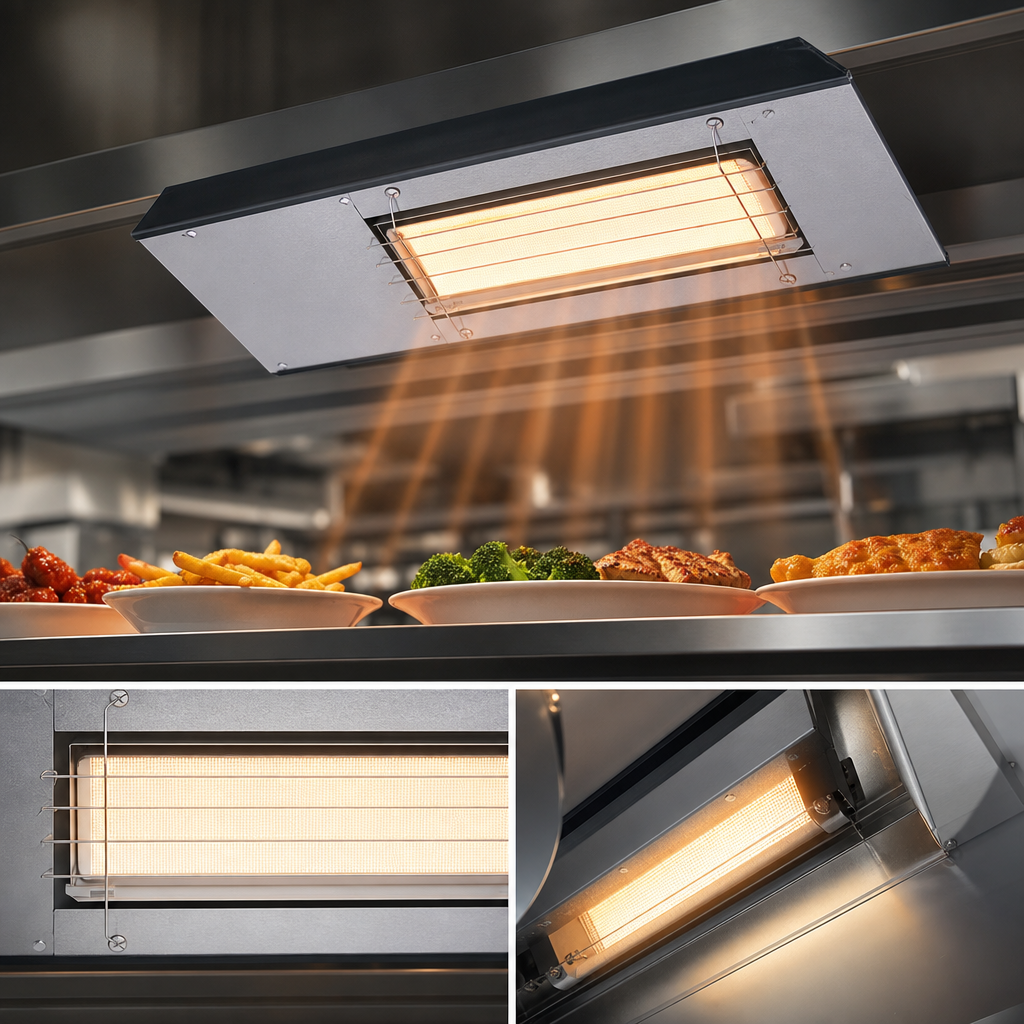

  • Pre-focused single ceramic emitter delivers uniform heat across the full 66" span, minimizing edge loss.

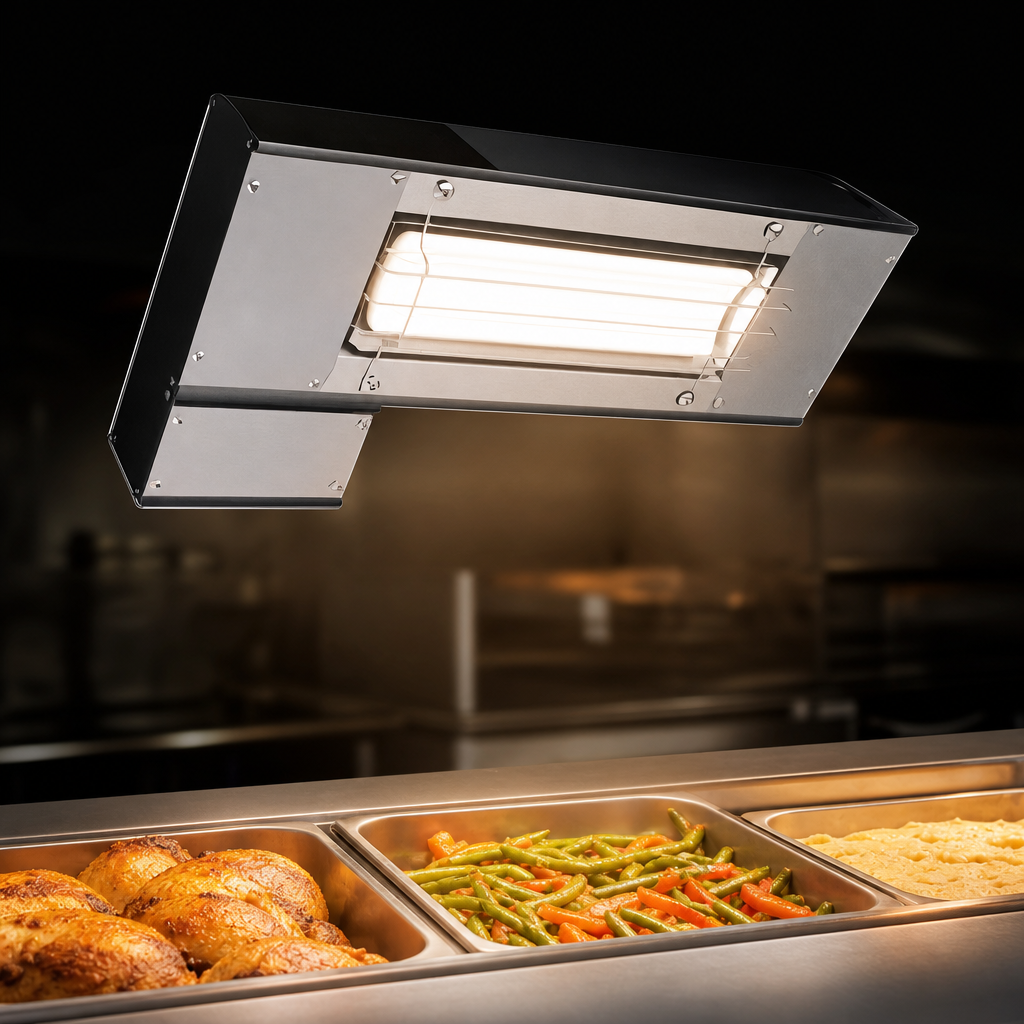

  • Five built-in 60 W display lamps* highlight product color and texture to boost impulse sales.
  • Choice of remote or attached control box with lighted toggle switch for no-look operation.
  • Continuous extruded aluminum housing prevents sagging and is available in 14 designer colors to match your décor.
  • Factory-supplied adjustable angle brackets and 3' (914 mm) conduit whip for fast, secure installation.
  • NSF & cULus listed and proudly Made in the USA for commercial peace of mind.
Designed for demanding food-service lines
  • Raised heat source improves working clearance for safer plating and carving.
  • Pyramidal heat pattern concentrates extra warmth at the pan rims where heat loss is greatest.

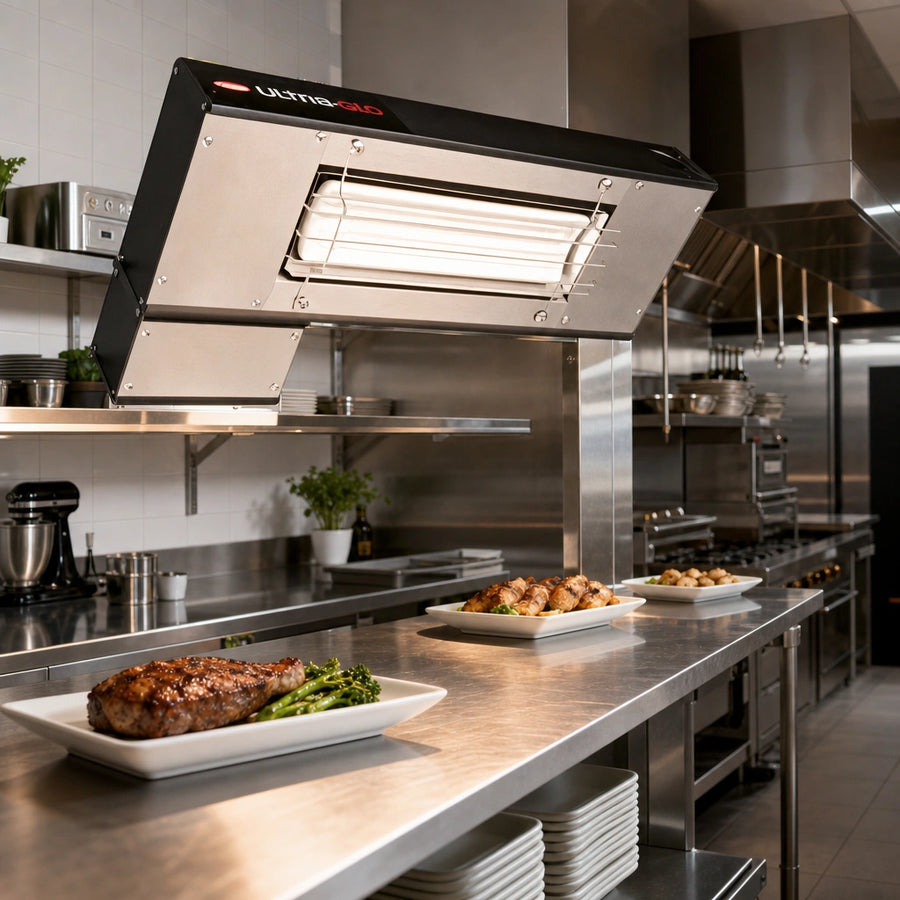

  • Adaptable for front- or back-of-house, open kitchens, pass-throughs or buffet rails.
  • Optional halogen or Chef LED bulbs, tubular stands (14"–22") and extended power leads available at order.
Technical specifications
Overall size 66" W × 9" D × 2.5" H (1676 × 227 × 64 mm)
Heat source Single ceramic infrared tile
Voltage / Watt / Amps 120/208 V – 2,260 W / 11.9 A
120/240 V – 2,300 W / 10.8 A
220 V – 2,434 W / 11.1 A
240 V – 2,300 W / 9.6 A
Phase Single
Display lighting (5) 60 W incandescent lamps included * (Halogen or 3000 K / 4000 K LED upgrade optional)
Controls Remote or attached enclosure with illuminated toggle switch & indicator light
Mounting hardware Adjustable angle brackets + 3' flexible metal conduit lead
Recommended mounting height 14"–18" (356–457 mm) above non-combustible surface
Certifications NSF, cULus
Net weight 31 lb (15 kg)
Country of origin USA

*Standard incandescent display lights are factory-installed at a ratio of one lamp per 12" (305 mm) of heater length, less one. Extra lamps, halogen, or LED replacements can be specified at the time of order.

Installation notice: Remote control enclosures must be mounted outside the active heat zone to prevent damage. Follow all clearance guidelines in the Hatco installation manual.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, cULus, Made in USA

Height

3.9in

Width

66.0in

Depth

9.0in

Shipping Weight

31.0lbs

Type

lighted

Size

single

Length

61 - 66"

Finish

aluminum

Type of element

ceramic heating

Specifications

Ultra-Glo® Infrared Strip Heater, 66" W, standard wattage, with lights, single ceramic tile with aluminum housing, with remote or attached control box, adjustable angle brackets, NSF, cULus, Made in USA
