Hatco UGAL-60D6 Ultra-Glo® Heat Lamps
Description
Hatco Ultra-Glo® 60" Dual Ceramic Infrared Foodwarmer with Lights
Model UGAL-60D • Standard Watt • NSF & UL ListedDeliver consistent plate-to-plate quality and eye-catching merchandising in one sleek fixture. The 60-inch Ultra-Glo® bathes your menu items in focused infrared heat while integrated lights keep every carving station, buffet pan or pass-through window looking fresh and appetizing.
Top Benefits

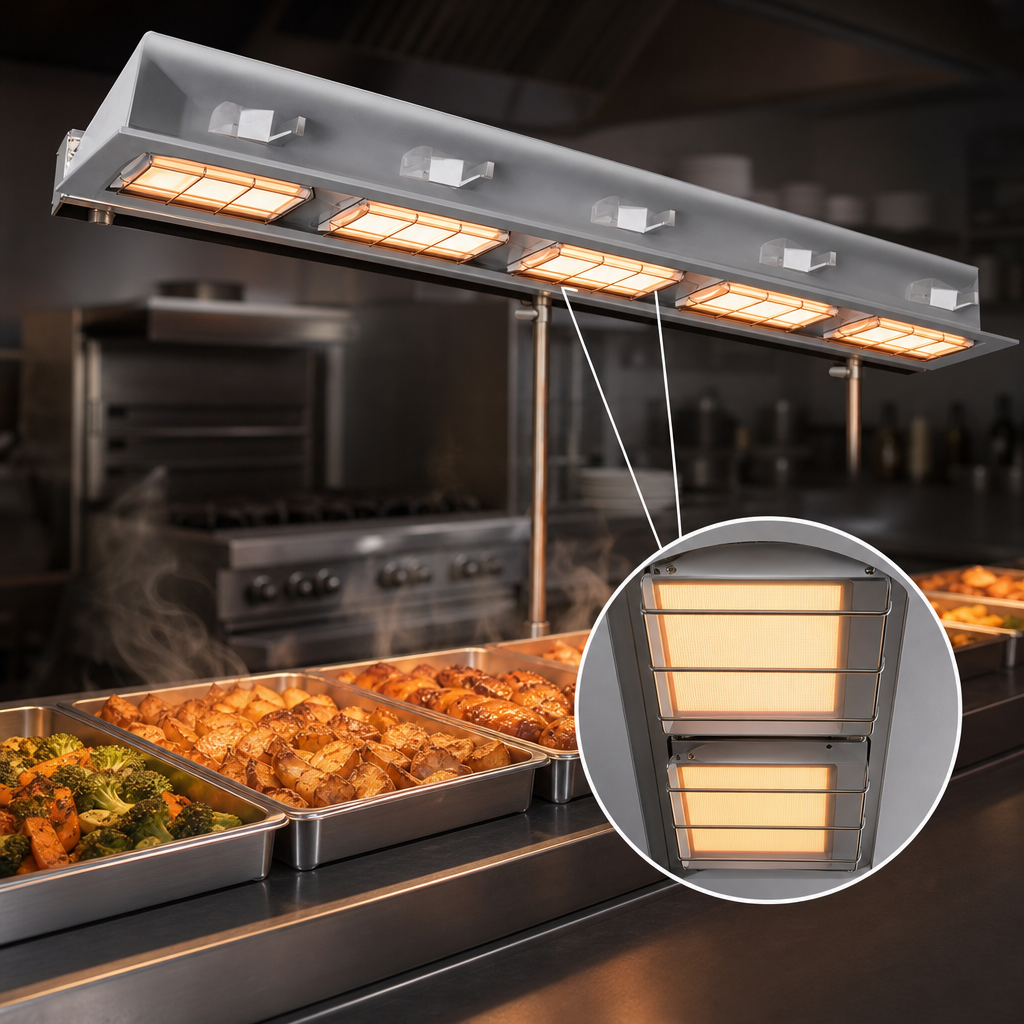

- Dual ceramic infrared elements blanket the entire 60" holding zone for unmatched edge-to-edge heat.
- Standard-watt design provides generous 18"+ working clearance—perfect for plating and service.

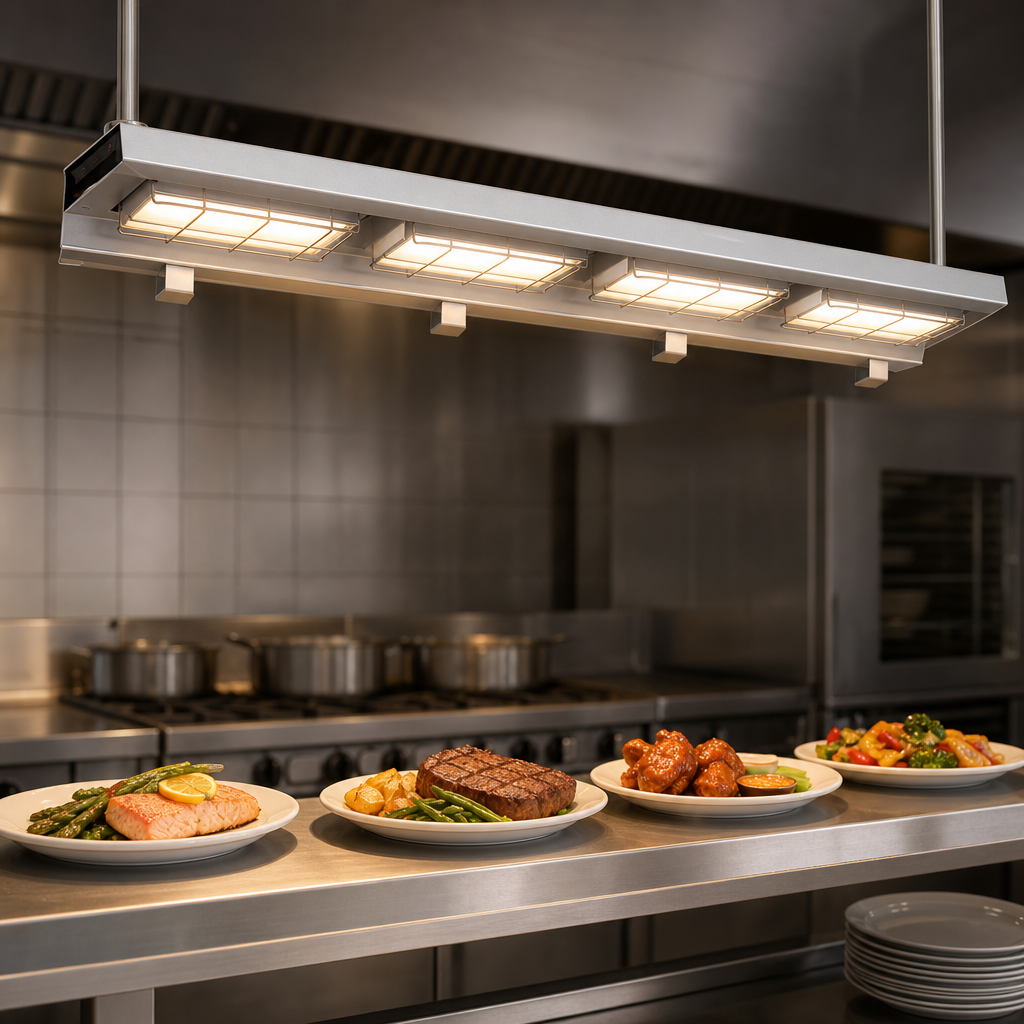

- Built-in incandescent display lamps (shatter-resistant ready) enhance food color and texture.
- Rigid, one-piece extruded aluminum housing won’t sag over time.
- 6" (152 mm) spacer and adjustable angle brackets included for precision heat aiming.
- Choose attached controls or an easy-to-mount remote control enclosure—both feature lighted toggle and infinite heat settings.
- 3' (914 mm) conduit whip with leads for fast, code-compliant installation.
- NSF & UL certified and proudly made in the USA.
What’s Included
- (1) Ultra-Glo® 60" dual ceramic strip heater with display lights
- (1) 6" mounting spacer kit
- Adjustable angle mounting brackets
- Attached control box or remote control enclosure (select at checkout)
- 3' pre-wired conduit whip
- Installation & operation manual
Key Specifications
| Overall width | 60" / 1524 mm |
|---|---|
| Heat source | 2 × ceramic infrared tiles (standard watt) |
| Display lighting | Incandescent, clear or optional shatter-resistant coating |
| Total wattage | ≈ 4 kW heat + lighting (varies by voltage) |
| Voltage options | 120/208 V, 120/240 V, 208 V, 220 V, 240 V (single or dual circuit) |
| Typical amps | 8.3 A per circuit @ 240 V |
| Housing material | Anodized aluminum (designer colors available at purchase) |
| Mounting clearance | 18" (457 mm) below heater with supplied 6" spacer |
| Shipping weight | ≈ 49 lb / 23 kg |
| Certifications | NSF, UL, CE (select models) |
| Country of origin | United States of America |
Looking for a different length, wattage or finish? Ultra-Glo® strip heaters are available from 18"–72" and in a full palette of designer colors—contact us for a custom quote.
Warranty & Support
Hatco warrants every Ultra-Glo® ceramic element against burnout for one full year and provides 24/7 parts & service support across the U.S. and Canada.
