Hatco UGAL-48D6 Ultra-Glo® Heat Lamps
Description
Hatco Ultra-Glo® 48" Dual Ceramic Infrared Foodwarmer with Lights
Model UGAL-48D • Standard Wattage • Made in USAGive every plate that just-finished sizzle. Hatco’s Ultra-Glo® 48 inch foodwarmer wraps your entire holding zone in gentle, focused infrared heat while a row of coated shatter-resistant bulbs showcases food in its best light—perfect for buffets, pass-thru windows and open-kitchen displays.
Why You’ll Love It

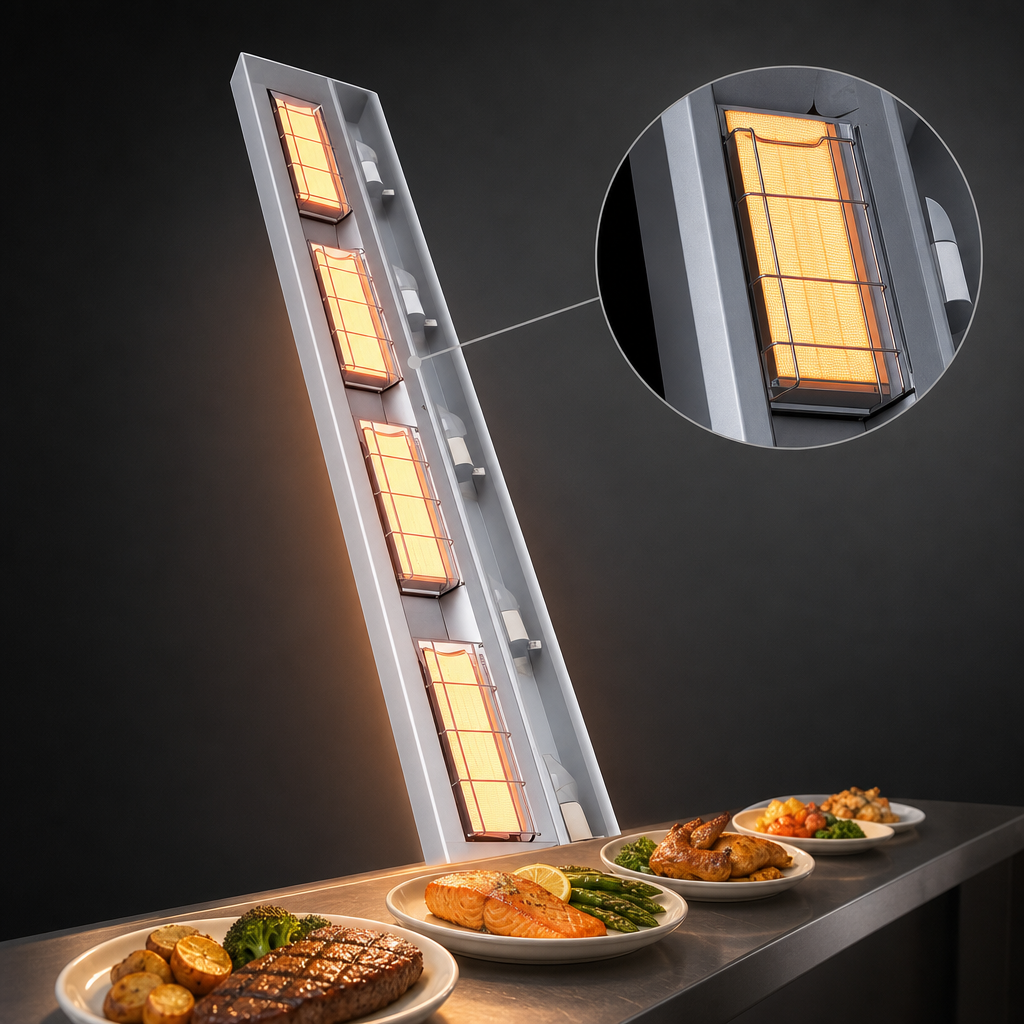

- Dual ceramic infrared elements blanket wider pans and platters without cold spots.
- Pre-focused heat pattern targets the edges where heat loss is greatest—ideal for fried or baked items.
- 6" (152 mm) spacer included, providing ≈18" (457 mm) clearance below the shelf for comfortable plating.
- Built-in incandescent lighting (max. 2 bulbs per foot) draws the eye and uses a protective coating that contains shattered glass if a bulb breaks.
- Rugged extruded aluminum housing prevents sagging; choose clear anodized or any Hatco designer color* factory option.
- Adjustable angle brackets let you aim heat exactly where you need it.
- Ships with your choice of attached control box or a remote control enclosure (toggle or infinite temperature control) for a seamless front-of-house look.
- NSF & UL listed for sanitation and safety.
- Ceramic elements carry a 1-year no-burnout warranty; 24/7 parts & service support from Hatco.
Key Specifications
| Overall width | 48" / 1219 mm |
|---|---|
| Overall height × depth | 2.5" H × 3.8" D (64 mm × 97 mm) |
| Heat source | Dual ceramic infrared tiles |
| Standard wattage (per model) | Approx. 3 kW total see electrical chart for exact values by voltage |
| Voltage options | 120 V, 120/208 V, 120/240 V, 208 V, 220 V or 240 V, 1-phase |
| Lighting | (4) Shatter-resistant incandescent bulbs, 60 W max each |
| Controls | Attached or remote box with toggle switch & indicator light; optional electronic infinite control |
| Mounting | Adjustable angle brackets & 6" spacer supplied |
| Shipping weight | ≈ 30 lb / 14 kg |
| Certifications | NSF, UL, UL-EPH |
| Warranty | 1 year on elements, parts & labor |
| Country of origin | USA |
Perfect For
- QSR pass-thru shelves and expo lines
- Buffet carving stations
- C-stores and deli merchandisers
- Catered events & banquet holding
Installation tip: If you select a remote control enclosure, mount it outside the heat zone to prevent damage and ensure safe operation.
* Designer color, gloss finishes, LED bulbs, non-adjustable tubular stands and extended power leads are factory-order options. Contact us for lead-times or to add accessories to your order.
