Hatco UGAL-48 Ultra-Glo® Heat Lamps
Description

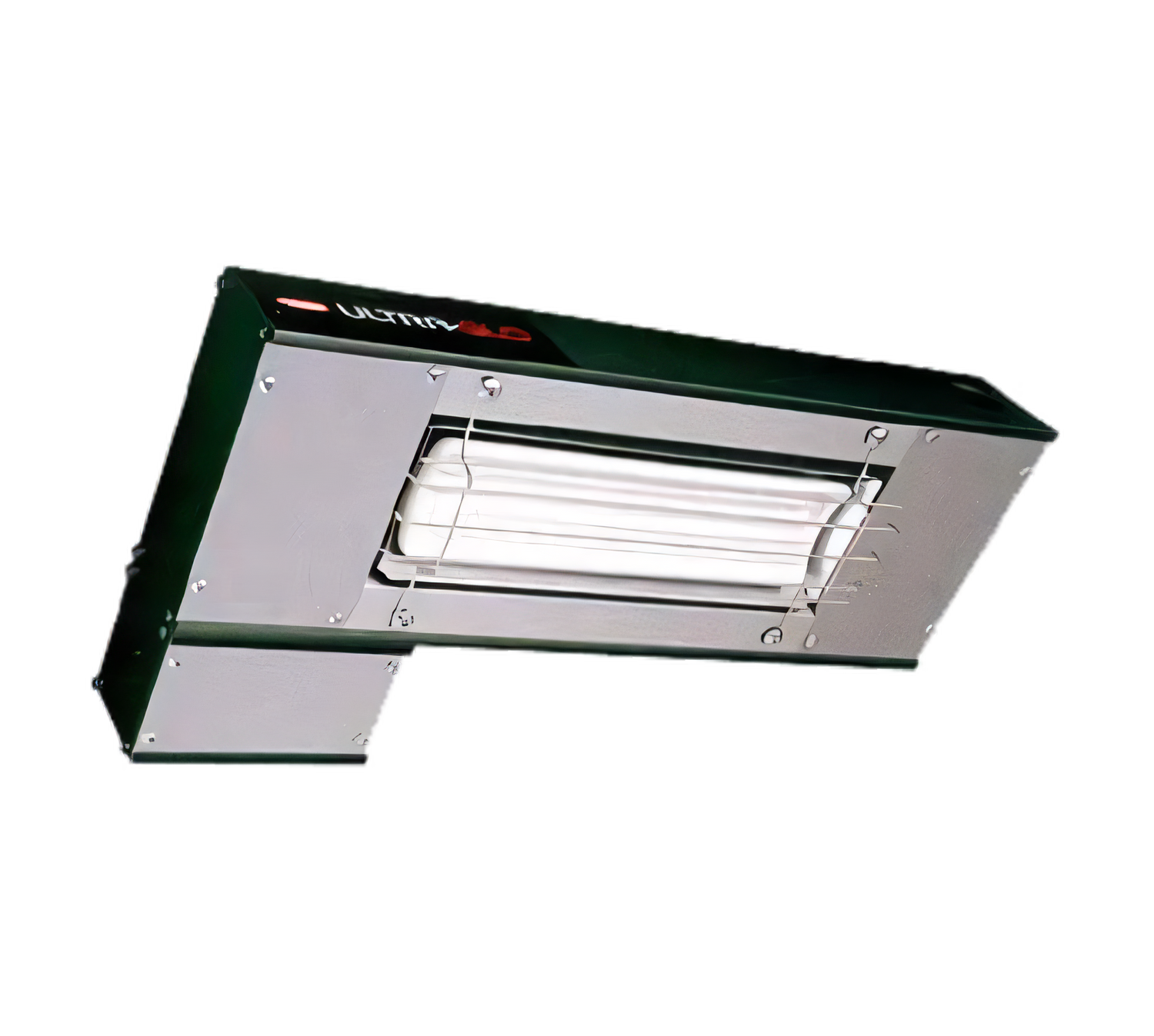

Hatco Ultra-Glo® 48" Ceramic Infrared Strip Heater with Lights
Model UGAL-48 | Standard WattageGive every plate the just-made appeal guests expect. The Hatco Ultra-Glo® UGAL-48 combines high-intensity ceramic infrared heat with brilliant display lighting, keeping foods at safe serving temperatures while showcasing their color and texture. Perfect for pass-through shelves, buffet lines, carving stations and more.
Key features

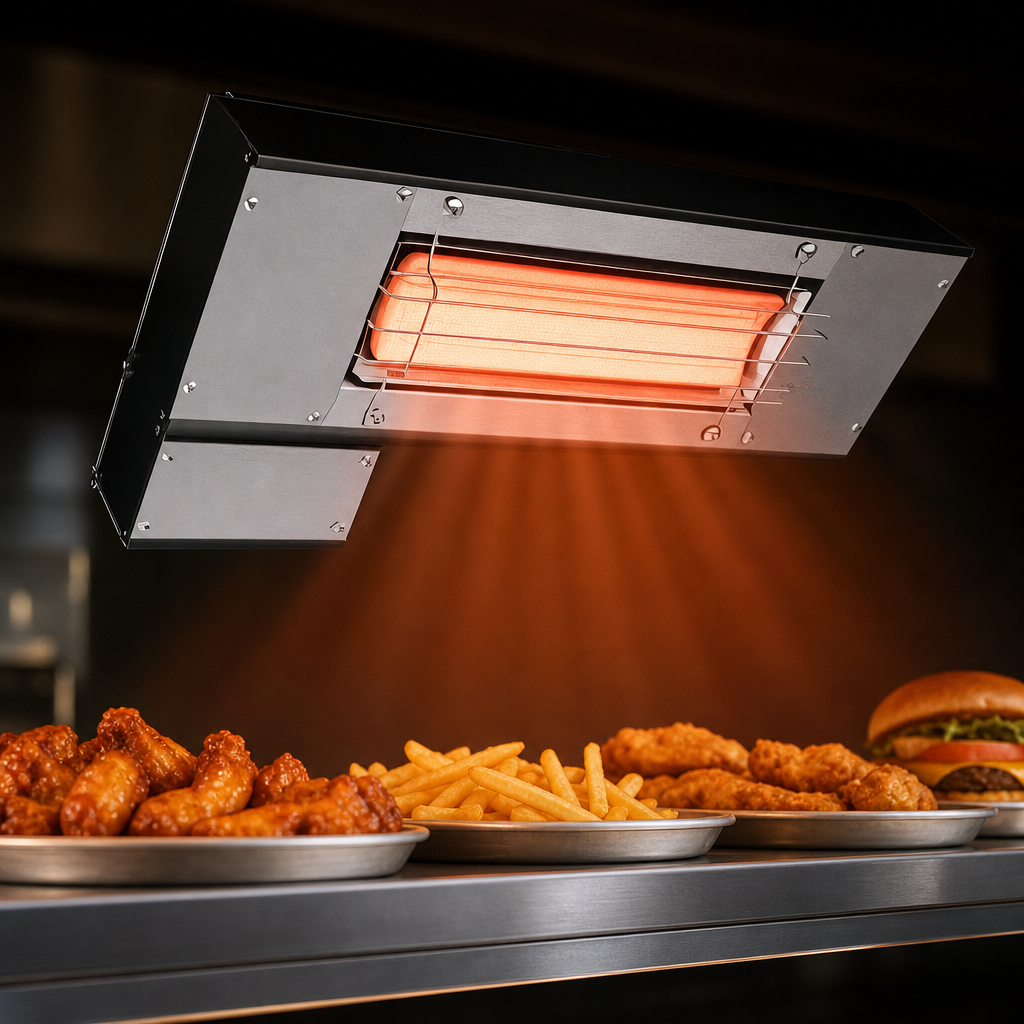

- Single ceramic tile produces a focused pyramidal heat pattern that blankets the entire 48" holding zone—right out to the edges.

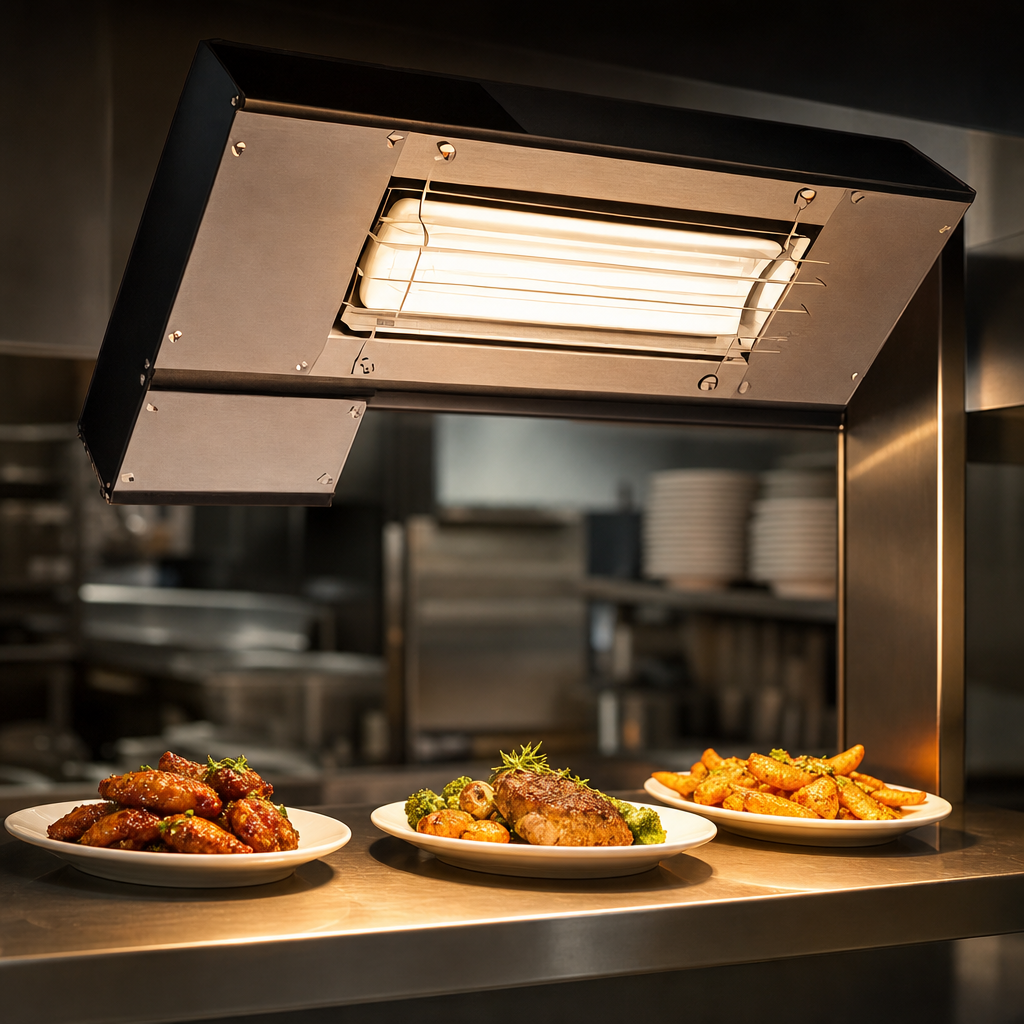

- Integrated display lamps (one per foot) enhance merchandising without drying out product.
- Rugged, extruded aluminum housing prevents sagging and is offered in a range of designer colors or gloss finishes.
- Includes adjustable-angle mounting brackets and a 3' (914 mm) flexible conduit whip for fast installation.
- Select an attached control box or remote control enclosure—both supply an illuminated toggle switch and indicator light.
- NSF certified, cULus listed and proudly Made in the USA.
Ideal applications
- Pass-through warming shelves
- QSR & fast-casual pickup stations
- Buffet & carving stations
- C-store grab-n-go islands
- Catering & banquet service lines
Technical specs
| Overall dimensions | 48" W × 9" D × 2.5" H (1219 × 227 × 64 mm) |
|---|---|
| Heat source | Ceramic infrared strip – single tile |
| Standard wattage | 1,740 W (see load chart) |
| Voltage options | 120 V, 120/208 V, 120/240 V, 220 V, 240 V | Single phase |
| Current draw @ 120 V | 14.5 A |
| Shipping weight | 23 lb (11 kg) |
| Certifications | NSF, cULus |
| Country of origin | United States |
Voltage / load chart
| Voltage | Watts | Amps |
|---|---|---|
| 120 V | 1,740 W | 14.5 A |
| 120/208 V | 1,710 W | 9.1 A |
| 120/240 V | 1,740 W | 8.3 A |
| 220 V | 1,838 W | 8.4 A |
| 240 V | 1,740 W | 7.3 A |
What’s included
- Adjustable-angle mounting brackets
- 3' (914 mm) flexible metal conduit with leads
- Attached or remote control box with toggle switch & indicator light
- One incandescent display lamp per 12" of heater length
Popular options (factory-installed)
- Designer Color or Gloss housing finishes
- Halogen bulbs in place of standard lamps
- Chef-grade LED lamps (3000 K warm or 4000 K cool)
- Extended power leads up to 20' (6096 mm)
- Non-adjustable tubular stands (14"–22" high)
Recommended mounting height for standard-watt Ultra-Glo units: 14–18" (356–457 mm) above the holding surface. Always install over non-combustible surroundings and follow local electrical codes.
