Hatco  |  Ultra-Glo®  |  SKU: UGAL-36D3

Hatco UGAL-36D3 Ultra-Glo® Heat Lamps

$1,355.81
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Color chart Parts list Owner's manual
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Ultra-Glo® 36" Dual Ceramic Infrared Strip Heater with Lights

Model UGAL-36D | Standard Wattage | NSF, UL, cULus

Keep every plate photo-ready and food-safe. Hatco’s Ultra-Glo® UGAL-36D couples intense dual-ceramic infrared heat with brilliant display lighting, delivering unmatched holding power in a space-saving 36 inch footprint that’s ideal for buffet lines, pass-throughs and open-kitchen concepts.

Key advantages

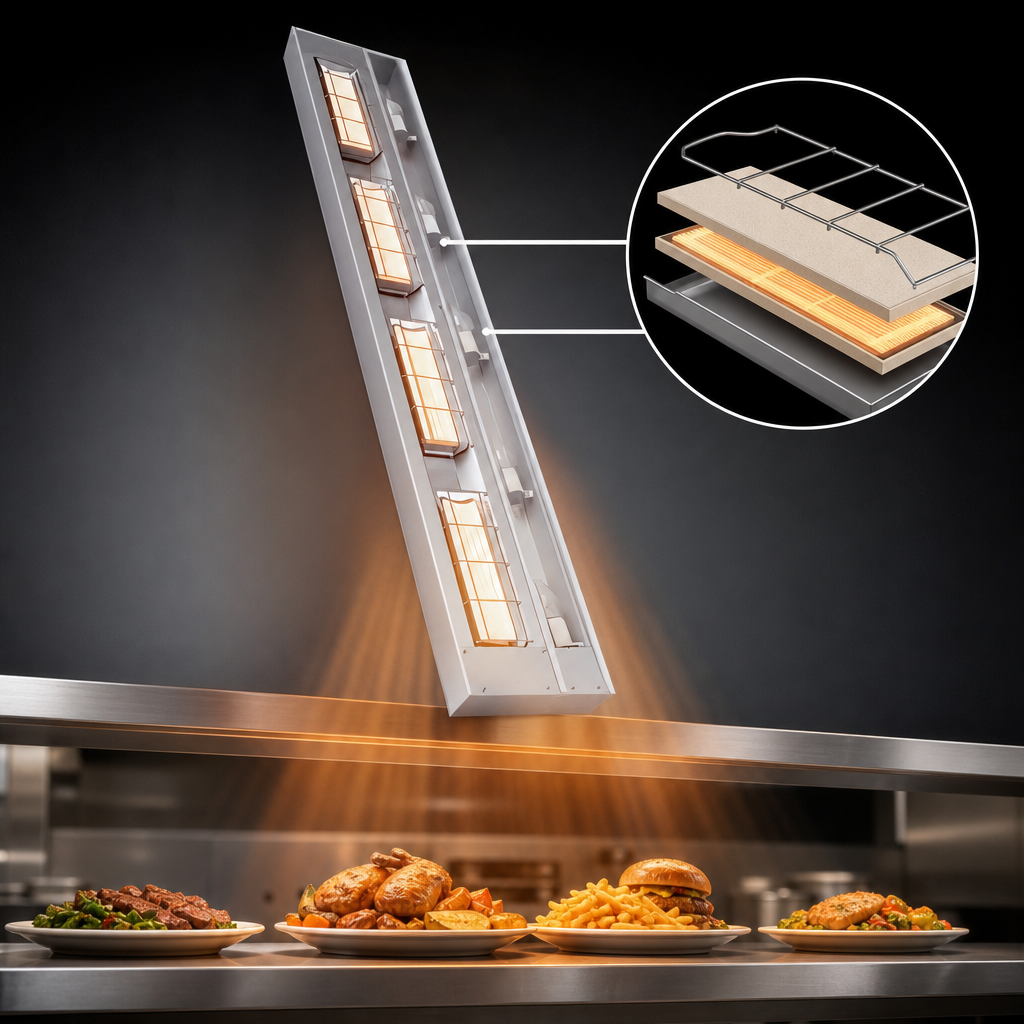

  • Dual ceramic elements blanket the entire 36" (914 mm) width for even, edge-to-edge heat.
  • Pre-focused pyramidal pattern concentrates extra heat where loss is greatest—at the edges.
  • Three shatter-resistant incandescent bulbs (one every 12") enhance product visibility and safety.
  • Factory-installed 3" (76 mm) spacer provides extra clearance for plating and carving.
  • Continuous extruded aluminum housing eliminates sagging and wipes clean fast.
  • Adjustable-angle mounting brackets and 3' (914 mm) conduit whip included for quick install.
  • Choose an attached control box or a remote control enclosure (toggle or infinite) at order.
  • Ceramic elements carry a full 1-year no-burnout warranty.
  • Proudly made in the USA and listed to NSF, UL and cULus standards.
Quick specs
Overall width 36" / 914 mm
Heat source Dual ceramic infrared elements
Display lighting 3 × incandescent, shatter-resistant
Standard wattage & amps 2,140 – 2,334 W (see chart below)
Voltage options 120/208 V, 120/240 V, 220 V, 240 V | 1-phase
Ship weight ≈ 24 lb / 11 kg
Housing finish Clear anodized aluminum (Designer & Gloss finishes available)
Certifications NSF, UL, cULus
Country of origin Made in USA
Electrical load by voltage
Voltage Wattage Amperage
120/208 V 2,140 W 10.9 A
120/240 V 2,180 W 9.8 A
220 V 2,334 W 10.6 A
240 V 2,180 W 9.1 A
Installation note: Mount Ultra-Glo strip heaters on non-combustible surfaces only, a minimum of 3" (76 mm) from any back wall and at least 1" (25 mm) above the shelf. Remote control enclosures must be installed outside the heater’s heat zone.

Looking for other sizes or wattages? Ultra-Glo® models are available from 18" – 72", with or without lights, and in a rainbow of Designer Colors. Contact us for a custom quote.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, cULus, UL, Made in USA

Height

3.8in

Width

36.0in

Depth

19.0in

Shipping Weight

30.0lbs

Type

lighted

Finish

aluminum

Length

31 - 36"

Size

double

Type of element

ceramic heating

Specifications

Ultra-Glo® Infrared Strip Heater, 36" W, standard wattage, with lights, double ceramic tile with aluminum housing, 3" spacer, with remote or attached control box, adjustable angle brackets, NSF, cULus, UL, Made in USA
