Hatco UGAL-30D6 Ultra-Glo® Heat Lamps
Description

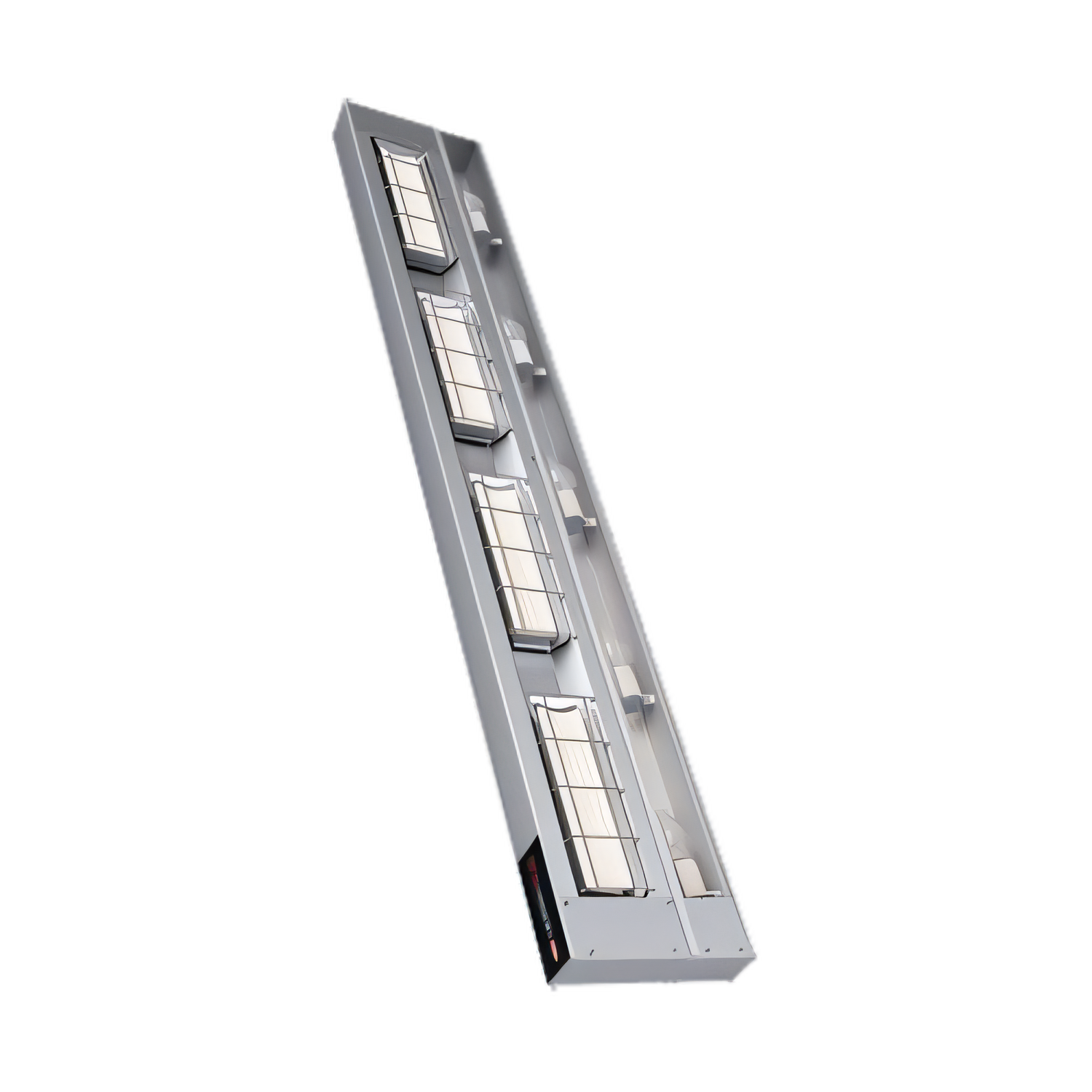

Hatco Ultra-Glo® 30" Dual Ceramic Infrared Strip Heater with Lights
Model UGAL-30D • Standard Wattage • Made in USAGive every plate the “just-made” look and taste—without sacrificing prep-space. The 30" Ultra-Glo® uses Hatco’s signature dual ceramic emitters and high-visibility lights to blanket a 30" (762 mm) holding zone with focused infrared heat, holding food safely at serving temperature while showcasing its color and texture.
Why you’ll love it

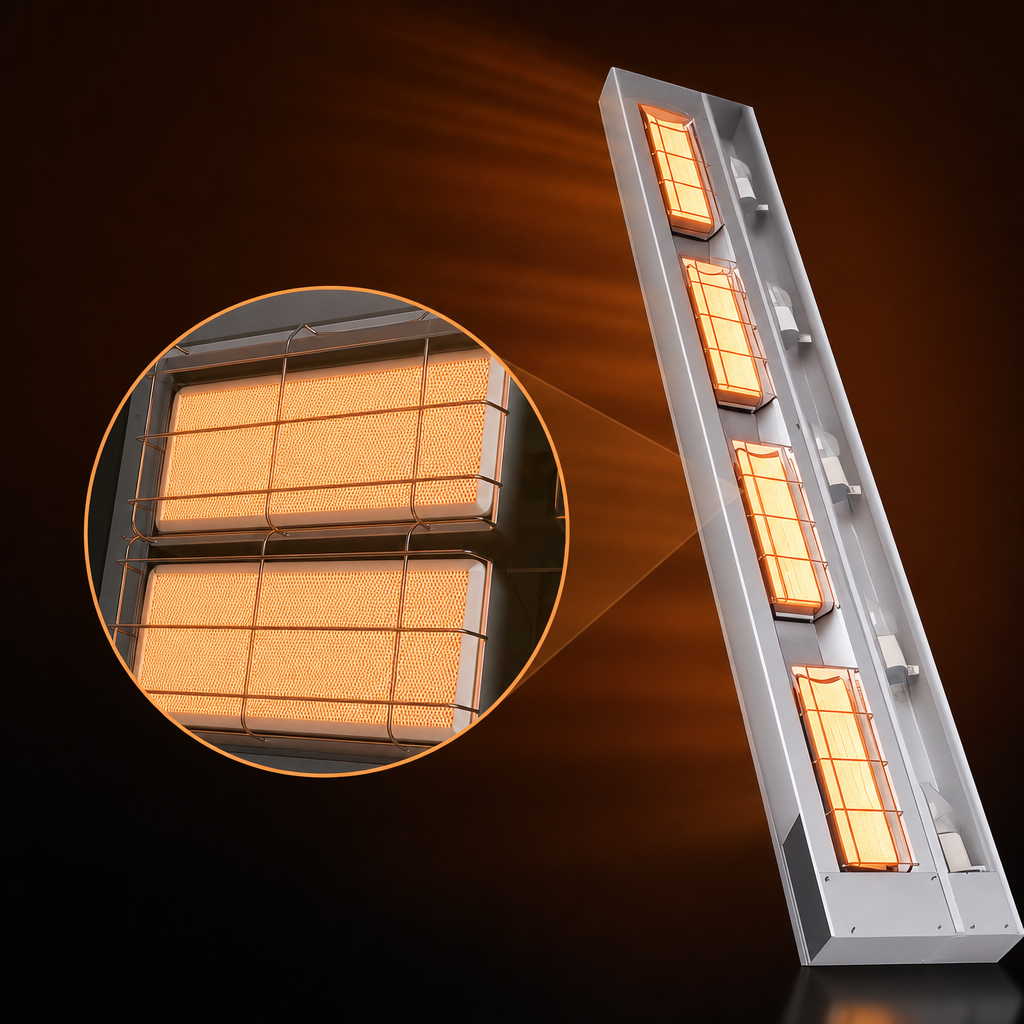

- Powerful dual ceramic elements generate intense, even infrared heat that reaches the edges where heat loss is greatest.

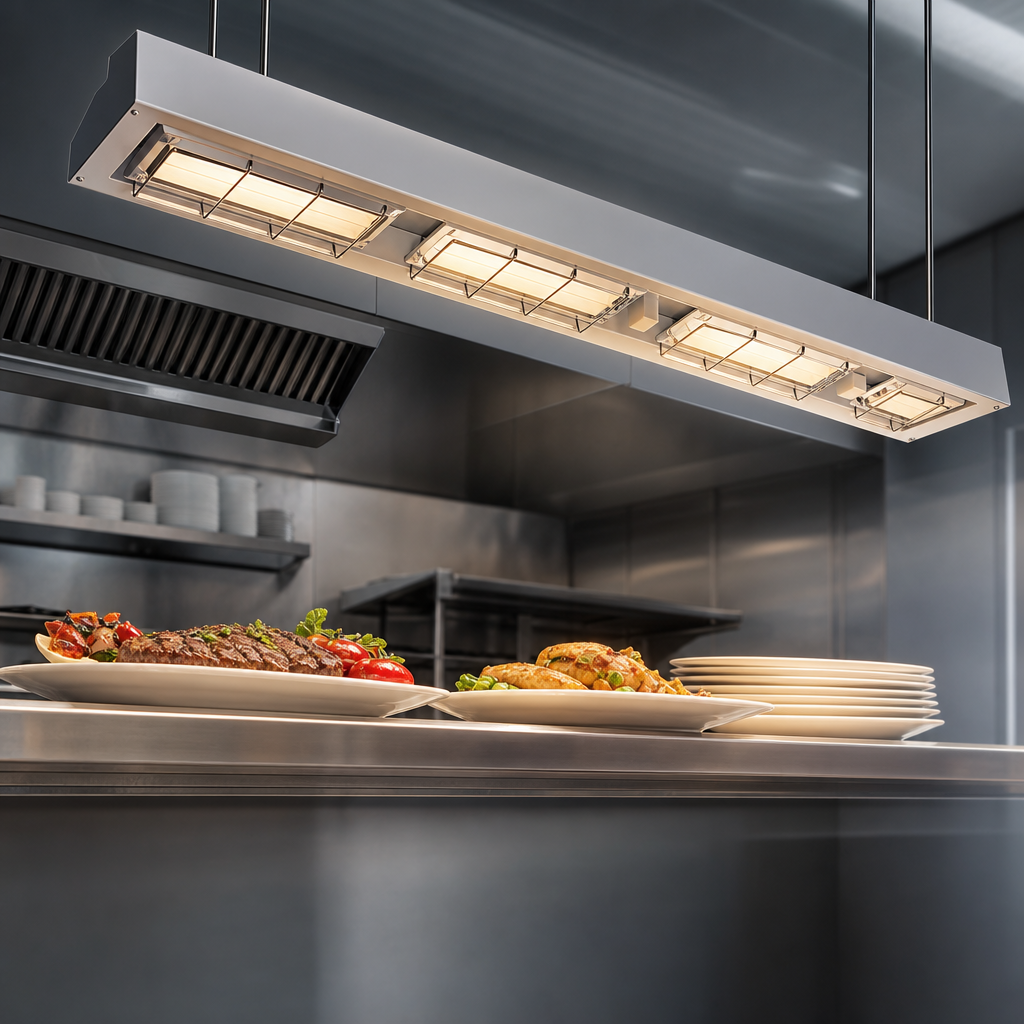

- Built-in shatter-resistant lights (one per 12") illuminate product for an irresistible presentation.
- Higher working clearance—a 6" factory spacer positions the heater 18" above the serving surface for easy plating and pass-through service.
- Extruded aluminum housing prevents sagging and can be ordered in clear anodized, 12+ designer colors or gloss metal finishes.
- Flexible controls—choose an attached control box or a remote enclosure (keeps switches away from the heat zone).
- Angle-adjustable mounting brackets (included) let you fine-tune the heat pattern on any shelf, shelf edge or ceiling application.
- NSF listed, cULus & UL certified for foodservice; all ceramic elements are warranted one full year against burnout.
Quick specs
| Overall width | 30" / 762 mm |
|---|---|
| Heat source | Dual ceramic tiles (standard wattage) |
| Illumination | Incandescent heat-proof bulbs, 1 per 12" (factory-installed) |
| Voltage options | 120 V, 120/208 V, 120/240 V, 220 V or 240 V single phase |
| Power draw * | 1620–1920 W | 8.0–13.5 A (depending on voltage) |
| Shipping weight | Approx. 21 lb / 10 kg |
| Certifications | NSF, UL, cULus |
* Consult the specification label for the exact wattage/amp draw on your chosen voltage.
Ideal applications
- Quick-serve & fast-casual expediting lines
- Buffet or cafeteria service rails
- Front-of-house display kitchens & chef stations
- Pass-through windows and carving boards
Ordering options
- Attached or remote control box (toggle switch + indicator light, or electronic infinite control)
- Designer Color / Gloss metal housing finishes
- Chef-LED retrofit bulbs – 3000 K warm or 4000 K cool
- Non-adjustable tubular stands (18"–26" heights, U.S. only)
- Extended power leads up to 20 ft (6.1 m)
Installation & clearance
Mount a minimum of 18" (457 mm) above the holding surface and at least 3" (76 mm) from any vertical wall. Remote control enclosures must be installed outside the heat zone. Detailed instructions ship with every unit.
