Hatco  |  Ultra-Glo®  |  SKU: UGAL-30D3

Hatco UGAL-30D3 Ultra-Glo® Heat Lamps

$1,299.18
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Ultra-Glo® 30" Dual Ceramic Infrared Strip Heater with Lights

Model UGAL-30D | Standard-Watt | Made in USA

When holding quality and presentation matter, trust the Hatco Ultra-Glo®. Two powerful ceramic elements pour even infrared heat across the full 30 in. serving zone, while built-in shatter-resistant display lights keep entrées looking as irresistible as they taste.

Why you’ll love it

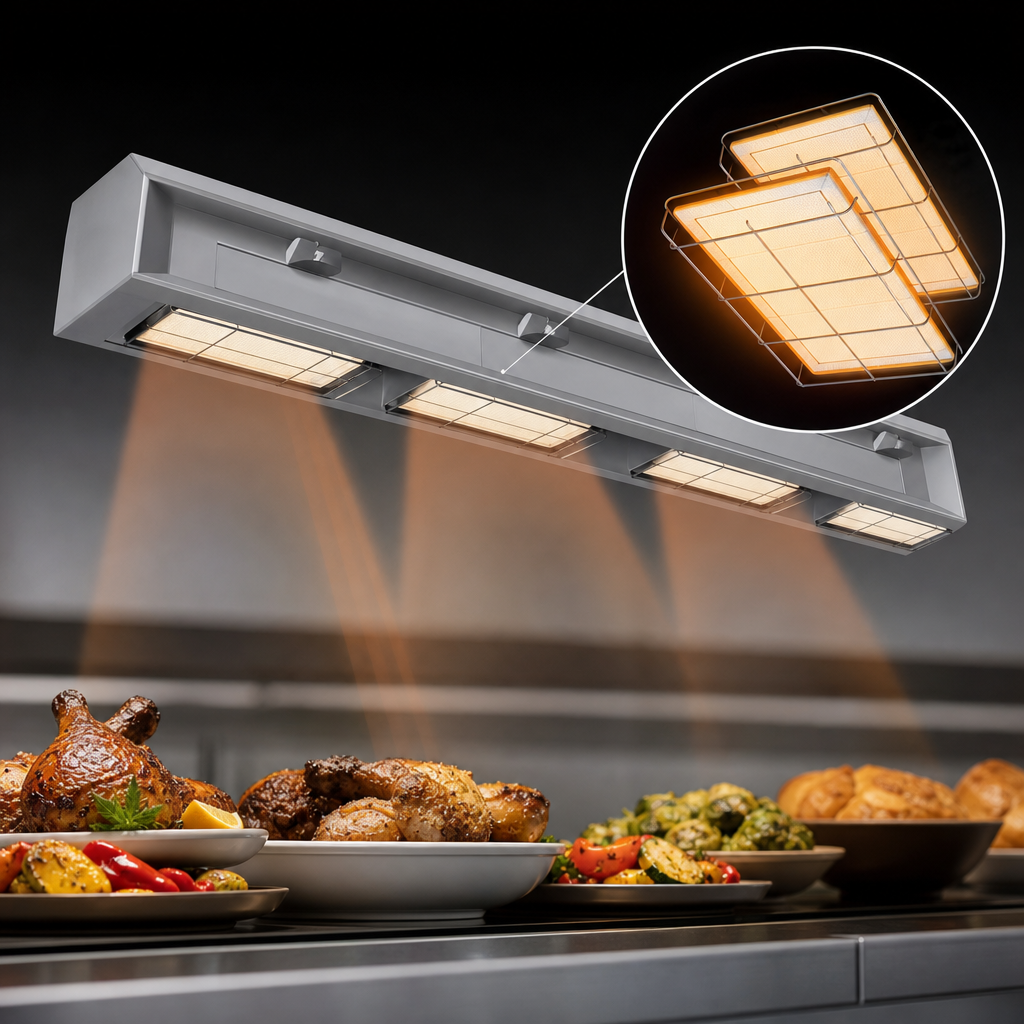

  • Dual ceramic elements deliver concentrated edge-to-edge heat to combat cold-spot loss.

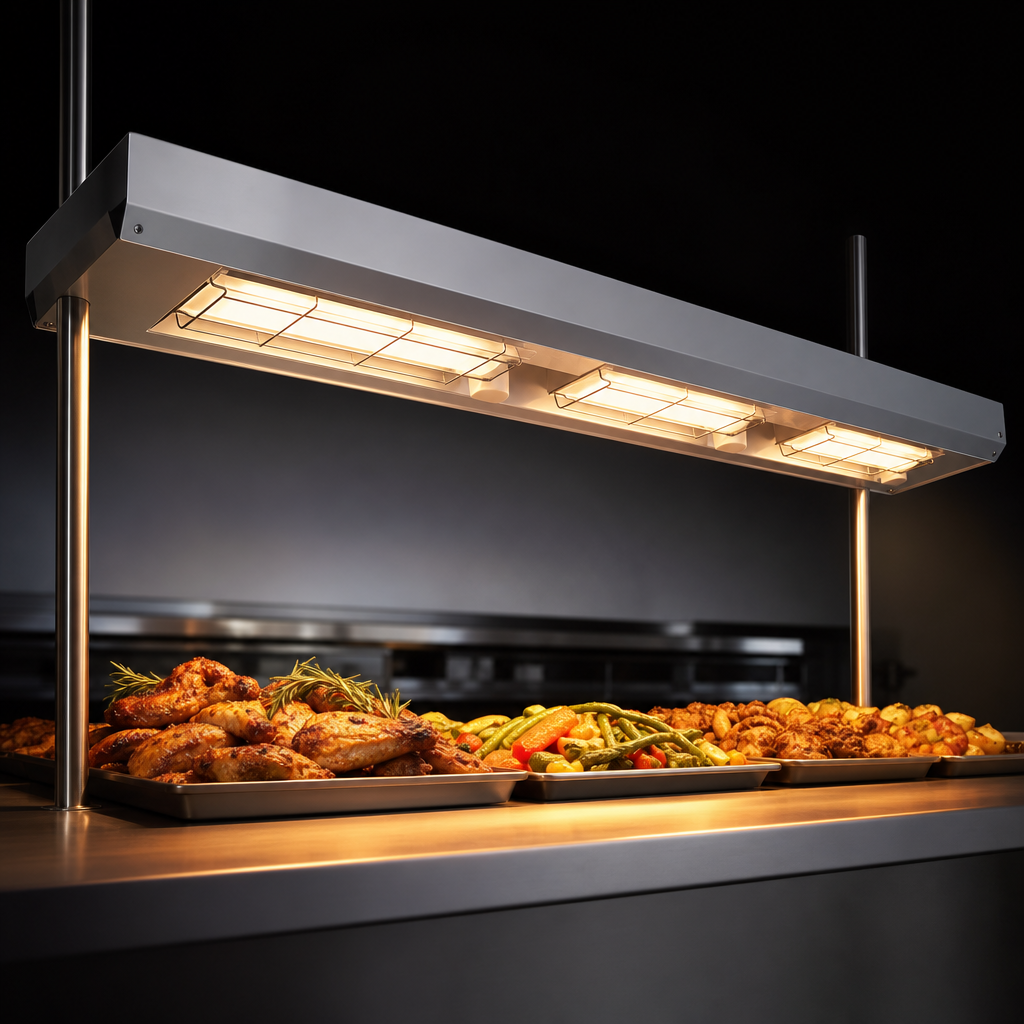

  • Integrated incandescent lights (one every 12") merchandise food and are coated for shatter resistance.
  • Increased working clearance – infrared source is elevated by a 3" (76 mm) spacer, giving staff more room to plate and serve.
  • Adjustable angle brackets (included) let you fine-tune the heat pattern in seconds.
  • Remote or attached control box with toggle switch, infinite heat control & indicator light – choose the style that fits your line.
  • Rugged, one-piece aluminum housing prevents sagging even on long runs.
  • NSF, UL, cULus listed for sanitation & safety compliance worldwide.
  • 1-year element warranty and 24/7 Hatco parts & service support.

Technical specifications

Heat source Two ceramic infrared tiles
Overall size (housing) 30" W × 9.3" D × 2.5" H (762 × 236 × 64 mm)
Standard spacer 3" (76 mm) – included
Wattage / Amps 120 V — 1,620 W / 13.5 A
208 V — 1,800 W / 8.7 A
240 V — 1,920 W / 8.0 A
Electrical Single phase, hard-wired; 3 ft (914 mm) conduit whip factory-fitted
Controls Toggle ON/OFF + infinite heat; remote or attached enclosure
Lighting Shatter-resistant incandescent, 1 bulb per 12" section
Shipping weight ≈ 21 lb (10 kg)
Certifications NSF 4, UL, cULus

Factory options (order-time)

  • Designer or Gloss color housings – 15+ finishes including Warm Red, Black & Antique Copper
  • Chef-LED adjustable bulbs (3000 K or 4000 K) for cooler, energy-efficient lighting
  • Non-adjustable tubular stands (18"–26") for portable buffet lines
  • Extended power leads up to 20 ft (6 m)

Non-standard colors and accessories are non-returnable.

Important – Install the remote control enclosure outside the heater’s heat zone and mount the strip at least 1" (25 mm) below any shelf and 3" (76 mm) from walls. Always follow the supplied Installation & Operating Manual.

Ultra-Glo® is proudly manufactured in Milwaukee, Wisconsin, USA.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, cULus, UL, Made in USA

Height

3.8in

Width

30.0in

Depth

19.0in

Shipping Weight

26.0lbs

Finish

aluminum

Type

lighted

Length

25" - 30"

Size

double

Type of element

ceramic heating

Specifications

Ultra-Glo® Infrared Strip Heater, 30" W, standard wattage, with lights, double ceramic tile with aluminum housing, 3" spacer, with remote or attached control box, adjustable angle brackets, NSF, cULus, UL, Made in USA
