Hatco  |  Ultra-Glo®  |  SKU: UGAL-24D6

Hatco UGAL-24D6 Ultra-Glo® Heat Lamps

$1,016.58
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Catalog brochure Owner's manual Color chart
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Ultra-Glo® 24" Dual Ceramic Infrared Strip Heater with Lights

Model UGAL-24D · Standard Wattage

Keep every order hot, fresh and picture-perfect. The 24" Hatco Ultra-Glo® delivers even, high-intensity infrared heat and brilliant product lighting—ideal for busy pass-throughs, buffets and expo lines.

Why you’ll love it

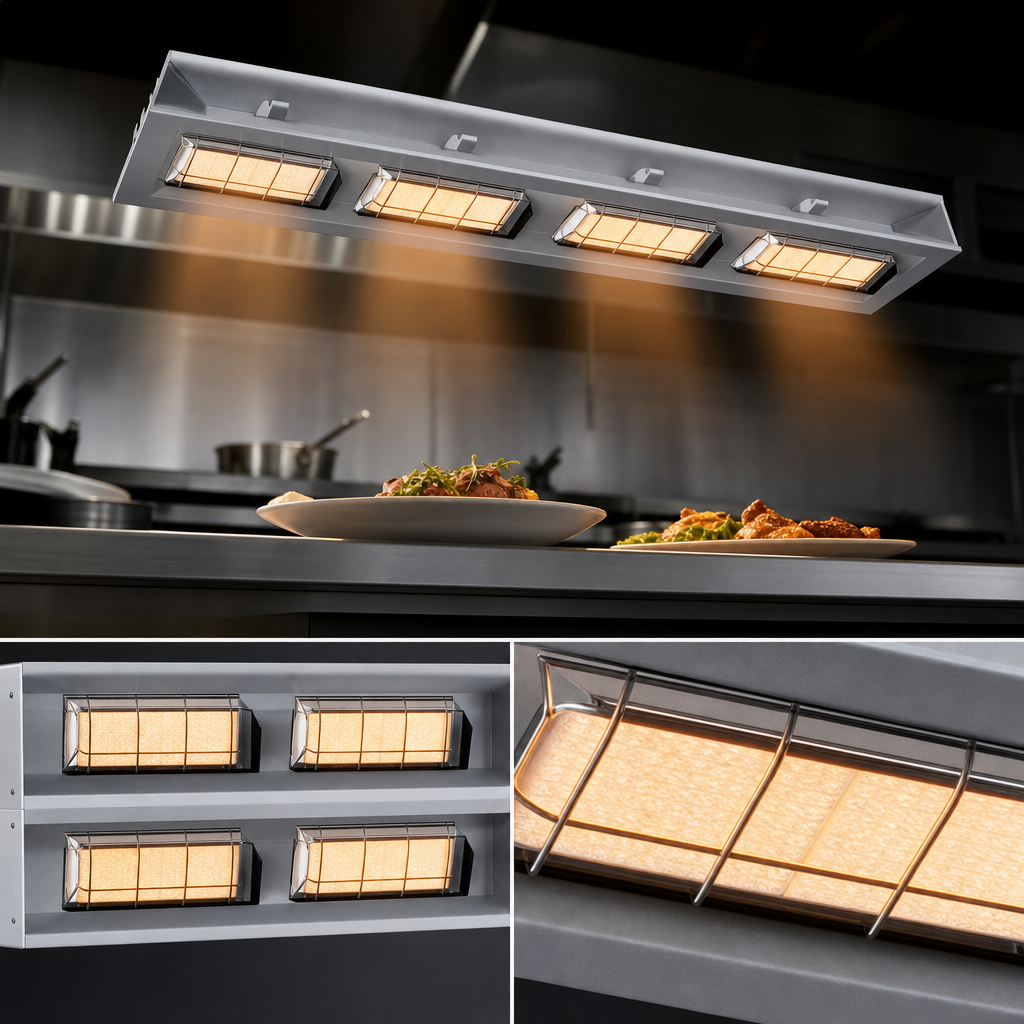

  • Dual ceramic elements blanket the entire holding zone for maximum heat retention.

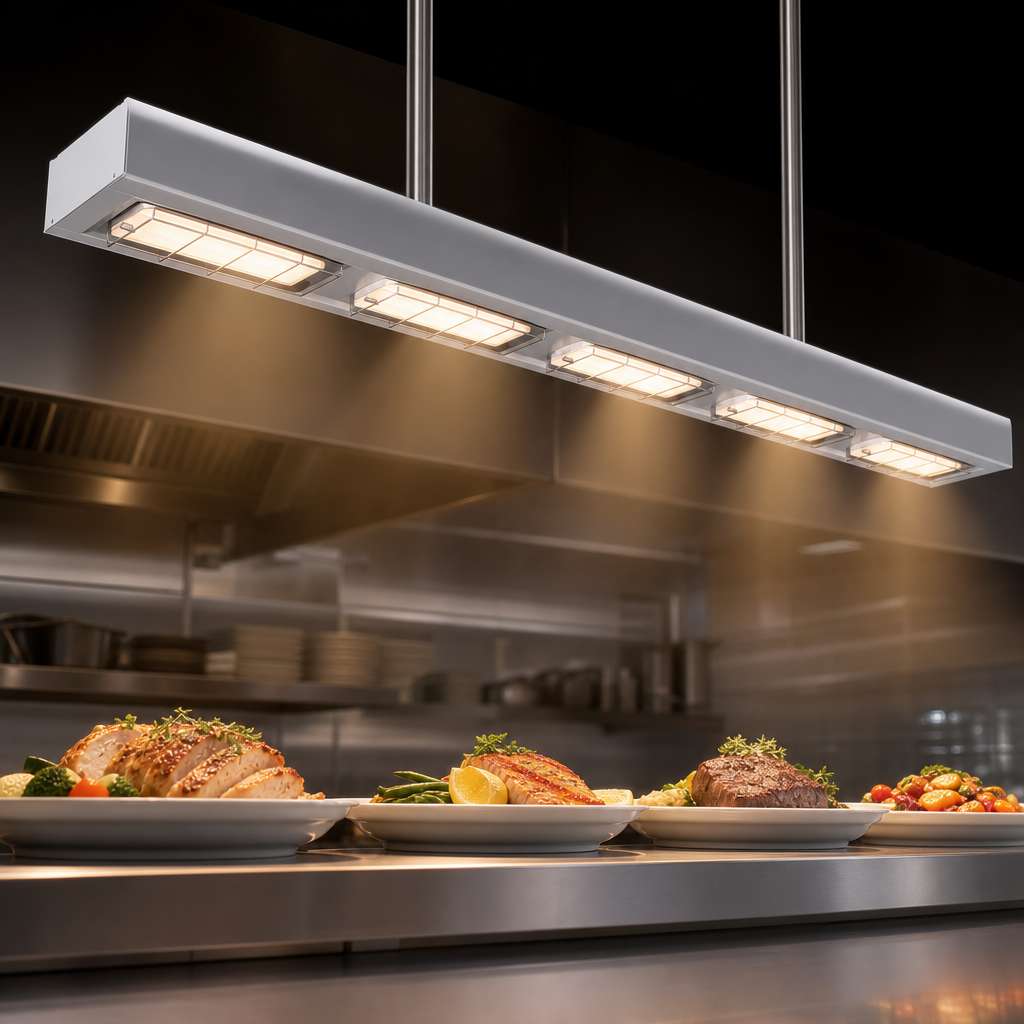

  • Factory-installed, shatter-resistant incandescent lights highlight food and boost impulse sales.
  • 6" (152 mm) spacer raises the heater, giving you a generous 22" (559 mm) plating clearance.
  • Rugged, one-piece extruded aluminum housing will not sag and wipes clean in seconds.
  • Adjustable angle brackets let you focus heat where it’s needed most—edges, center or both.
  • Select an attached control box or a remote wall-mount enclosure to suit your layout.
  • NSF, UL & cULus listed—built and tested in the USA.
Perfect for
  • Pass-through windows & expo stations
  • Cafeteria and buffet lines
  • Quick-service finishing shelves
  • Back-bar appetizer holding
Specifications
Overall width 24" (610 mm)
Heat source Dual ceramic tiles, pre-focused pyramidal pattern
Lighting Two shatter-resistant incandescent lamps (1 per 12")
Typical rating (120 V) 1,420 W · 11.8 A
Voltage options 120 V, 120/208 V, 120/240 V, 220 V, 240 V 1-phase
Dimensions H 2.5" × D 3.8" (97 mm) with remote box
H 2.5" × D 8.2" (208 mm) with attached box
Working clearance 22" (559 mm) when mounted with included 6" spacer
Shipping weight ≈ 19 lb (9 kg)
Controls Lighted on/off toggle; optional infinite heat control
Warranty 1-year parts & labor; ceramic elements 1-year no-burnout
What’s included
  • Ultra-Glo® 24" dual ceramic infrared heater
  • 6" mounting spacer kit
  • Adjustable angle brackets
  • 3' (914 mm) conduit whip with leads
  • Your choice of attached or remote control box
  • Installation & operating manual
Available upgrades
  • Chef LED adjustable bulbs (3000 K warm or 4000 K cool)
  • Designer color or gloss powder-coat finishes
  • Non-adjustable tubular stands (18" – 26")
  • Extended power leads up to 20' (6.1 m)
Installation note: Mount at least 1" (25 mm) below shelving and 3" (76 mm) from rear walls. Do not install above combustible surfaces.

Need a different size or higher wattage? Explore the full Ultra-Glo® series for lengths up to 72" (1829 mm).

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, cULus, UL, Made in USA

Height

3.8in

Width

24.0in

Depth

22.0in

Shipping Weight

21.0lbs

Type

lighted

Length

19" - 24"

Size

double

Finish

aluminum

Type of element

ceramic heating

Specifications

Ultra-Glo® Infrared Strip Heater, 24" W, standard wattage, with lights, double ceramic tile with aluminum housing, 6" spacer, with remote or attached control box, adjustable angle brackets, NSF, cULus, UL, Made in USA
