Hatco UGAHL-66D6 Ultra-Glo® Heat Lamps
Hatco UGAHL-66D6 Ultra-Glo® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco UGAHL-66D6 Ultra-Glo® Heat Lamps
Description

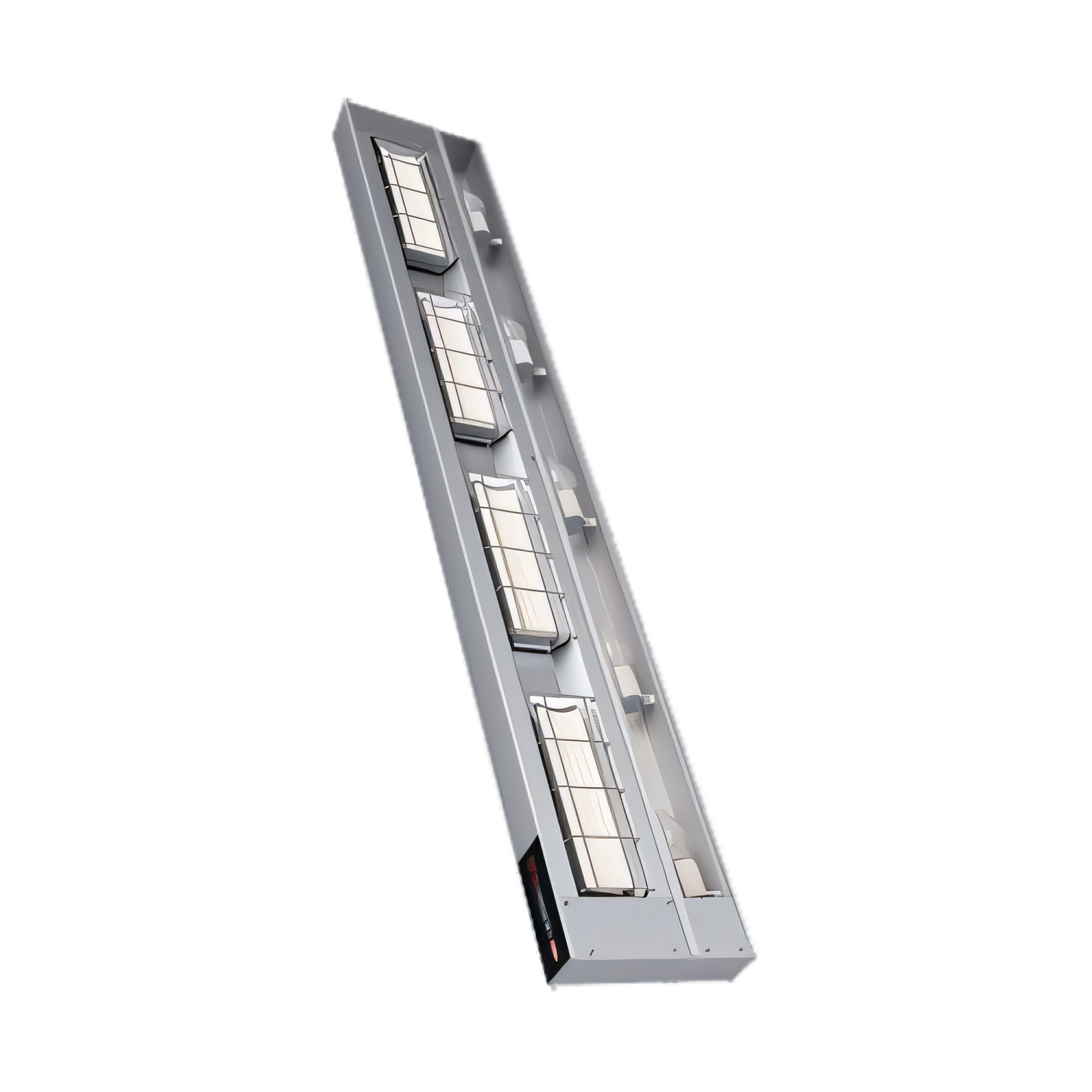

Hatco Ultra-Glo® 66" Dual Ceramic Infrared Foodwarmer
Model UGAHL-66D – High-Watt, with Display LightsGive every plate the just-made look and taste your guests expect. Hatco’s Ultra-Glo® 66" dual ceramic strip heater delivers intense, even heat across wider holding areas while built-in shatter-resistant lights keep your food brilliantly showcased. Ideal for buffet lines, pass-through windows, and exhibition cooking stations.
Key benefits

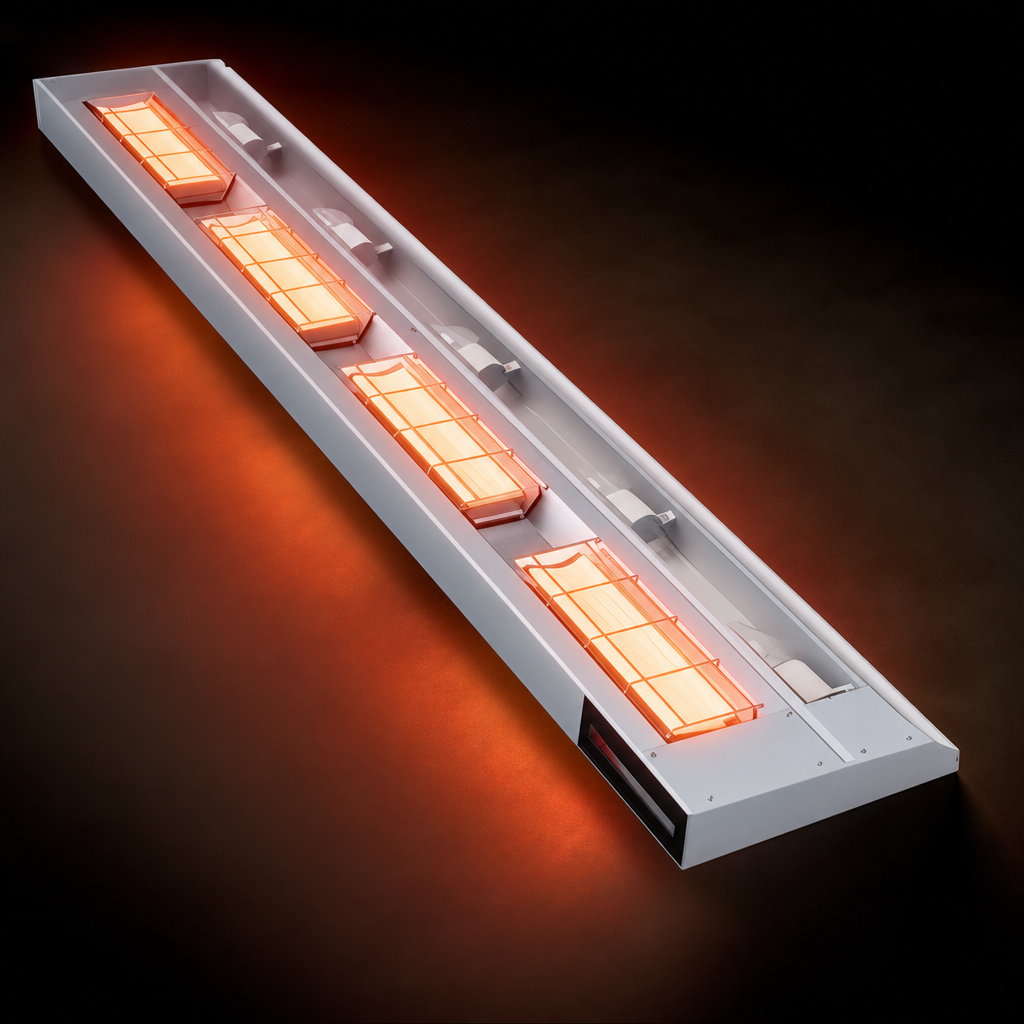

- High-watt dual ceramic elements blanket the entire 66" (1676 mm) holding zone—even the edges where heat loss is greatest.
- Increased mounting clearance thanks to focused infrared technology; includes 6" (152 mm) spacer for optimal food-to-element distance.

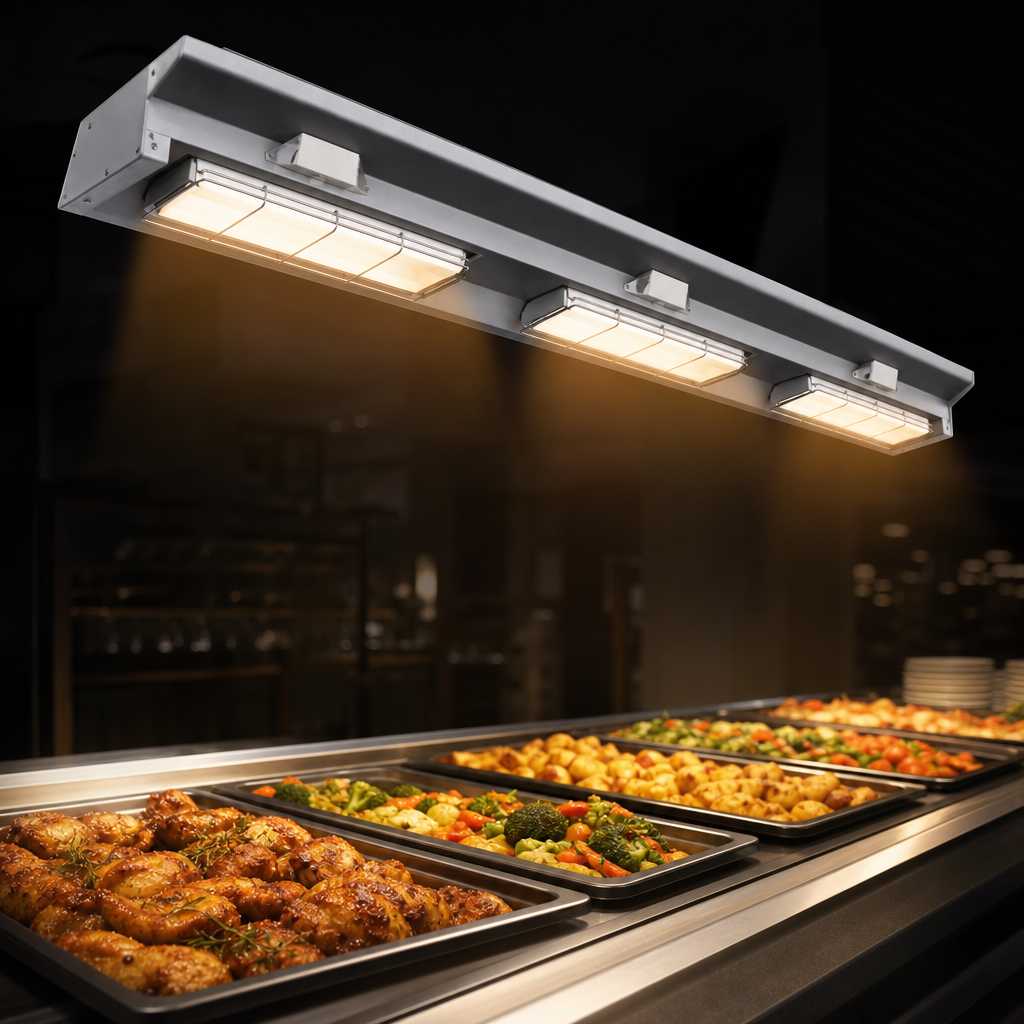

- Shatter-resistant incandescent bulbs (included) enrich product color and improve staff visibility.
- Continuous extruded aluminum housing prevents sagging and is available in multiple designer finishes (factory option).
- Adjustable angle brackets and a 3' (914 mm) conduit whip come factory-installed for quick, secure installation.
- Choose attached controls or a remote control enclosure (RMB series) to suit your counter layout.
- NSF, cULus listed and backed by Hatco’s 1-year parts & labor warranty; ceramic elements are warrantied against burnout for one year.
Specifications
| Overall width | 66" / 1676 mm |
|---|---|
| Height × Depth | 2.5" H × 3.8" D (64 × 97 mm) – housing only 2.5" H × 9.3" D (64 × 236 mm) with attached control box |
| Heat source | (2) ceramic infrared elements, high watt |
| Display lighting | (6) 120 V shatter-resistant incandescent bulbs |
| Electrical (heat circuits) |
• 208 V: 2 × 2700 W, 2 × 13.0 A • 240 V: 2 × 2600 W, 2 × 10.8 A (Each circuit requires a dedicated breaker) |
| Electrical (lights) | 120 V, 300 W max (via 120/208 V or 120/240 V tap) |
| Shipping weight | ≈ 50 lb / 23 kg (add 2-8 lb for remote enclosure) |
| Certifications | NSF, UL, cUL |
Mount heater at least 1" (25 mm) behind the shelf edge, 3" (76 mm) from back walls, and 22"–26" (559–660 mm) above the counter when using the included 6" spacer. Install remote control boxes outside the heat zone.
Ideal applications
- High-volume buffet or carving stations
- Quick-service and fast-casual make-up lines
- Banquet pass-throughs and expo counters
- C-stores and self-serve kiosks
Upgrade your hot-held presentation with Hatco’s proven Ultra-Glo® technology—built in the USA and trusted worldwide for performance, durability, and eye-catching food appeal.
