Hatco UGAHL-60 Ultra-Glo® Heat Lamps
Description
Hatco Ultra-Glo® 60" High-Watt Infrared Strip Heater with Lights
Model UGAHL-60 | single ceramic heat stripKeep plated meals, pans and to-go orders hot, fresh and visually enticing with the power of ceramic infrared technology. The 60" Ultra-Glo® delivers intense, even heat across wide holding areas while built-in display lights showcase every dish in its best light.
Key benefits

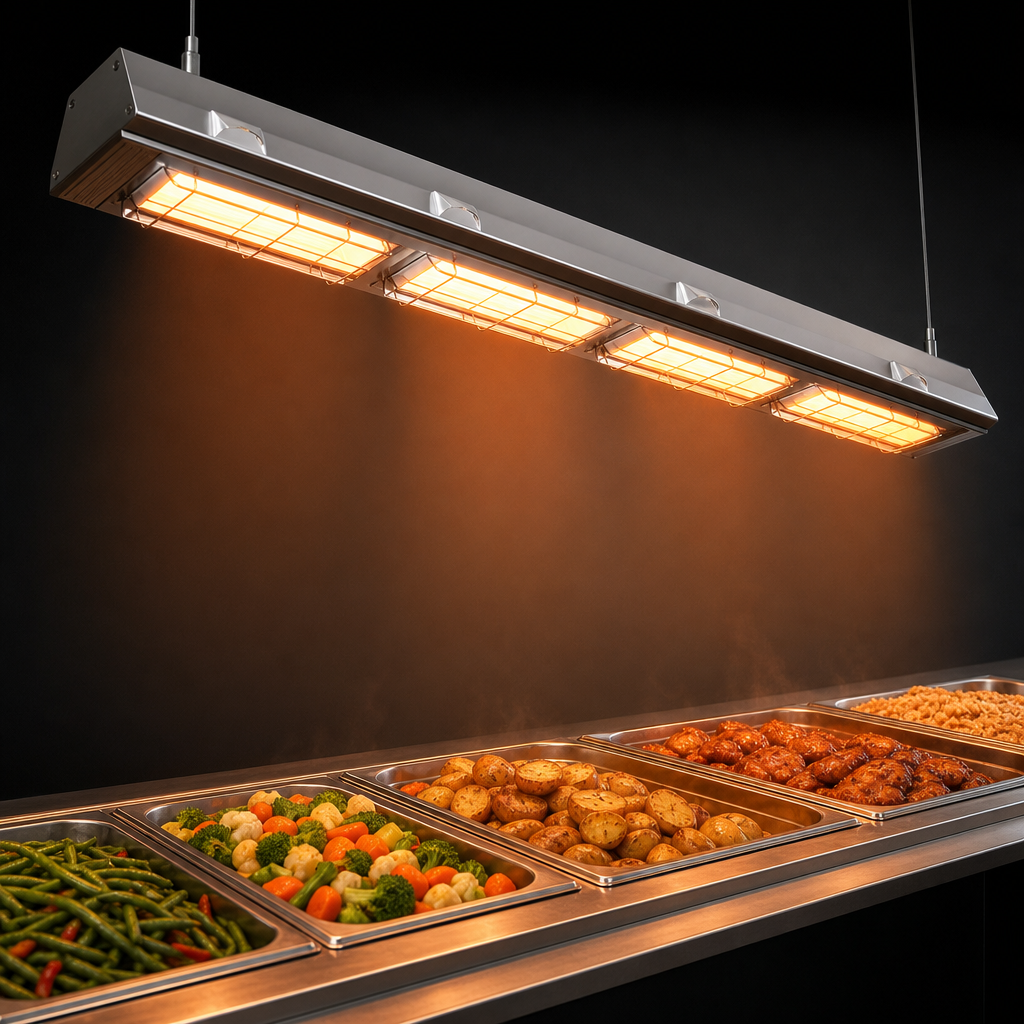

- High-watt ceramic element blankets the entire 60" (1524 mm) holding zone for superior food quality and longer hold times.
- Pre-focused pyramidal heat pattern directs extra warmth to the edges where heat loss is greatest.

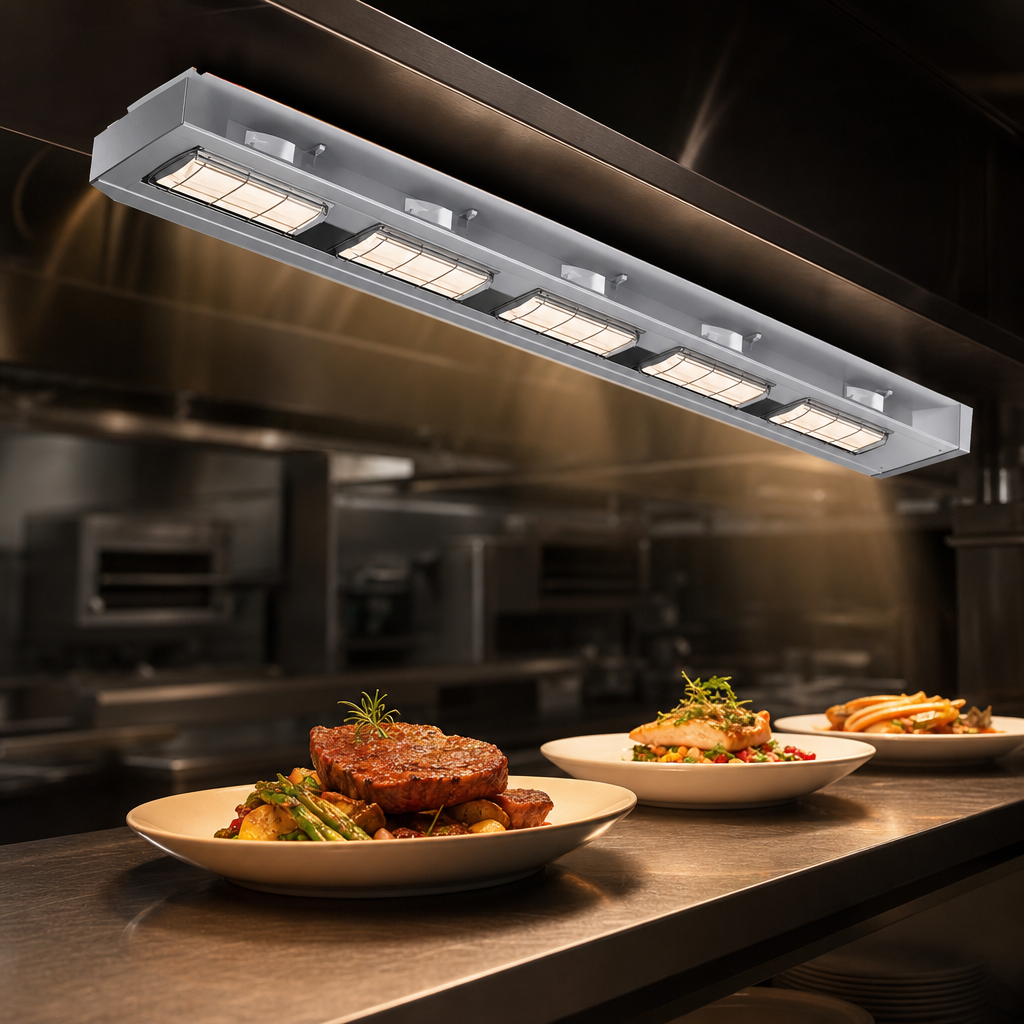

- Integrated display lights (one per 12") draw attention to the food; halogen upgrade available.
- Continuous extruded aluminum housing will not sag – choose clear anodized or 12 Designer Color finishes at time of order.
- Adjustable angle mounting brackets included for quick, precise installation.
- Choose attached or remote control enclosure with toggle switch, indicator light and cord whip.
- NSF listed, cULus certified and proudly Made in the USA.
Ideal for
- Expo stations & pass-thru shelves
- Buffet and self-serve lines
- Cafeterias & grab-and-go cases
- Open-kitchen concepts
Technical specs
| Overall dimensions | 60" W × 9" D × 2.5" H (1524 × 229 × 64 mm) |
|---|---|
| Heat source | Single high-watt ceramic infrared strip |
| Wattage / amps |
3,000 W / 15.5 A @ 120/208 V 2,900 W / 13.3 A @ 120/240 V 2,770 W / 12.6 A @ 220 V 2,900 W / 12.1 A @ 240 V |
| Voltage | 120/208 V, 120/240 V, 220 V or 240 V, 1-phase (multiple circuits) |
| Lighting | Incandescent display lamps (halogen option available) |
| Controls | Toggle on/off, indicator light; optional infinite control & relay |
| Mounting height | 16–22" (406–559 mm) above non-combustible surface – high-watt models |
| Shipping weight | Approx. 30 lb (14 kg) • add 2–8 lb for remote box |
| Certifications | NSF, cULus |
| Country of origin | USA |
Custom housing colors, halogen bulbs and extended power leads are factory options that must be specified at time of purchase.
