Hatco  |  Ultra-Glo®  |  SKU: UGAHL-54D6

Hatco UGAHL-54D6 Ultra-Glo® Heat Lamps

$1,894.32
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

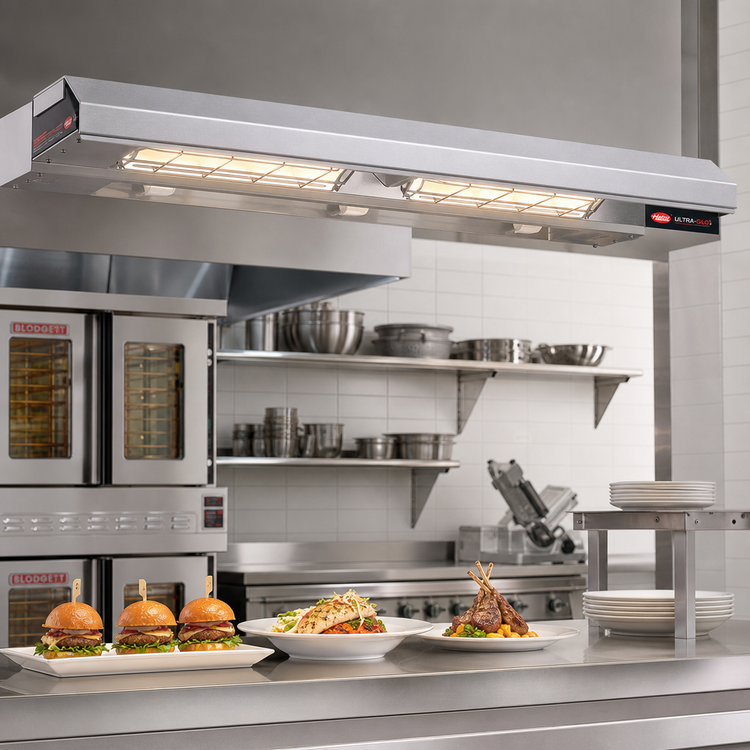

Hatco Ultra-Glo® 54" Dual Ceramic Infrared Foodwarmer with Lights

Model UGAHL-54D  |  High-Watt  |  NSF, UL & cUL Listed

Give every plate instant “just-out-of-the-kitchen” appeal while locking in heat and flavor. The Hatco Ultra-Glo® UGAHL-54D combines powerful ceramic infrared technology with shatter-resistant display lighting to keep a full 54 inch service zone hot, safe and irresistible.

Why Ultra-Glo® is the Pro’s Choice

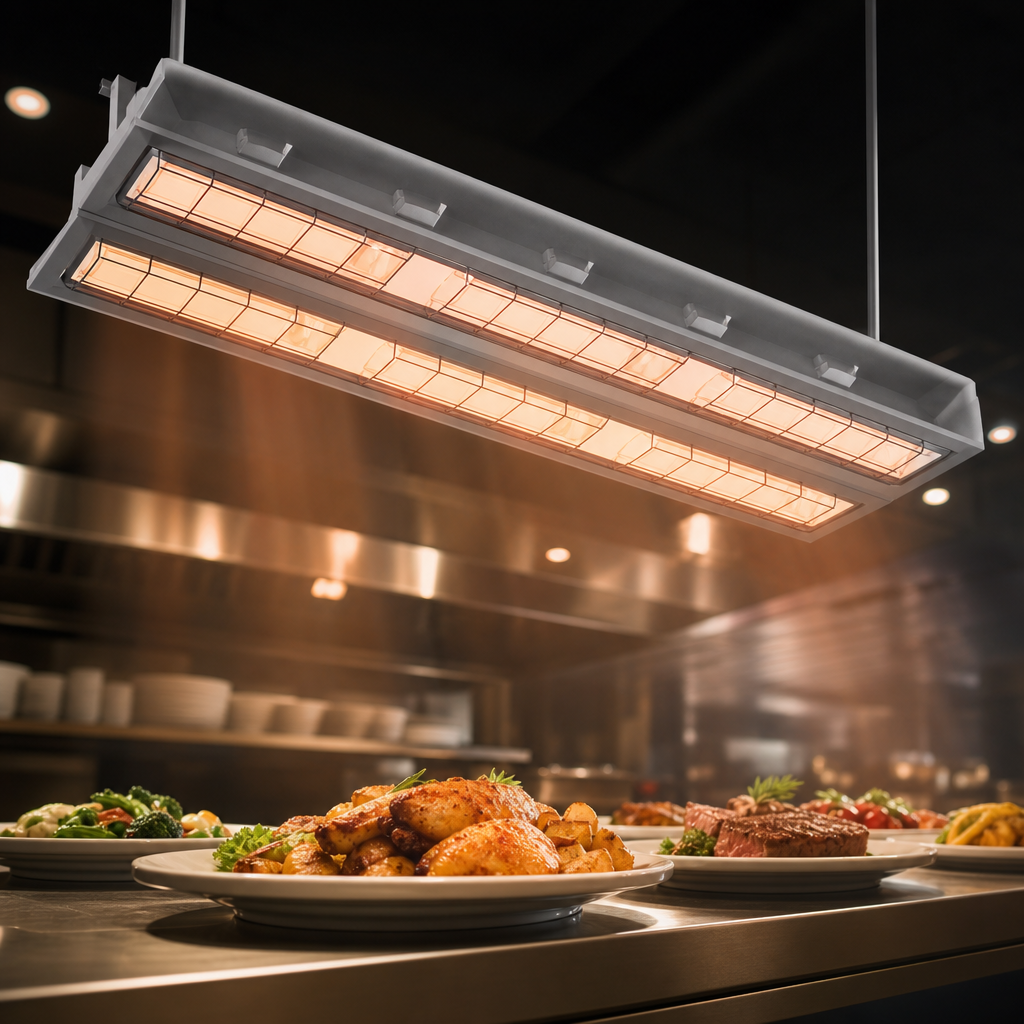

  • High-watt dual ceramic elements blanket food in intense, even radiant heat.
  • 54 in (1372 mm) width handles multi-pan layouts, buffet runs or wide pass-through shelves.
  • Factory-supplied 6 in (152 mm) spacer raises the heater for greater working clearance.

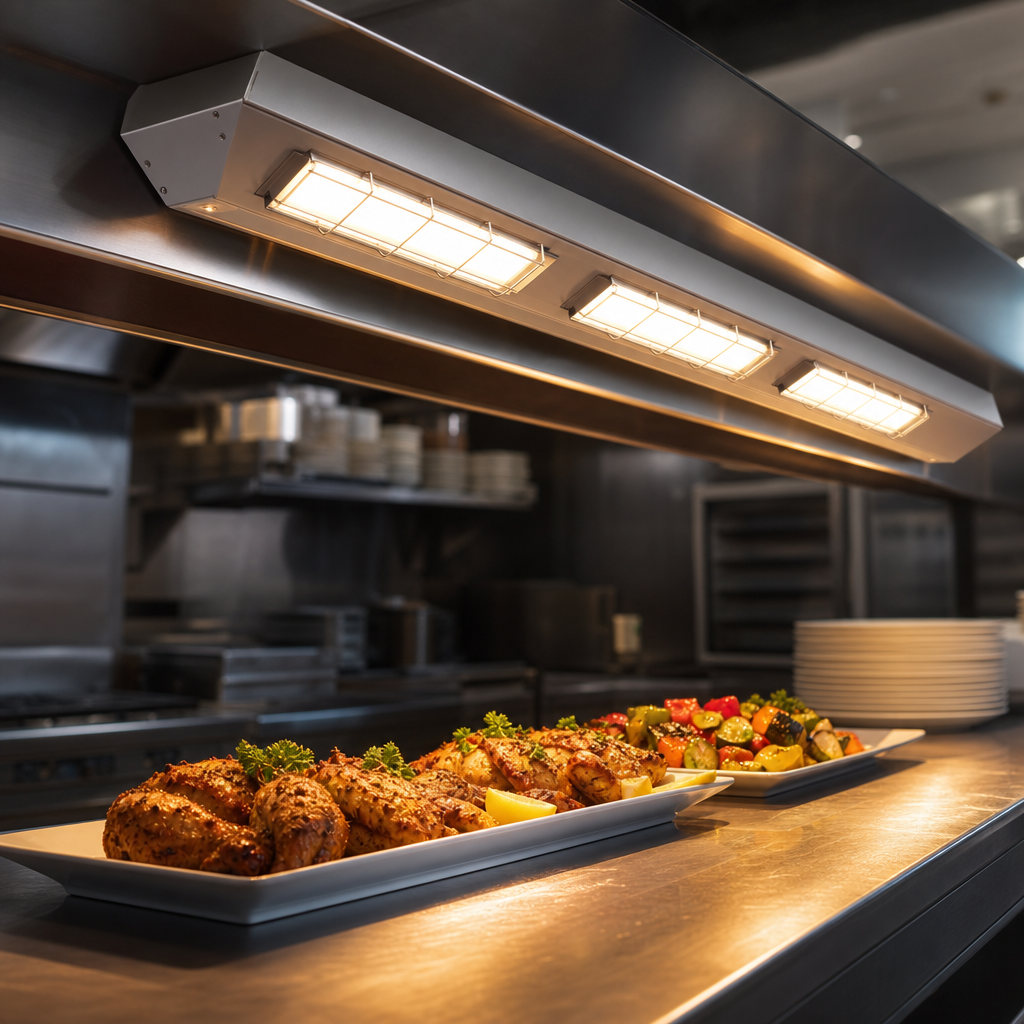

  • Integrated, coated incandescent bulbs (one every 12") spotlight product and resist shattering.
  • One-piece extruded aluminum housing won’t sag and wipes clean in seconds.
  • Pre-focused pyramidal heat pattern seals edges where heat loss is greatest.
  • Adjustable angle mounting brackets and 3′ (914 mm) conduit whip included for quick install.
  • Choose attached control box or remote enclosure (toggle or infinite) to suit your line layout.
  • All ceramic elements carry a 1-year no-burnout warranty for worry-free performance.
Key Specifications
Model UGAHL-54D
Overall width 54 in / 1372 mm
Heat source Dual ceramic infrared strips (high watt)
Lighting Shatter-resistant incandescent (1 bulb per 12" section)
Voltage options 208 V or 240 V, two circuits (see electrical chart)
Total wattage Up to 4.5 kW heat + lights
Amperage Up to 18.8 A (two 9.4 A circuits @ 240 V)
Housing size 2.5 in H × 3.8 in D (64 × 97 mm)
Included spacer 6 in (152 mm)
Mounting hardware Adjustable angle brackets
Ship weight ≈ 35 lb / 15.9 kg
Certifications NSF, UL, cUL
Customize Your Warmer
  • 15 designer powder-coat or gloss finishes for the housing
  • Optional non-adjustable tubular stands (18–26" heights)
  • Extended power leads up to 20 ft (6 m)
  • Remote control enclosures available in matching colors
  • Chef-LED bulbs in 3000 K or 4000 K for pass-through lines

Need help choosing voltage, controls or accessories? Chat with our equipment specialists before adding to cart.

Installation reminder: Do not mount Ultra-Glo® strip heaters above or near combustible surfaces. Remote control boxes must be installed outside the heat zone.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, UL

Height

3.8in

Width

54.0in

Depth

22.0in

Shipping Weight

45.0lbs

Size

double

Finish

aluminum

Length

49 - 54"

Type of element

ceramic heating

Type

lighted

Specifications

Ultra-Glo® Infrared Foodwarmer, 54" W, high wattage, with lights, double ceramic heat strip with aluminum housing, 6" spacer, with remote or attached control box, adjustable angle brackets, NSF, cUL, UL
