Hatco  |  Ultra-Glo®  |  SKU: UGAHL-54

Hatco UGAHL-54 Ultra-Glo® Heat Lamps

$1,040.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Owner's manual Color chart Parts list
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

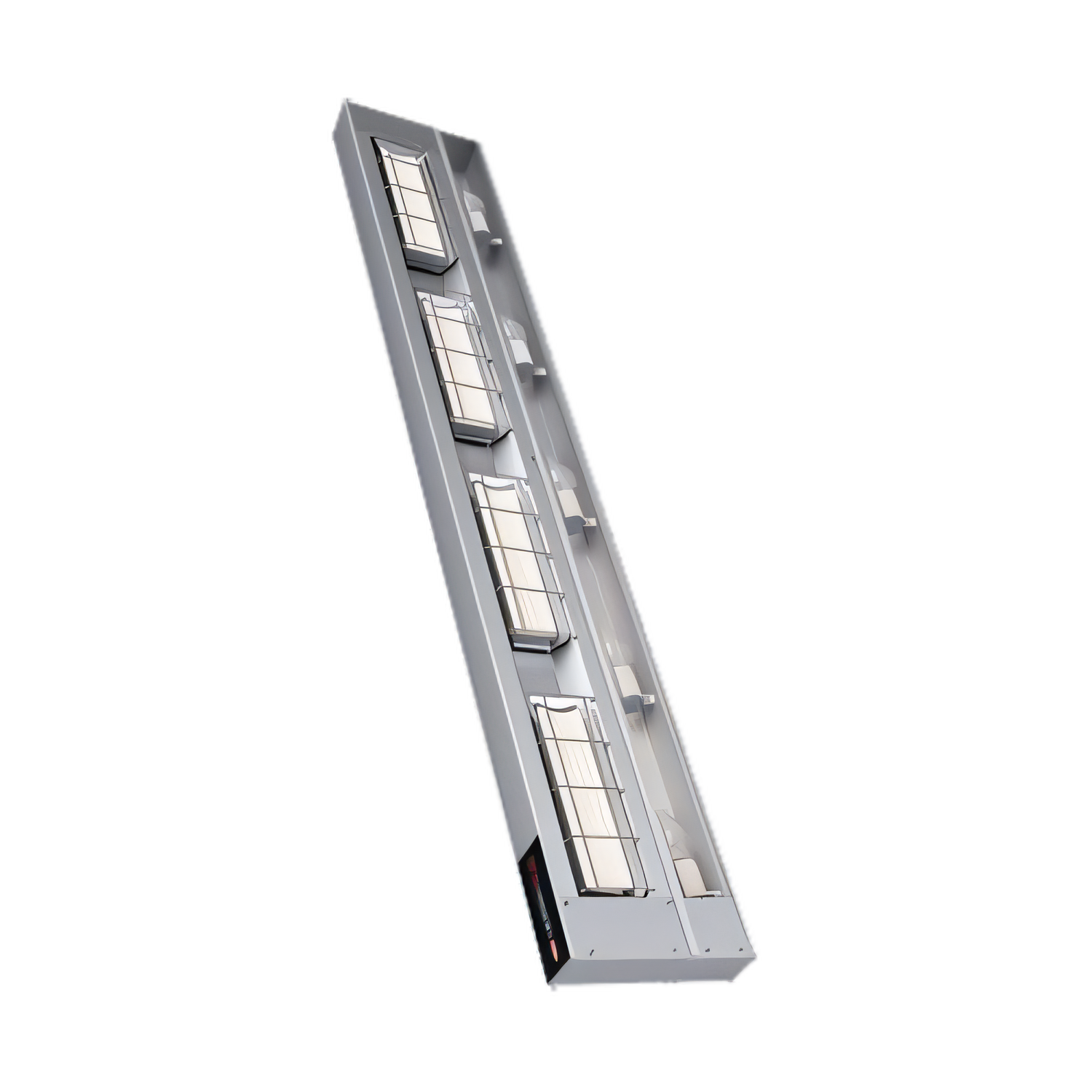

Hatco Ultra-Glo® UGAHL-54 Ceramic Infrared Strip Heater

54" • High-Watt • With Lights

Keep finished dishes at their peak with the Ultra-Glo® 54-inch high-watt strip heater. Hatco’s powerful ceramic emitter delivers a blanket of infrared heat while bright display lighting showcases food to drive impulse sales.

Key benefits

  • High-watt ceramic element pumps out up to 2,490 W of targeted holding heat.
  • Integrated lighting (four 60 W shatter-resistant lamps) makes every item look freshly plated.
  • Rigid one-piece aluminum housing resists sagging and blends into any expo line or buffet.
  • Pre-focused pyramidal heat pattern concentrates warmth at pan edges where loss occurs first.
  • Includes adjustable angle brackets and a 3' flexible conduit whip for fast, code-compliant installs.
  • Select an attached or remote control box—both with toggle switch and indicator light; electronic infinite control optional.
  • NSF certified, cULus listed and proudly Made in the USA.

Perfect for

  • Pass-thru & expo shelves
  • QSR/fast-casual make lines
  • Self-service buffets & cafeterias
  • Convenience store hot grab-and-go displays

Specifications

Model UGAHL-54
Overall width 54 in / 1,372 mm
Depth × Height 9 in × 2.5 in (227 × 64 mm)
Heating element Single high-watt ceramic strip
Wattage Up to 2,490 W
Voltage / Phase 208 V, 220 V or 240 V, 1-phase (multi-circuit 120/208 or 120/240 available)
Amperage @ 240 V ≈ 10.4 A
Lighting (4) 60 W incandescent display lamps • halogen option available
Controls Toggle ON/OFF & indicator light (electronic infinite control optional)
Mounting clearance 14–18 in (356–457 mm) low-watt / 16–22 in (406–559 mm) high-watt above food
Certifications NSF, cULus
Origin Milwaukee, Wisconsin USA

Looking for a custom look? Choose from 12 Designer Colors and multiple gloss finishes at time of order.

What’s included

  • Ultra-Glo® UGAHL-54 strip heater
  • Adjustable angle mounting brackets
  • 3 ft (914 mm) pre-wired conduit whip
  • Attached control box or remote control enclosure (per your selection)
  • Installation & operator’s manual
Installation note: Mount to non-combustible surfaces only. Remote control enclosures must be installed outside the heat zone to prevent damage.

Backed by Hatco’s 24/7 parts & service hotline and a 1-year parts & labor warranty.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, cULus, Made in USA

Height

3.9in

Width

54.0in

Depth

9.0in

Shipping Weight

25.0lbs

Finish

aluminum

Type of element

ceramic heating

Size

single

Length

49 - 54"

Type

lighted

Specifications

Ultra-Glo® Infrared Strip Heater, 54" W, high wattage, with lights, single ceramic heat strip with aluminum housing, with remote or attached control box, adjustable angle brackets, 2490 watts, NSF, cULus, Made in USA
