Hatco UGAHL-48D3 Ultra-Glo® Heat Lamps
Description

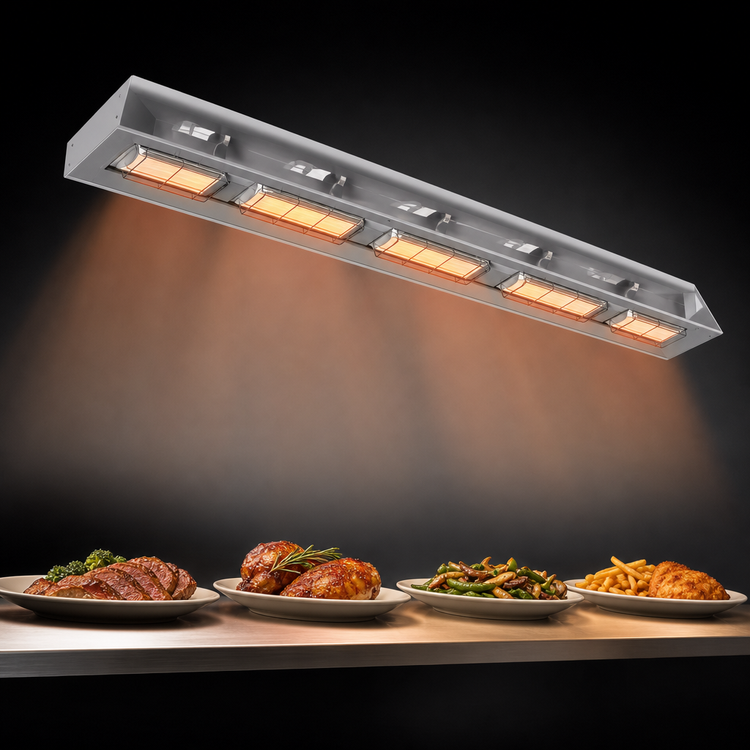

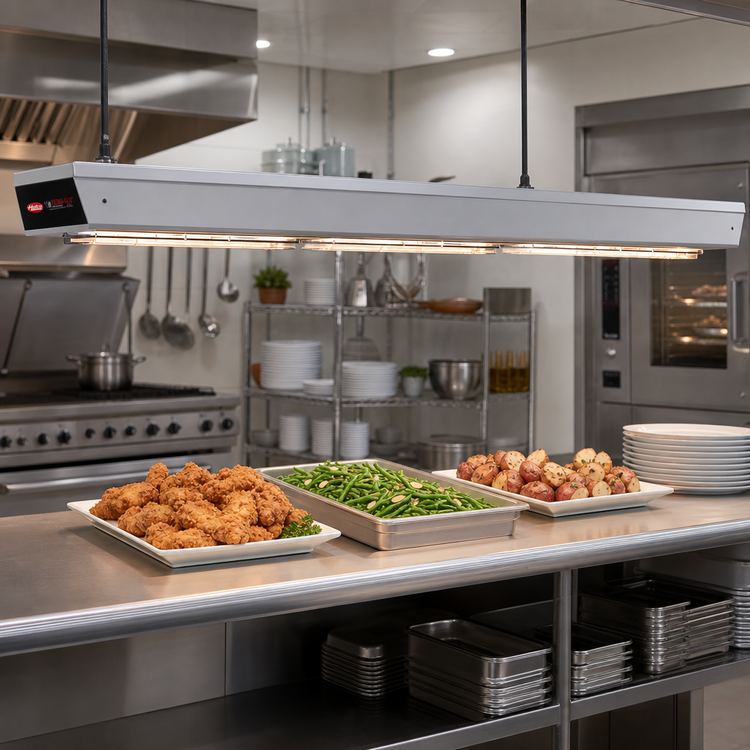

Hatco Ultra-Glo® 48" Dual Ceramic Infrared Foodwarmer
Model UGAHL-48D | High-Watt with Display LightsDesigned for wide pans, full-size sheet trays, and multi-well buffet runs, the 48-inch Ultra-Glo® delivers intense infrared heat exactly where you need it—at the outer edges where food cools fastest— while brilliant shatter-resistant lights keep every dish looking as fresh as it tastes.
Why You’ll Love It

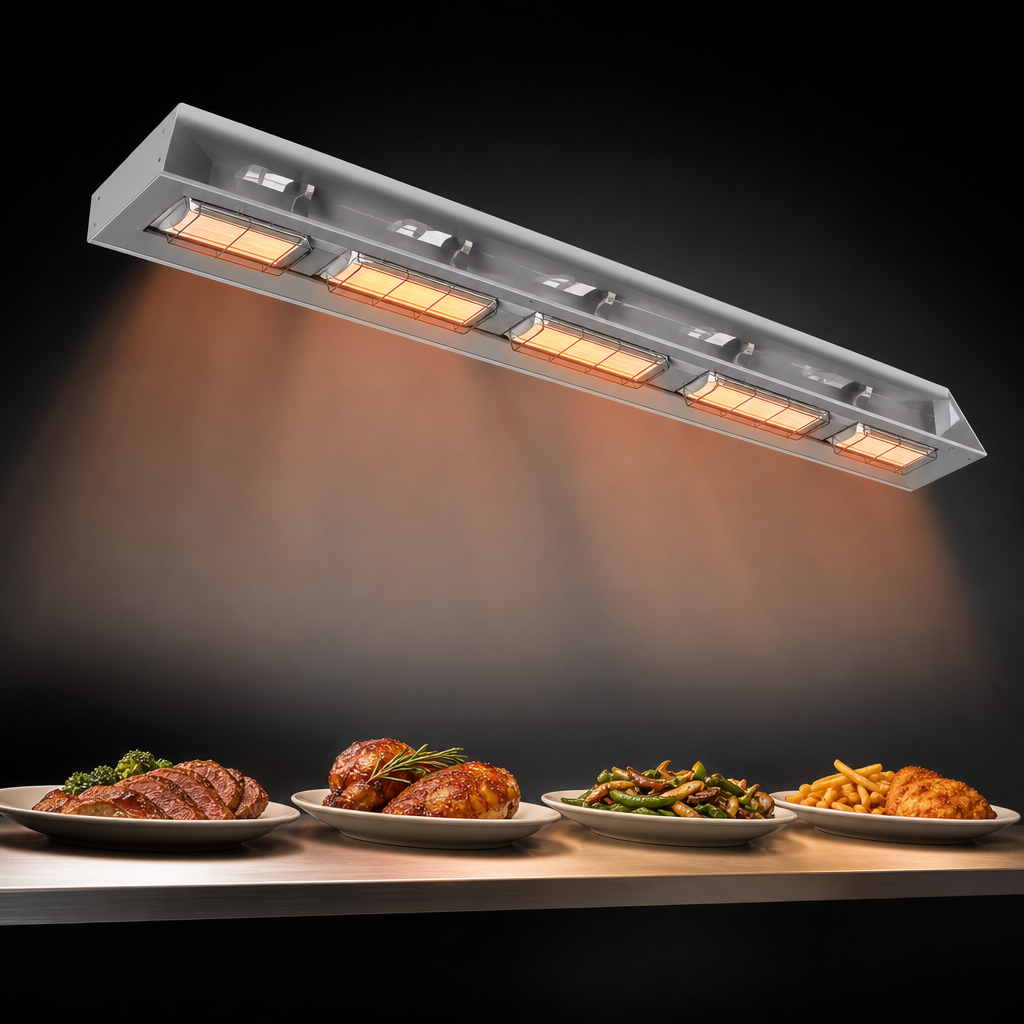

- Dual high-watt ceramic elements blanket the entire 48" (1219 mm) holding zone.
- Included 3" spacer and slim 1.26" profile boost working clearance without sacrificing heat.
- Adjustable-angle mounting brackets make it easy to fine-tune the heat pattern on site.

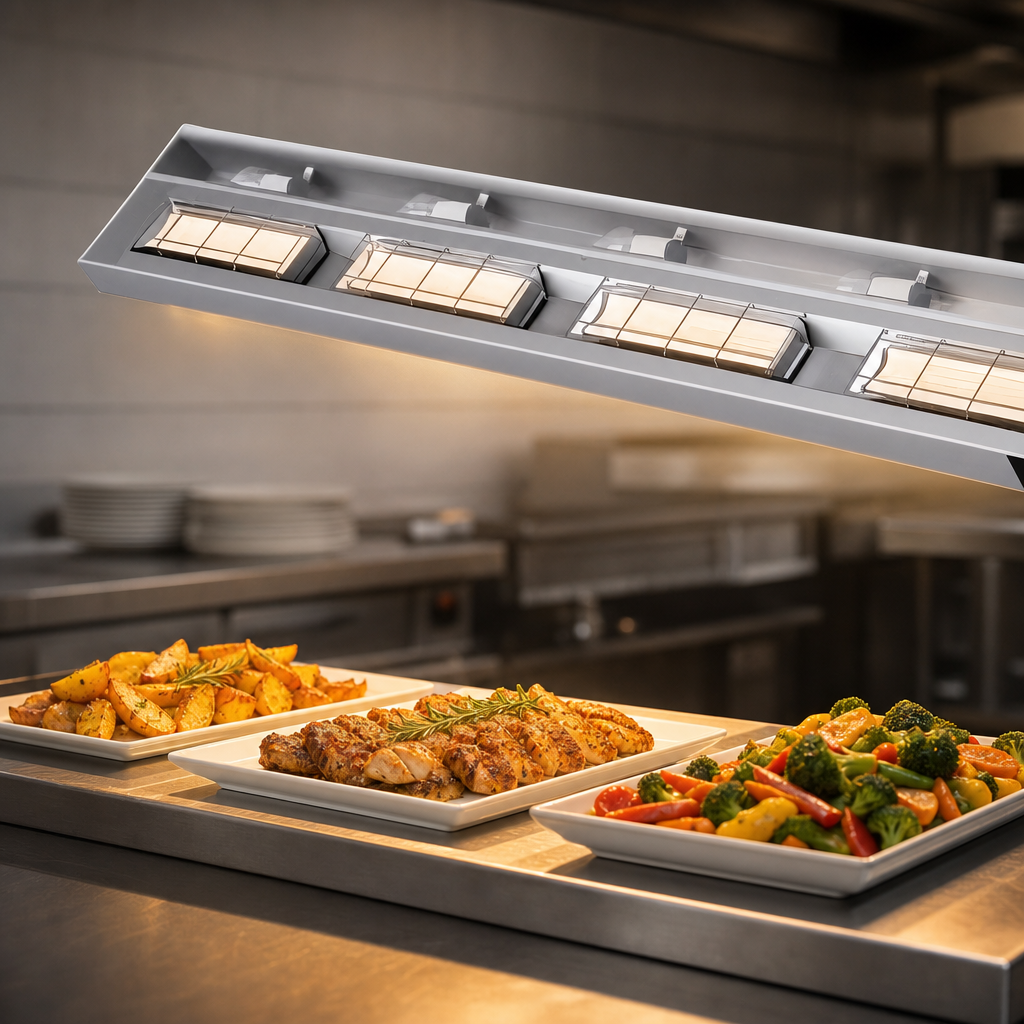

- Two incandescent display lights (optional coated, shatter-resistant bulbs) enhance presentation and food safety.
- Rigid, extruded anodized aluminum housing will not sag—ideal for longer runs and over-shelf installs.
- Choice of attached or remote control box with toggle switch & indicator light for simple operation.
- NSF, UL, cULus listed and made in the USA for total peace of mind.
Tech Specs
| Overall width | 48 in │ 1219 mm |
|---|---|
| Heat source | Dual ceramic infrared strips │ High-watt |
| Heating power | Up to 3.9 kW (two 1950 W circuits at 240 V) See spec label for other voltages (120, 120/208, 208, 220, 240 V) |
| Amperage (240 V) | 2 × 8.1 A (separate breakers recommended) |
| Display lighting | 2 × incandescent PAR-style bulbs, shatter-resistant option available |
| Mounting hardware | Adjustable angle brackets + 3' (914 mm) conduit whip |
| Clearance (with 3" spacer) | 15" (381 mm) minimum above counter |
| Shipping weight | ≈ 30 lb / 14 kg (add 2–8 lb for remote control enclosure) |
| Certifications | NSF │ UL │ cULus |
| Warranty | 1-year element burnout warranty + 24/7 parts & service support |
Customize Your Heater
-
Control location
• Attached box (factory-wired)
• Remote box (RMB-14 Series) – mount up to 20' away - Finish – standard clear anodized aluminum or 15 designer powder-coat colors.
- LED chef bulbs (3000 K or 4000 K) for energy-saving, cool-touch illumination.
- Non-adjustable tubular stands – 18" to 26" heights, color-matched.
- Extended power leads – up to 20' (6.1 m) factory-installed.
Need a different length or wattage? Ultra-Glo® models are available from 18" to 72" with or without lights. Contact us for quick quotes and lead-times.
