Hatco UGAHL-24D6 Ultra-Glo® Heat Lamps
Hatco UGAHL-24D6 Ultra-Glo® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

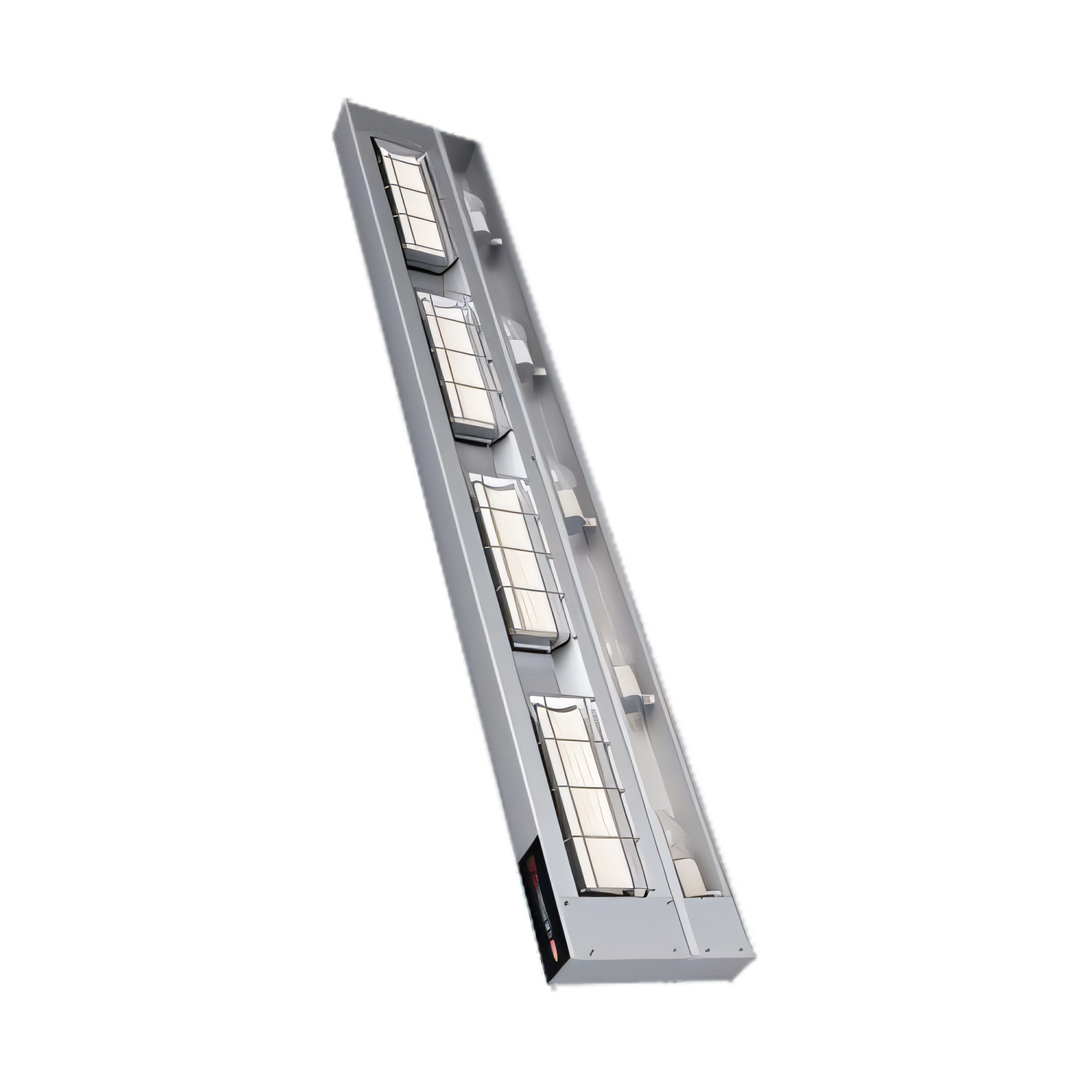

Ultra-Glo® 24" Dual Ceramic Infrared Strip Heater – High Watt with Lights
Model UGAHL-24D • 1620 W • NSF, UL & cUL ListedGive every plate the just-made appeal diners crave. Hatco’s Ultra-Glo® high-watt strip heater uses dual ceramic emitters and focused infrared energy to blanket a 24 inch holding zone with consistent top heat—keeping fried, grilled or baked foods at perfect serving temperature while brilliant shatter-resistant lights showcase your menu.
Why You’ll Love It
- High-Watt Performance – 1620 watts of infrared power quickly penetrates and holds foods without drying them out.

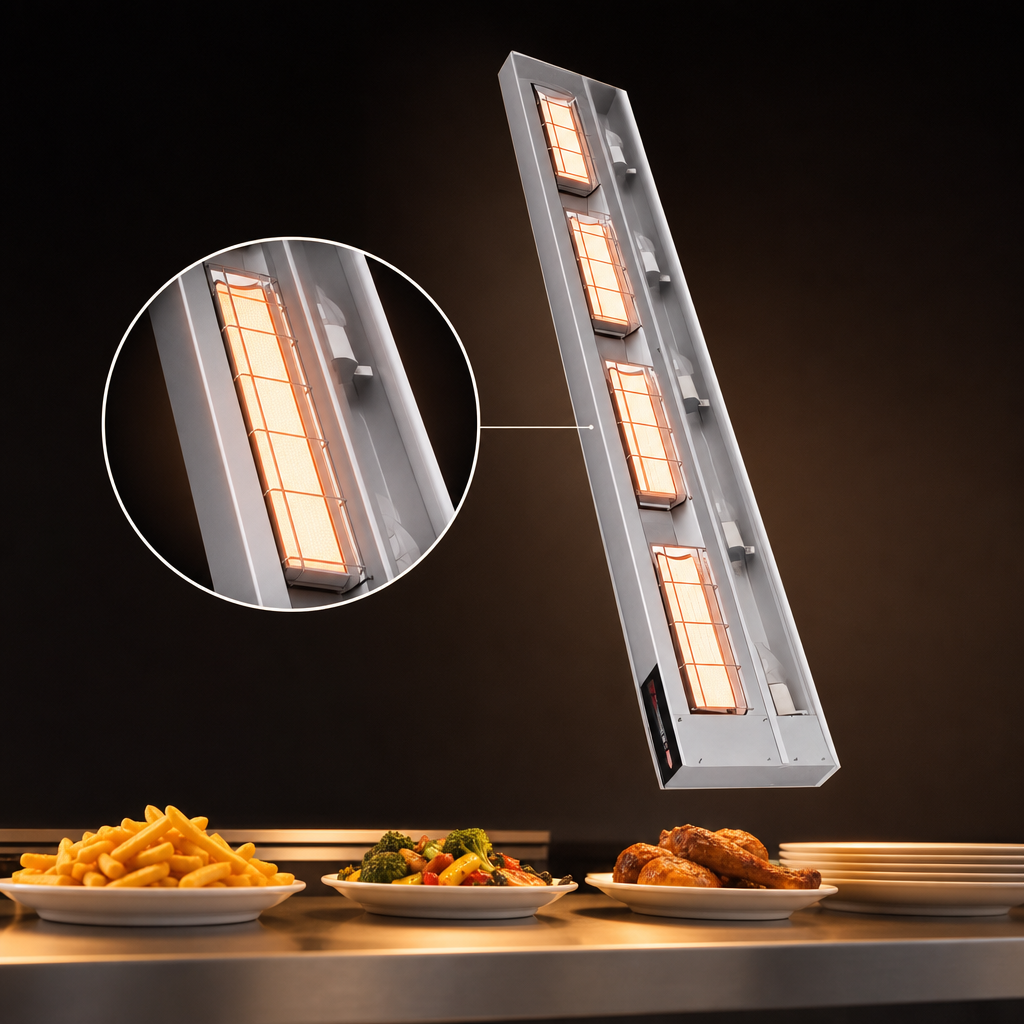

- Dual Ceramic Heat Strips – Two precast emitters extend the heat pyramid to the pan edges where loss is greatest.

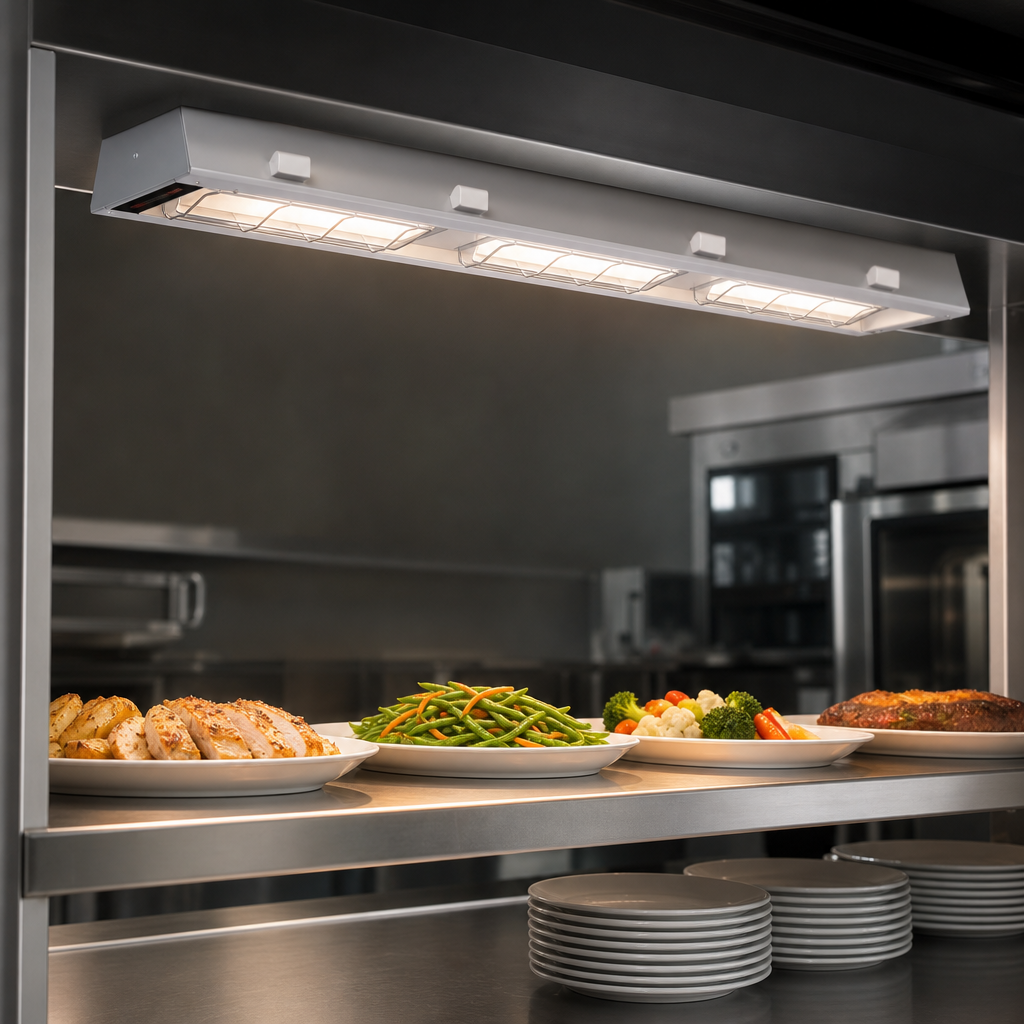

- Integrated Display Lighting – Two shatter-resistant incandescent bulbs (one per 12") highlight product while protecting it from glass fragments.
- 6" Spacer Included – Raises the heater for 22-26" (559-660 mm) clearance—ideal for busy carving stations or buffet lines.
- Flexible Controls – Choose the factory-wired attached control box or a remote control enclosure (toggle or infinite settings) to suit your layout.
- Extruded Aluminum Housing – One-piece construction eliminates sagging and stands up to commercial abuse.
- Easy Aiming – Adjustable-angle brackets let you direct heat exactly where you need it.
- Certified & Protected – NSF sanitation, UL & cUL safety listings plus a 1-year element burnout warranty.
Key Specifications
Heat Zone Width | 24" (610 mm) |
---|---|
Heat Source | Dual ceramic infrared elements |
Total Wattage | 1620 W (high-watt model) |
Typical Amp Draw | 6.8 A @ 240 V | 7.3 A @ 220 V |
Voltage Options* | 120/208 V, 120/240 V, 220 V, 240 V, 1-phase |
Overall Dimensions |
Remote box version: 24" W × 7.25" D × 2.5" H (610 × 184 × 64 mm) Attached box version: 24" W × 8.25" D × 3.38" H (610 × 198 × 86 mm) |
Recommended Mounting Height | 22-26" (559-660 mm) above holding surface with included 6" spacer |
Shipping Weight | ≈ 19 lb (9 kg) |
Certifications | NSF, UL, cUL |
Warranty | 1 year parts & labor; ceramic elements – 1 year against burnout |
*Electrical characteristics are factory-wired; please confirm voltage prior to ordering.
Factory Options (order-time only)
- Designer or gloss color housings
- LED chef bulbs (3000 K or 4000 K)
- Extended power leads (up to 20')
- Non-adjustable tubular stands (18" – 26")
