Hatco UGAH-72D3 Ultra-Glo® Heat Lamps
Description

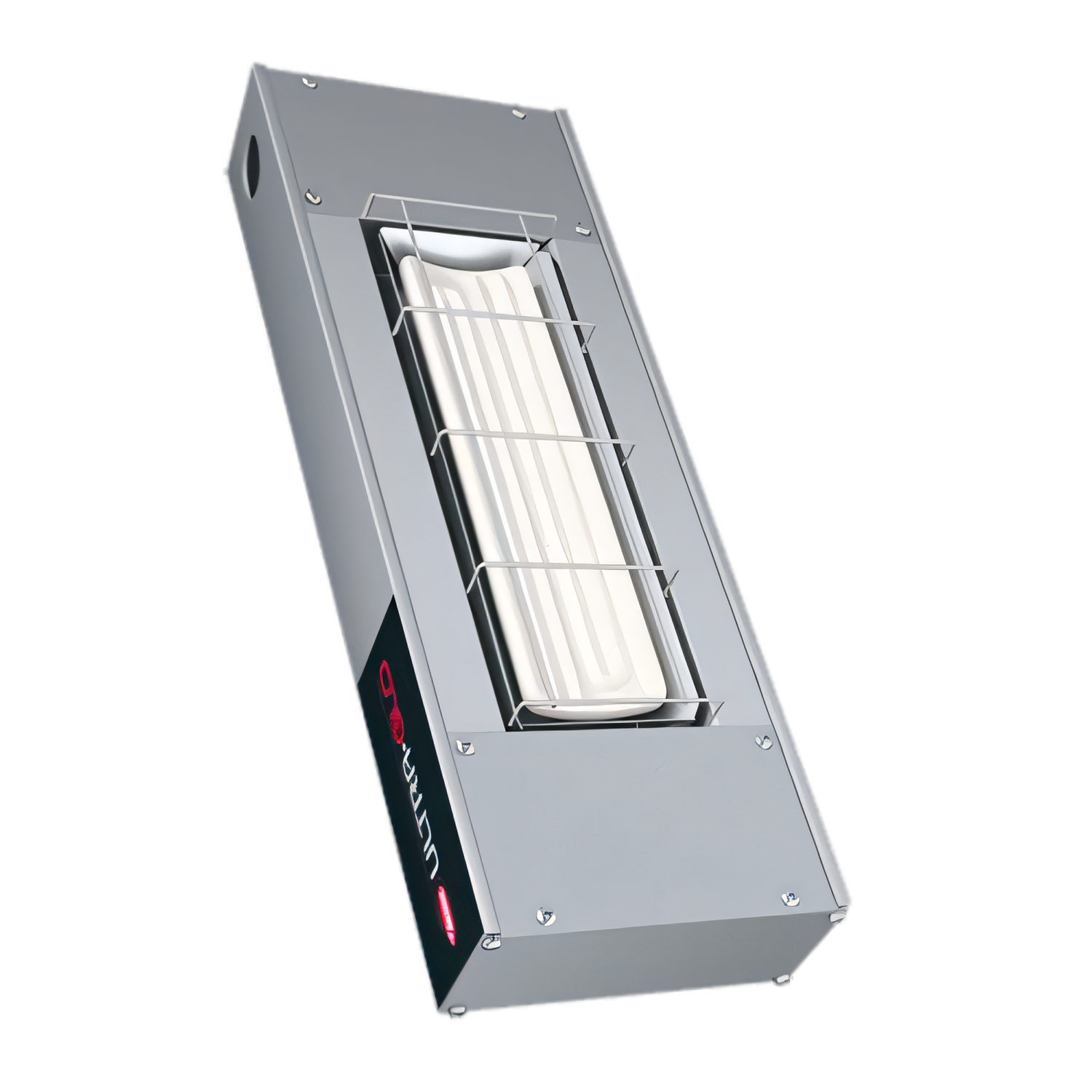

Hatco Ultra-Glo® UGAH-72D Dual Ceramic Infrared Foodwarmer
72" • High Watt • Remote or Attached ControlsCover an entire six-foot pass-thru or buffet line with powerful, even heat. The Ultra-Glo® UGAH-72D delivers a focused blanket of infrared warmth that keeps menu items hot and appetizing—without over-cooking—while its 3" spacer raises the heater for safer, more comfortable plating.
Why you’ll love it

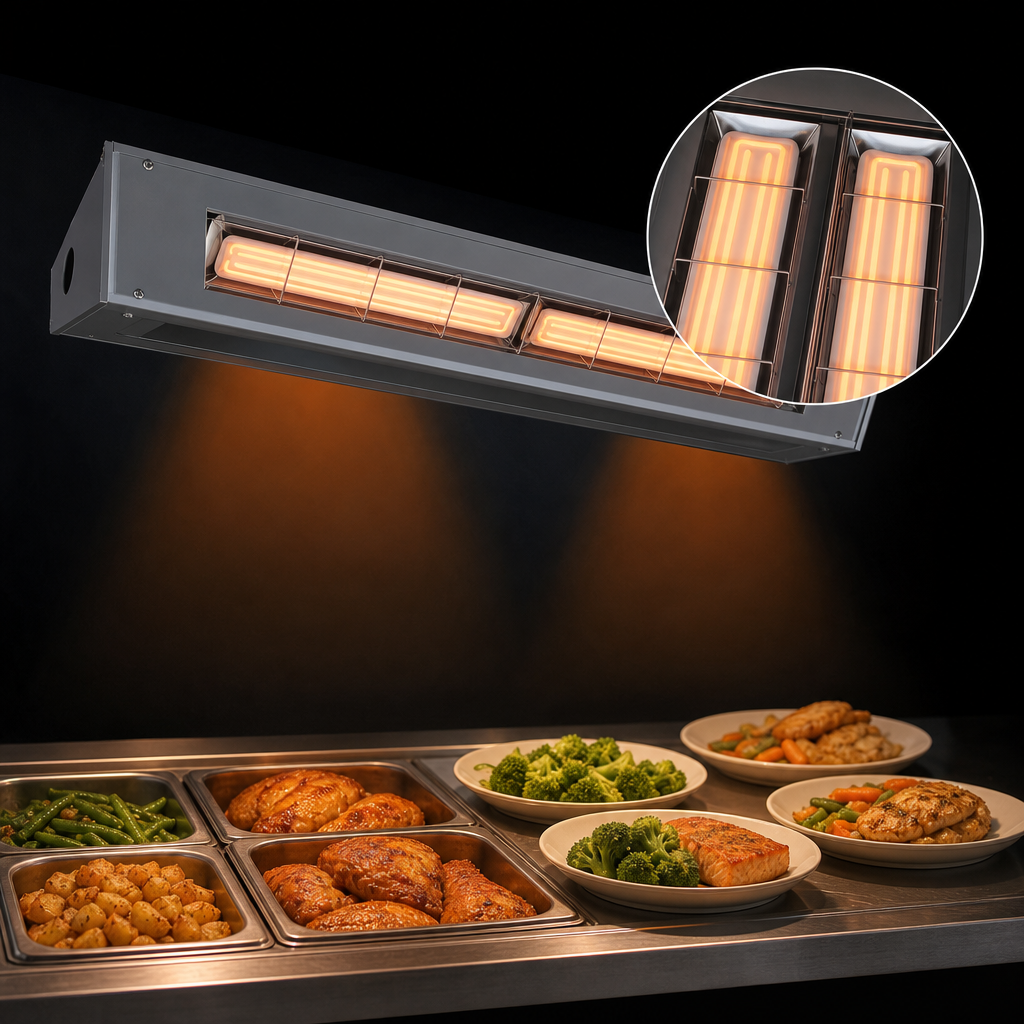

- High-watt dual ceramic elements provide up to 6 kW of holding power (3 kW per circuit).
- Pre-focused pyramidal heat pattern eliminates cold corners across the full 72" width.
- Included 3" (76 mm) spacer increases working clearance to 15–19".
- Choose attached or remote control box (toggle switch & infinite heat control).

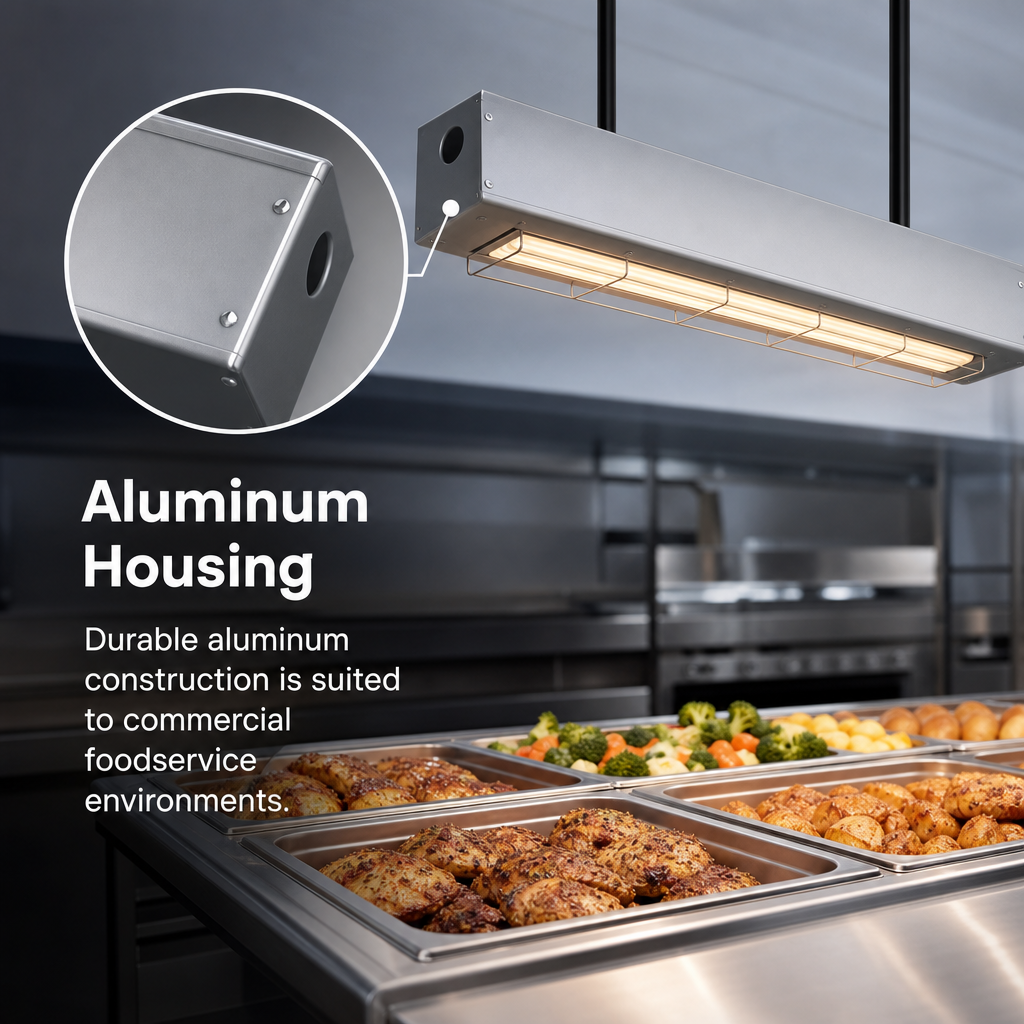

- Continuous extruded aluminum housing prevents sagging and is available in optional designer colors.
- Adjustable angle brackets and 3' (914 mm) conduit whip ship with every unit for fast installation.
- NSF & UL Listed and proudly Made in the USA.
Perfect for
- Pass-thru windows & expo lines
- Self-serve buffets & carving stations
- Catering/banquet holding tables
- Open-kitchen food displays
Technical specifications
| Model | UGAH-72D (Dual Strip, High Watt) |
|---|---|
| Overall width | 72" / 1829 mm |
| Housing depth | 3.8" / 97 mm |
| Housing height | 1.26" / 32 mm (2.5" / 64 mm with brackets) |
| Spacer height | 3" / 76 mm (included) |
| Heat source | Two ceramic infrared elements |
| Total wattage | 6,000 W (2 × 3,000 W) |
| Voltage options | 208 V, 220 V or 240 V, 1-phase, hard-wired (dual circuits) |
| Amperage | 12.5 A per circuit @ 240 V | 14.4 A per circuit @ 208 V |
| Ship weight | 55 lb / 25 kg |
| Certifications | NSF, UL EPH, UL (US & Canada) |
| Warranty | 1 year parts & labor (elements warranted against burnout for 1 year) |
| Country of origin | USA |
Optional accessories—designer color housing, tubular stands, extended power leads, and LED chef lights—must be specified at time of order.
