Hatco UGAH-66D3 Ultra-Glo® Heat Lamps
Hatco UGAH-66D3 Ultra-Glo® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco UGAH-66D3 Ultra-Glo® Heat Lamps
Description

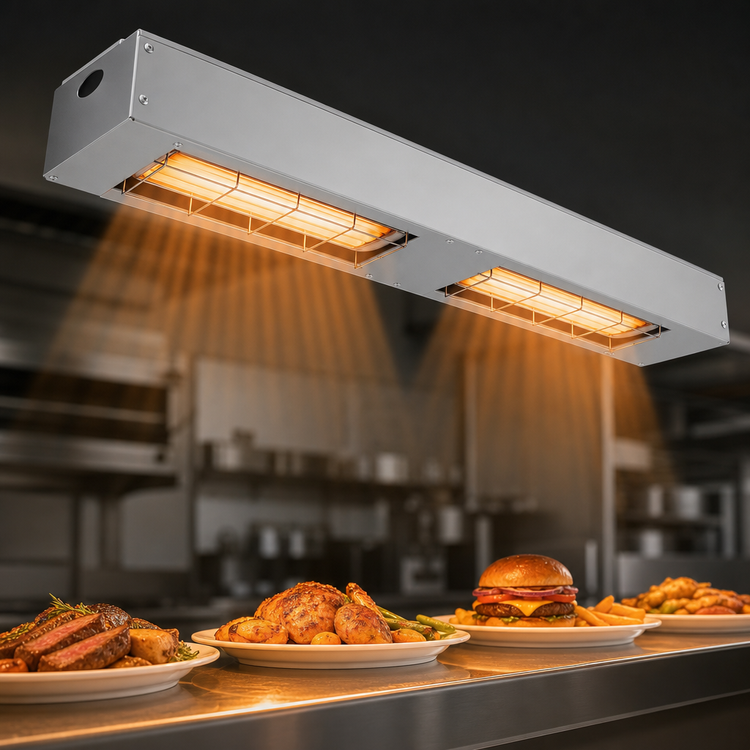

Hatco Ultra-Glo® 66" Dual Ceramic Infrared Foodwarmer – High Watt
Model UGAH-66D | Made in USABlanket an entire 5½-foot serving area with intense, even heat. The high-watt Ultra-Glo® dual strip combines Hatco’s signature ceramic elements with a rigid aluminum housing to keep entrées, sides and grab-and-go orders hot without sacrificing product quality or valuable workspace.
Performance you can count on

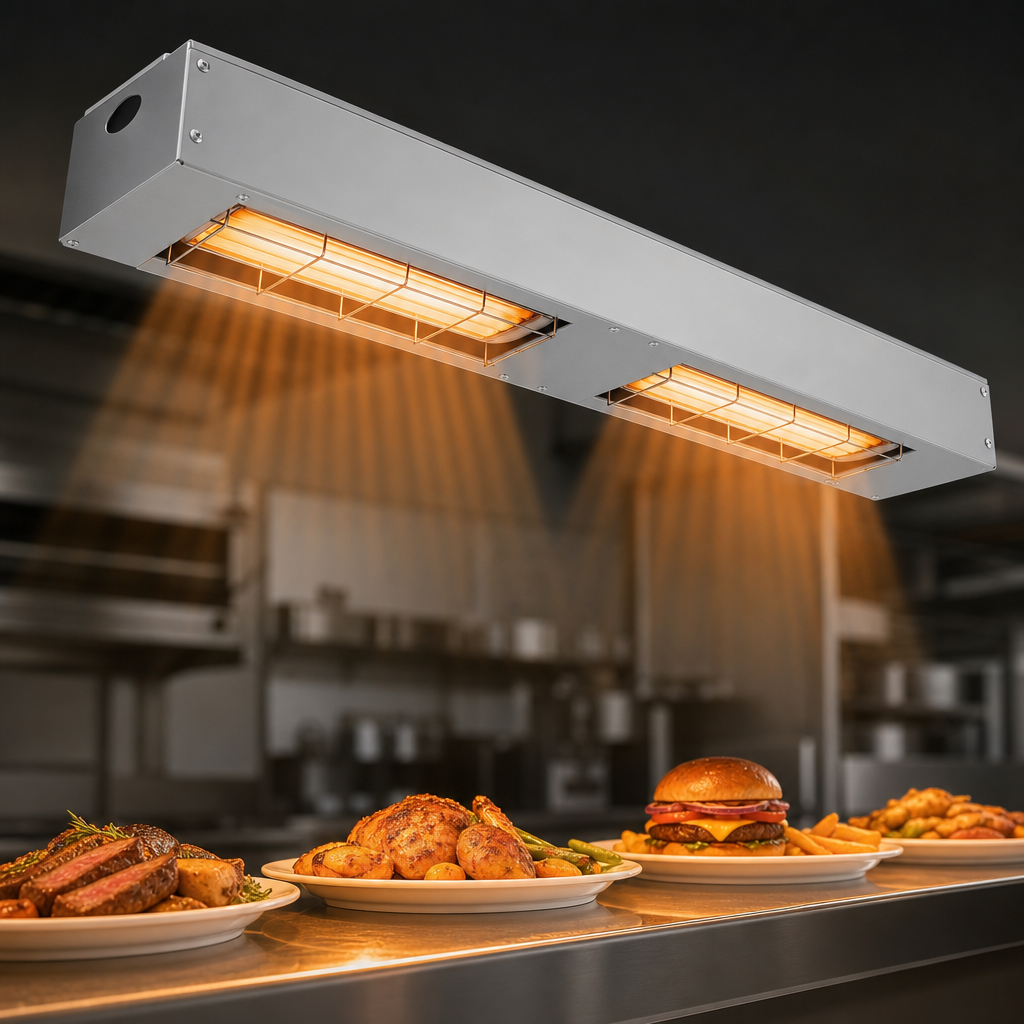

- High-watt dual ceramic elements deliver up to 5.4 kW of focused infrared heat.
- Factory-installed 3" (76 mm) spacer raises the heat source for better working clearance and visibility.

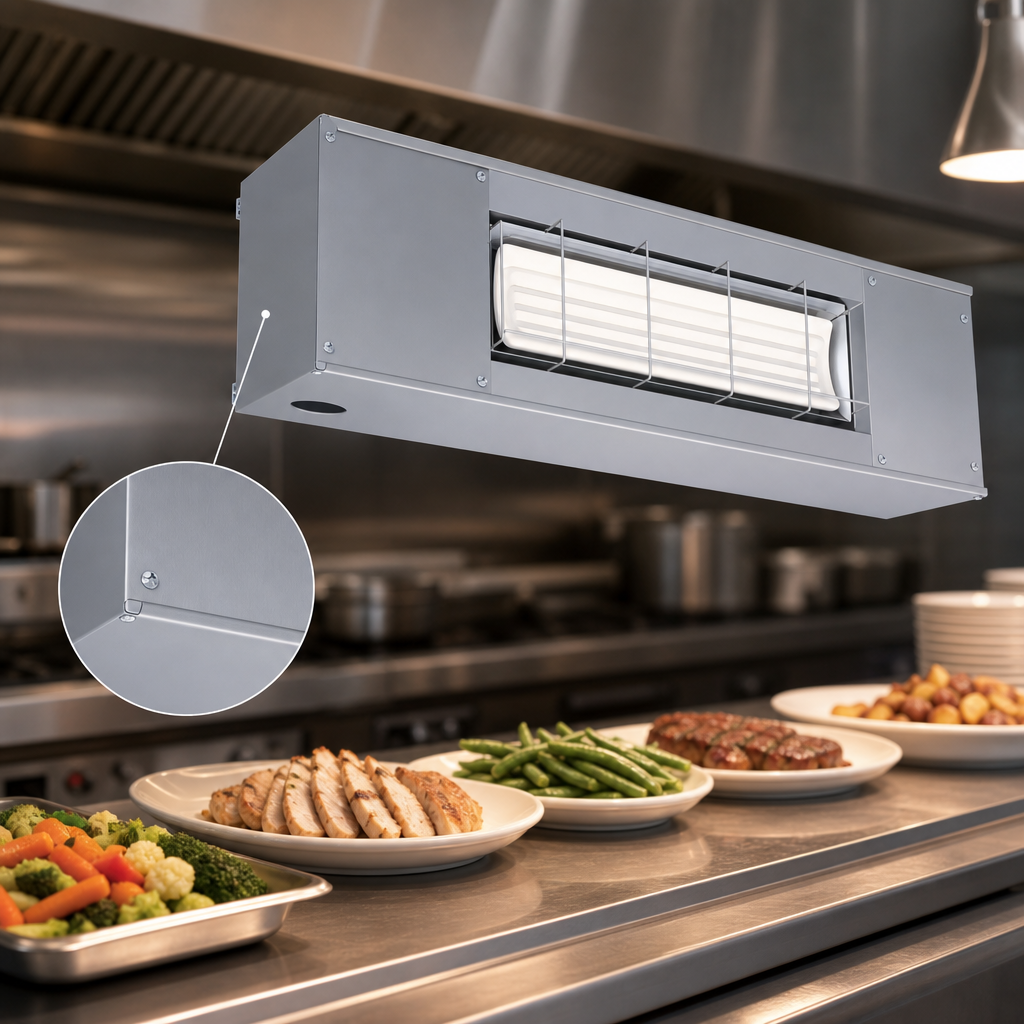

- Continuous extruded aluminum housing resists sagging and is available with an attached or remote control box.
- Pre-focused pyramidal heat pattern targets plate edges where heat loss is greatest.
- Adjustable-angle mounting brackets and 3' (914 mm) conduit whip are included—no extra kits required.
- NSF & UL listed for safe, code-compliant installation in any commercial kitchen or serving line.
- Ceramic elements are warranted for one full year against burnout.
At-a-glance specifications
| Overall width | 66" / 1676 mm |
|---|---|
| Heat source | Dual ceramic infrared strips (high watt) |
| Total wattage |
5.4 kW @ 208 V (2 × 2700 W) 5.2 kW @ 240 V (2 × 2600 W) |
| Amperage |
26 A per circuit @ 208 V 21.6 A per circuit @ 240 V |
| Electrical | (2) hard-wired circuits – each may require a dedicated breaker |
| Shipping weight | 50 lb / 23 kg |
| Housing finish | Clear anodized aluminum • Designer & gloss colors available at order |
| Controls | Toggle or infinite heat control – attached box or remote enclosure |
| Included hardware | Adjustable angle brackets + 3" spacer |
| Certifications | NSF • UL |
Perfect for

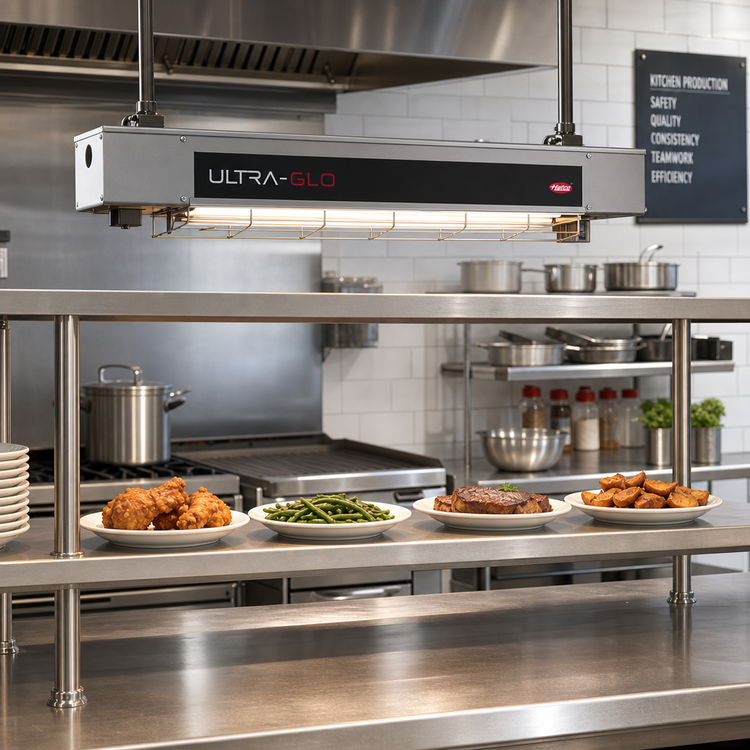

- Expeditor and plating lines
- Buffet & cafeteria bars
- Chef-attended carving or action stations
- QSR pick-up shelves and C-store food merchandising
Installation note: Mount only over non-combustible surfaces and keep a minimum 1" (25 mm) clearance from shelf tops and 3" (76 mm) from back walls. Follow all local codes and Hatco’s installation manual. Each internal circuit must be breaker-protected.
Need extended power leads, tubular stands or a custom color? Contact us prior to ordering for factory-installed options.
