Hatco UGAH-66 Ultra-Glo® Heat Lamps
Description

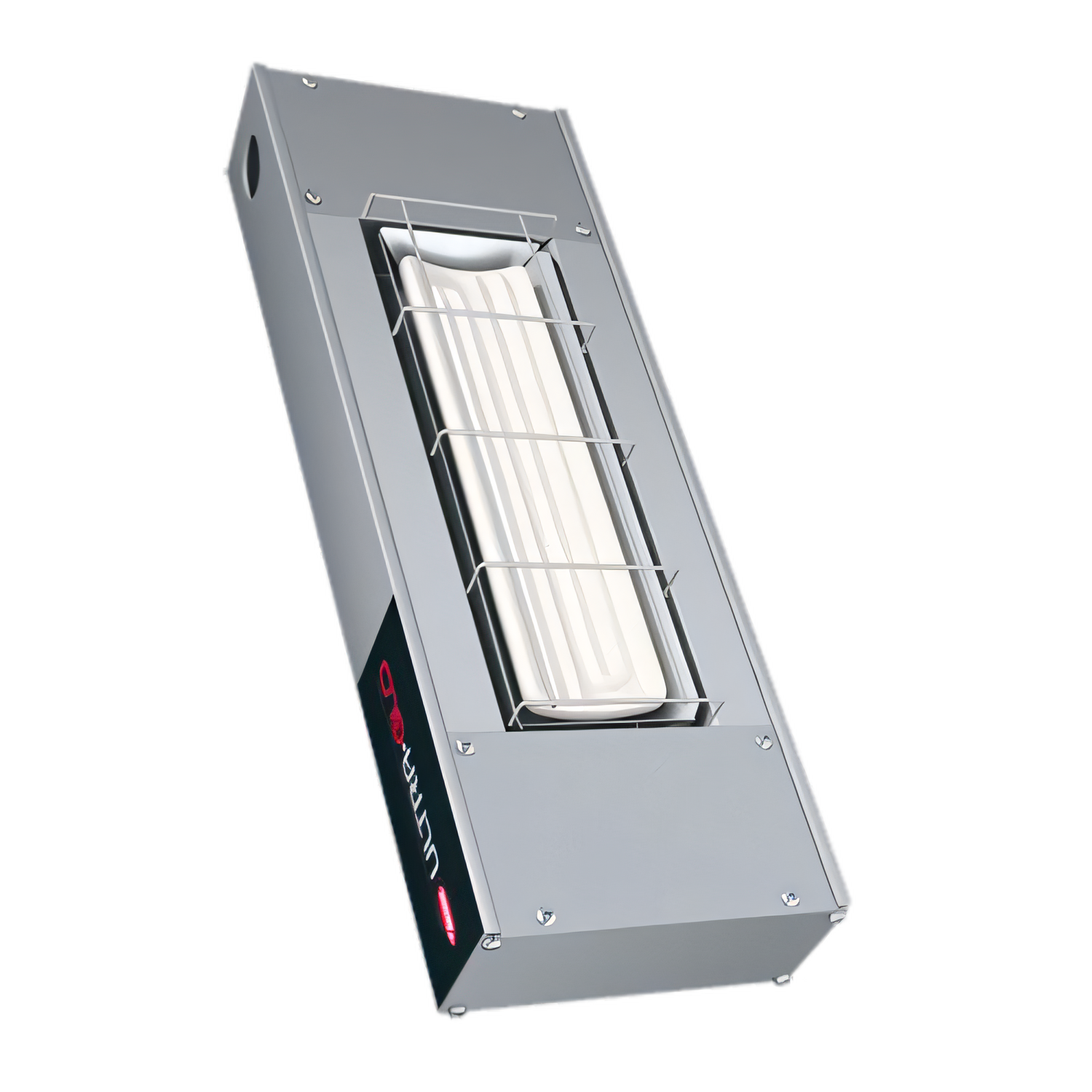

Hatco Ultra-Glo® 66" High-Watt Ceramic Infrared Strip Heater
Model UGAH-66 | Single Heat Strip • Remote or Attached ControlsGive every plate the perfect finishing touch—fast. The Ultra-Glo® UGAH-66 delivers an even, high-intensity blanket of infrared heat across a full 66 inch (1676 mm) holding zone, keeping foods at safe, appetizing temperatures without overcooking or drying. Built in Wisconsin, USA, and certified NSF & cULus, it’s the professional’s choice for buffets, pass-throughs, carving stations, and open-kitchen displays.
Key advantages
- High-watt ceramic element (up to 3000 W at 208 V) generates intense, focused infrared heat for maximum holding power.
- 2.5" (64 mm) low-profile, continuous extruded aluminum housing stays rigid—no sagging over long runs.

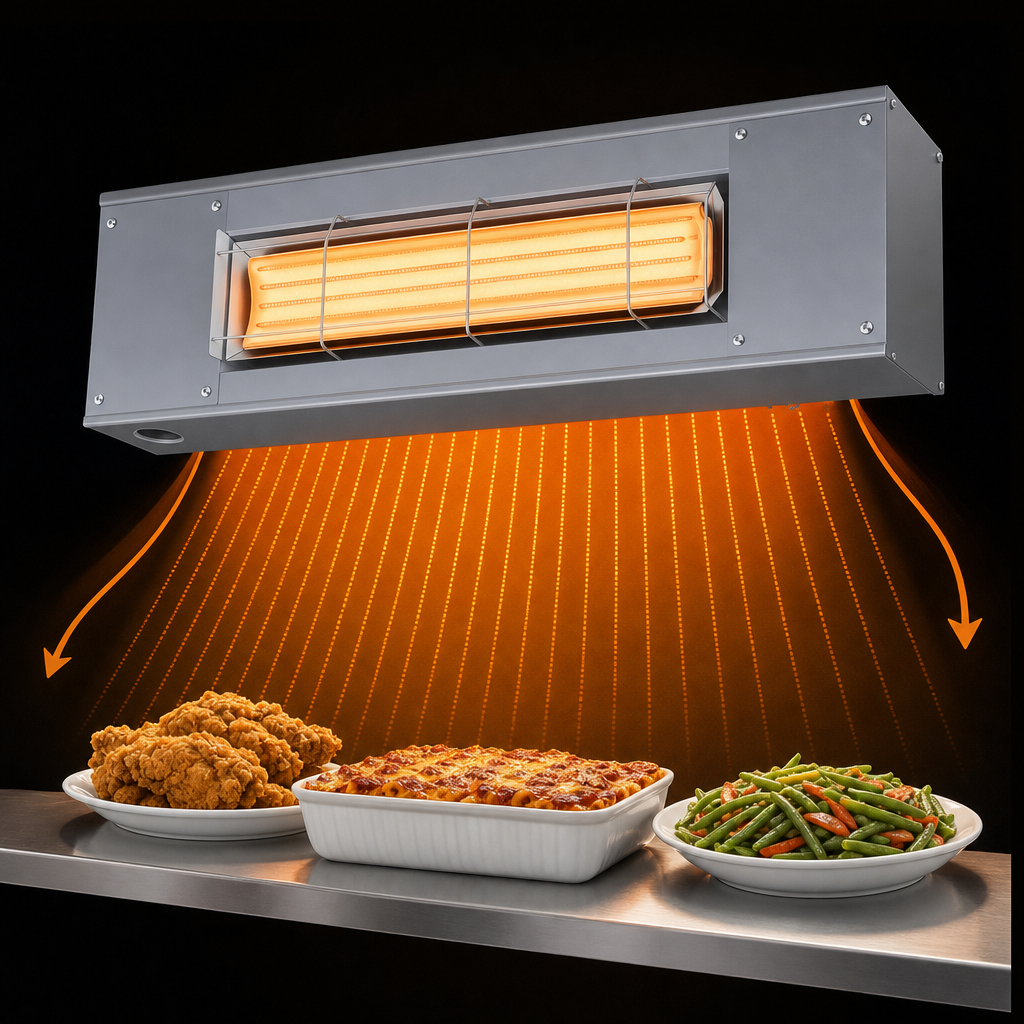

- Pre-focused pyramidal heat pattern concentrates warmth at the edges where heat loss is greatest.
- Adjustable angle mounting brackets (included) let you aim heat precisely where you need it.
- Choose Attached or Remote control box—each with lighted toggle power switch and indicator light.
- Available in Hatco Designer Colors & Gloss finishes to match your décor (factory option).
- Ships with 42" (1067 mm) leads in a 3' (914 mm) flexible metal conduit for quick hook-up.
- 100 % engineered and manufactured in the USA; backed by Hatco’s 24/7 service network.
Performance specifications
| Overall width | 66" / 1676 mm |
|---|---|
| Depth × Height | 6" D × 2.5" H (152 × 64 mm) |
| Electrical | Single phase; field-wired • 208 V: 3000 W | 14.4 A • 240 V: 2600 W | 10.8 A • 220 V: 2520 W | 11.5 A |
| Ceramic element | High watt, single strip |
| Housing material | Anodized aluminum (Designer color upgrades available) |
| Certifications | NSF, cULus |
| Ship weight | Approx. 25 lb / 12 kg (add 2–8 lb for remote box) |
| Country of origin | Made in USA |
Ideal mounting heights
- Food warmers / countertops: 16 – 22" (406 – 559 mm) above product for high-watt models.
- Pass-through shelves or carving boards: angle brackets allow fine adjustment to suit the setup.
Popular accessories (sold separately)
- Non-adjustable tubular stands – 14" to 22" heights for portable buffet use.
- Chef-focused LED display bulbs (UGAHL models).
- Extended power leads – up to 20' (6096 mm) for custom installations.
Need a different length, standard-watt output, or built-in lighting? Explore the full Ultra-Glo® family or chat with our team for a tailored quote.
