Description

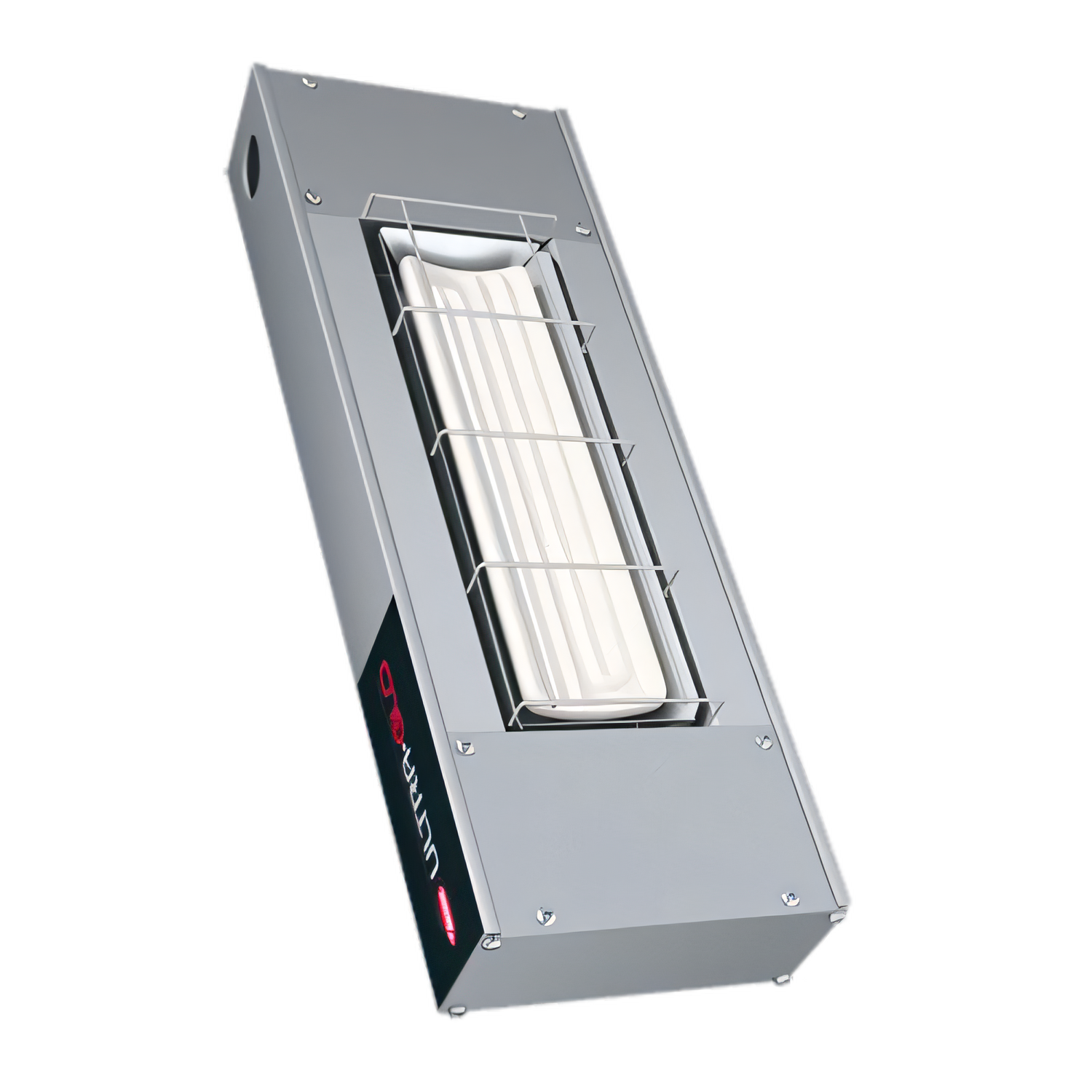

Hatco Ultra-Glo® 60" High-Watt Dual Ceramic Infrared Foodwarmer

Model UGAH-60D  |  Made in the USA

Blanket a full 5-foot holding zone with the intense, even heat only Hatco’s Ultra-Glo® technology can deliver. The dual ceramic elements concentrate infrared energy where heat loss is greatest—along the edges—keeping entrées, sides and plated meals at perfect serving temperature without drying them out.

Why Ultra-Glo® is the pro’s choice
  • High-watt, dual ceramic heat strips provide maximum holding power across wide shelves or pass-through windows.
  • 6" (152 mm) factory spacer raises the heater for improved working clearance on high-volume lines.

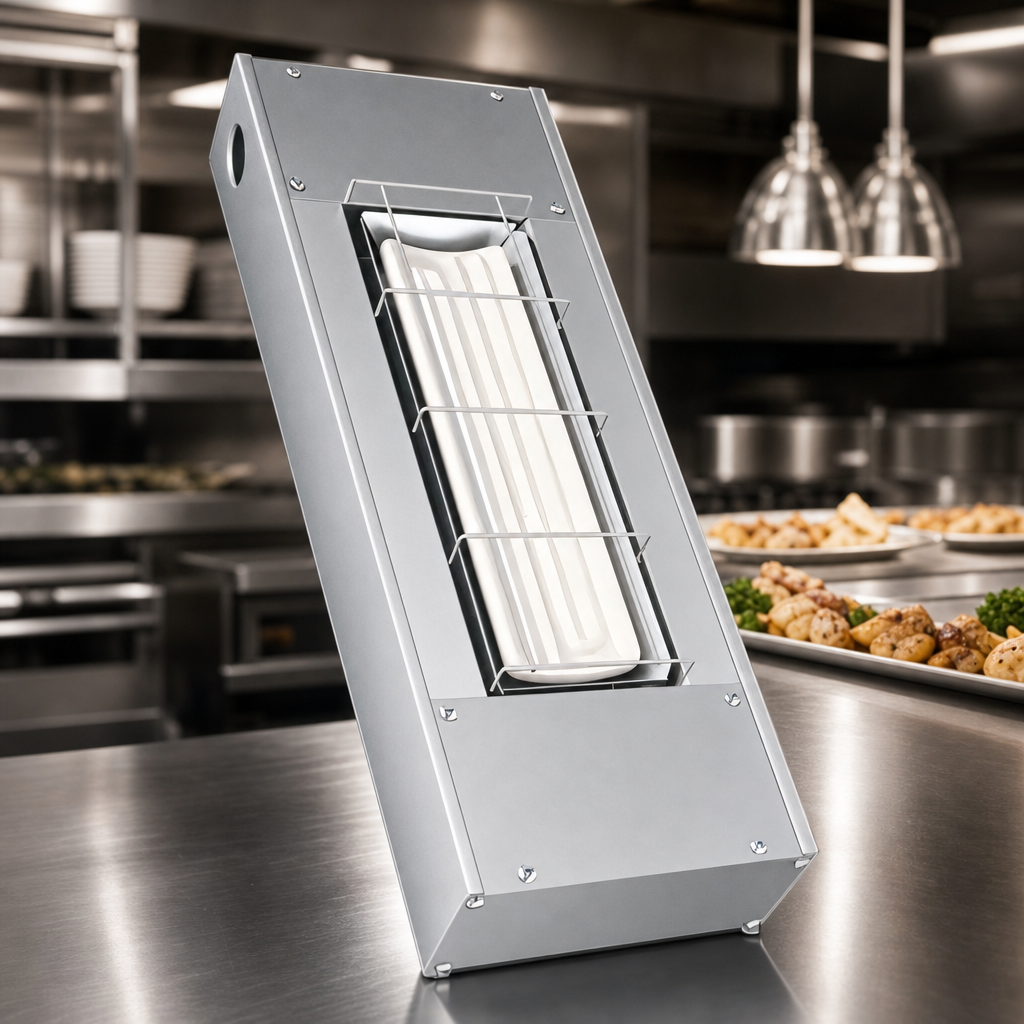

  • Rugged, continuous extruded aluminum housing eliminates sagging over long spans.
  • Adjustable angle mounting brackets included—aim heat exactly where you need it.
  • Attached control box with toggle switch & indicator light, or optional remote control enclosure for hidden installation.
  • NSF listed and UL certified for commercial kitchens; all ceramic elements are covered by a 1-year no-burnout warranty.
Technical snapshot
Model UGAH-60D (Dual Circuit, High-Watt)
Overall width 60" / 1524 mm

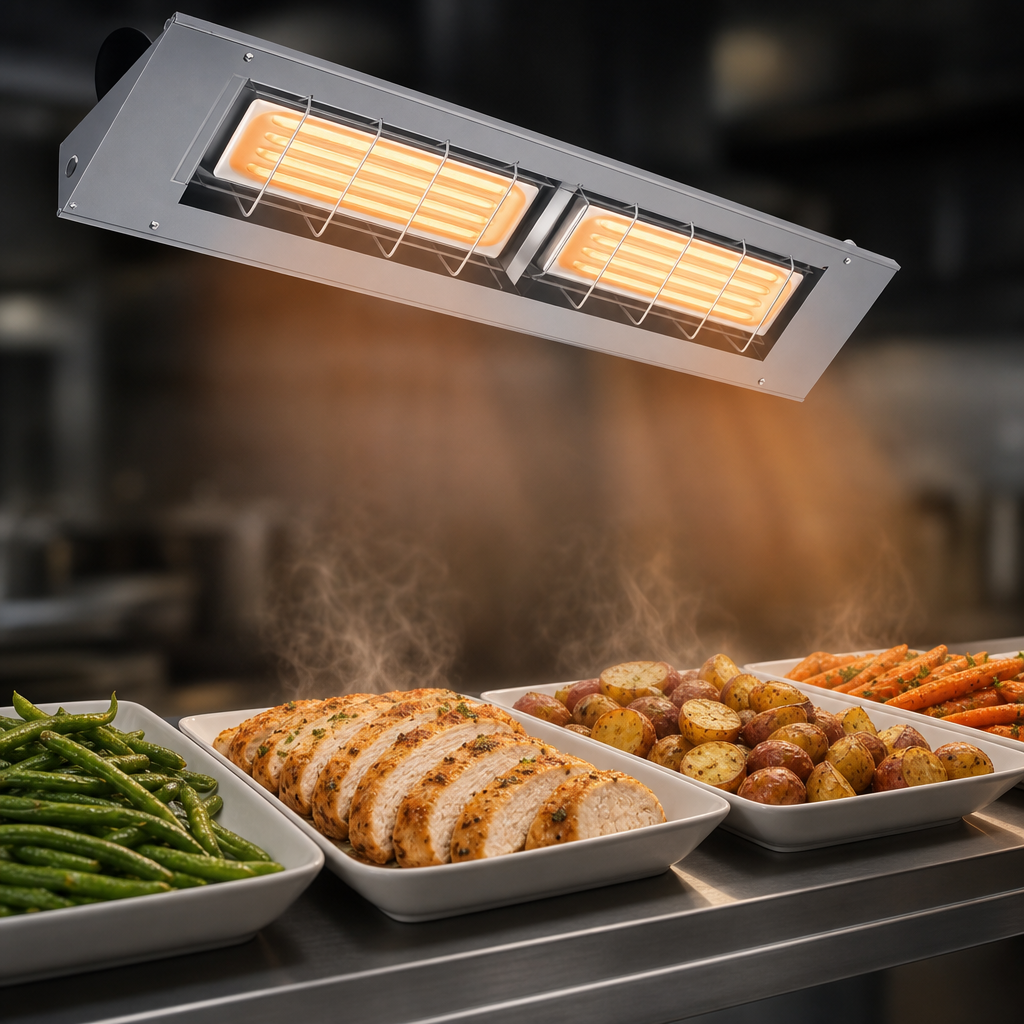

Heat source Two ribbed ceramic infrared elements
Total wattage 5200 W @ 240 V (2 × 2600 W)
5400 W @ 208 V (2 × 2700 W)
Amperage 2 × 10.8 A @ 240 V  |  2 × 13.0 A @ 208 V
Mounting clearance 18" (457 mm) standard  |  22" (559 mm) with included 6" spacer
Housing finish Clear anodized aluminum (designer colors available at time of order)
Controls Attached toggle switch & indicator light (remote infinite control box optional)
Certifications NSF, UL
Shipping weight ≈ 49 lb / 23 kg
Perfect for
  • Pass-through windows & expo counters
  • Extended buffet or carving stations
  • Catering lines where single strip heaters can’t cover the full width
Installation note: Mount Ultra-Glo® heaters only over non-combustible surfaces. If you select the remote control option, the enclosure must be installed outside the heat zone.

Need another length, wattage, or one of Hatco’s 20+ designer colors? Ask us—Ultra-Glo® strip heaters are built to order in 18"-72" widths.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, UL, Made in USA

Height

3.8in

Width

60.0in

Depth

22.0in

Shipping Weight

48.0lbs

Finish

aluminum

Type

unlighted

Size

double

Type of element

ceramic heating

Length

55 - 60"

Specifications

Ultra-Glo® Infrared Foodwarmer, 60" W, high wattage, double ceramic heat strip with aluminum housing, 6" spacer, with remote or attached control box, adjustable angle brackets, NSF, UL, Made in USA
