Hatco  |  Ultra-Glo®  |  SKU: UGAH-60D3

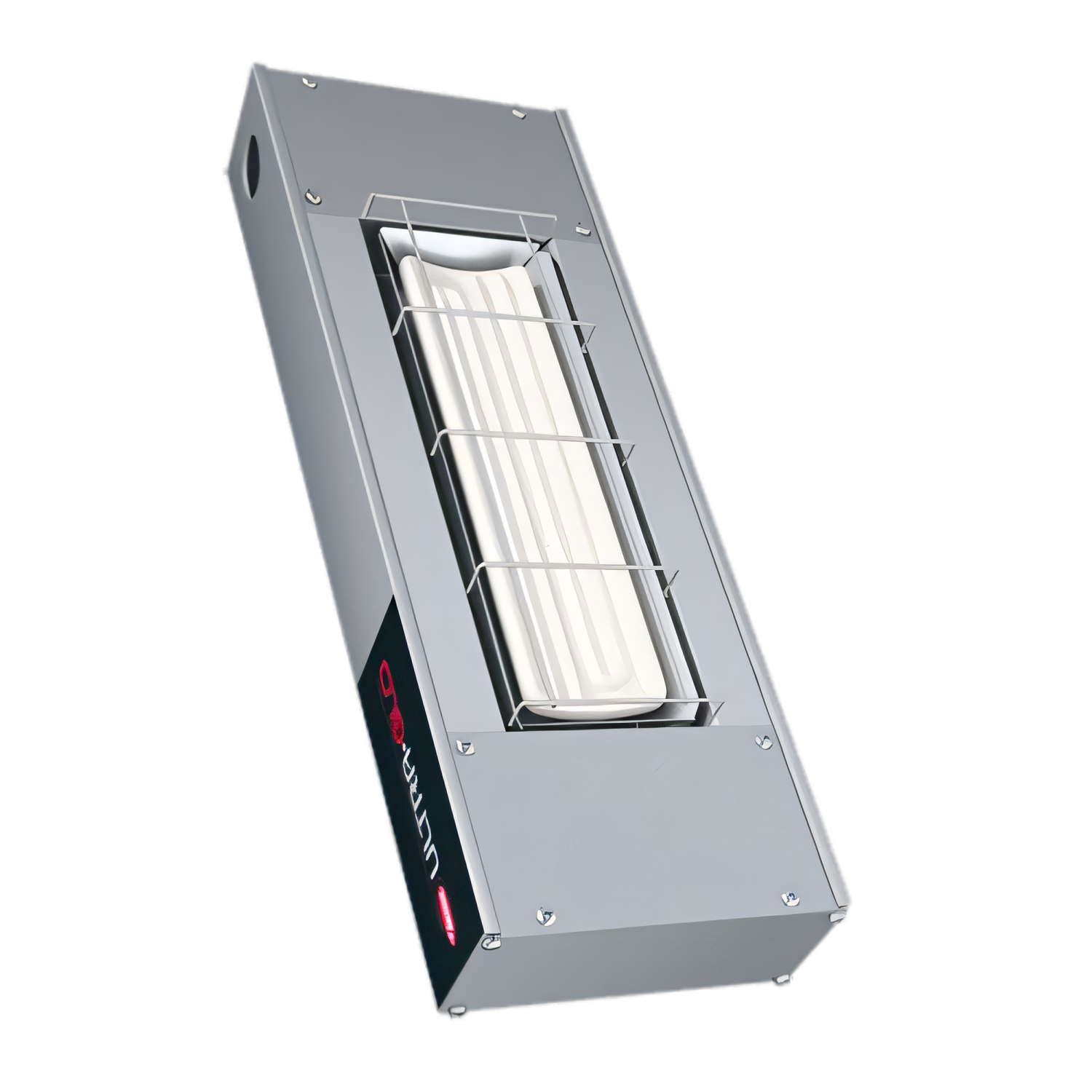

Hatco UGAH-60D3 Ultra-Glo® Heat Lamps

$1,791.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Ultra-Glo® UGAH-60D High-Watt Dual Ceramic Infrared Foodwarmer – 60"

Wide-area holding power with extra clearance for today’s fast-moving kitchens

Keep every plate at service-ready temperature with Hatco’s flagship Ultra-Glo® dual ceramic strip heater. The 60 inch UGAH-60D blankets full-size pans and platters with intense, even infrared heat while the included 3" spacer gives staff more room to work. Built, tested and certified in the USA, it’s the dependable choice for pass-throughs, buffets and display lines that demand commercial reliability.

Why you’ll love it

  • High-watt dual ceramic elements pump out up to 5.2 kW of focused infrared heat across the entire 60" span.
  • Raised heat source plus 3" spacer increases working clearance to 19" (483 mm) for effortless plating and pan changes.
  • Pre-focused pyramidal pattern concentrates heat at the edges where product cools fastest—reducing waste and re-fires.
  • Rigid, extruded aluminum housing resists sagging and is offered in clear anodized or 18 Designer/Gloss colors.
  • Adjustable angle brackets (included) let you aim heat exactly where it’s needed.
  • Select factory-mounted control box or remote enclosure with toggle switch, infinite heat control and indicator light.
  • NSF & UL Listed for safe front- or back-of-house installation; ceramic elements carry a 1-year burnout warranty.
  • Proudly manufactured in Wisconsin with 24/7 parts-and-service support.

Technical summary

Model UGAH-60D (dual ceramic, high watt)
Overall width 60 in / 1524 mm
Housing depth × height 12 13/16 in × 2 5/16 in (325 × 59 mm)
Clearance above product 15" standard, 19" with supplied 3" spacer
Total wattage 5,200 W (2 × 2,600 W zones)
Voltage options 208 V, 220 V or 240 V, 1-phase, 2 circuits
Amperage (per circuit) 208 V 12.5 A | 220 V 11.5 A | 240 V 10.8 A
Shipping weight 49 lb / 23 kg (add 2–8 lb for remote box)
Certifications NSF, UL, cUL
Country of origin Made in USA

Need another width, finish or integrated lighting? Ultra-Glo® dual ceramic strips are offered from 18"–72" with optional LED lamps, designer colors and tubular stands—ask for a custom quote.

Installation note: Mount the heater at least 1" (25 mm) below any shelf and 3" (76 mm) from the back wall. Remote control enclosures must be installed outside the heat zone.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, UL, Made in USA

Height

3.8in

Width

60.0in

Depth

19.0in

Shipping Weight

48.0lbs

Finish

aluminum

Type

unlighted

Length

55 - 60"

Size

double

Type of element

ceramic heating

Specifications

Ultra-Glo® Infrared Foodwarmer, 60" W, high wattage, double ceramic heat strip with aluminum housing, 3" spacer, with remote or attached control box, adjustable angle brackets, NSF, UL, Made in USA
