Hatco  |  Ultra-Glo®  |  SKU: UGAH-54D3

Hatco UGAH-54D3 Ultra-Glo® Heat Lamps

$1,933.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

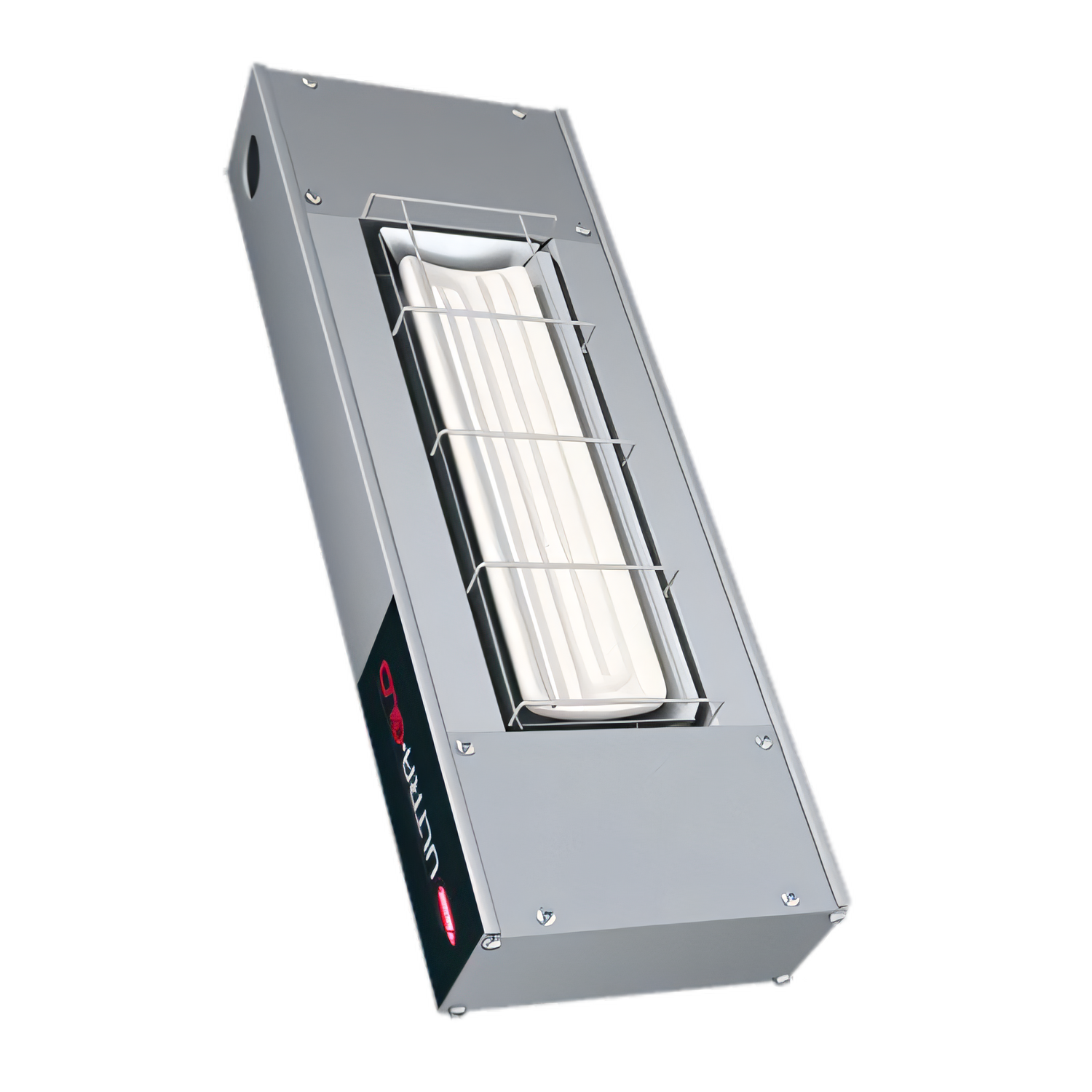

Hatco Ultra-Glo® 54" Dual Ceramic Infrared Foodwarmer – High Watt

Model UGAH-54D | NSF & UL Listed | Made in USA

Keep entrées, sides and plated dishes hot, appetizing and ready to serve with Hatco’s flagship Ultra-Glo® infrared strip heater. Designed for 54 inch service runs and high-volume operations, this dual-element unit delivers powerful, even heat while giving staff generous working clearance.

Key benefits

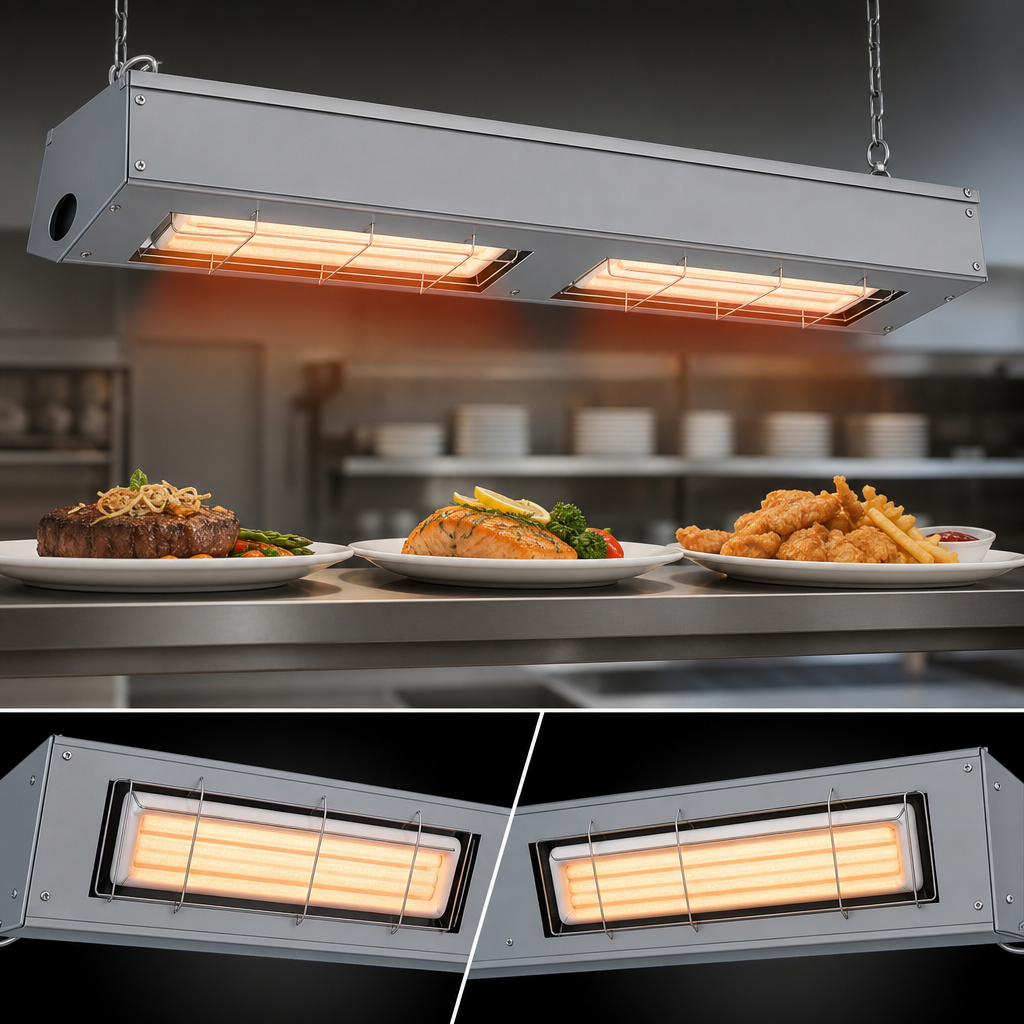

  • High-watt dual ceramic elements blanket the full 54 inch holding zone with up to 4,500 W of infrared heat.
  • Pre-focused pyramidal pattern concentrates heat at the edges where loss is greatest.
  • Factory-installed 3″ spacer raises the heater for better sight lines and safer operation.

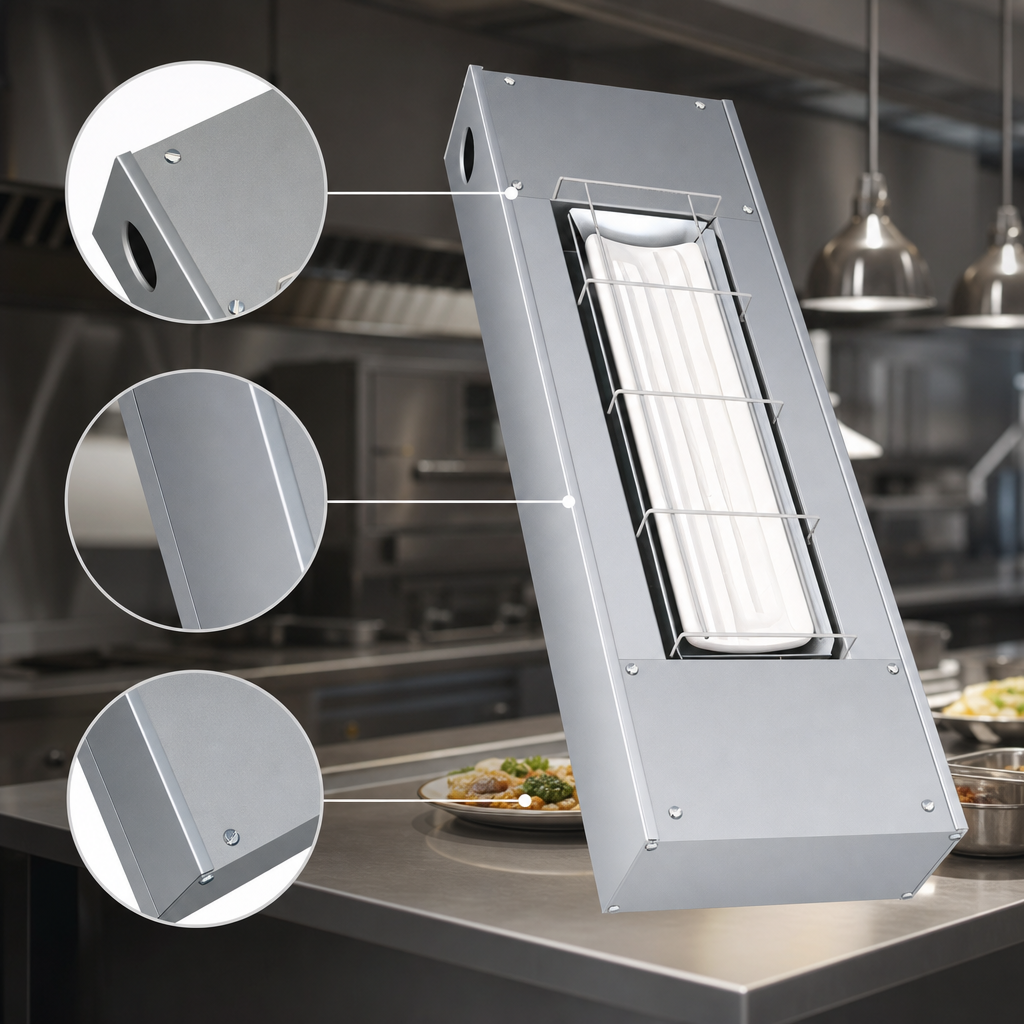

  • Continuous extruded aluminum housing resists sagging and everyday wear.
  • Adjustable-angle mounting brackets and 3 ft conduit whip included for fast, flexible installation.
  • Choice of attached controls or a remote control enclosure to fit your counter layout.
  • Optional designer colors, gloss finishes and antimicrobial powder coats available at time of purchase.
  • Ceramic elements are warranted for one full year against burnout.
  • NSF, UL and CE certifications ensure food-safe, code-compliant performance.

Specifications

Model UGAH-54D (high watt)
Overall width 54 in / 1372 mm
Heat source Dual ceramic infrared strips
Total wattage 4,500 W (2 × 2,250 W*)
Voltage options 208 V or 240 V, single-phase (two circuits)
Amperage 208 V: 21.6 A  •  240 V: 18.8 A (combined)
Minimum mounting height 15 in (381 mm) above shelf with 3″ spacer
Housing Clear anodized aluminum (designer finishes available)
Controls Attached toggle & indicator light or remote control enclosure
Certifications NSF, UL EPH Classified, CE
Origin Made in USA

*Wattage and amperage values are per Hatco specification, high-watt model at rated voltage.

Ideal applications

  • Pass-through windows and expo stations
  • Buffet lines & carving stations
  • Cafeteria and quick-service plating lines
  • Open-kitchen concepts where equipment is on display
Installation note: Ultra-Glo® strip heaters must be mounted over non-combustible surfaces. Remote control enclosures must be installed outside the heat zone.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, UL, Made in USA

Height

3.8in

Width

54.0in

Depth

19.0in

Shipping Weight

33.0lbs

Finish

aluminum

Length

49 - 54"

Type

unlighted

Size

double

Type of element

ceramic heating

Specifications

Ultra-Glo® Infrared Foodwarmer, 54" W, high wattage, double ceramic heat strip with aluminum housing, 3" spacer, with remote or attached control box, adjustable angle brackets, NSF, UL, Made in USA
