Hatco UGAH-48D3 Ultra-Glo® Heat Lamps
Hatco UGAH-48D3 Ultra-Glo® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Hatco Ultra-Glo® Dual Ceramic Infrared Foodwarmer – 48" High-Watt
Model UGAH-48D • Made in USA • NSF & UL ListedGive every plated meal, pan and hotel tray the just-finished glow customers crave. Hatco’s 48-inch Ultra-Glo® High-Watt Foodwarmer surrounds product with intense, pre-focused infrared heat that holds safe temperatures without drying, over-cooking or shrinking portions—perfect for high-volume pass-through stations, carving boards and buffet lines.

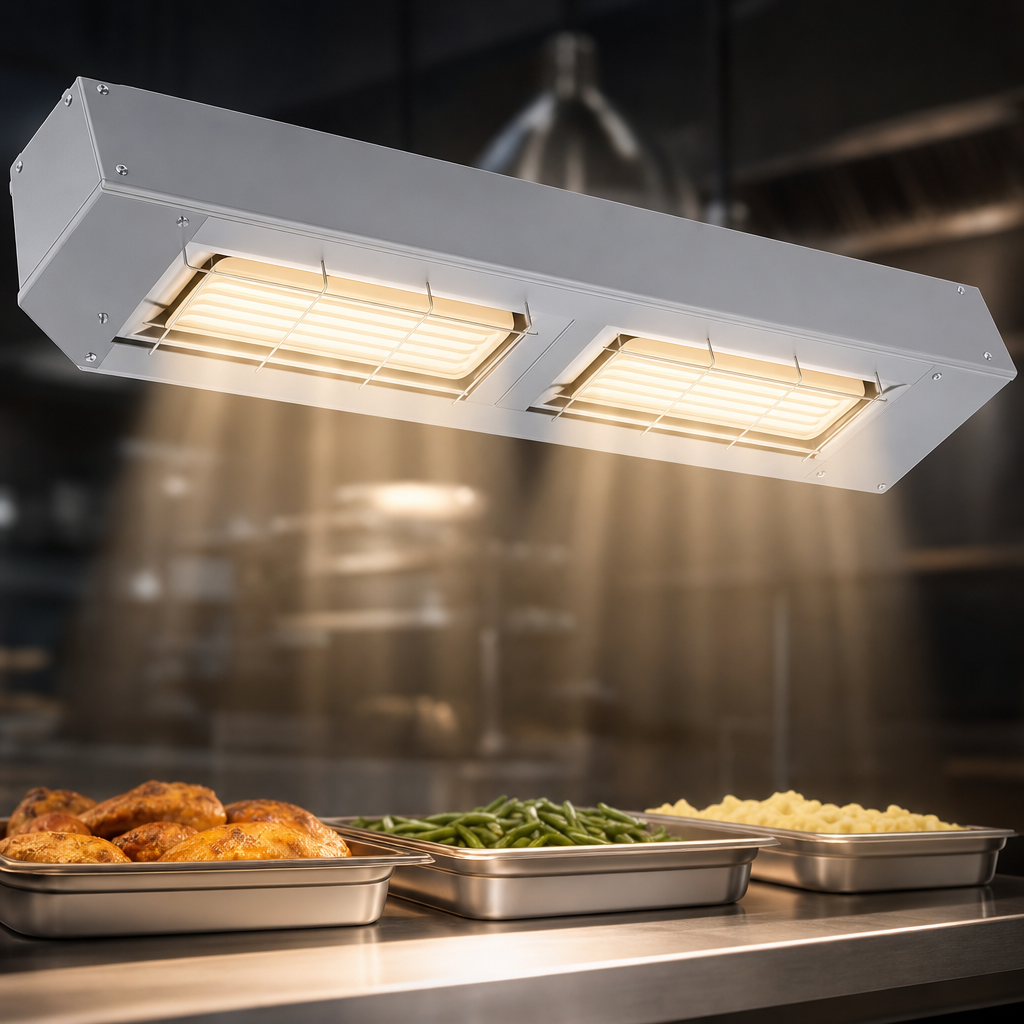

Key benefits- Complete heat blanket – Dual ceramic elements create a broad pyramidal pattern that concentrates heat at the edges where loss is greatest.
- Extra working clearance – Ceramic technology and the included 3" (76 mm) spacer provide a 15" (381 mm) gap under the heater for safer, easier plating.
- High-watt performance – 3.9 kW (208/240 V) of power maintains safe holding temps during rush periods.
- Rock-solid construction – One-piece extruded aluminum housing will not sag over time.
- Flexible mounting – Factory-installed adjustable angle brackets and a 3' (914 mm) conduit whip come ready for quick installation.
- Control your way – Choose an attached toggle/infinite-control box or mount the optional remote enclosure up to 20' away for clean counter lines.
- Color your concept – Upgrade the housing or remote box in 15 Designer or Gloss finishes to match front-of-house décor.
- Peace of mind – Ceramic elements are warrantied against burnout for one year; 24/7 parts & service support in the U.S. and Canada.
Heat source | Dual ceramic infrared elements |
---|---|

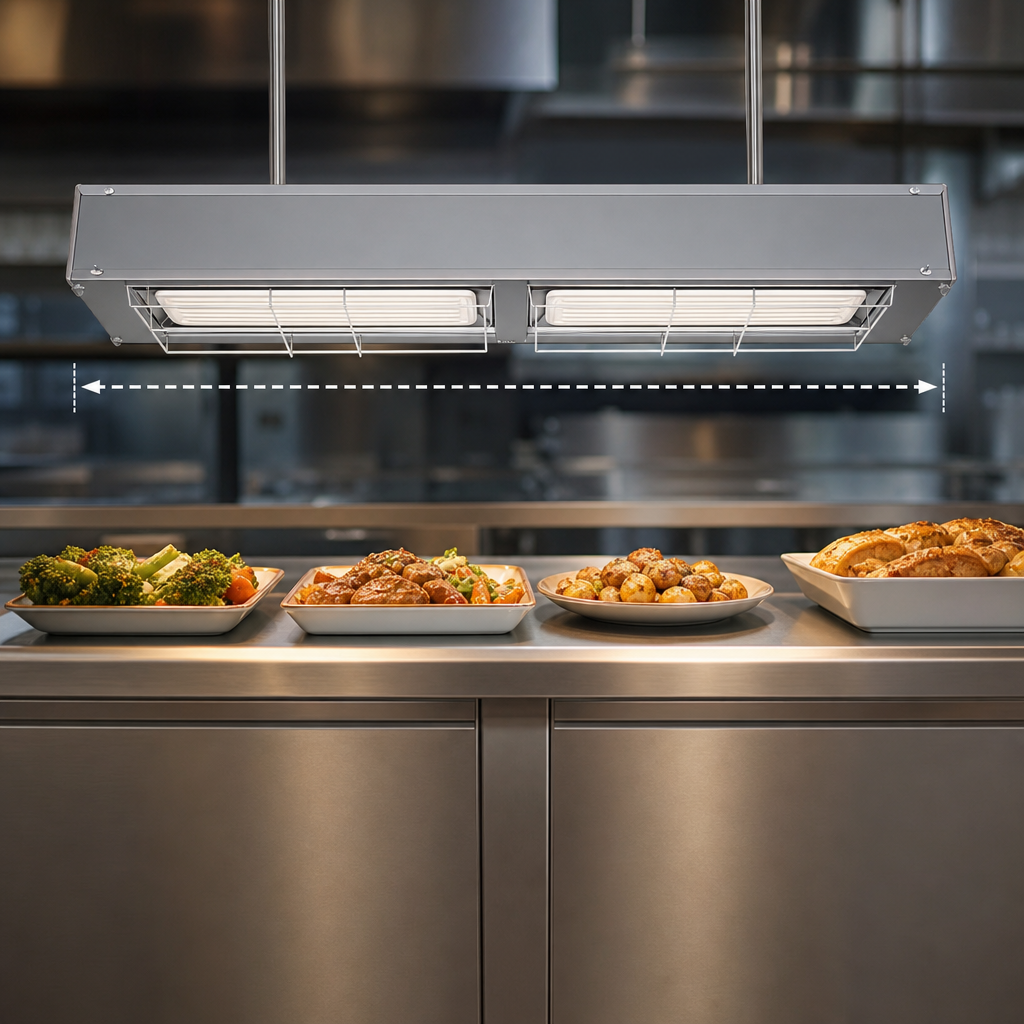

Overall width | 48" / 1219 mm |
Total wattage | 3,900 W (two 1,950 W circuits) |
Typical amperage | 208 V: 18.8 A | 240 V: 16.2 A (split into two equal circuits) |
Working clearance | 15" (381 mm) with supplied 3" spacer |
Controls | Attached toggle & indicator light or remote enclosure (infinite control, relay & indicator) |
Mounting hardware | Adjustable angle brackets (included) |
Housing material / finish | Clear anodized aluminum (Designer & Gloss colors optional) |
Certifications | NSF, UL, UL-EPH Classified |
Shipping weight | ≈ 40 lb / 19 kg |
Warranty | 1-year parts & labor • 1-year element burnout |
Looking for other lengths, lighted models or Designer colors? Contact us—we carry the full Hatco Ultra-Glo® line from 18" to 72".
