Hatco  |  Ultra-Glo®  |  SKU: UGAH-42D3

Hatco UGAH-42D3 Ultra-Glo® Heat Lamps

$1,492.47
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Catalog brochure Owner's manual Color chart
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

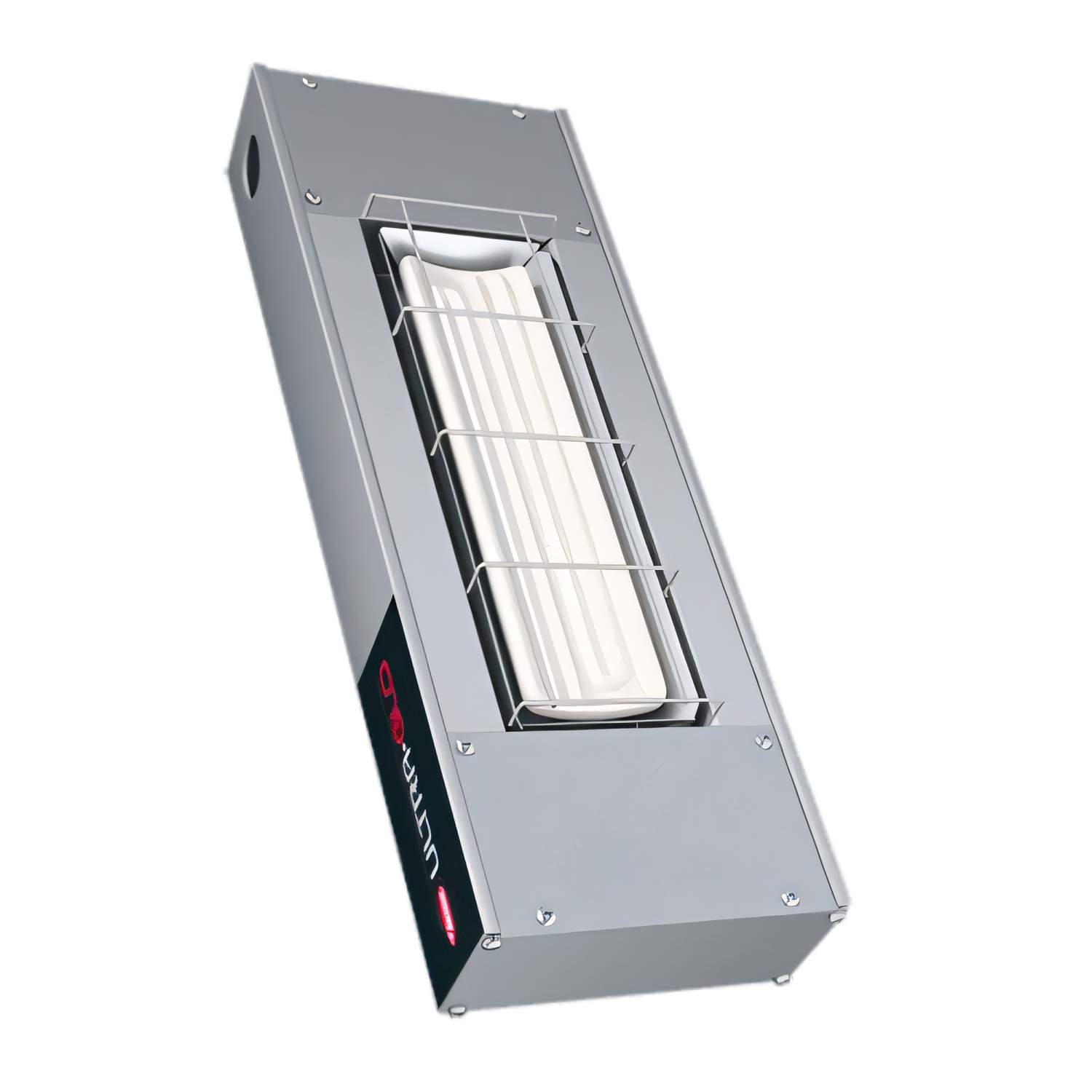

Ultra-Glo® 42" Dual Ceramic Infrared Foodwarmer

Model UGAH-42D • High-Watt • Made in USA

Give every plate the chef-quality finish it deserves. Hatco’s Ultra-Glo® 42 inch foodwarmer surrounds your product with intense, even infrared heat that locks in temperature and appearance—ideal for pass-through windows, buffet lines and front-of-house displays.

Key advantages

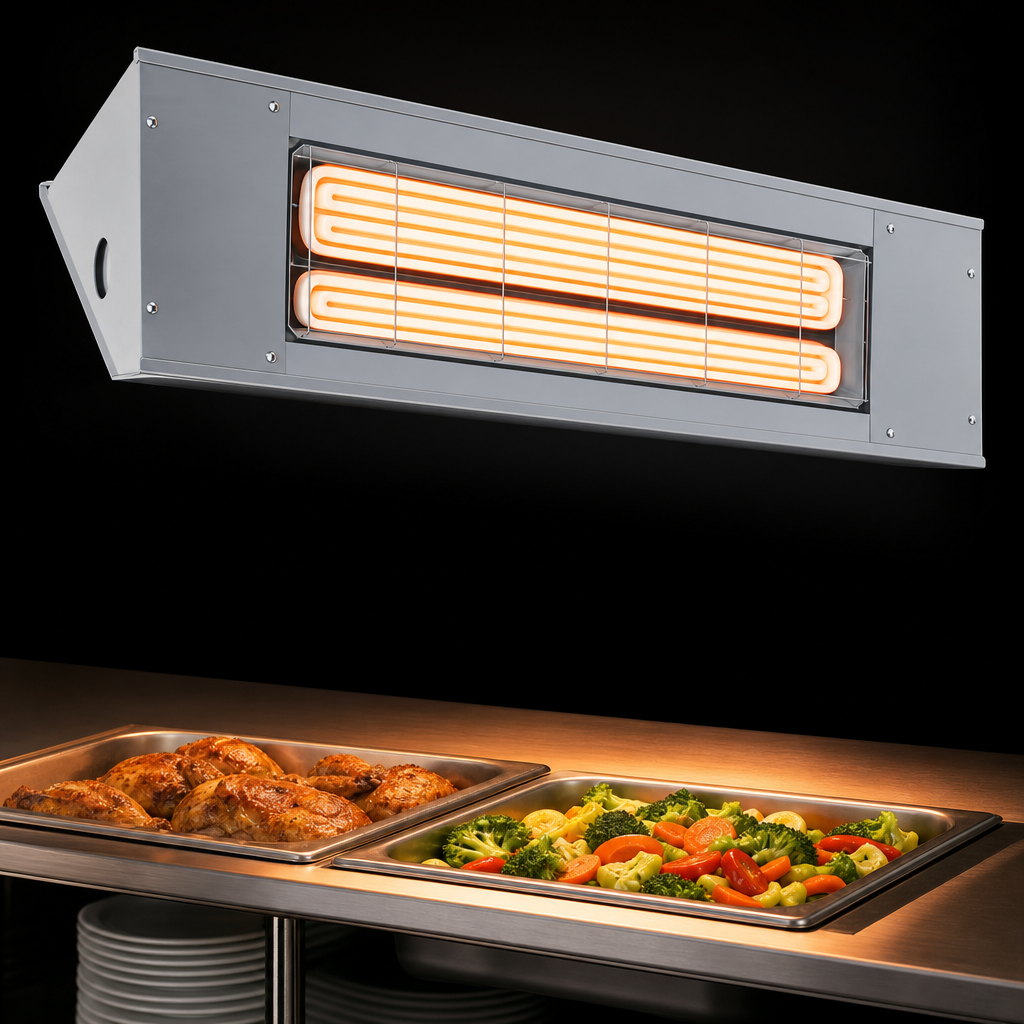

  • High-watt dual ceramic elements blanket the full 42" holding zone for superior edge-to-edge heat.
  • Increased working clearance (with included 3" spacer) keeps the line comfortable while maintaining target temps.

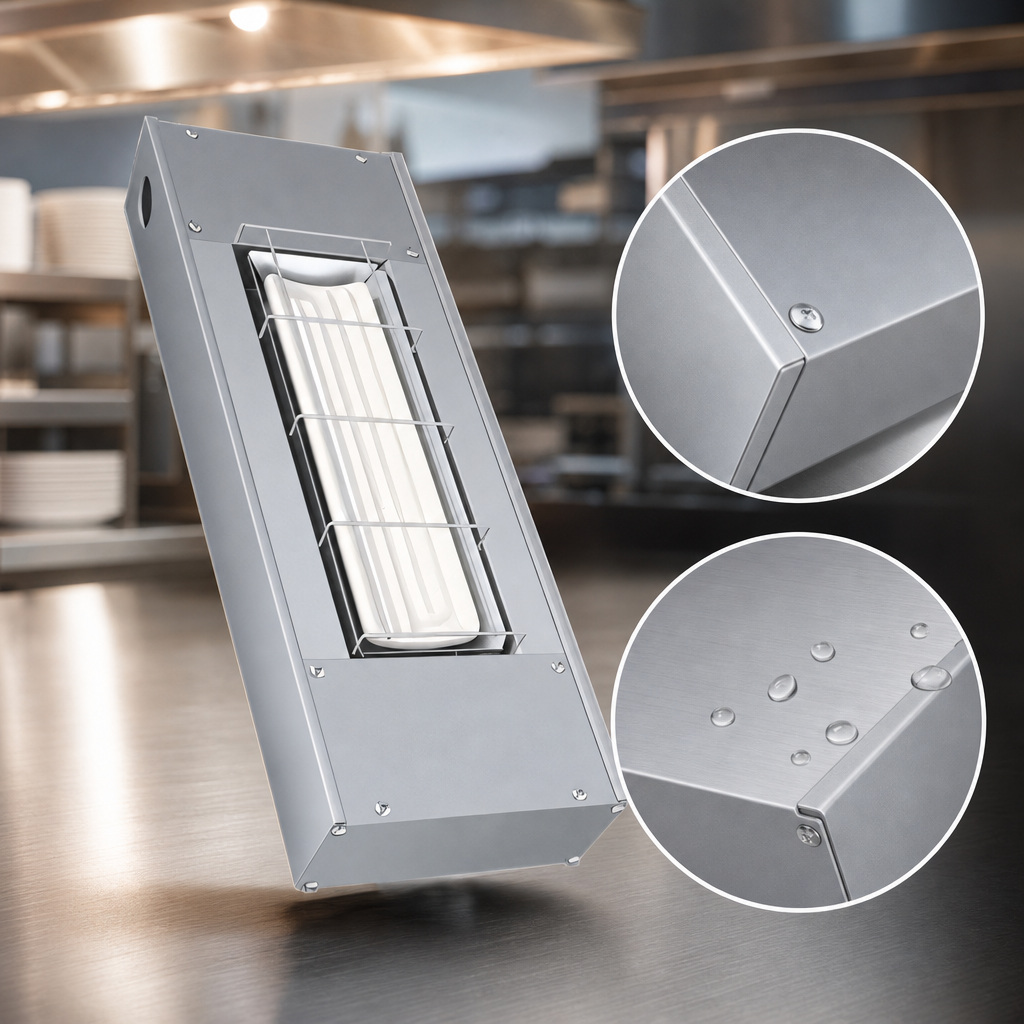

  • Rigid, one-piece extruded aluminum housing prevents sagging on long runs.
  • Factory-installed adjustable angle brackets make over-shelf, pass-over or ceiling mounts fast and secure.
  • Choose either an attached control box or a remote control enclosure (toggle or infinite) to suit your layout.
  • NSF & UL listed—built and tested in Wisconsin, USA.
  • All ceramic heating elements are warranted for 1 year against burnout.

At-a-glance specifications

Overall width 42 in  / 1067 mm
Heat source Dual ceramic infrared strip (high watt)
Total wattage 3,000 W @ 240 V (2 × 1,500 W circuits)
3,000 W @ 208 V (2 × 1,500 W circuits)
Amperage draw 12.6 A @ 240 V • 14.4 A @ 208 V
Housing footprint Depth 2.5 in (64 mm) • Height 1.26 in (32 mm)
Standard spacer 3 in (76 mm) factory installed
Shipping weight ≈32 lb / 15 kg
Certifications NSF • UL • cULus

Perfect for

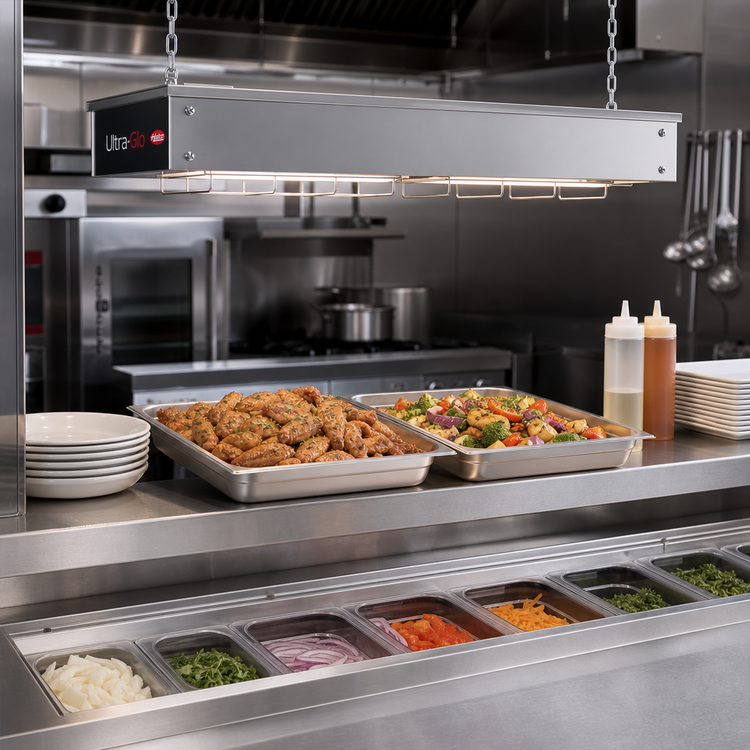

  • Quick-service and casual dining pass-over windows
  • Self-service buffets & cafeteria lines
  • Catering holding stations & banquets
  • Display kitchens & chef’s counters

What ships in the box

  • Ultra-Glo® 42" dual ceramic strip heater
  • 3 ft. (914 mm) conduit whip with power leads
  • Adjustable angle mounting brackets & 3" spacer kit
  • Your choice of attached control box or remote control enclosure
  • Installation & operating manual
Installation note: Remote control enclosures must be mounted outside the heat zone. Maintain a minimum 15 in (381 mm) clearance above a non-combustible shelf, or 3 in (76 mm) from a back wall, per Hatco guidelines.

24/7 parts & service assistance available in the U.S. & Canada. Download full spec sheet for detailed wiring diagrams and mounting requirements.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, UL, Made in USA

Height

3.8in

Width

42.0in

Depth

19.0in

Shipping Weight

32.0lbs

Size

double

Finish

aluminum

Type

unlighted

Length

37 - 42"

Type of element

ceramic heating

Specifications

Ultra-Glo® Infrared Foodwarmer, 42" W, high wattage, double ceramic heat strip with aluminum housing, 3" spacer, with remote or attached control box, adjustable angle brackets, NSF, UL, Made in USA
