Hatco UGAH-36D6 Ultra-Glo® Heat Lamps
Description

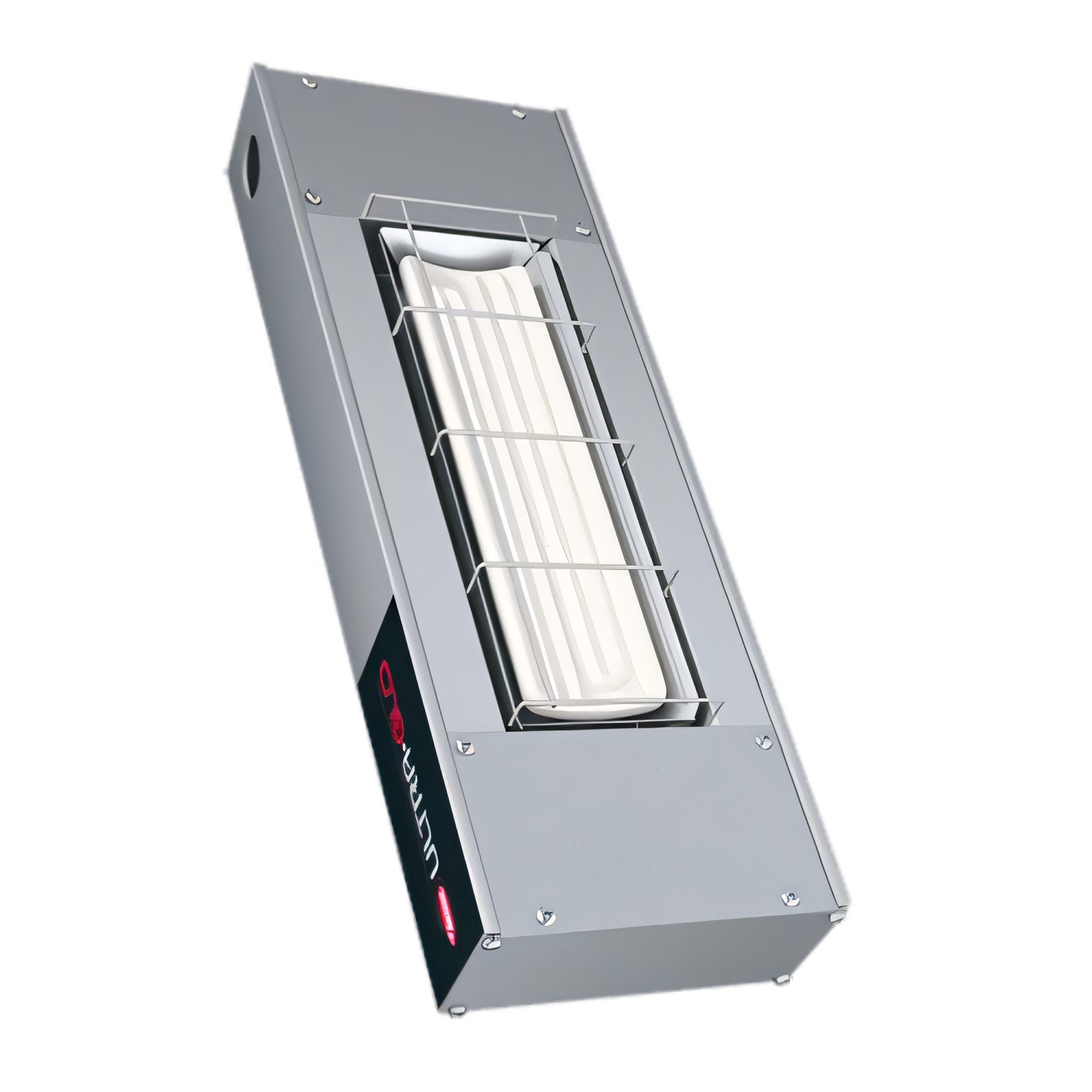

Hatco Ultra-Glo® UGAH-36D High-Watt Dual Ceramic Infrared Strip Heater – 36"
Intense top heat, perfect presentationHold entrées, sides and plated orders at their delicious best with Hatco’s 36" Ultra-Glo® dual ceramic strip heater. The high-watt elements blanket the full width of your holding zone—even the edges—while the included 6" spacer and angle-adjustable brackets give staff a safe, comfortable working clearance.
Stand-out features
- High-watt dual ceramic elements punch out up to 2,700 W of focused infrared heat.
- Pre-focused pyramidal heat pattern reduces cold-spot loss at the edges.

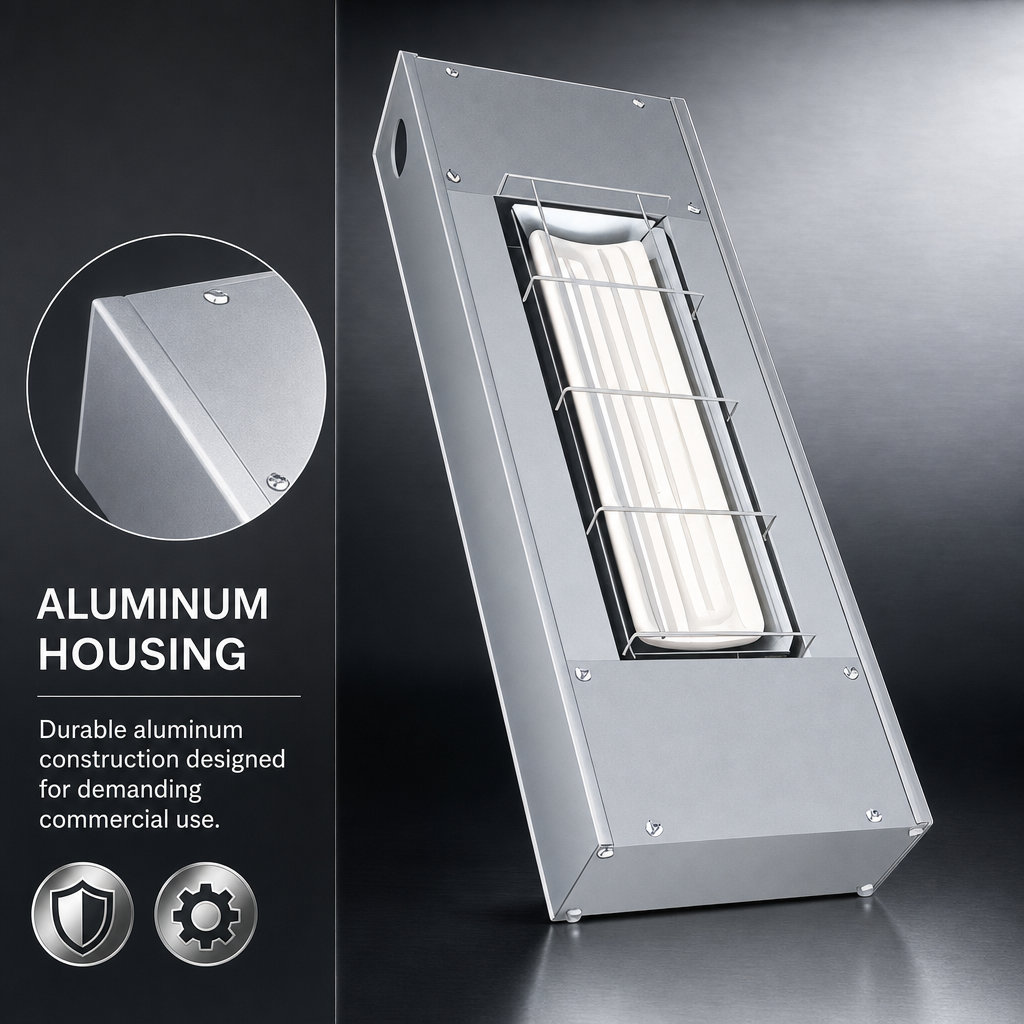

- Continuous extruded aluminum housing won’t sag and is available in optional designer colors.
- Factory-installed attached controls or separate remote control enclosure—both with illuminated toggle and infinite heat adjustment.
- Comes ready to install: 6" (152 mm) spacer, angle-adjustable brackets & 3' (914 mm) conduit whip included.
- NSF listed and UL/cULus certified; engineered & built in the USA.
- Ceramic elements carry a 1-year no-burnout warranty.
Perfect for
- Expo & pass-thru shelves
- Buffet & carving stations
- Quick-service assembly lines
- Open-kitchen or front-of-house displays
Key specifications
| Model | UGAH-36D (dual ceramic, high watt) |
|---|---|
| Overall width | 36" / 914 mm |
| Housing size | 2.5" H × 3.8" D (64 × 97 mm) |
| Electrical | 208 V / 13.0 A / 2,700 W • 240 V / 10.8 A / 2,600 W (1-ph) |
| Recommended mounting height | 22"–26" (559–660 mm) above holding surface |
| Included hardware | 6" spacer, adjustable angle brackets, 3' conduit whip |
| Approx. ship weight | 31 lb / 15 kg |
| Certifications | NSF, UL, cULus |
| Origin | Made in USA |
Factory-order options
- Remote control enclosure (RMB-14 Series) in matching or designer finishes
- Designer or gloss color housings to complement your décor
- LED chef lights (select UGAHL-36D lighted model)
- Non-adjustable tubular stands for countertop applications
- Extended power leads up to 20' (6096 mm)
Looking for a different size or finish? Ultra-Glo® models are available from 18" to 72" wide—with or without lighting—so you can build the perfect line-up for your kitchen.
Installation tip: Remote control enclosures must be mounted outside the heat zone to prevent damage. Always follow Hatco’s installation guidelines.
