Hatco UGAH-36D3 Ultra-Glo® Heat Lamps
Description

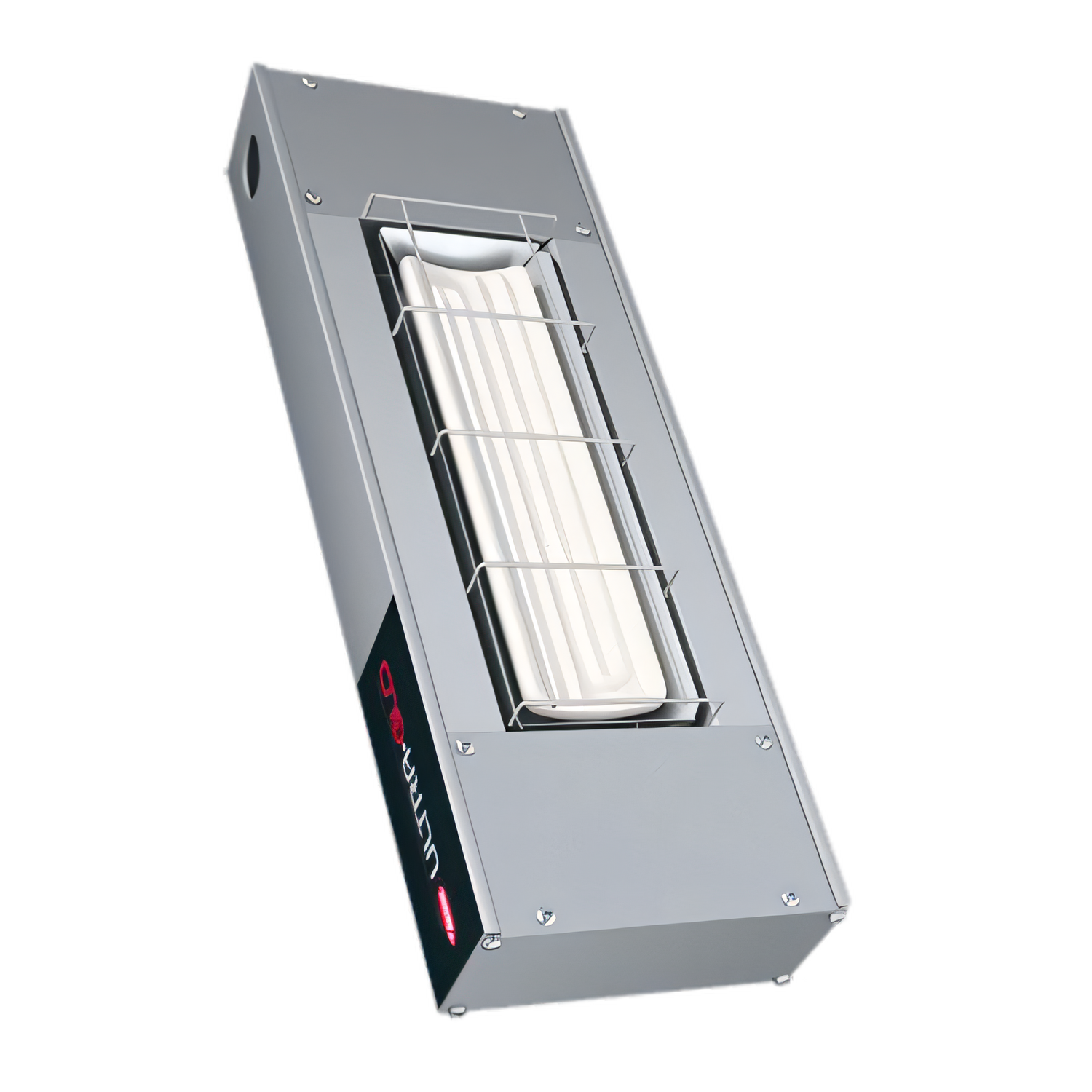

Ultra-Glo® 36" Dual Ceramic Infrared Strip Heater – High Watt
Model UGAH-36D • by HatcoGive every plate the chef’s-table treatment. Hatco’s Ultra-Glo® high-watt, double-element heater delivers fast, even infrared heat across the full 36 inch holding zone, keeping food hot and appetizing while maximizing working clearance on the line.
Why you’ll love it
- High-watt dual ceramic elements reach higher peak temps for superior holding power.
- Pre-focused pyramidal heat blanket eliminates cold edges on pans, platters and hotel pans.
- Includes 3" (76 mm) spacer and adjustable angle brackets for perfect aim and safer plate clearance.

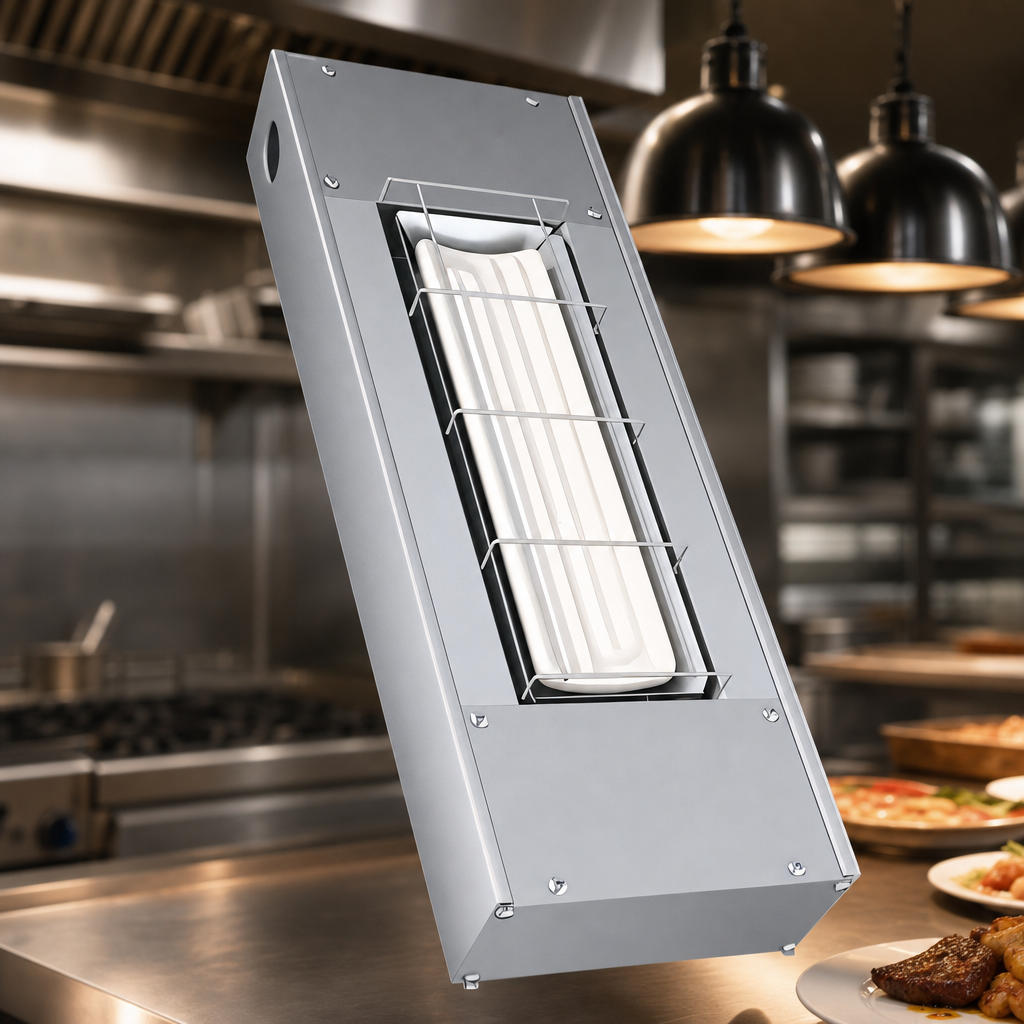

- Continuous extruded aluminum housing resists sagging and is available in multiple designer colors or gloss finishes.
- Choose attached or remote control box—each with toggle switch and indicator light.
- Simple, surface-mount design adapts to back- or front-of-house, buffet lines and open-kitchen concepts.
- NSF Listed, UL & cULus approved; made in the USA.
- One-year no-burnout warranty on ceramic elements with 24/7 parts & service support.
Electrical data (high-watt)
| Voltage | Watts | Amps |
|---|---|---|
| 208 V, 1 ɸ | 2700 W | 13.0 A |
| 240 V, 1 ɸ | 2600 W | 10.8 A |
| 220 V, 1 ɸ | 2520 W | 11.5 A |
Values shown are factory data for Model UGAH-36D. Always confirm the specification label before installing.
Dimensions & clearances
| Overall width | 36" (914 mm) |
|---|---|
| Housing depth | ≈10.2" (259 mm) with attached control box |
| Housing height | 2.5" (64 mm) |
| Recommended mounting height | 15" (381 mm) above countertop when using included 3" spacer |
| Shipping weight | ≈31 lb (15 kg) |
Perfect for
- Pass-thru windows and plating lanes
- Buffets, carving stations & cafeterias
- Fast-casual production lines
- C-store and grab-and-go merchandising
Upgrade your hot-holding game with the heavy-duty, high-performance Ultra-Glo® 36" dual ceramic heater. Select your control style and housing finish at checkout, and keep every dish service-ready from the first guest to the last.
