Hatco UGAH-24D6 Ultra-Glo® Heat Lamps
Description

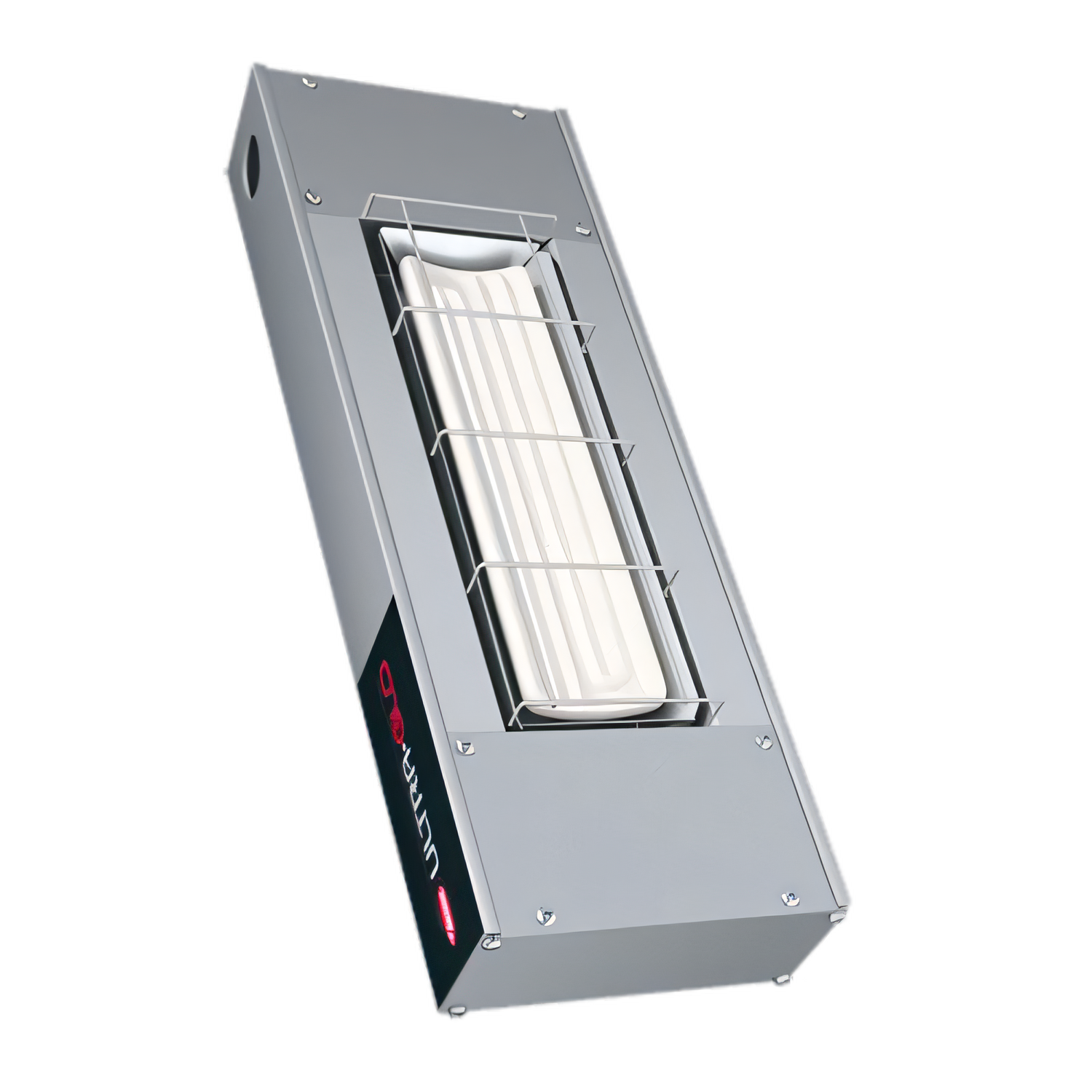

Hatco Ultra-Glo® Dual Ceramic Infrared Strip Heater – 24"
Model UGAH-24D | High-Watt 1500 WGive every plated meal the just-finished glow it deserves. The 24-inch Ultra-Glo® dual ceramic heater delivers intense, even infrared heat that blankets an entire holding area while preserving moisture and appearance – all in a slim, NSF-listed package that’s built in the USA for the busiest commercial kitchens.
Why You’ll Love It
- High-performance ceramic elements pre-focused for maximum edge-to-edge coverage and reduced heat loss.
- High wattage output – 1500 W keeps fried, grilled or baked items at safe serving temps without over-cooking.
- Dual-strip design accommodates wider pans and platters – perfect for buffet lines, pass-throughs and expo counters.
- Adjustable angle brackets (included) let you aim heat exactly where you need it.
- 6-inch spacer kit increases working clearance to improve plating speed and safety.
- Flexible controls – choose factory-attached controls or an optional remote control box for flush mounting.
- Durable extruded aluminum housing resists sagging and is available in optional Designer or Gloss colors to match your décor.
- Safety & compliance – NSF, UL and cULus certified; all ceramic elements carry a 1-year burnout warranty.
- Made in the USA by Hatco Corporation and backed by 24/7 parts & service support.
Specifications
| Model | UGAH-24D (dual ceramic, high watt) |
|---|---|
| Overall Width | 24 in (610 mm) |

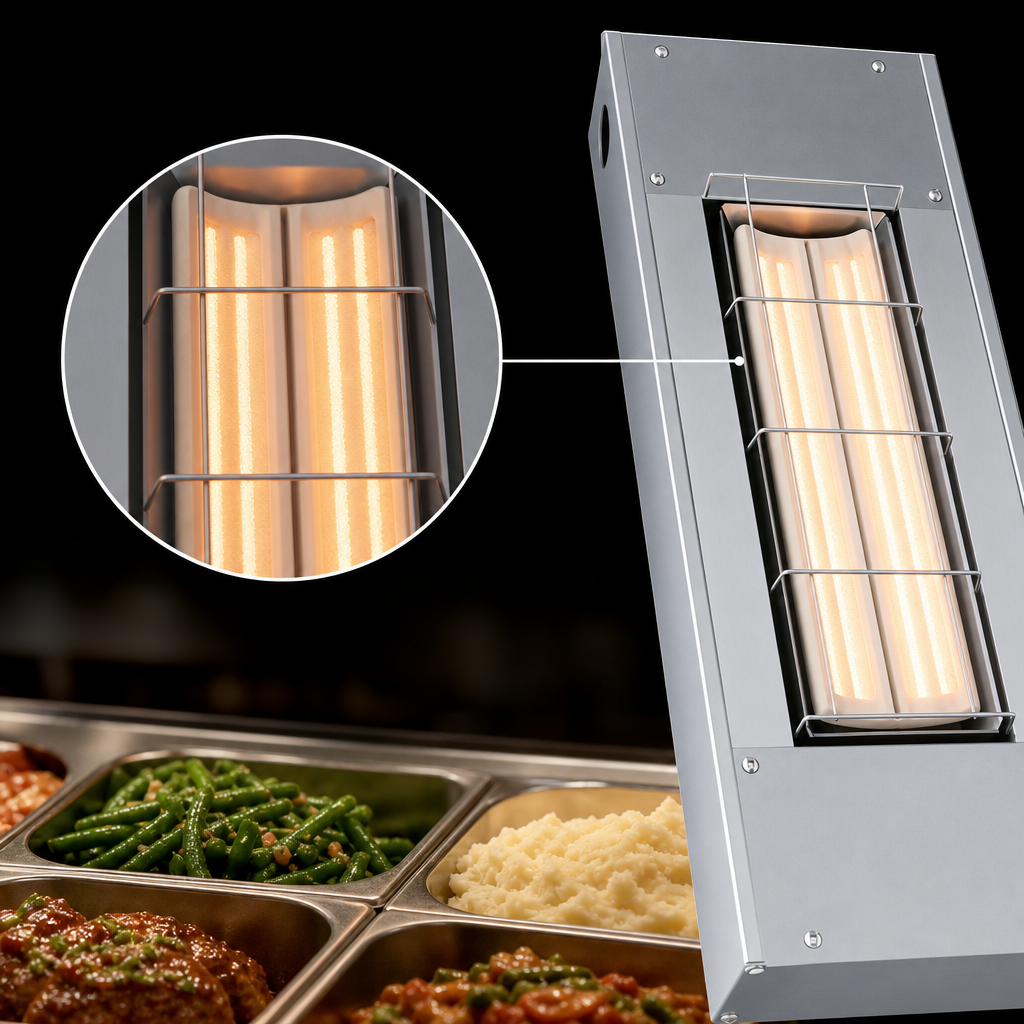

| Heat Source | 2 × pre-focused ceramic infrared elements |
| Wattage / Amps* |
120 V — 1500 W / 12.5 A 208 V — 1500 W / 7.2 A 240 V — 1500 W / 6.3 A |

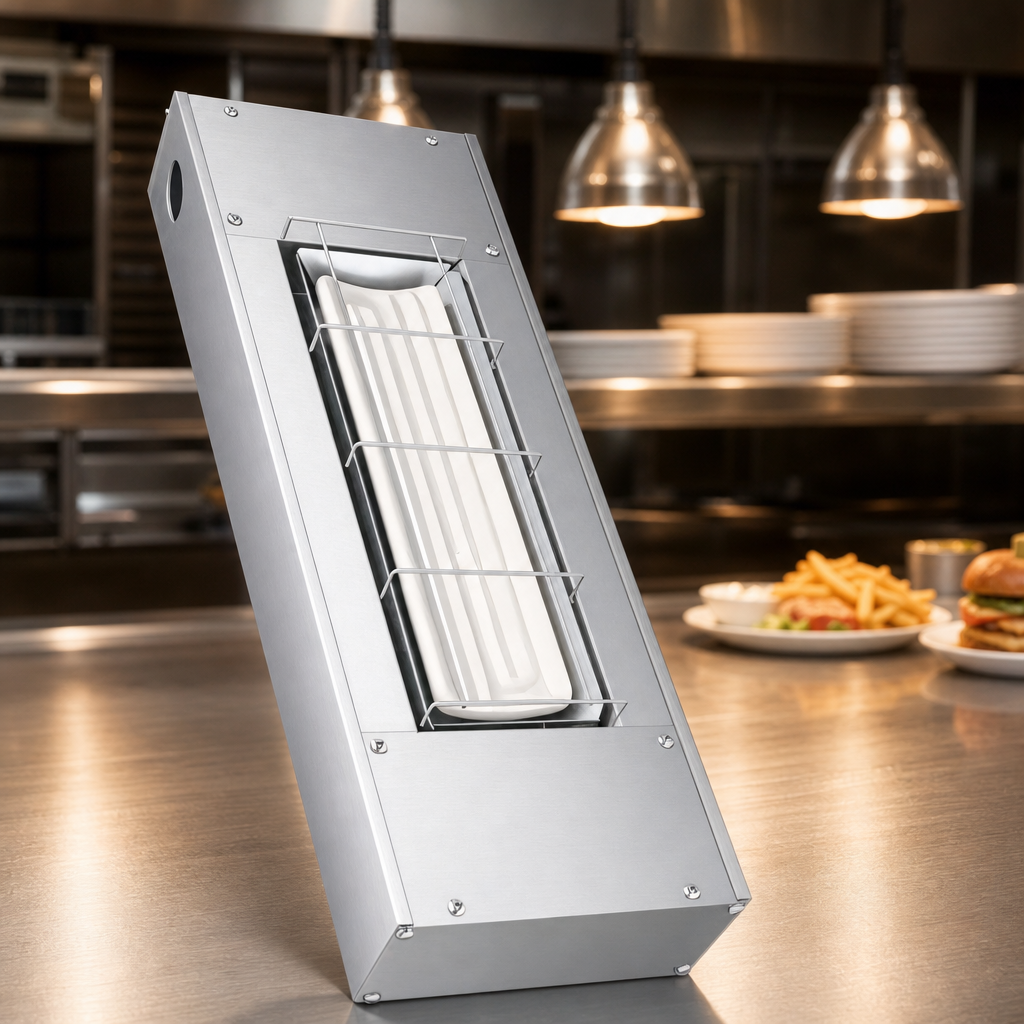

| Housing | Continuous extruded aluminum, clear anodized (standard) |
| Mounting | Adjustable angle brackets | Minimum 1 in (25 mm) above shelf, 3 in (76 mm) from back wall |
| Controls | Attached toggle & indicator or remote enclosure (sold separately) |
| Clearances | 18 in (457 mm) with standard 3 in spacer 22 in (559 mm) with included 6 in spacer |
| Certifications | NSF, UL, cULus |
| Shipping Weight | Approx. 20 lb (9 kg) |
| Country of Origin | USA |
*Electrical ratings are per manufacturer’s spec sheet. Always verify voltage and phase before ordering.
Perfect For
- Buffet lines & carving stations
- Quick-service pass-through windows
- Casual-dining expo counters
- C-store grab-and-go displays
