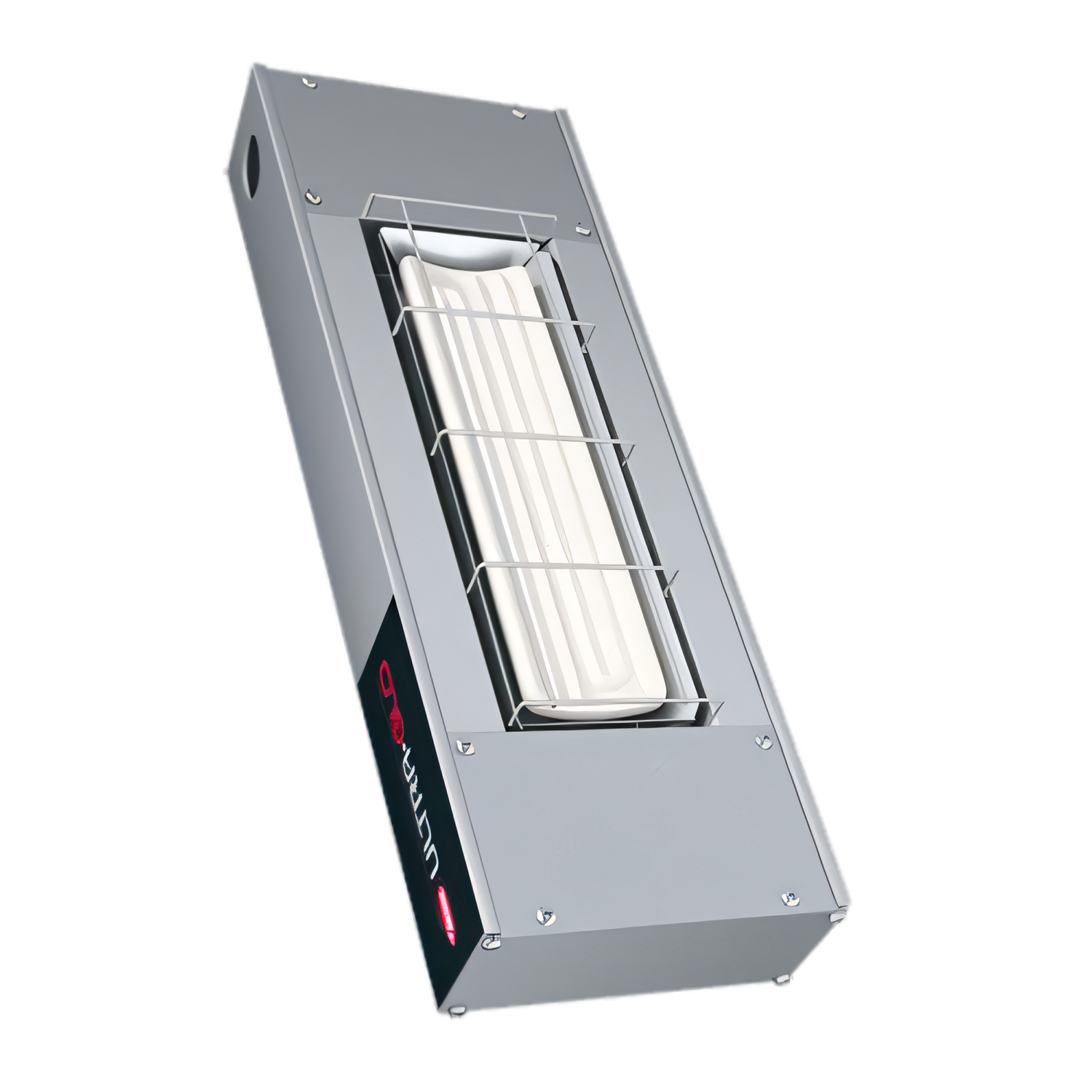

Hatco UGAH-24D3 Ultra-Glo® Heat Lamps
Hatco UGAH-24D3 Ultra-Glo® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco UGAH-24D3 Ultra-Glo® Heat Lamps
Description
Hatco Ultra-Glo® 24″ Dual Ceramic Infrared Strip Heater – High Watt
Model UGAH-24D | 1500 W | Made in USAGive every order that just-plated freshness. The 24-inch Ultra-Glo® high-watt strip heater surrounds your holding area with intense, even infrared heat—so food stays hot, appetizing and ready to serve without overcooking or drying out.
Why kitchens choose Ultra-Glo®

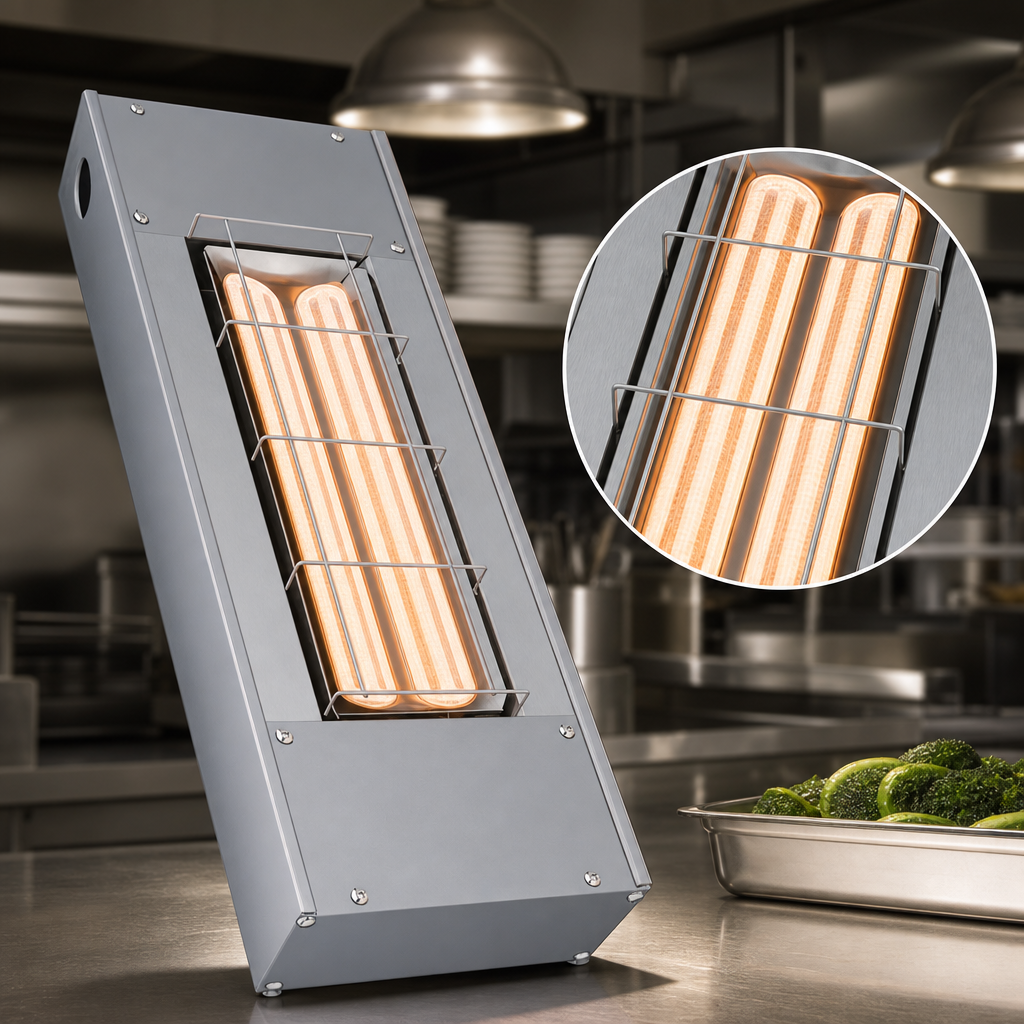

- High-output 1500 W dual ceramic emitters heat instantly and recover fast between rushes.
- Patented pyramidal heat pattern directs extra warmth to plate edges where heat loss is greatest.
- 3″ factory-installed spacer raises the heater, giving staff up to 15″ of working clearance for safer plating.

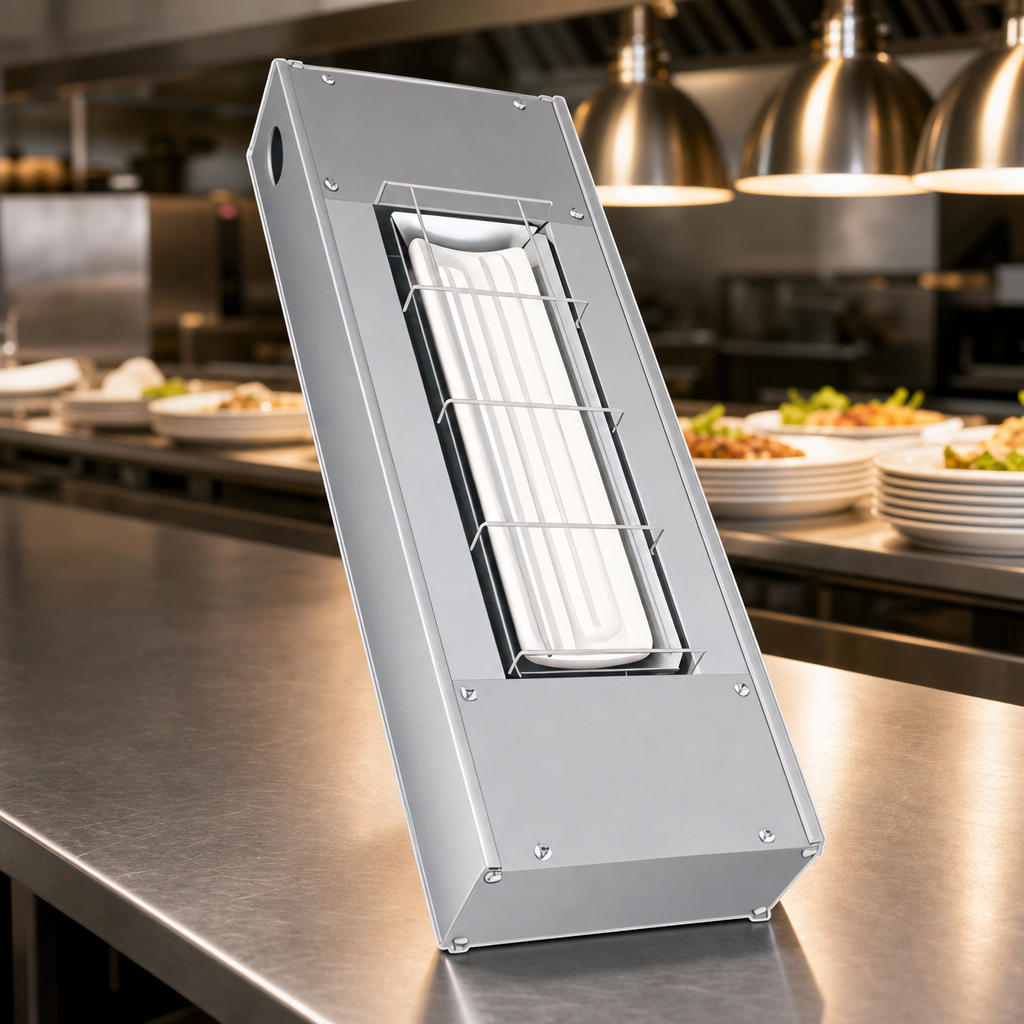

- Continuous extruded aluminum housing prevents sagging and wipes clean in seconds.
- Adjustable-angle brackets and a 3′ (914 mm) conduit whip are included for quick, secure mounting.
- Available with an attached control box or a remote control enclosure to suit any layout.
- NSF-listed, UL & cULus certified for front- or back-of-house use.
- Ceramic elements carry a 1-year no-burnout warranty; 24/7 Hatco service support.
Fast facts
| Width | 24″ / 610 mm |
|---|---|
| Heat source | Dual ceramic infrared strips |
| Wattage | 1500 W (high-watt model) |
| Voltage options | 120 V, 208 V, 220 V or 240 V, 1-phase (amps vary) |
| Housing | Clear anodized aluminum (designer colors available) |
| Included spacer | 3″ (76 mm) – provides ≈15″ working clearance |
| Mounting | Adjustable-angle brackets; install ≥1″ (25 mm) from back wall |
| Shipping weight | ≈ 20 lb / 9 kg |
| Certifications | NSF, UL, cULus |
| Origin | Milwaukee, Wisconsin, USA |
Amp draw ranges from 12.5 A at 120 V to 6.3 A at 240 V. Confirm local electrical requirements before ordering.
Control configurations
- Attached box: Factory-mounted toggle switch & indicator light for plug-and-play setup.
- Remote box: Mounts outside the heat zone; available in 15 designer and gloss finishes.
Need a different width, lighted model or custom color? Explore the full Hatco Ultra-Glo® collection or contact our team for a fast quote.
