Hatco UGAH-18D6 Ultra-Glo® Heat Lamps
Description

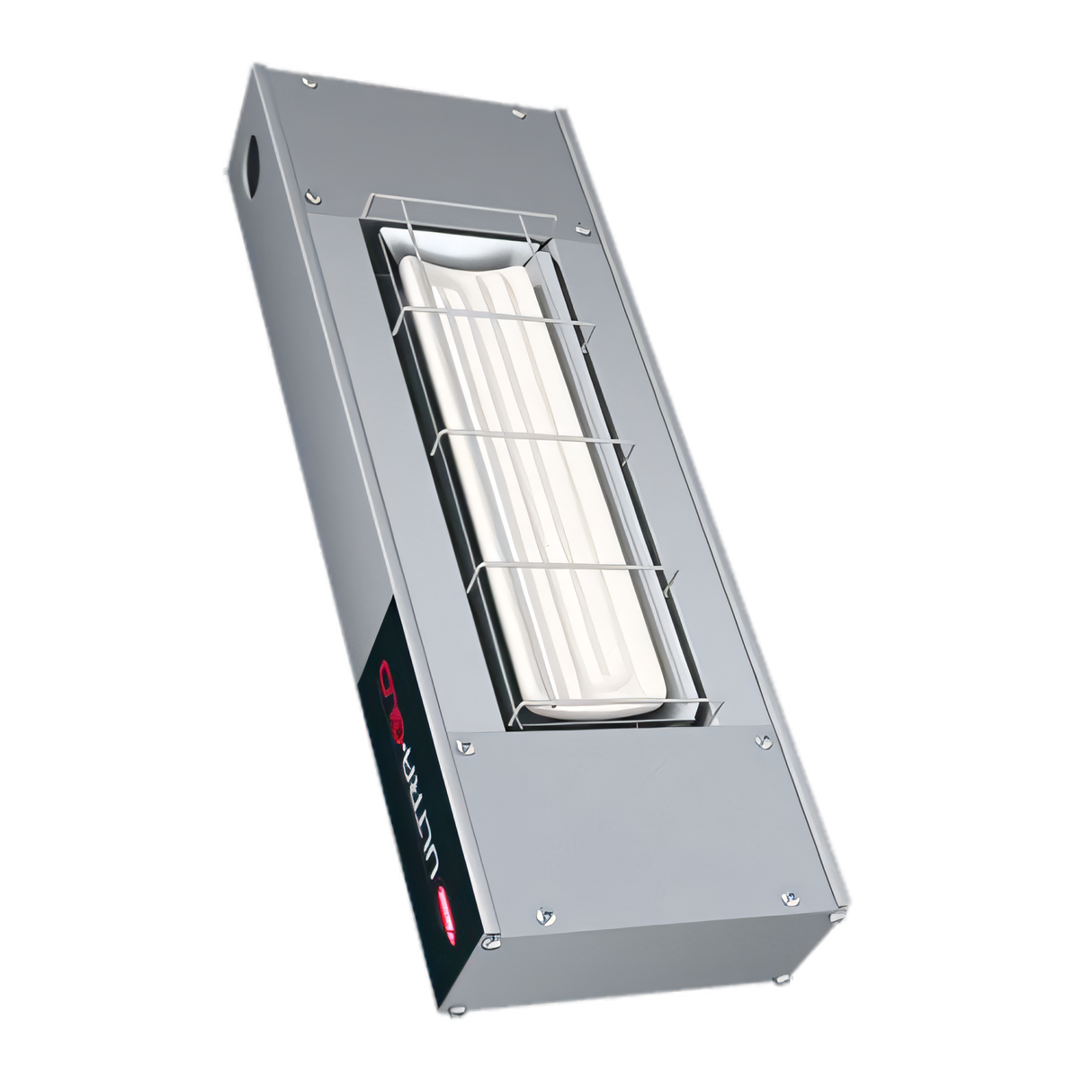

Ultra-Glo® UGAH-18D Dual Ceramic Infrared Strip Heater – 18" High-Watt
Compact size, uncompromising heat coverage.Give every plate the just-made appeal diners expect. The Hatco Ultra-Glo® UGAH-18D pairs two high-intensity ceramic elements with a precision-engineered reflector to blanket an 18 inch (457 mm) holding area in even, edge-to-edge infrared heat – perfect for pass-through shelves, buffets and open-kitchen displays where space is tight and performance is non-negotiable.
Why you’ll love it
- High-watt output (up to 1350 W) maintains safe, appetising serving temperatures without drying food.

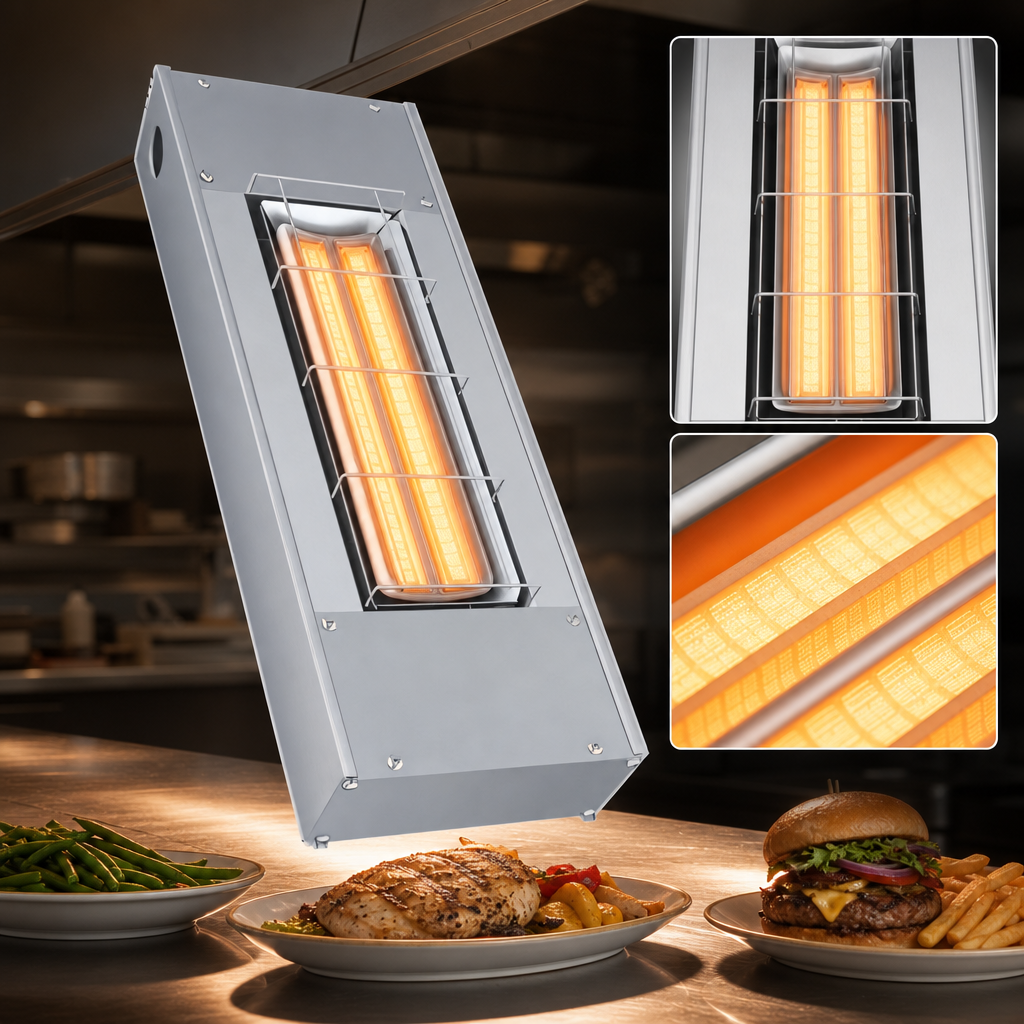

- Dual pre-focused ceramic heat strips concentrate warmth at the edges where heat loss is greatest.
- 6" (152 mm) factory-installed spacer raises the unit for a generous 22" (559 mm) working clearance.

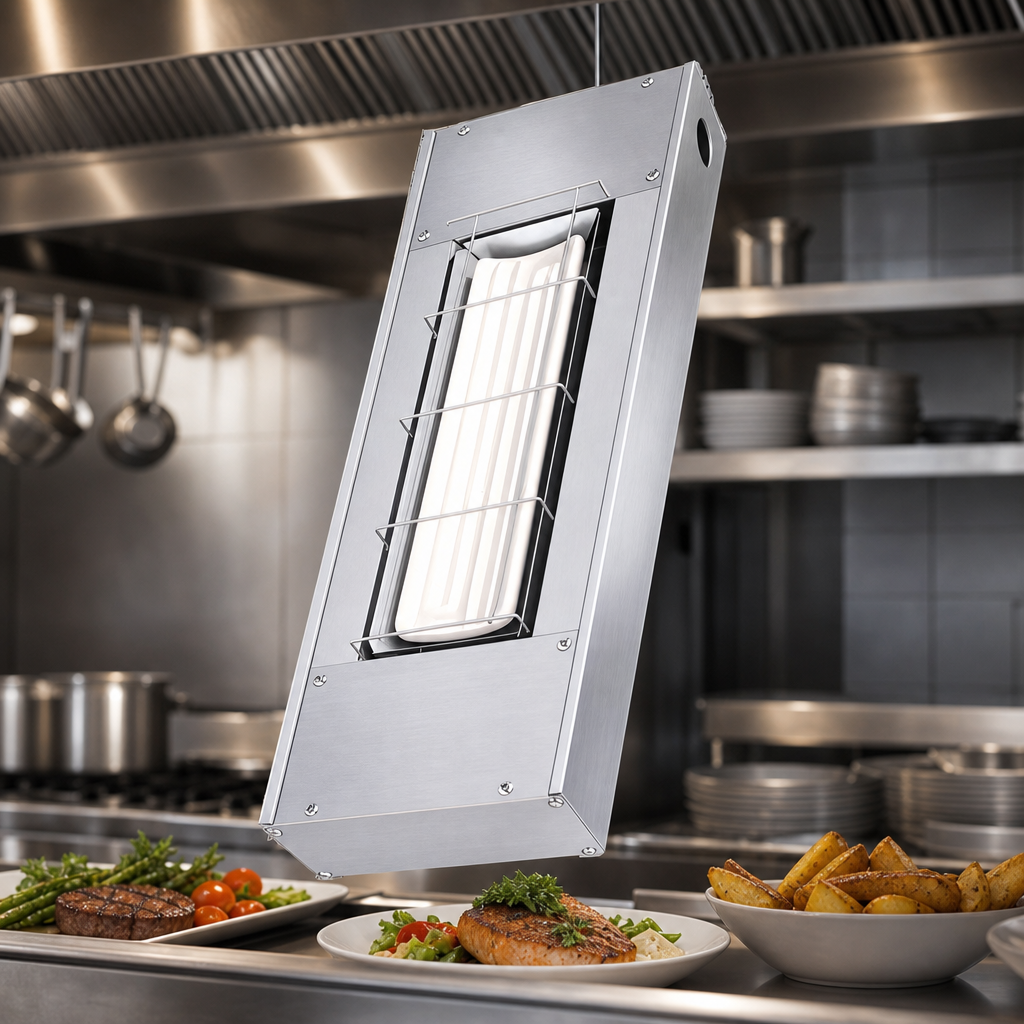

- Rugged, continuous extruded aluminium housing eliminates sag – ideal for long-term ceiling or shelf mounting.
- Adjustable angle brackets (included) let you direct heat exactly where you need it.
- Choose an attached control box or remote-mount enclosure with toggle switch, infinite control & indicator light.
- NSF, UL & cULus listed and proudly Made in the USA.
Technical specifications
| Model / Type | UGAH-18D – Dual ceramic, high-watt |
|---|---|
| Overall width | 18" (457 mm) |
| Housing (H × D) | 2.5" × 3.8" (64 × 97 mm) |
| Mounting clearance | 22" (559 mm) with included 6" spacer |
| Electrical (high watt) |
120 V / 1300 W / 10.8 A 208 V / 1350 W / 6.5 A 240 V / 1300 W / 5.4 A 220 V / 1260 W / 5.7 A |
| Power lead | 3′ (914 mm) conduit whip |
| Shipping weight | 17 lb (8 kg) |
| Certifications | NSF, UL, cULus |
| Warranty | 1-year on ceramic elements; 24/7 parts & service support |
Customise your heater
- Designer colour or gloss housings to complement your decor.
- Remote control enclosure in matching finish.
- Non-adjustable tubular stands (18–26").
- Extended power leads up to 20′ (6.1 m).
All options must be specified at time of order.
