Hatco UGA-72D6 Ultra-Glo® Heat Lamps
Description
Hatco Ultra-Glo® UGA-72D Dual Ceramic Infrared Foodwarmer – 72"
Standard wattage · double element · remote or attached controlsBlanket a full six feet of counter space with dependable, edge-to-edge heat. The Ultra-Glo® UGA-72D pairs Hatco’s powerful ceramic infrared technology with a rugged aluminum housing, giving you the professional holding performance busy kitchens demand.
Key advantages

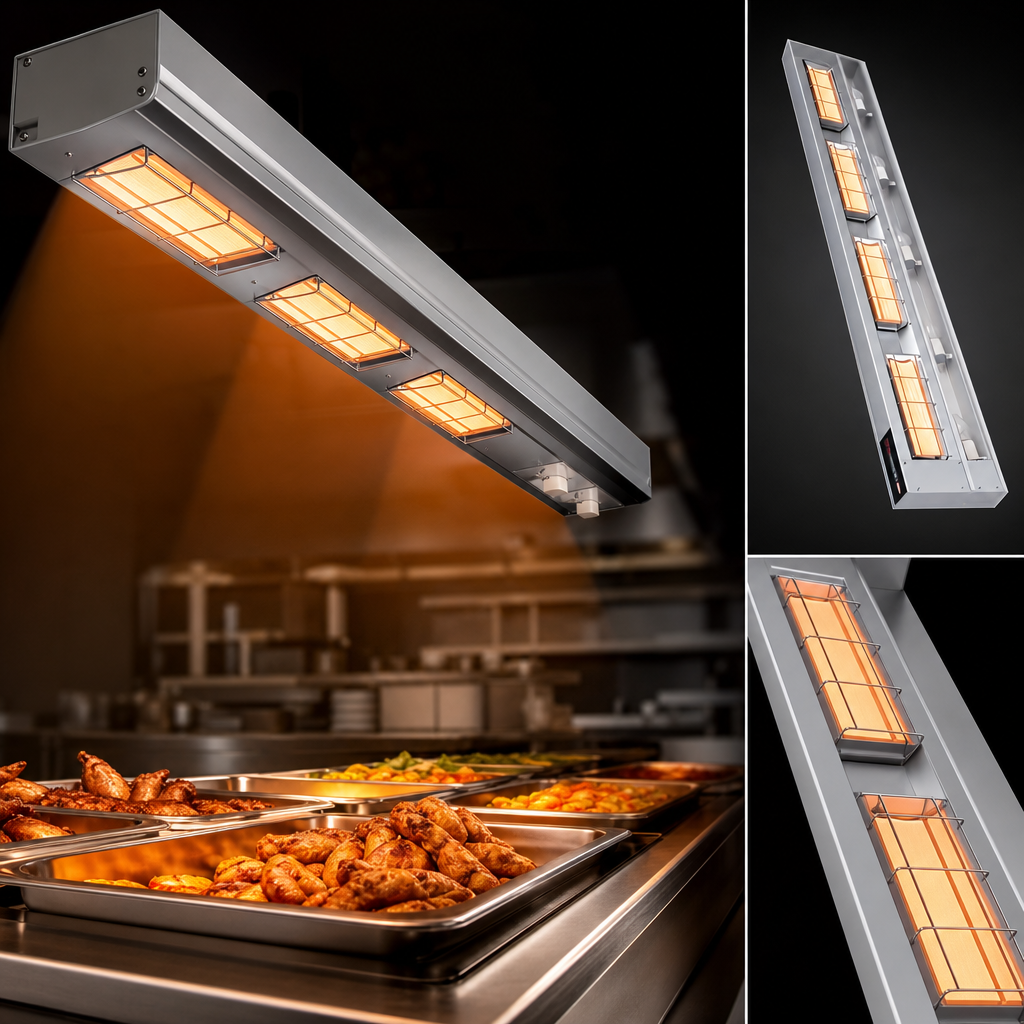

- Dual ceramic elements focus a pyramidal heat pattern directly onto food – no cold corners.
- Factory-supplied 6" (152 mm) spacer increases working clearance for plating and carving.

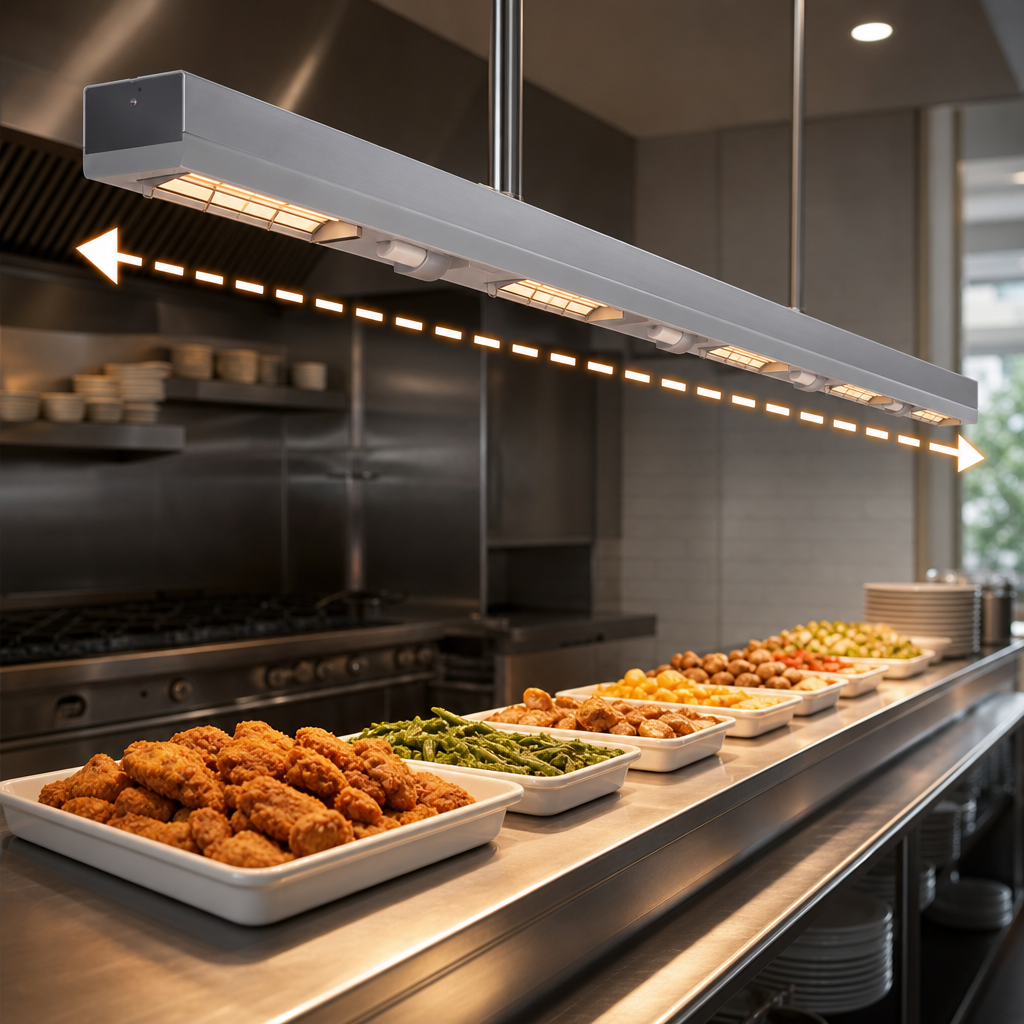

- Continuous extruded aluminum housing prevents sagging across the full 72" (1829 mm) span.
- Adjustable angle mounting brackets and 3' (914 mm) conduit whip included for fast installation.
- Select an attached control box or a remote toggle/infinite control enclosure to match your line layout.
- NSF & UL listed and proudly Made in the USA.
Ideal applications
- Buffets & cafeterias
- Expo/pass-through shelves
- Banquet & catering lines
- C-store and deli hot bars
What’s in the box
- Ultra-Glo® UGA-72D dual ceramic strip heater (standard watt)
- 6" spacer kit
- Adjustable angle brackets
- Attached control box or remote control enclosure with toggle switch & indicator light
Technical specifications
| Overall width | 72" / 1829 mm |
|---|---|
| Heat source | Dual ceramic infrared tiles |
| Housing | Clear anodized aluminum (designer colours & gloss finishes available) |
| Total wattage | 4.0 kW (2 × 2.0 kW @ 240 V) |
| Amps | 16.6 A @ 240 V (two 8.3 A circuits) · 18.8 A @ 208 V |
| Electrical | 208 / 220 / 240 V, 1-phase, hard-wired (two circuits) |
| Shipping weight | ≈ 55 lb / 25 kg |
| Certifications | NSF, UL, UL-EPH Classified |
| Warranty | 1 yr parts & labour · ceramic elements warranted against burnout for 1 yr |
Looking for a custom look? Hatco offers a broad palette of designer powder-coat and gloss finishes for both the housing and remote box when ordered new.
