Hatco UGA-72D3 Ultra-Glo® Heat Lamps
Description

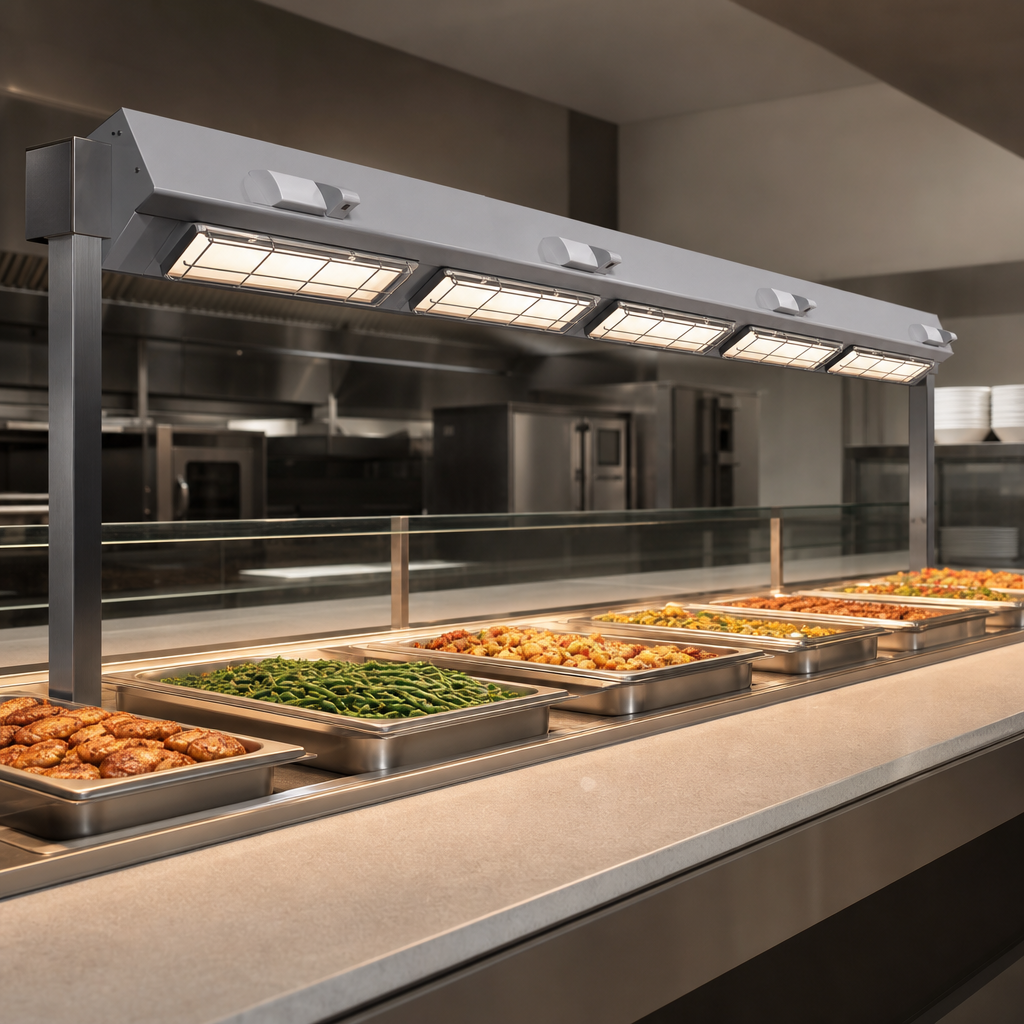

Hatco Ultra-Glo® 72" Dual Ceramic Infrared Food Warmer
Model UGA-72D | Standard Watt | Made in USAGive every plate the just-made glow your guests expect. Hatco’s 72" Ultra-Glo® Dual Ceramic Food Warmer blankets a full 6-foot holding zone with even, penetrating infrared heat—keeping entrées hot and appetizing without overcooking or drying out. Built for busy buffet lines, display kitchens and back-of-house pass-throughs, this NSF- and UL-listed strip heater ships ready to mount with a 3" spacer, adjustable angle brackets and your choice of attached or remote controls.
Key advantages

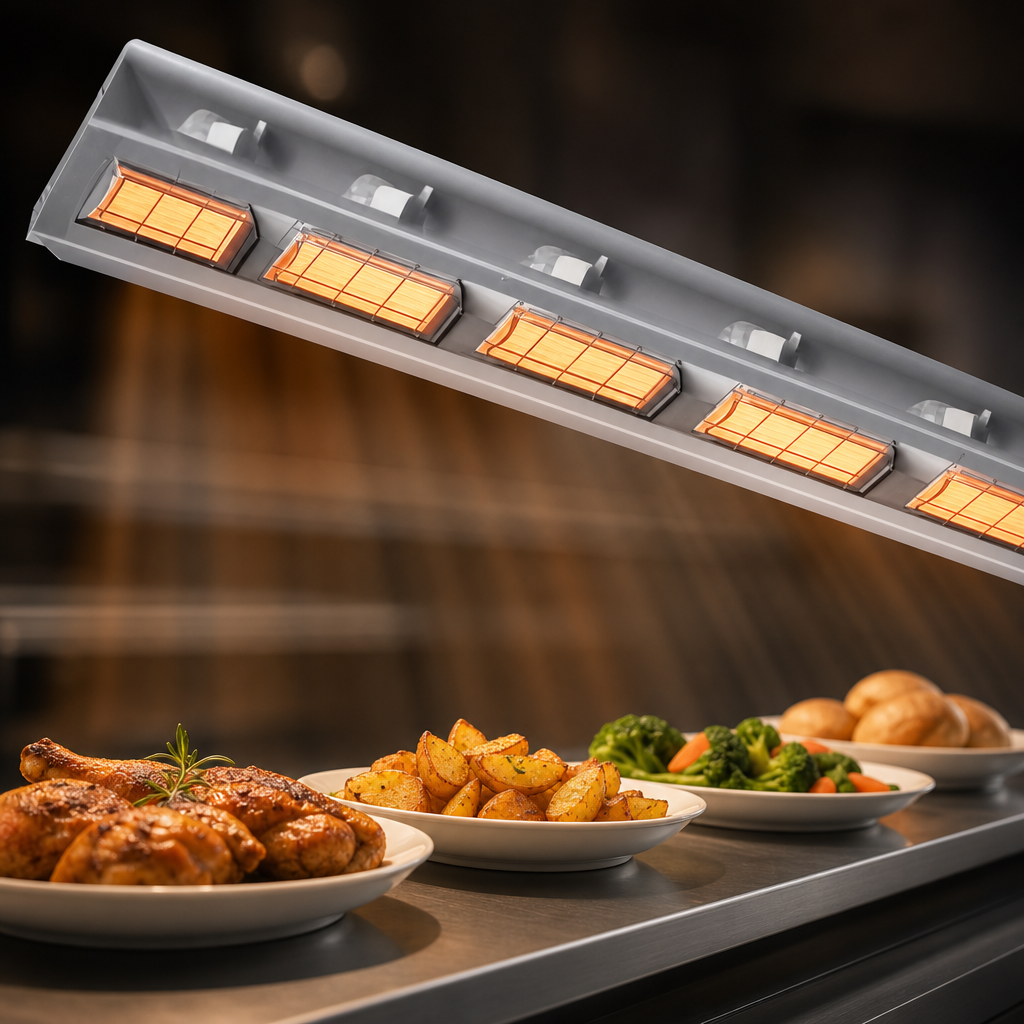

- Dual ceramic heat tiles deliver concentrated infrared energy across the entire 72" span—ideal for wide pans and multi-row setups.
- Increased mounting height (with included 3" spacer) maximises working clearance for plating and garnishing.
- Lightweight, one-piece extruded aluminium housing resists sagging—even at 6 ft (1829 mm) wide.
- Pre-focused pyramidal heat pattern minimises edge heat loss for consistent holding temperatures.
- Factory-installed adjustable angle brackets simplify overhead, shelf or pass-through installation.
- Choice of attached control box or remote control enclosure with toggle switch & indicator light for flexible mounting and clean aesthetics.
- Ceramic elements are warranted for one full year against burnout.
- NSF certified, UL listed and proudly built in Wisconsin, USA.
Technical specifications
| Active heat length | 72" (1829 mm) |
|---|---|
| Overall dimensions (with attached control box) |
72" W × 2.5" H × 9.3" D (1829 × 64 × 236 mm) |
| Housing material / finish | Continuous extruded aluminium, clear anodised |
| Spacer height supplied | 3" (76 mm) stainless steel |
| Electrical – standard watt |
208 V: 1.96 kW per circuit (9.4 A) 240 V: 2.00 kW per circuit (8.3 A) 220 V: 2.52 kW per circuit (11.5 A) (Two independent circuits – 4.0 kW total @ 240 V) |
| Controls | Attached toggle/infinite switch box or remote enclosure (order-configurable) |
| Shipping weight | ≈ 55 lb (25 kg) |
| Certifications | NSF, UL, cULus |
| Warranty | 1-year parts & labour (USA/Canada) – ceramic elements warranted 1 year against burnout |
Ideal applications
- High-volume buffet or cafeteria lines
- Display kitchens & exhibition cooking stations
- Back-of-house pass-through shelves
- Catering carving stations (pair with independent cutting board)
Need a custom finish, LED lights, or non-standard spacer height? Ask our team about factory options available at time of order.
