Hatco UGA-66D3 Ultra-Glo® Heat Lamps
Description
Hatco Ultra-Glo® UGA-66D Dual Ceramic Infrared Foodwarmer – 66"
Standard Wattage • Dual Heat Zones • NSF & UL Listed • Made in USADesigned for busy buffets, serving lines and display kitchens, the 66 inch Ultra-Glo® UGA-66D delivers powerful, edge-to-edge infrared heat that keeps foods at perfect serving temperature without sacrificing product quality or valuable working clearance.
Why you’ll love it

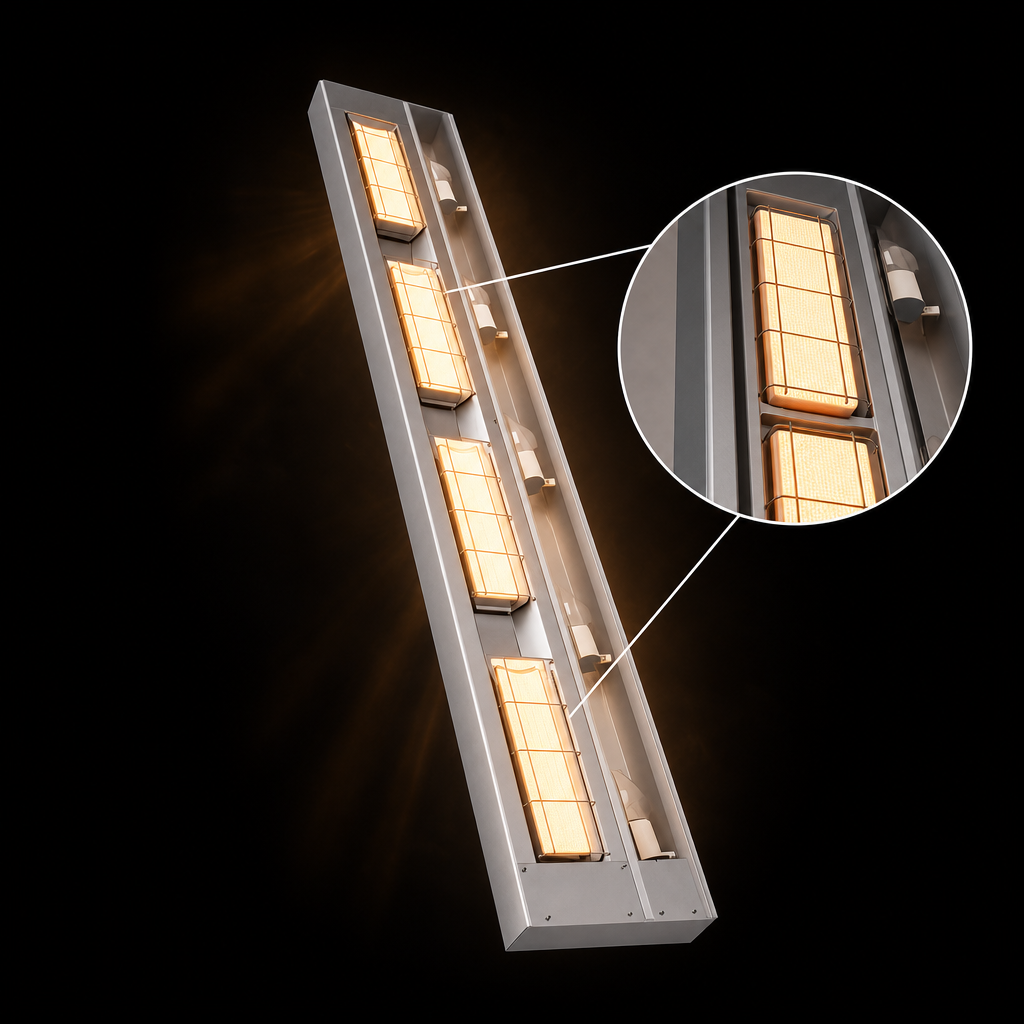

- Dual ceramic elements blanket the entire 66" holding area with consistent infrared heat.
- Increased working clearance—ceramic technology focuses heat on the food, not the crew.
- Sturdy extruded-aluminum housing prevents sagging and stands up to daily commercial use.
- Adjustable angle brackets & 3" spacer included for fast, code-compliant installation.
- Flexible controls—choose an attached control box or a remote enclosure (keeps wiring out of view).
- Wide range of Designer & Gloss finishes available to match any front-of-house décor.
- NSF & UL listed; all ceramic elements carry a one-year burnout warranty.
- Made in Wisconsin, USA with 24/7 parts & service support from Hatco.
At-a-glance specs
| Model | UGA-66D (dual ceramic, no lights) |
|---|---|
| Overall width | 66" (1676 mm) |
| Height × Depth | 2.5" × 9.3" (64 × 236 mm) |
| Mounting spacer | 3" (76 mm) – included |
| Heat output | 4.0 kW @ 240 V 3.92 kW @ 208 V 4.37 kW @ 220 V |
| Electrical | (2) independent circuits 240 V – 2 × 8.3 A 208 V – 2 × 9.4 A |
| Controls | Toggle switch & indicator light in either • Attached control box (factory-mounted) • Remote enclosure (field-mounted) |
| Housing finish | Clear anodized aluminum (standard) or optional Designer/Gloss colors |
| Certifications | NSF, UL, cULus |
| Ship weight | 50 lb (23 kg) |
| Warranty | 1-year parts & labor; 1-year element burnout |
Factory-order options
- Remote control enclosure with electronic infinite control or simple toggle.
- Designer Color or Gloss finish for housing & control box.
- Non-adjustable tubular stands (18"–26" heights) for portable setups.
- Extended power leads (up to 20 ft) for custom installations.
Need a different size, wattage or color? Explore the full Ultra-Glo® line or chat with our team for fast quotes and lead-times.
