Hatco UGA-60D6 Ultra-Glo® Heat Lamps
Description
Ultra-Glo® UGA-60D Dual Ceramic Infrared Foodwarmer – 60"
Standard-watt • Remote or Attached Controls • NSF & UL Listed • Made in USAGive every plate the just-made look and taste. Hatco’s 60" Ultra-Glo® UGA-60D blankets an entire 5-foot holding zone with intense, even infrared heat – keeping entrées, sides and proteins at peak serving temperature without over-cooking or drying out.
Why You’ll Love It

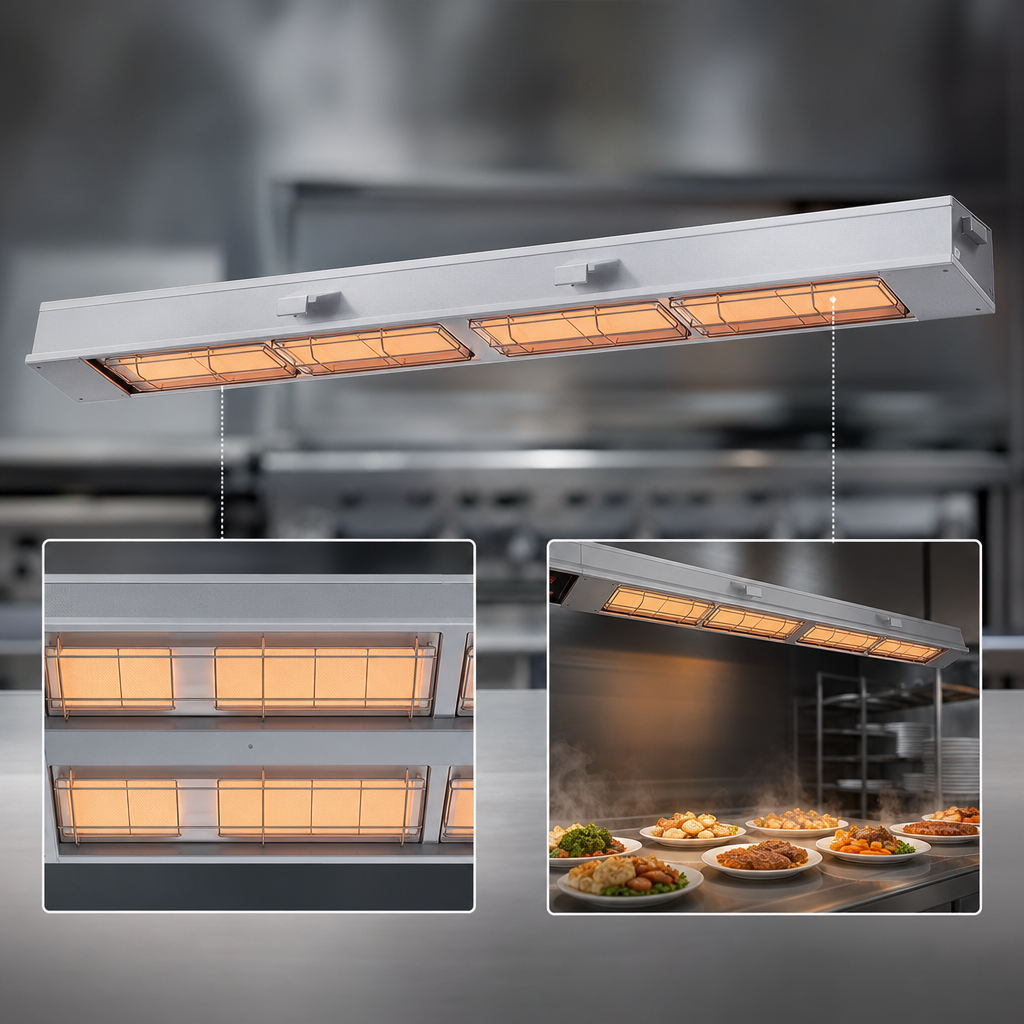

- Dual ceramic elements produce a focused pyramidal heat pattern that reaches the edges where heat loss is greatest.
- Added head-room: factory-supplied 6" spacer increases working clearance to 18"–22" (457–559 mm) – perfect for taller pans and buffet ware.
- Heavy-duty aluminum housing is a single continuous extrusion that will not sag, even at full 60" span.
- Mount it your way – adjustable angle brackets, 3' (914 mm) conduit whip and choice of attached or remote toggle control box are all included.
- Color options available (at time of order) to complement open-kitchen, buffet or chef’s counter décor.
- Peace of mind – one-year no-burnout warranty on all ceramic elements plus Hatco’s legendary 24/7 service network.
Model-Specific Specs
| Model | UGA-60D (standard watt) |
|---|---|
| Overall width | 60" / 1524 mm |
| Heating elements | Two ceramic tiles |
| Total wattage | 4 kW at 240 V (2 × 2 kW) • 3.92 kW at 208 V (2 × 1.96 kW) |
| Amperage | 16.6 A @ 240 V • 18.8 A @ 208 V (two independent circuits) |
| Electrical | Single-phase, hard-wired; separate circuit breaker required for each circuit |
| Shipping weight | 49 lb / 23 kg (add 2-8 lb for remote control enclosure, if selected) |
| Certifications | NSF, UL (U.S. & Canada) |
| Country of origin | USA |
Mounting Clearance
For optimum performance, mount at least 1" (25 mm) above shelf with a minimum 3" (76 mm) rear setback. Use only non-combustible surroundings.
What Comes in the Box
- Ultra-Glo® UGA-60D foodwarmer with 6" spacer attached
- Pair of adjustable angle mounting brackets
- 3' (914 mm) pre-wired flexible conduit whip
- Factory-installed attached toggle control & indicator or separate remote control box (per order)
- Installation & operating manual
Hatco backs every Ultra-Glo® with a one-year parts & labor warranty and a one-year element no-burnout guarantee.
