Hatco UGA-60D3 Ultra-Glo® Heat Lamps
Description

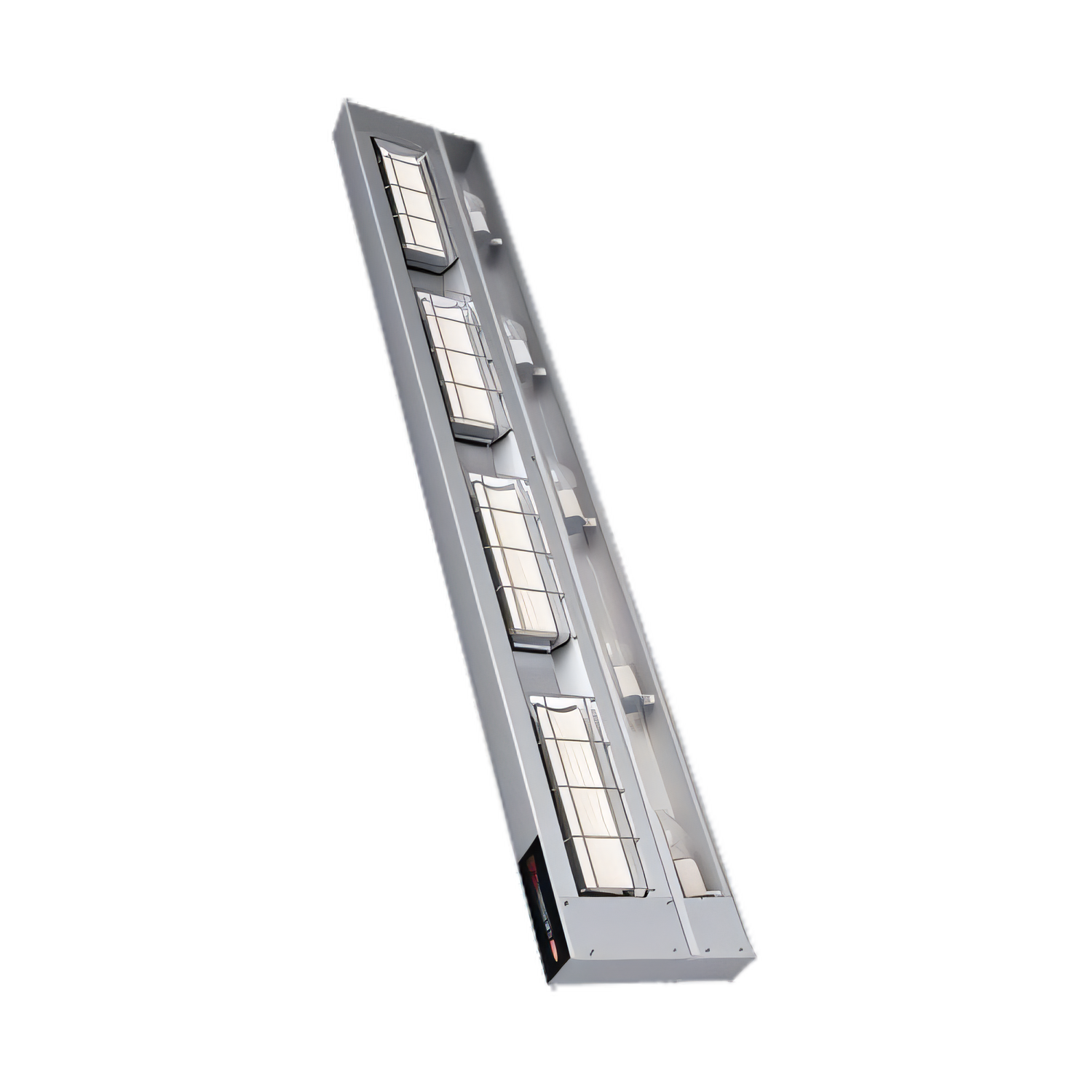

Hatco Ultra-Glo® 60" Dual Ceramic Infrared Strip Heater
Model UGA-60D | Standard Wattage | Aluminum HousingKeep entrées, sides and baked goods consistently hot and appetizing without over-cooking or drying out. The Hatco Ultra-Glo® 60" Dual Ceramic Infrared Strip Heater blankets a full 60-inch holding zone with intense yet gentle infrared heat—perfect for larger pass-throughs, buffet lines or open-kitchen displays.
Key Benefits
- Ceramic Element Technology – Produces higher infrared emissivity than quartz for superior holding power.
- Increased Working Clearance – Factory-supplied 3" (76 mm) spacer improves visibility and plating access.

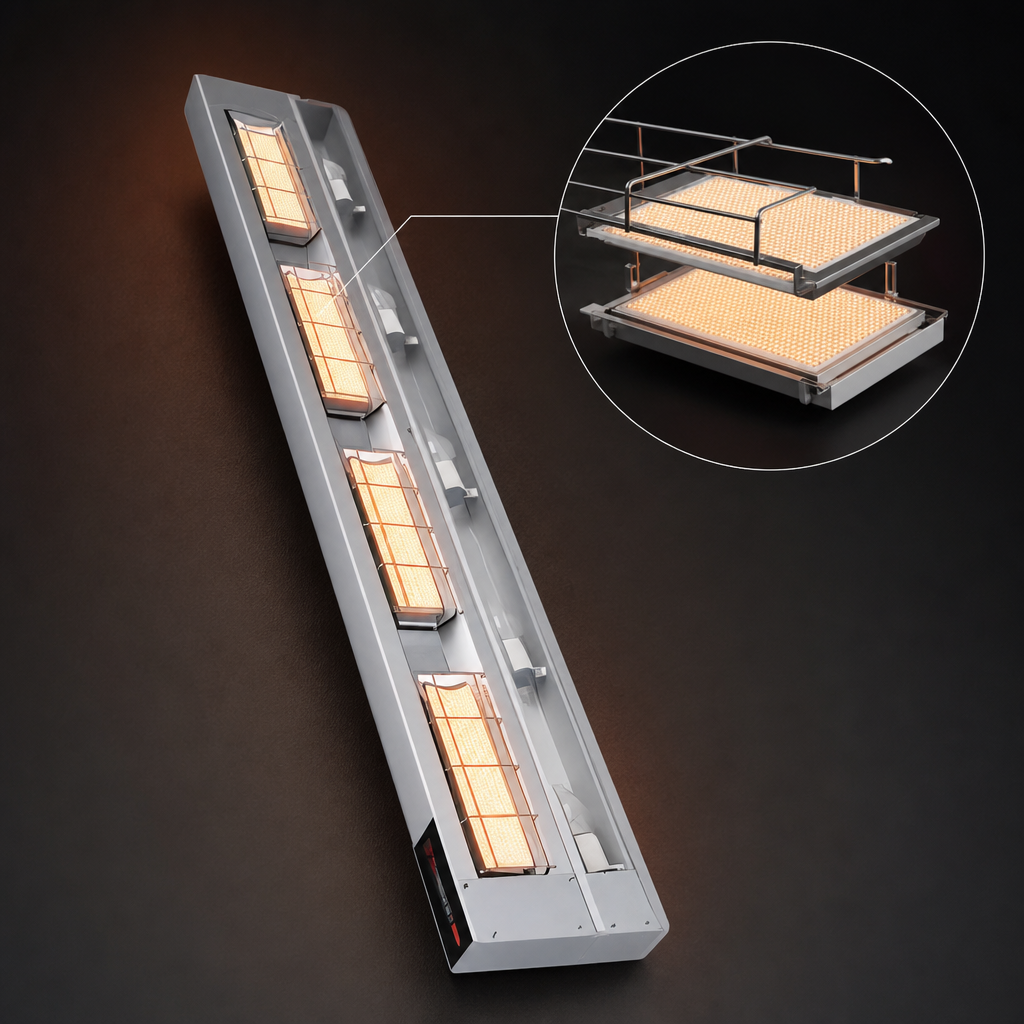

- Dual-Element Design – Two rows of pre-focused heat concentrate warmth at the edges where plate heat-loss is greatest.

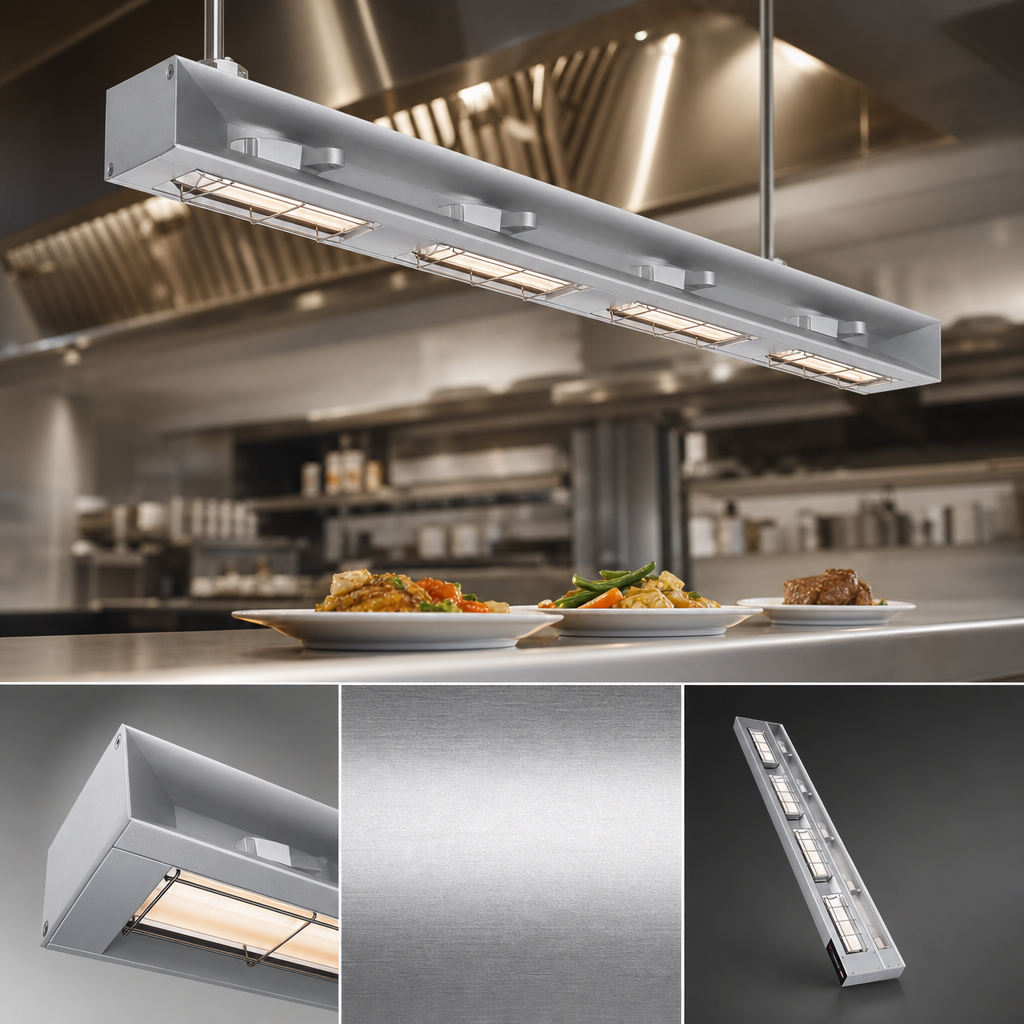

- Rugged Aluminum Housing – Continuous extruded profile eliminates sagging over the 60" span.
- Flexible Controls – Choose an attached control box or a remote toggle/infinite control enclosure (field-wired outside the heat zone) to suit your line layout.
- Adjustable Angle Brackets – Included for easy wall, ceiling or shelf mounting.
- Certified & Built to Last – NSF listed, UL listed and proudly Made in the USA. All ceramic elements carry a 1-year burnout warranty.
Ideal Applications
- Full-service and quick-service pass-through stations
- Carving boards & display cooking lines
- Self-serve buffets and cafeteria rails
- Bakery trays & pizza make lines
Specifications
| Overall Width | 60" (1524 mm) |
|---|---|
| Depth | 2.5" (64 mm) |
| Height - Remote Control | 6.3" (161 mm) |
| Height - Attached Control Box | 9.3" (236 mm) |
| Shipping Weight | 49 lb (23 kg) |
| Electrical (Standard Watt) |
208 V 2-circuit | 3.92 kW | (9.4 A ×2) 220 V 2-circuit | 4.37 kW | (9.9 A ×2) 240 V 2-circuit | 4.00 kW | (8.3 A ×2) |
| Ceramic Elements | Dual 30" tiles (factory-wired) |
| Mounting Clearance | Minimum 1" (25 mm) above shelf, 3" (76 mm) behind unit |
Need an eye-catching finish? The Ultra-Glo® series is available (at time of order) in Hatco’s full palette of Designer & Gloss colors.
What’s Included
- Ultra-Glo® 60" dual ceramic infrared heater
- 3" stainless steel spacer kit (factory-installed)
- Adjustable angle mounting brackets
- 3' (914 mm) conduit whip with leads
- Your choice of attached control box or remote control enclosure with toggle switch & indicator light
Upgrade your hot holding line with the performance trusted by chefs worldwide—order the Hatco Ultra-Glo® 60" Dual Ceramic Infrared Strip Heater today.
