Hatco UGA-54D3 Ultra-Glo® Heat Lamps
Description

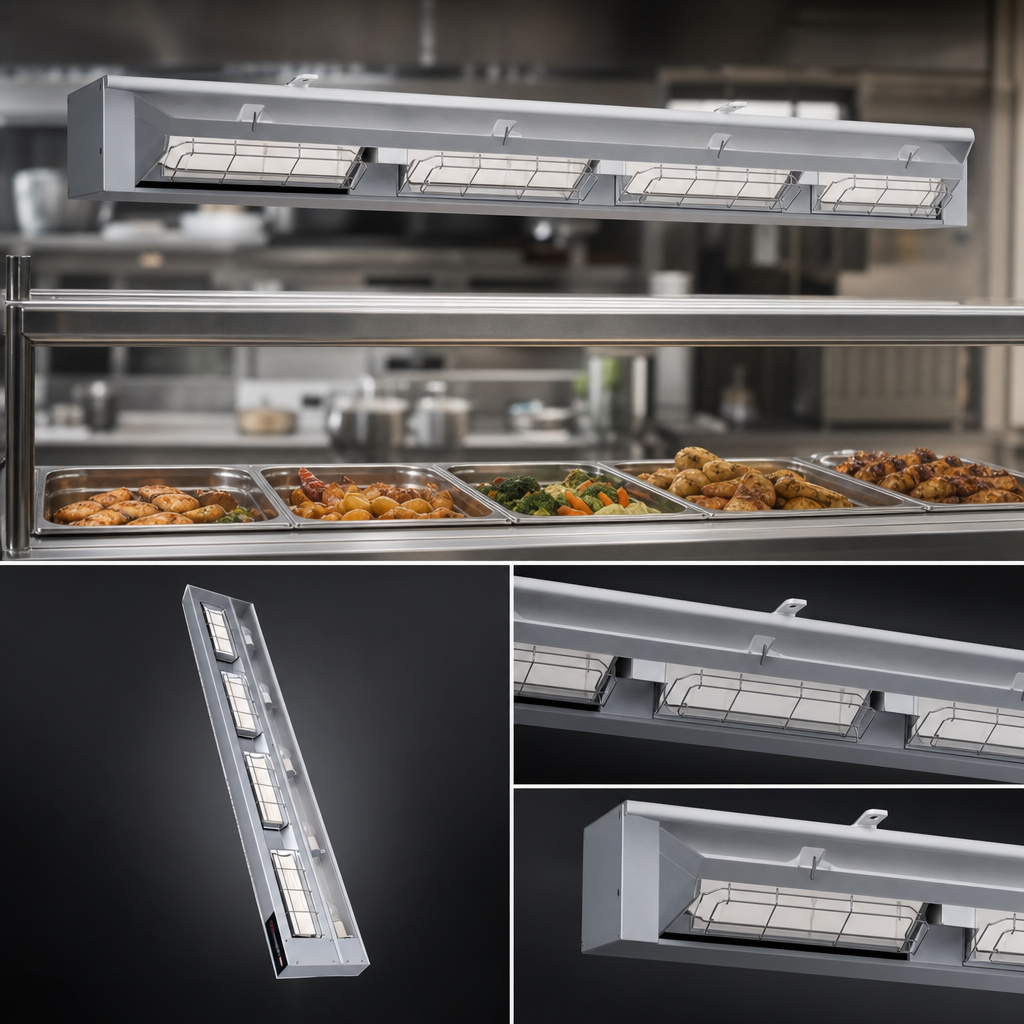

Hatco Ultra-Glo® UGA-54D Dual Ceramic Infrared Foodwarmer – 54"
Standard Watt • Double Ceramic Heat Zone • Remote or Attached ControlsKeep entrées, sides and plated meals at peak serving temperature without sacrificing product quality. The 54" Ultra-Glo® UGA-54D combines Hatco’s proven ceramic infrared technology with a slim, sag-proof aluminum housing to deliver uniform, edge-to-edge heat across wider holding areas.
Why you’ll love it

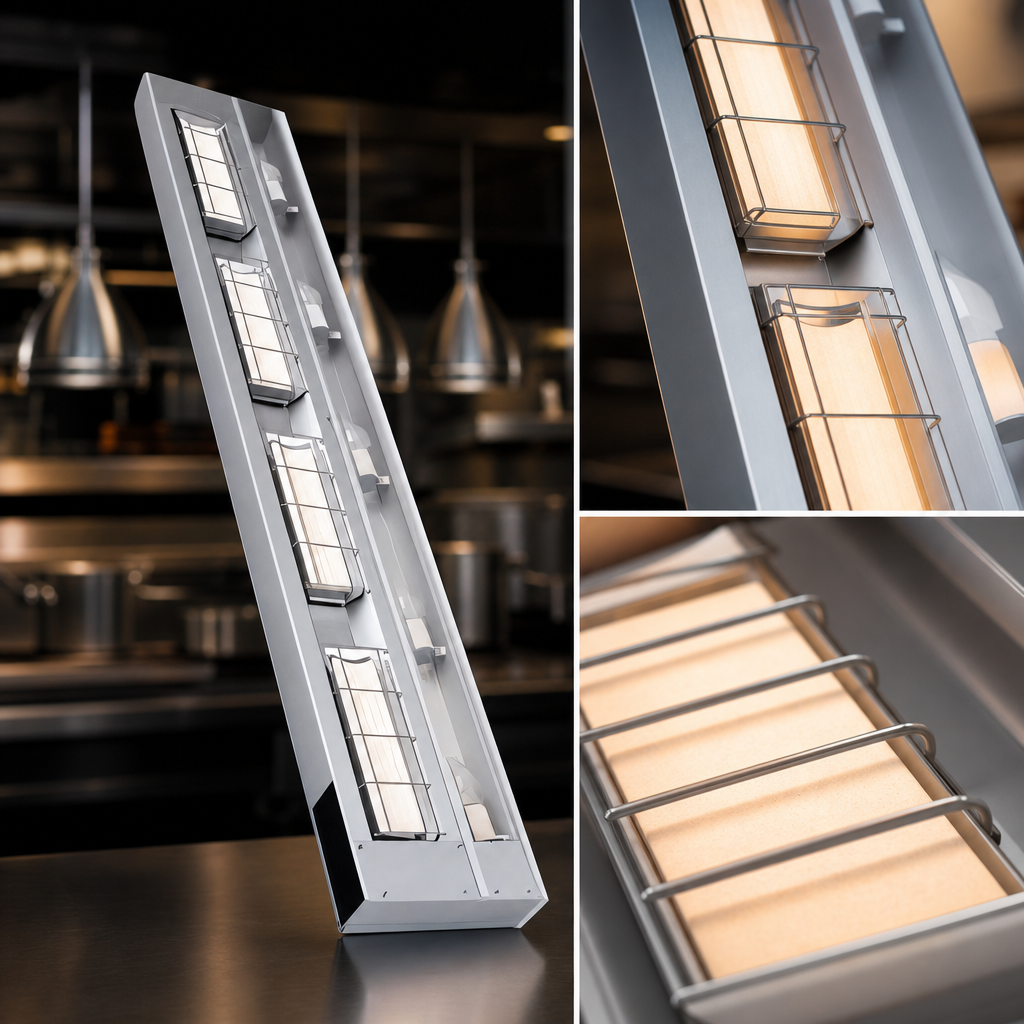

- Dual ceramic emitters blanket the entire holding zone with focused radiant heat, preventing cold edges and food drying.
- 3" (76 mm) spacer bar and adjustable angle brackets create extra working clearance for safer plating and carving.
- Rigid, extruded anodized aluminum housing eliminates sag — even at 54" wide.
- Choose factory-mounted attached controls or a low-profile remote box, both with toggle switch and indicator light.

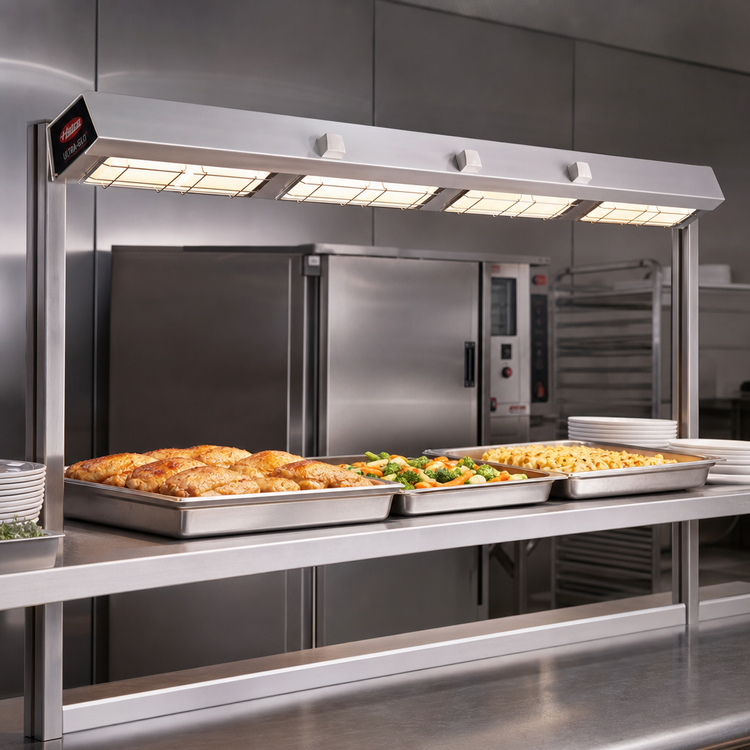

- Versatile enough for back-of-house lines, display cooking or buffet service.
- Certified NSF & UL and proudly Made in the USA.
Ideal for
- Buffet & carving stations
- Pass-through windows
- Expo lines & quick-serve counters
- Catering & banquet operations
Technical specifications
| Model | UGA-54D (Dual Ceramic, Standard Watt) |
|---|---|
| Overall width | 54" / 1372 mm |
| Overall height | 2.5" / 64 mm |
| Overall depth | 7.25" / 184 mm with remote controls 10.25" / 260 mm with attached control box |
| Heat source | Two pre-focused ceramic heating elements |
| Spacer bar | 3" (included) |
| Electrical (2 circuits) |
208 V: 2 × 1470 W (7.1 A each) 220 V: 2 × 1890 W (8.6 A each) 240 V: 2 × 1500 W (6.3 A each) |
| Total wattage | Up to 3000 W |
| Ship weight | ≈ 42 lb / 19 kg |
| Certifications | NSF, UL (US & Canada) |
| Warranty | 1-year parts & labor • 1-year no-burnout on ceramic elements |
What’s in the box
- Ultra-Glo® UGA-54D foodwarmer
- 3" spacer bar
- Adjustable angle mounting brackets
- 3' (914 mm) conduit whip
- Attached or remote control enclosure (select when ordering)
- Installation & operating manual
Need designer colors, shatter-resistant LED bulbs or extended power leads? These options must be specified at the time of purchase—contact us for details.
