Hatco UGA-36D6 Ultra-Glo® Heat Lamps
Description

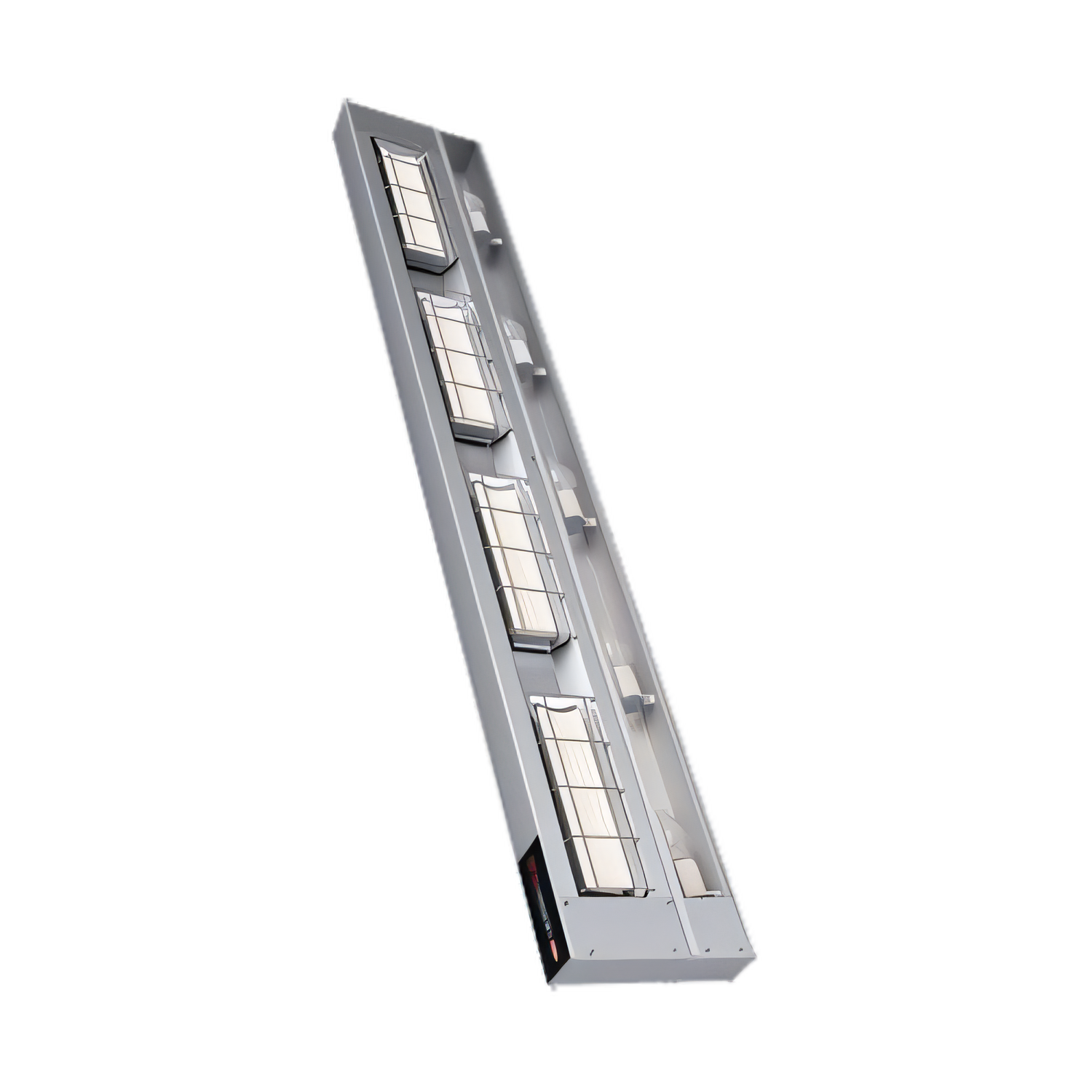

Hatco Ultra-Glo® UGA-36D Dual Ceramic Infrared Strip Heater – 36 in.
Standard-wattage | double ceramic tiles | aluminum housing | remote or attached controlsGive every plate the “just-finished” sizzle customers crave—without crowding your cookline. The 36 inch Ultra-Glo® UGA-36D blankets its entire holding zone in focused, high-intensity infrared heat so entrées, sides and garnishes stay hot, fresh and ready for service.
Why you’ll love it

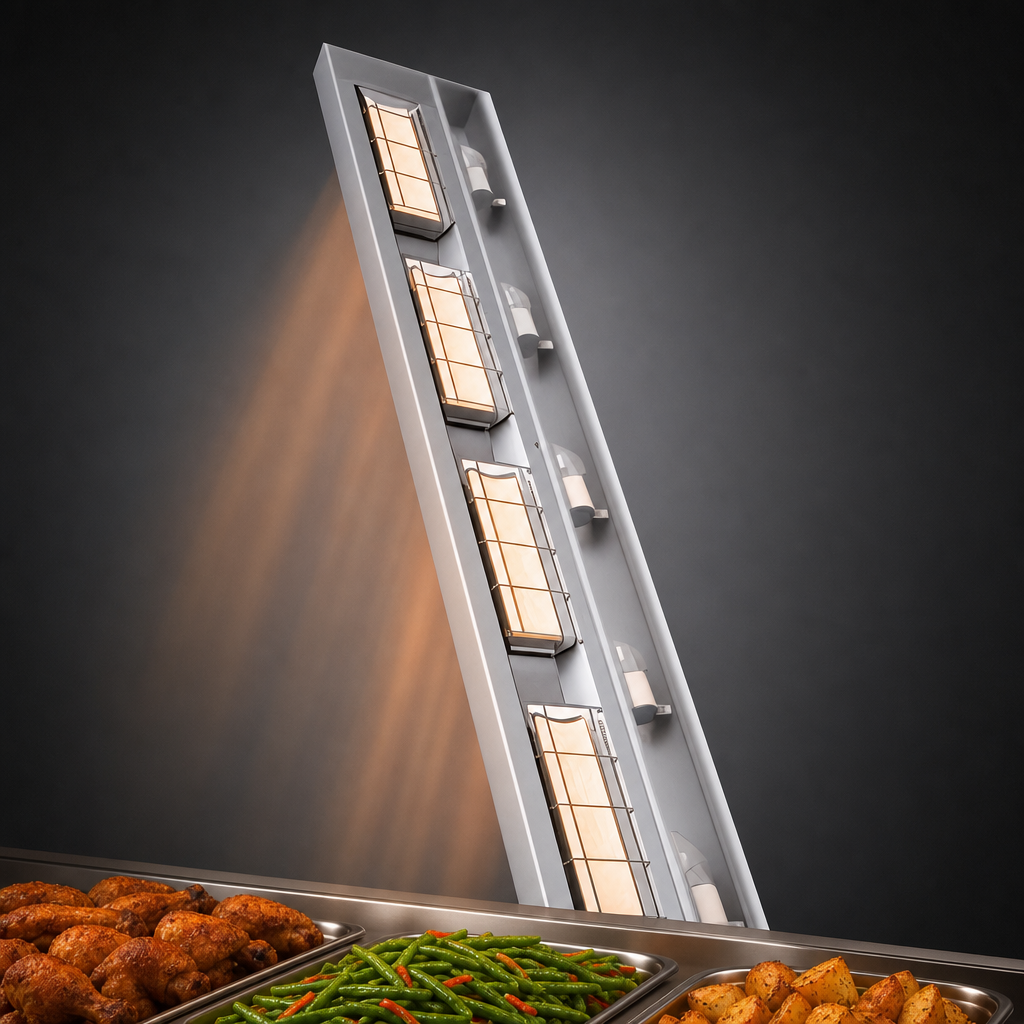

- Dual ceramic emitters & pre-focused reflectors direct heat exactly where temperature loss is greatest—at the edges of food pans.
- Generous working clearance – included 6 in. (152 mm) spacers let you mount the heater up to 22 in. (559 mm) above the counter for easier plating.

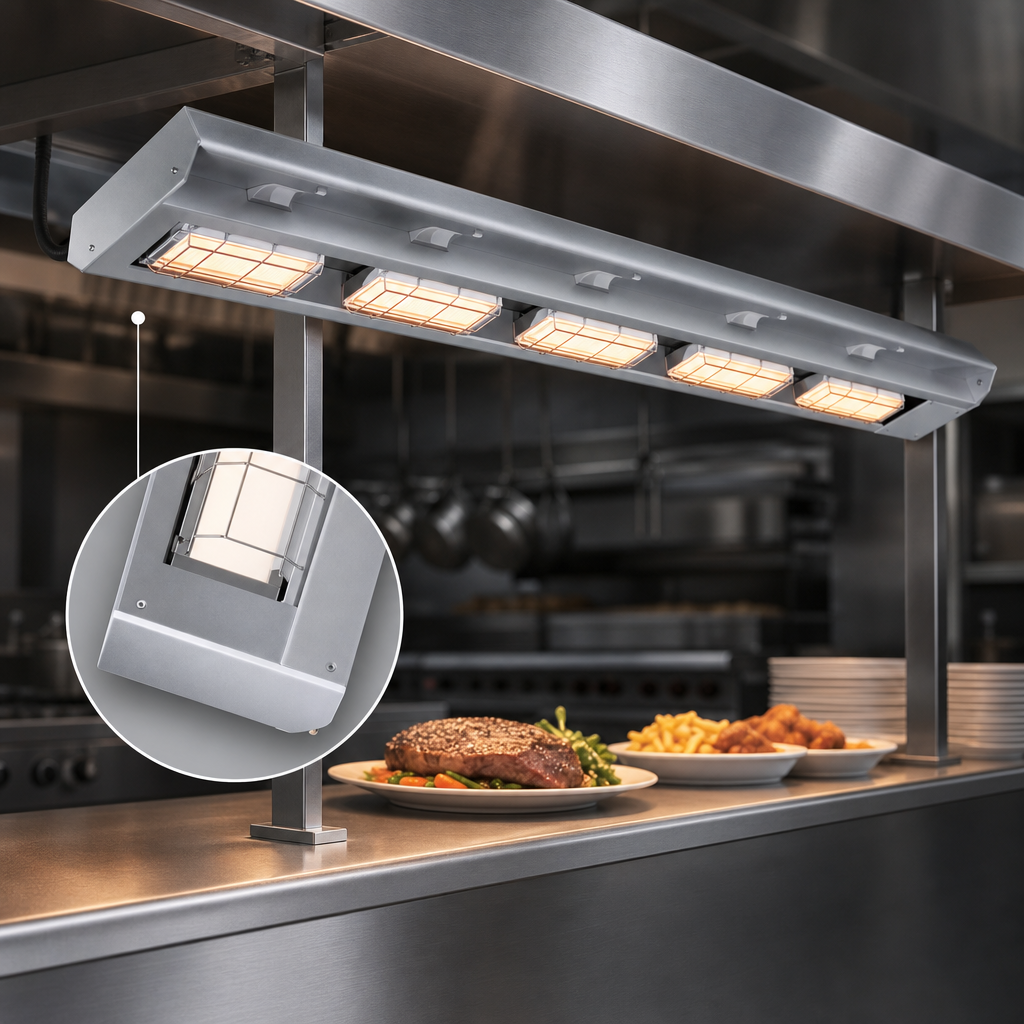

- Rock-solid construction – continuous, extruded aluminum housing will not sag, even over busy buffet or pass-through lines.
- Flexible controls – choose the factory-installed attached control box or mount the supplied remote box (toggle or infinite) outside the heat zone.
- Easy aiming – adjustable angle brackets (included) make fine-tuning heat direction simple.
- Certified & backed – NSF, UL, cULus listed and proudly Made in the USA; ceramic elements are warranted against burnout for one year.
Technical specifications
| Model | UGA-36D (dual ceramic, no lights) |
|---|---|
| Heat zone width | 36 in. / 914 mm |
| Overall dimensions * | 36 in. W × 2.5 in. H × 3.8 in. D (914 × 64 × 97 mm) |
| Mounting height | 18 in. (457 mm) with 3 in. spacer 22 in. (559 mm) with included 6 in. spacer |
| Housing finish | Clear anodized aluminum (designer colors or gloss finishes available at order) |
| Controls | Attached toggle box or remote control enclosure (toggle or infinite) with indicator light |
| Electrical connection | Hard-wired; 3 ft. (914 mm) conduit whip supplied |
| Certifications | NSF, UL, cULus |
| Country of origin | Made in USA |
| Electrical data – UGA-36D (standard watt) | |||
|---|---|---|---|
| Voltage | Wattage | Amperage | Phase |
| 120 V | 1,500 W | 12.5 A | Single |
| 208 V | 1,680 W | 8.1 A | |
| 220 V | 1,512 W | 6.9 A | |
| 240 V | 1,800 W | 7.5 A | |
Popular factory options
- Designer Color or Gloss finishes
- Non-adjustable tubular stands (18 – 26 in.)
- Extended power leads (up to 20 ft.)
- Shatter-resistant coated light bulbs (UGAL / UGAHL models)
* Dimensions shown with remote control enclosure. Attached control box adds 9.3 in. (236 mm) to depth.
Consult the full Installation & Operating Manual for additional mounting configurations.
