Hatco UGA-24D6 Ultra-Glo® Heat Lamps
Description

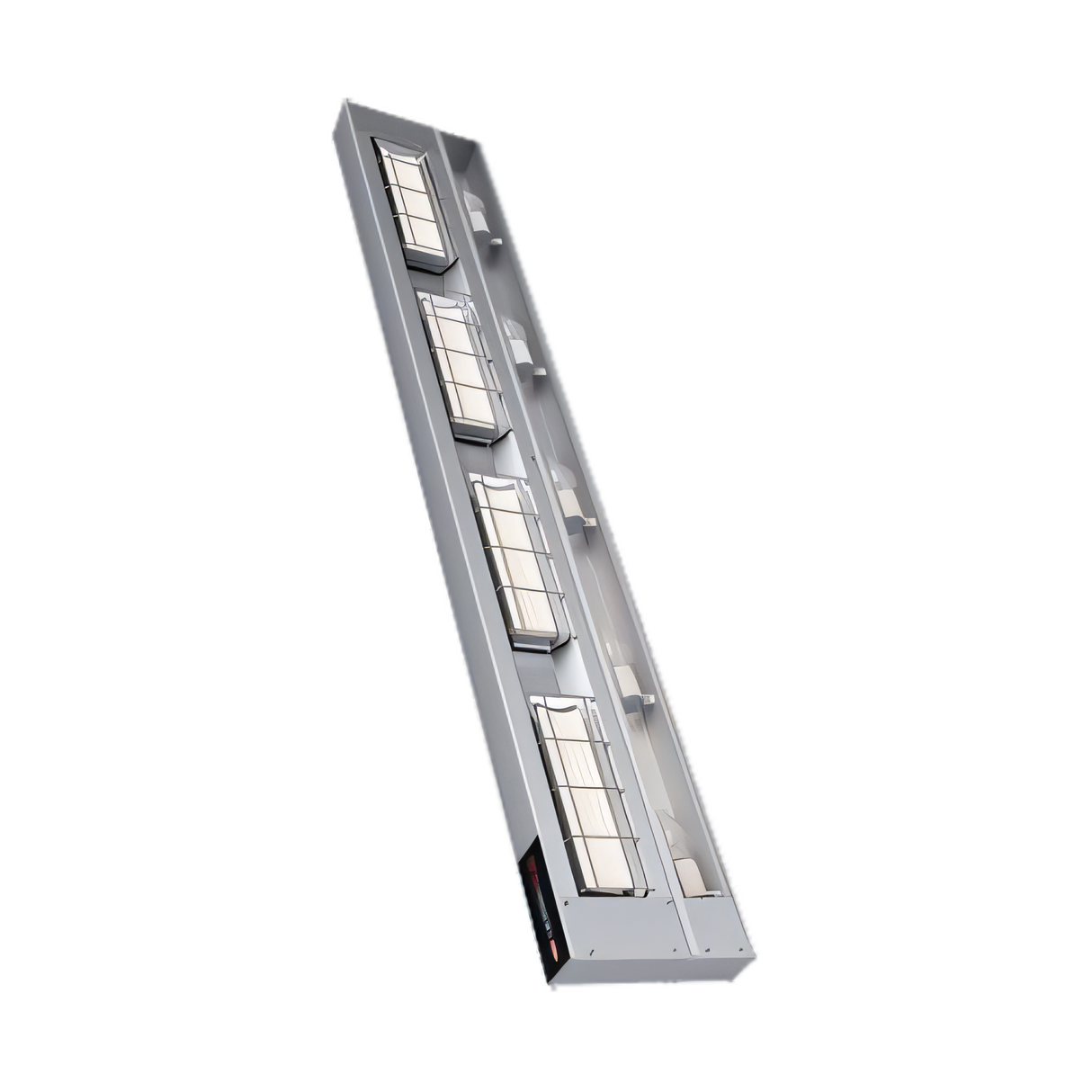

Hatco Ultra-Glo® 24" Dual Ceramic Infrared Strip Heater
Model UGA-24D | Standard Wattage | Aluminum HousingDeliver consistently hot, ready-to-serve dishes with the performance chefs trust. Hatco’s Ultra-Glo® dual ceramic elements blanket a full 24" (610 mm) holding zone, locking in flavor and appearance while giving you the working clearance you need.
Key Features

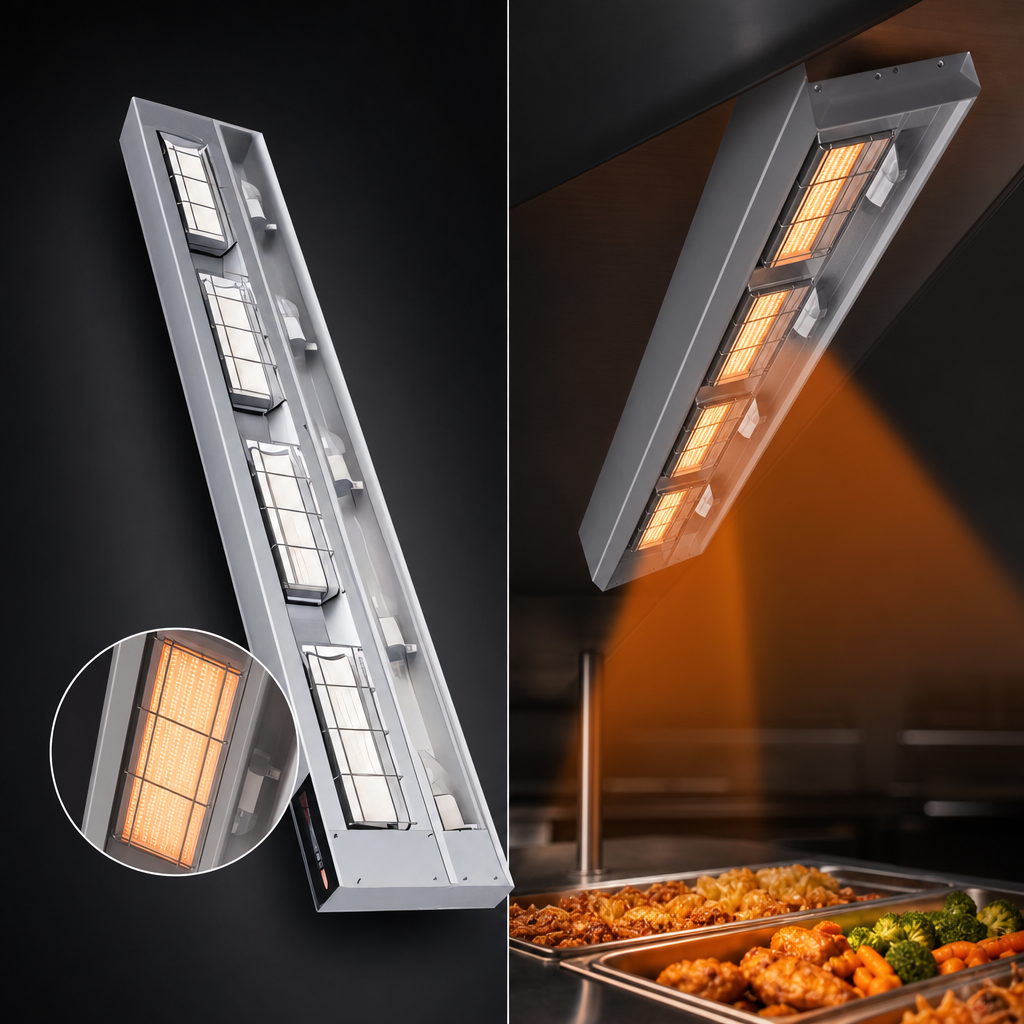

- Dual ceramic tiles focus infrared heat where edge loss is greatest for even plate coverage.
- Adjustable angle brackets + 6" (152 mm) spacer included—set the perfect height for pass-thru shelves or buffet lines.
- Remote or attached controls with toggle switch and indicator light for simple, precise output regulation.

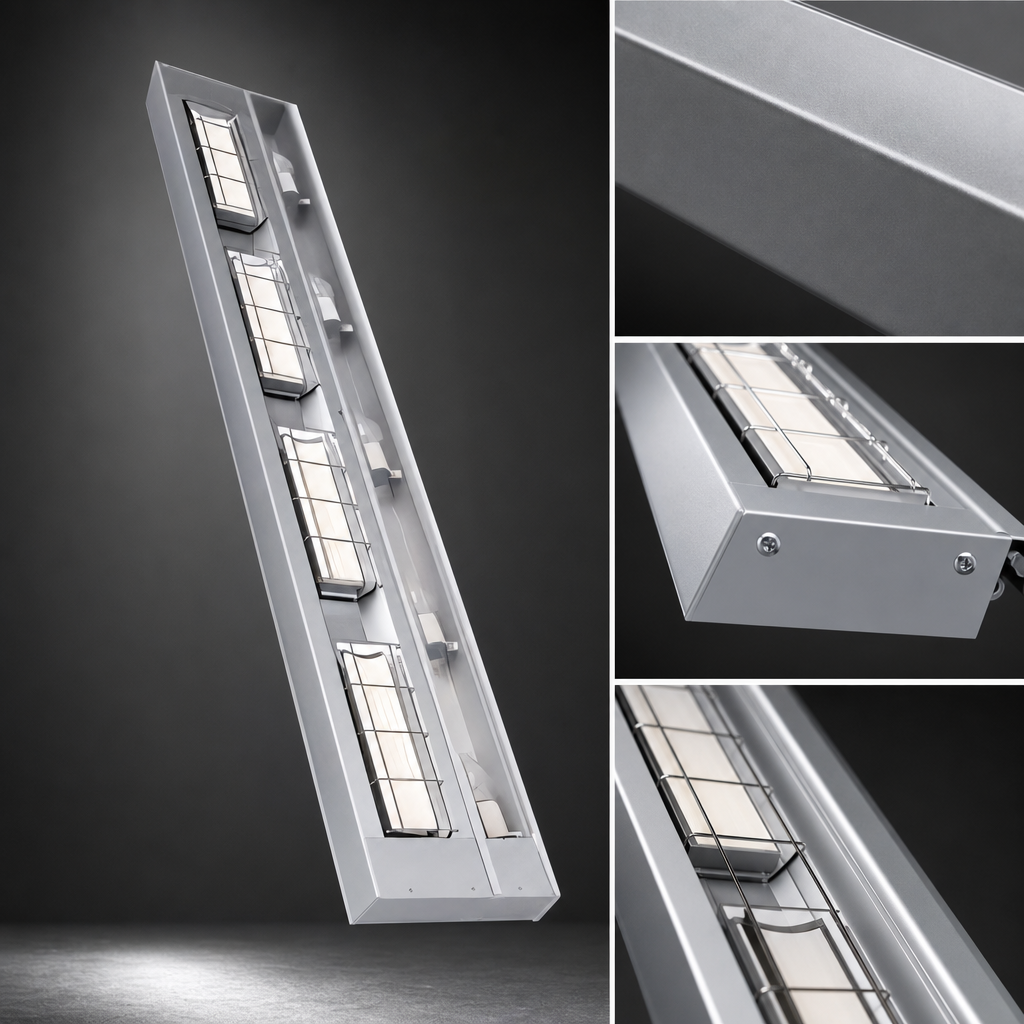

- Rigid, extruded aluminum housing eliminates sagging and is available in 12 designer colors or gloss finishes.
- Certified NSF, UL, cULus and proudly Made in the USA.
- 1-year parts & labor warranty — ceramic elements warranted against burnout for 1 year.
Specifications
| Heating width | 24" / 610 mm |
|---|---|
| Overall size* | 24" W × 18 1⁄2" D × 2 5⁄8" H (with attached control box) |
| Electrical Load (standard watt) |
120 V – 1300 W / 10.8 A 208 V – 1350 W / 6.5 A 220 V – 1260 W / 5.7 A 240 V – 1300 W / 5.4 A |
| Shipping weight | Approx. 20 lb / 9 kg |
| Mounting clearance | 18" (457 mm) from bottom of heater to counter when using included 6" spacer |
| Finish | Clear anodized aluminum (designer colors/gloss finishes available at purchase) |
| Included items | 6" spacer bar, adjustable angle brackets, 3' (914 mm) conduit whip |
| Certifications | NSF, UL, cULus |
*Depth is 15" (381 mm) when using a 3" spacer; 18" (457 mm) when using the included 6" spacer.
Control Options
- Attached control box – factory-mounted to the heater for quick plug-and-play installation.
-
Remote control enclosure – mount up to 3 ft (914 mm) away to keep front-of-house lines clean.
Remote box must be installed outside the heat zone.
Designer Finish Program
Match your concept with optional designer colors, gloss finishes or antimicrobial powder coat. Color selections must be made at the time of order and are non-returnable.
Perfect For
- Buffet & self-service lines
- Carving stations and banquets
- Quick-serve pass-through shelves
- Open-kitchen plating areas
Upgrade your holding line with the unbeatable reliability of Hatco’s Ultra-Glo® technology— hotter plates, happier guests, and a streamlined service experience.
