Hatco UGA-24D3 Ultra-Glo® Heat Lamps
Hatco UGA-24D3 Ultra-Glo® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco UGA-24D3 Ultra-Glo® Heat Lamps
Description
Hatco Ultra-Glo® 24" Dual Ceramic Infrared Strip Heater
Model UGA-24D · Standard Wattage · Aluminum HousingKeep every plate show-ready with the industry’s most trusted holding solution. The Hatco Ultra-Glo® 24" Infrared Strip Heater delivers a powerful, pre-focused blanket of infrared heat that locks in temperature and moisture while giving back-of-house teams a generous working clearance. Built, tested and certified in the USA, it’s the one-step upgrade that lifts food quality and service speed on any cookline, pass-through or buffet.
Why You’ll Love It

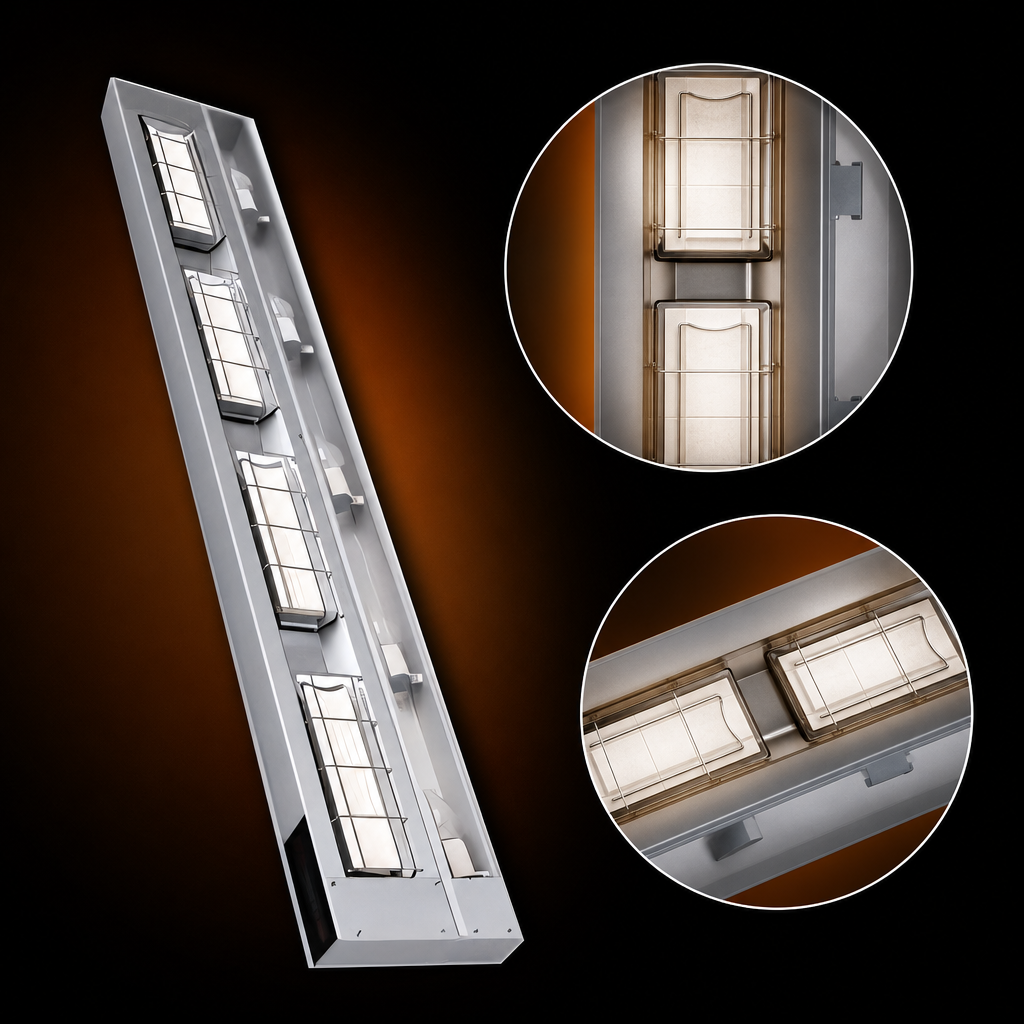

- Dual ceramic elements generate intense, even infrared heat across the entire 24" (610 mm) holding zone.
- Pre-focused pyramidal heat pattern pushes energy to the pan edges where heat loss is greatest.
- Increased working clearance – ceramic tiles and included 3" spacer yield a 15" (381 mm) minimum hood-to-counter gap for safer plating.

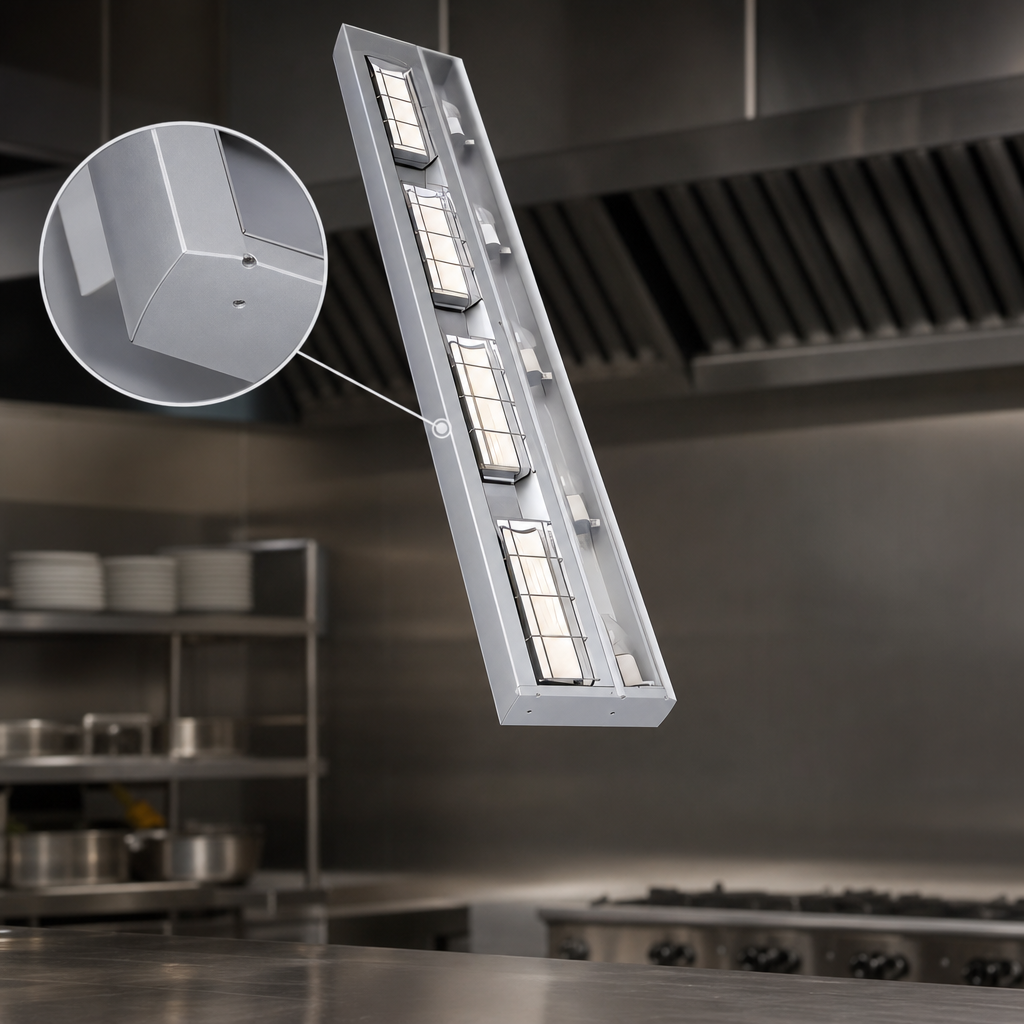

- Rugged extruded aluminum housing resists sagging and is anodized for easy wipe-clean maintenance.
- Mounts almost anywhere – adjustable angle brackets, 3' (914 mm) conduit whip and choice of attached or remote controls simplify installation.
- Certified & built to last – NSF, UL & cULus listed with a full 1-year ceramic element warranty.
- Made in the USA by Hatco Corporation – 24/7 parts & service assistance nationwide.
At-a-Glance Specs
| Overall width | 24" / 610 mm |
|---|---|
| Heat source | Dual ceramic infrared tiles |
| Wattage / Amps |
120 V – 1,300 W (10.8 A) 208 V – 1,350 W (6.5 A) 220 V – 1,260 W (5.7 A) 240 V – 1,300 W (5.4 A) |
| Controls (choose) |
• Attached toggle switch & infinite control • Remote control enclosure (wall mount) Indicator light standard with either style |
| Mounting hardware | Adjustable angle brackets & 3" (76 mm) spacer included |
| Lead length | 3' (914 mm) flexible conduit whip |
| Shipping weight | Approx. 20 lb / 10 kg (add 2-8 lb if a remote box is ordered) |
| Certifications | NSF Listed, UL Classified, cULus Listed |
| Warranty | 1-year parts & labor; ceramic elements warranted against burnout for 1 year |
Ideal Applications
- Pass-through windows and prep lines
- Self-serve buffets & cafeterias
- Quick-serve finishing stations
- Catering carving boards & banquets
What’s in the Box
- Ultra-Glo® 24" dual ceramic heater
- 3" mounting spacer & adjustable angle brackets
- 3' conduit whip with power leads
- Attached control box or remote control enclosure (select when ordering)
- Installation & operation manual
Factory Options (order with unit only)
- Designer color or gloss finish housings (Warm Red, Black, Gray Granite, White Granite, etc.)
- Chef LED adjustable bulbs (pass-through use only)
- Non-adjustable tubular stands (18" – 26" heights)
- Extended power leads up to 20' (6096 mm)
