Hatco  |  Ultra-Glo®  |  SKU: UGA-18D6

Hatco UGA-18D6 Ultra-Glo® Heat Lamps

$983.91
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Parts list Owner's manual Color chart
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

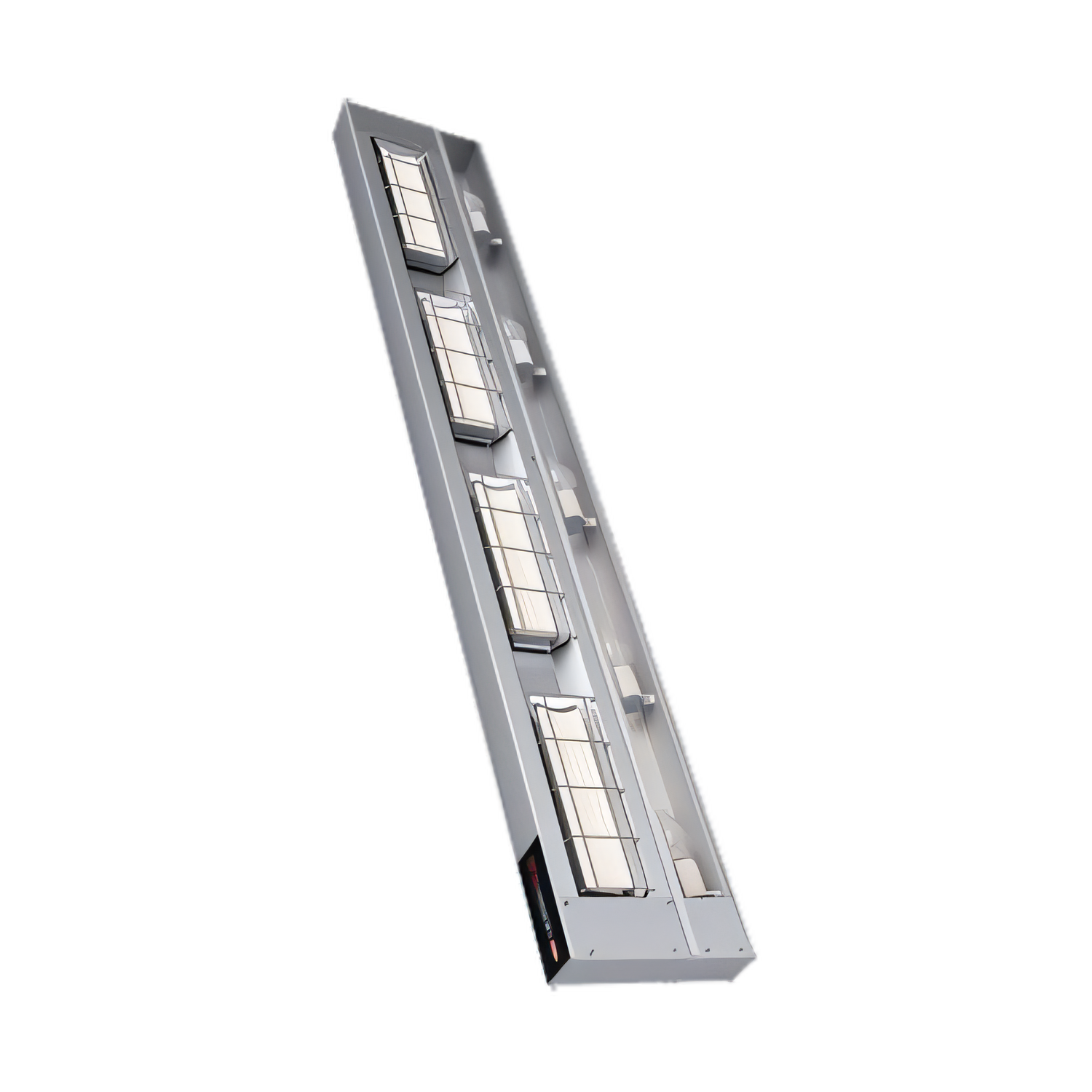

Hatco Ultra-Glo® Dual Ceramic Infrared Strip Heater – 18"

Model UGA-18D | Standard-watt | Double ceramic tiles

Hold entrées, sides and baked goods at peak serving temperature without sacrificing presentation space. The Ultra-Glo® UGA-18D delivers intense, even infrared heat from a compact 18-inch platform—perfect for narrow pass-throughs, buffet runs or front-of-house displays.

Why you’ll love it

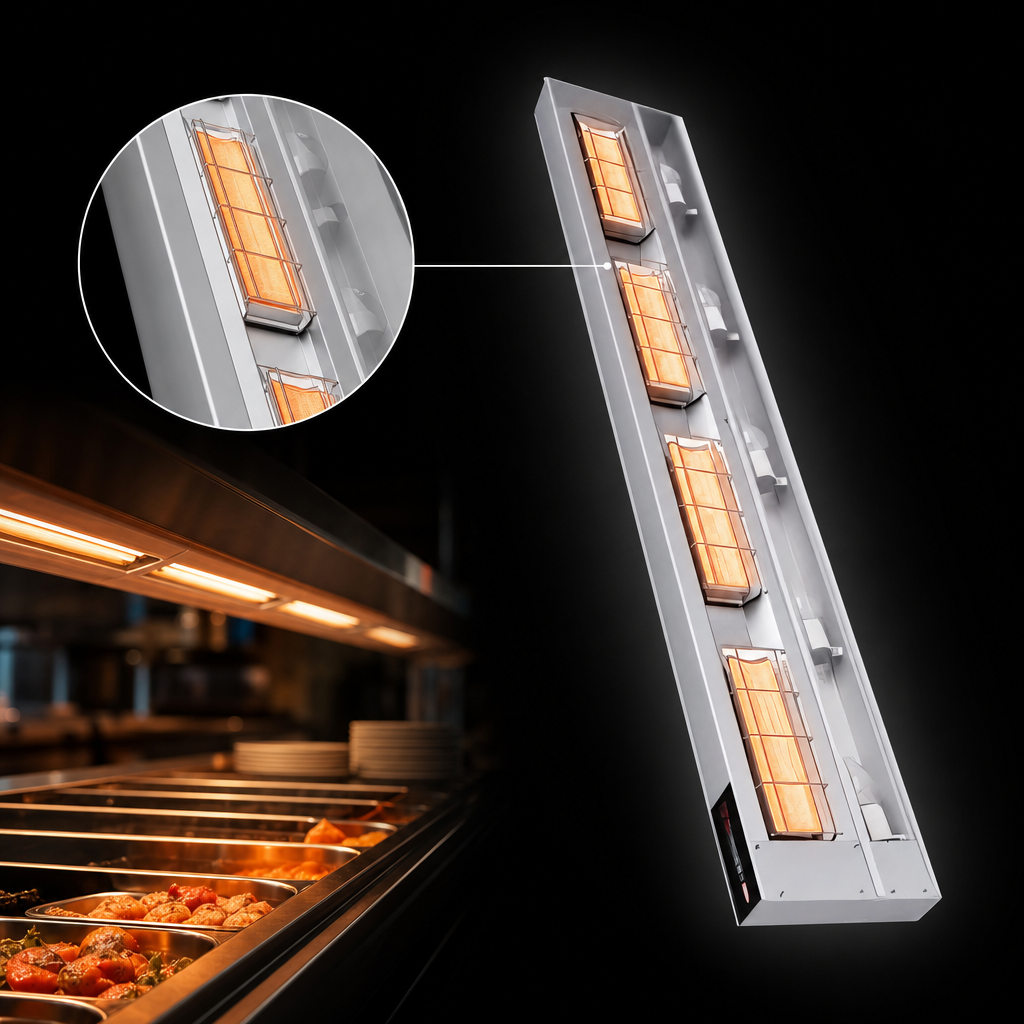

  • Dual ceramic elements blanket the entire holding zone, eliminating cold corners.
  • 6" (152 mm) factory spacer raises the unit for extra working clearance over plated food.
  • Pre-focused pyramidal heat pattern targets plate edges where heat loss is greatest.

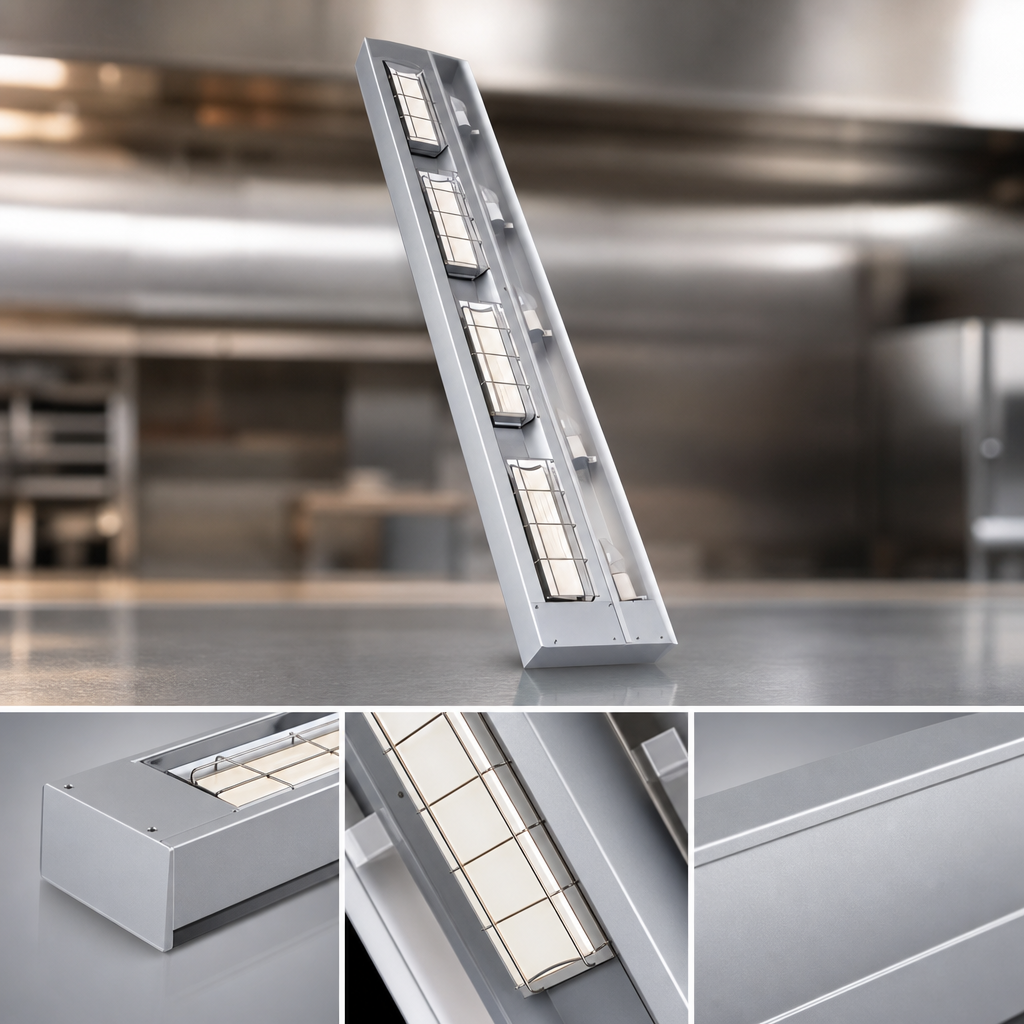

  • Continuous extruded aluminum housing prevents sagging—even over time.
  • Mount almost anywhere: adjustable angle brackets + choice of attached or remote control box included.
  • NSF, UL & cULus listed and proudly Made in the USA.

Ideal for

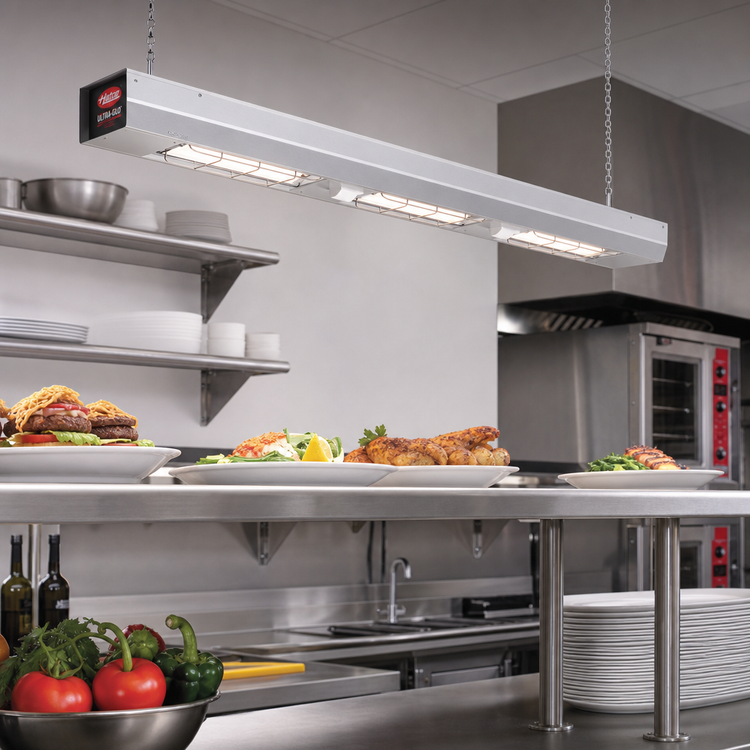

  • Pass-through windows
  • Made-to-order cook lines
  • Self-serve buffet or carving stations
  • Display kitchen or café counters

Technical snapshot

Overall width 18" (457 mm)
Heat source Double ceramic tiles (standard wattage)
Electrical 120 V / 1 Ø – 1000 W • 8.3 A
208 V / 1 Ø – 980 W • 4.7 A
240 V / 1 Ø – 1000 W • 4.2 A
220 V / 1 Ø – 1092 W • 5.0 A
Mounting clearance 19" (483 mm) with 3" spacer
22" (559 mm) with supplied 6" spacer
Controls Toggle on/off & indicator light – factory mounted or remote-mount enclosure (3' whip)
Shipping weight 17 lb (8 kg)
Certifications NSF • UL • cULus

Included with your purchase

  • Ultra-Glo® UGA-18D heater with double ceramic elements
  • Adjustable angle mounting brackets
  • 6" (152 mm) stainless steel spacer kit
  • 3' (914 mm) conduit whip with leads
  • Attached control box and remote control enclosure – choose during installation
  • Installation & operating manual
Mounting safety: For fire protection, do not install above grills, fryers or other open-flame equipment. Remote control enclosures must be mounted outside the heat zone. Refer to the supplied manual for complete clearance and wiring requirements.

All ceramic elements are warranted one (1) year against burnout. 24/7 parts & service assistance is available in the U.S. and Canada.

Features & Specs

Manufacturer

Hatco

Brand_name

Ultra-Glo®

Certifications

NSF, cULus, UL, Made in USA

Height

3.8in

Width

18.0in

Depth

22.0in

Shipping Weight

17.0lbs

Finish

aluminum

Length

11" - 18"

Type

unlighted

Size

double

Type of element

ceramic heating

Specifications

Ultra-Glo® Infrared Strip Heater, 18" W, standard wattage, double ceramic tile with aluminum housing, 6" spacer, with remote or attached control box, adjustable angle brackets, NSF, cULus, UL, Made in USA
