Hatco UGA-18D3 Ultra-Glo® Heat Lamps
Description

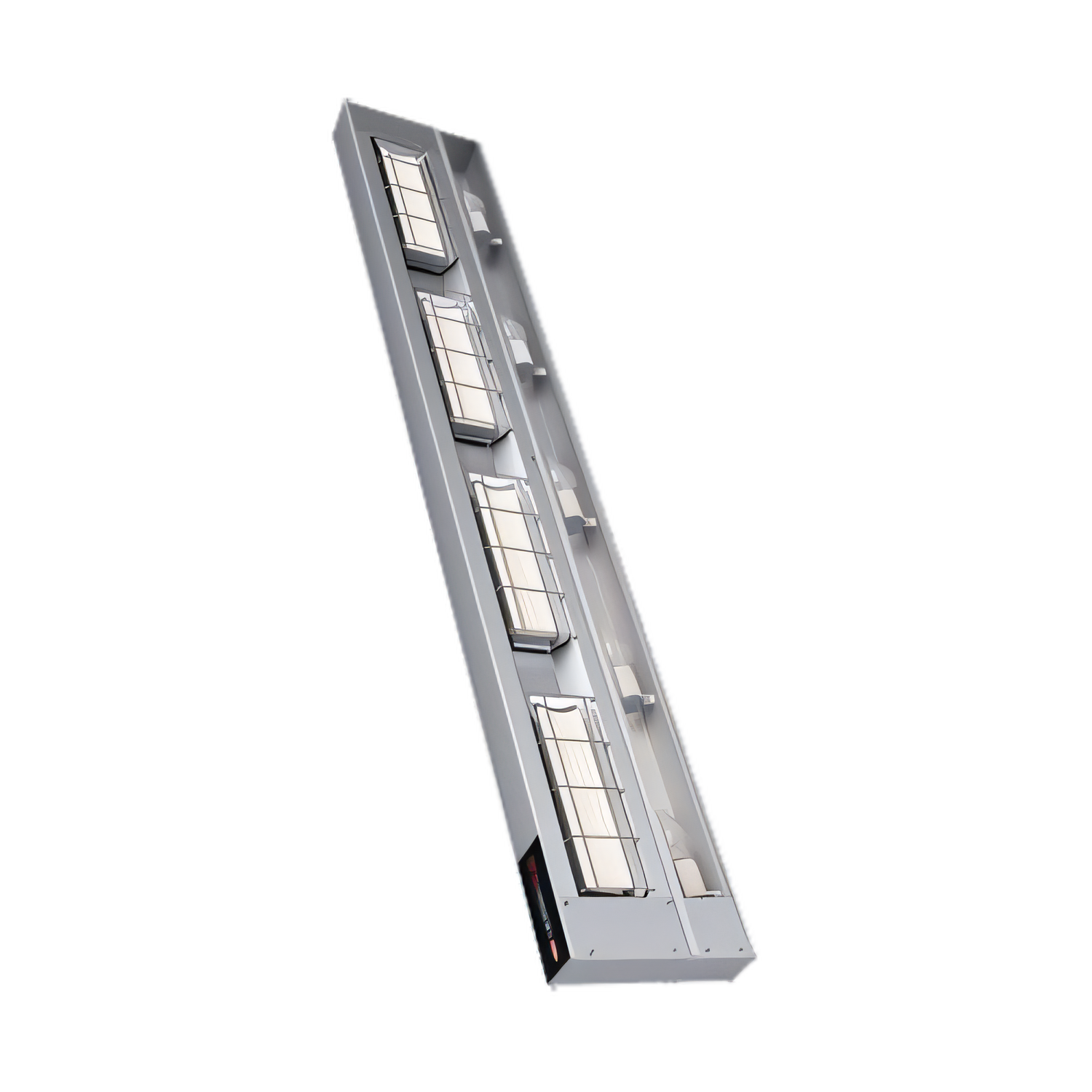

Hatco Ultra-Glo® UGA-18D Dual Ceramic Infrared Strip Heater
18" wide • standard wattage • 3" spacer • remote or attached controlsGive every plate that just-made look. Hatco’s Ultra-Glo® UGA-18D is a compact 18-inch dual-element heater that projects an intense, pre-focused wave of ceramic infrared heat across the entire holding zone—right out to the edges where heat loss is greatest. Perfect for quick-service pass-thrus, buffets and open-kitchen displays that demand consistent temperatures and a tidy footprint.
Key benefits

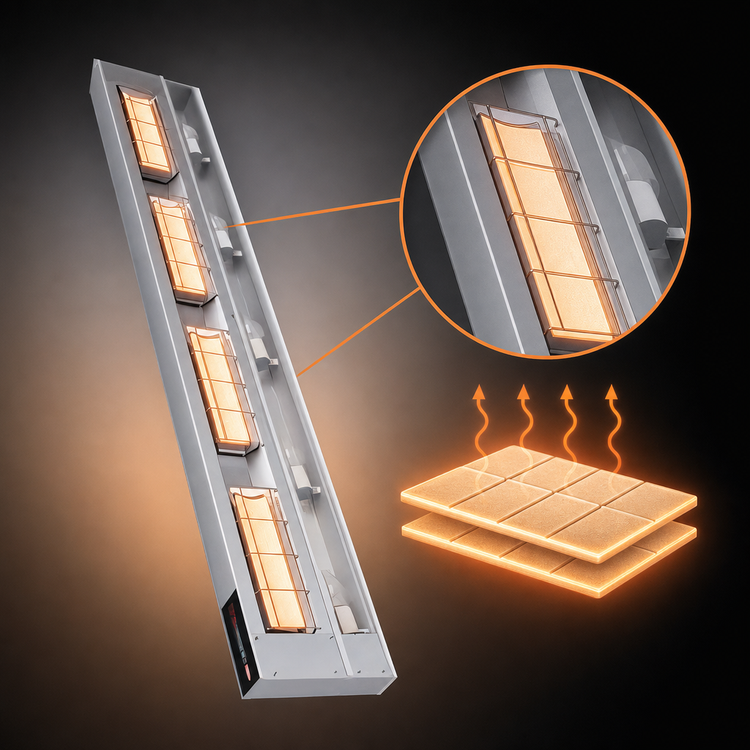

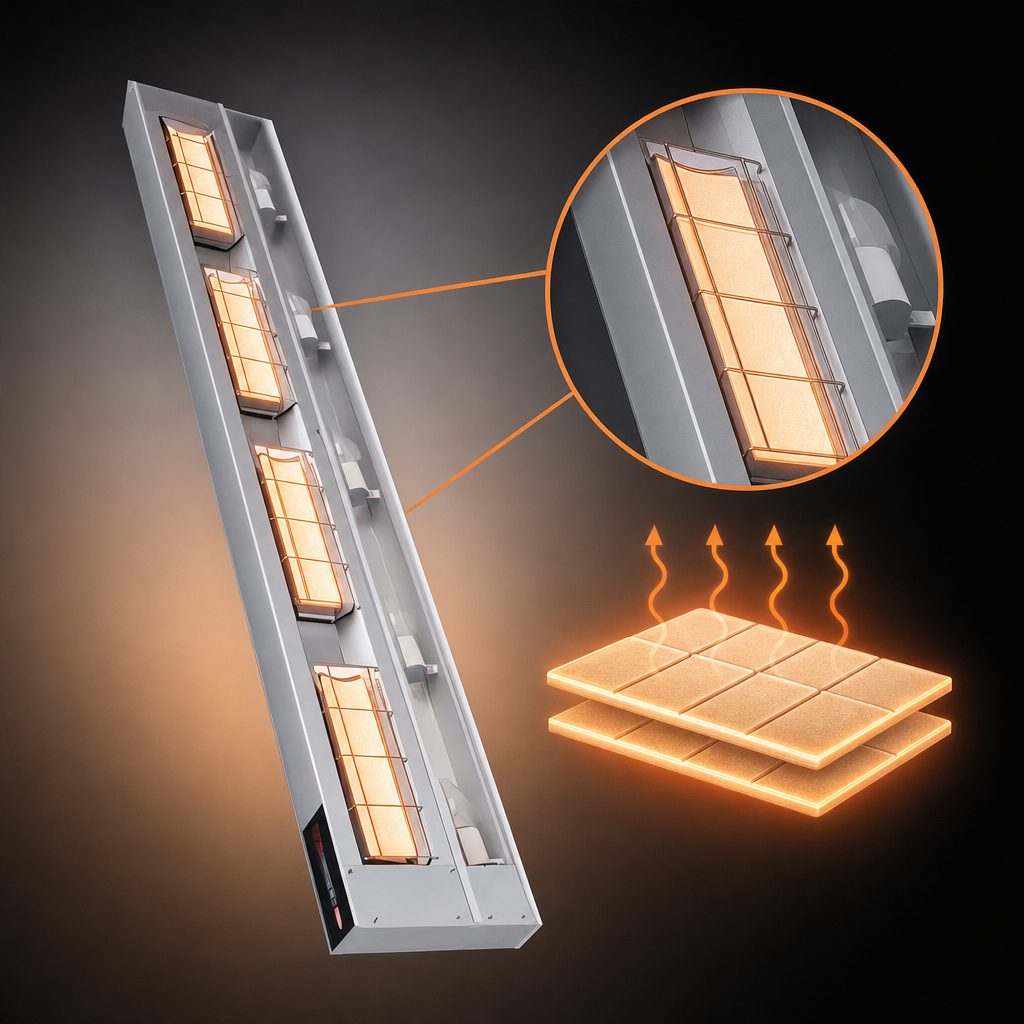

- Dual rows of durable ceramic elements blanket food pans for superior holding power.
- Increased working clearance—ceramic heat source sits higher than quartz models for easier plating and garnishing.
- One-piece extruded aluminum housing prevents sagging and is light enough for quick installation.
- Ships with an adjustable-angle mounting kit, 3' (914 mm) conduit whip and a 3" (76 mm) spacer bar.
- Choose attached controls or a remote toggle/infinite control box (mounts up to 7 ft / 213 cm away).
- All ceramic elements carry a 1-year burnout warranty.
- NSF, UL & cULus listed and proudly Made in the USA.
Core specifications
| Model | UGA-18D (dual ceramic, no lights) |
|---|---|
| Overall width | 18" / 457 mm |
| Housing depth (remote controls) | 10 7⁄8" / 276 mm |
| Housing height (remote controls) | 2 5⁄16" / 59 mm |
| Housing depth (attached controls) | 18 7⁄8" / 480 mm |
| Housing height (attached controls) | 4 3⁄8" / 112 mm |
| Standard wattage | 1,000 W @ 120 V • 980 W @ 208 V • 1,000 W @ 240 V • 1,092 W @ 220 V |
| Amps | 8.3 A (120 V) • 4.7 A (208 V) • 4.2 A (240 V) • 5.0 A (220 V) |
| Shipping weight | 17 lb / 8 kg (add 2-8 lb for optional remote box) |
| Clearances | Mount at least 1" (25 mm) above shelf & 3" (76 mm) from back wall using supplied spacer. |
| Construction | Clear anodized aluminum (designer colors or gloss finishes available at time of order) |
| Warranty | 1 year parts & labor • 1 year element burnout coverage |
Ideal applications

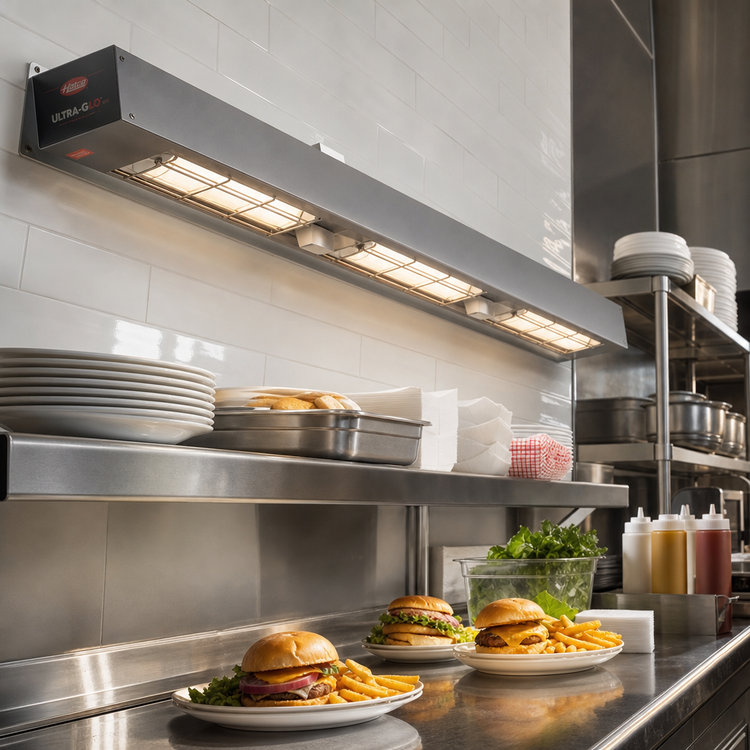

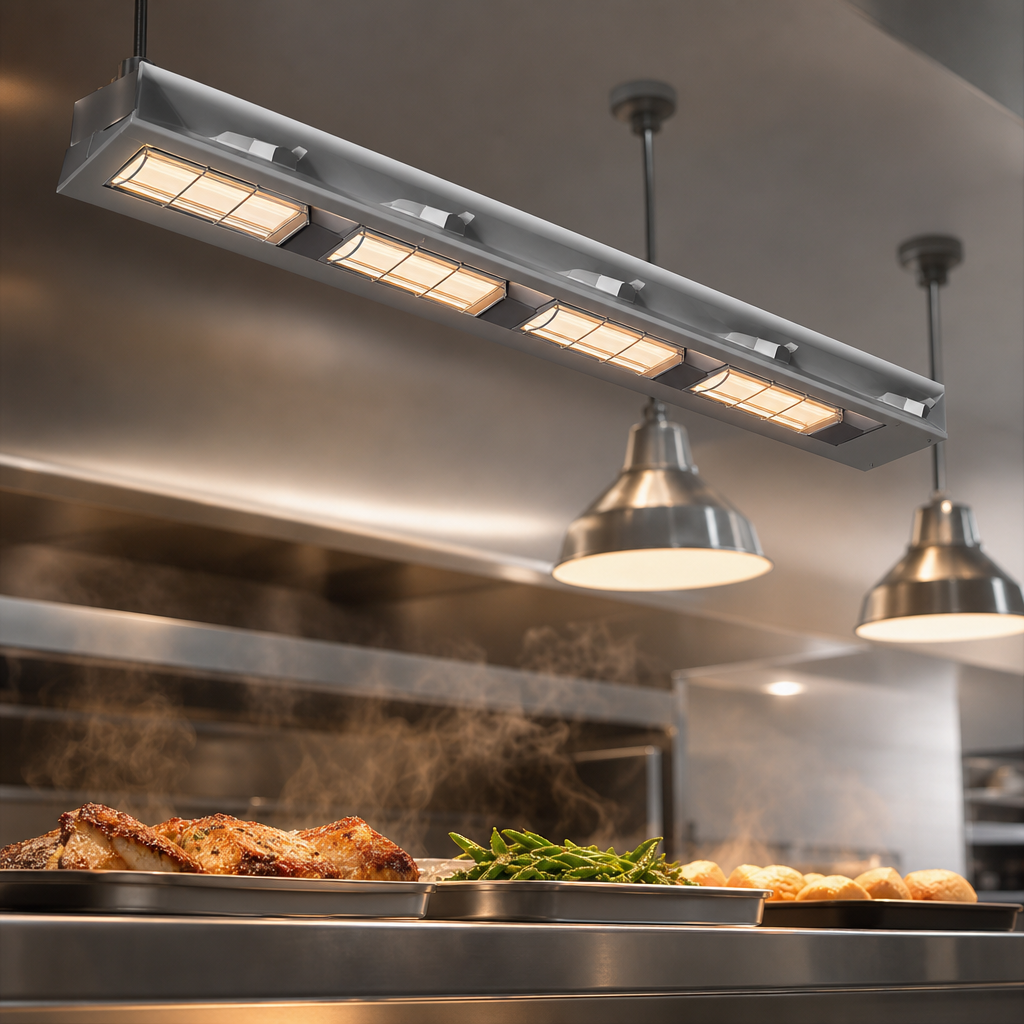

- Pass-thru windows and expo counters
- Carving stations & buffet lines
- C-stores & grab-and-go displays
- Catering drop-ins or mobile hot carts
Need a different size, extra LED lighting or a designer color? Ask our team about the full Ultra-Glo® range from 18" to 72" as well as custom finishes that match your brand palette.
