Hatco S-9 Imperial High Temp & Low Temp Dishwashers
Description

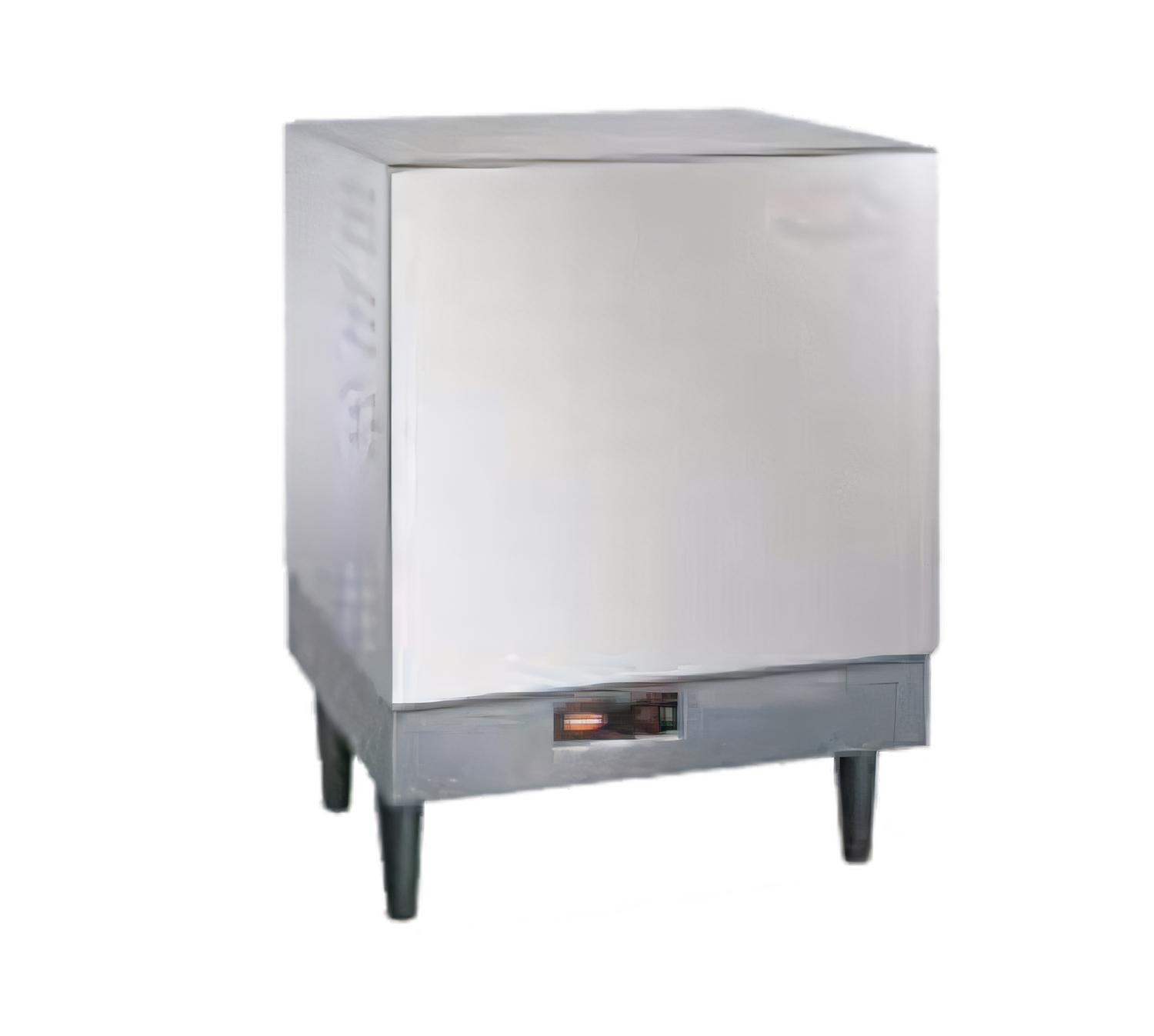

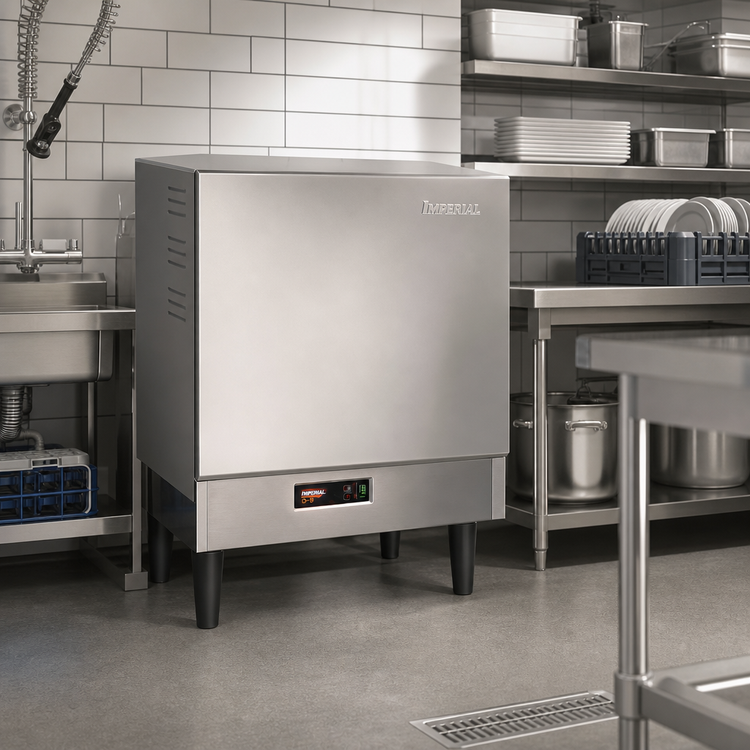

Hatco Imperial Electric Booster Heater – 9 kW
Model S-9 | 16 gal (60 L) storage | Made in USADeliver a dependable 180 °F (82 °C) sanitizing rinse to every rack with the Hatco Imperial S-9 Booster Heater. Engineered for medium-volume dishmachines, this 9 kW powerhouse supplies up to 90 GPH of 180 °F water while its Castone®-lined tank and low-water cut-off safeguard your investment shift after shift.
Why you’ll love it

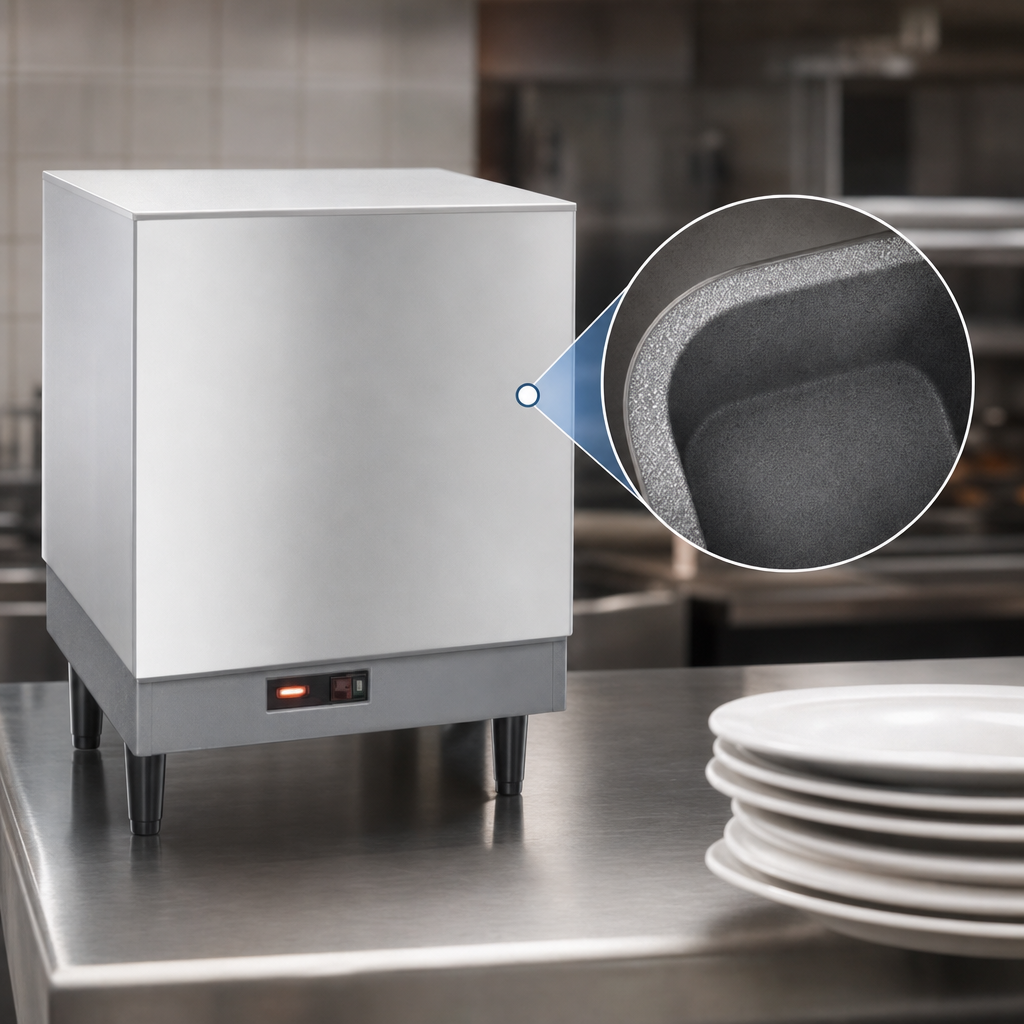

- 16 gal internally Castone-lined tank with 10-yr limited warranty – non-toxic & corrosion-resistant.

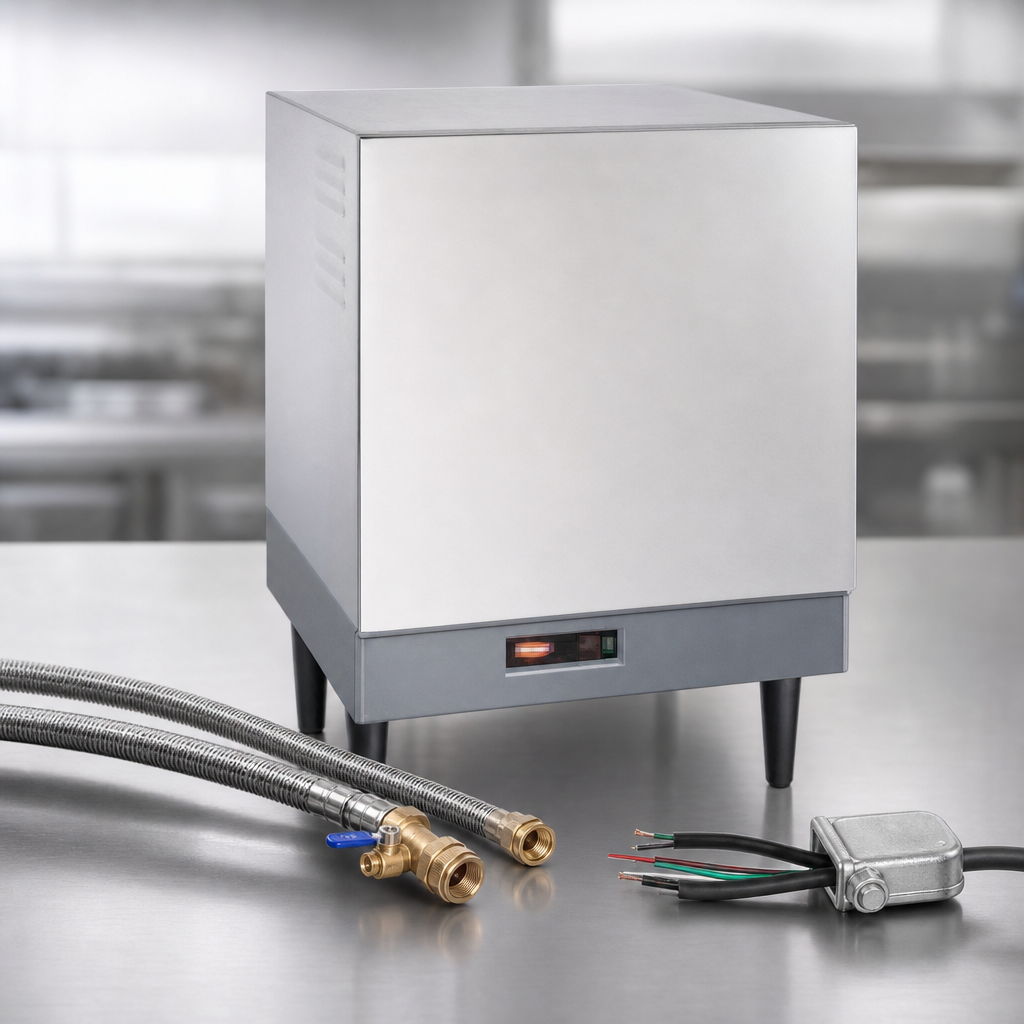

- Factory pre-plumbed & pre-wired for quick installation; all service points are front-accessible.
- Low-water cut-off, high-temp limit & pilot light prevent element burnout and ensure operator safety.
- Integrated heat trap & fiberglass insulation minimize standby heat loss.
- Rugged stainless-steel front panel with powder-coated silver-gray hammertone body.
- Standard 6" (152 mm) non-adjustable legs keep the unit stable and off the floor.
- NSF & cULus listed; proudly Made in the USA.
Performance at a glance
| Storage capacity | 16 gal / 60 L |
|---|---|
| Recovery @ 40 °F rise | 90 GPH / 341 LPH |
| Recovery @ 70 °F rise | 52 GPH / 197 LPH |
| Factory thermostat setting | 180 °F / 82 °C (adjustable to 140 °F / 60 °C for low-temp machines) |
Electrical data (9 kW Model S-9)
| Voltage | Phase | Amps | Recommended Breaker/Fuse |
|---|---|---|---|
| 208 V | 3-ph* | 38 A | 50 A |
| 208 V | 1-ph* | 43 A | 60 A |
| 240 V | 3-ph* | 33 A | 50 A |
| 240 V | 1-ph* | 38 A | 50 A |
| 480 V | 3-ph | 16.3 A | 30 A |
| 600 V | 3-ph | 13 A | 20 A |
*208 & 240 V units ship 3-phase open-delta and can be field-converted to single-phase.
What’s in the box
- Temperature/pressure relief valve
- Pressure-reducing valve with bypass
- Two temperature/pressure gauges
- On/Off toggle switch with power & error indicator lights
- 6 ft (1.8 m) capillary immersion thermostat (calibrated)
Dimensions & weight
| Width | 23.53 in / 598 mm |
|---|---|
| Depth | 22.75 in / 578 mm |
| Height (with legs) | 31.03 in / 788 mm |
| Shipping weight | 200 lb / 91 kg |
Installation & water quality
- Designed for 3⁄4" NPT inlet & outlet connections.
- Incoming water hardness must not exceed 3 GPG (0.75 GPG L). Harder water requires treatment and softening.
- Unit is rated for 150 psi (1034 kPa) maximum working pressure.
- Properly sized circuit breaker or fused disconnect must be supplied by a qualified electrician.
Note: Damage caused by lime or sediment build-up is not covered under warranty.
Rock-solid warranty
• Tank: 10-year limited warranty
• Parts & labor: 24/7 service assistance (US & Canada)
