Hatco S-7 Imperial High Temp & Low Temp Dishwashers
Description

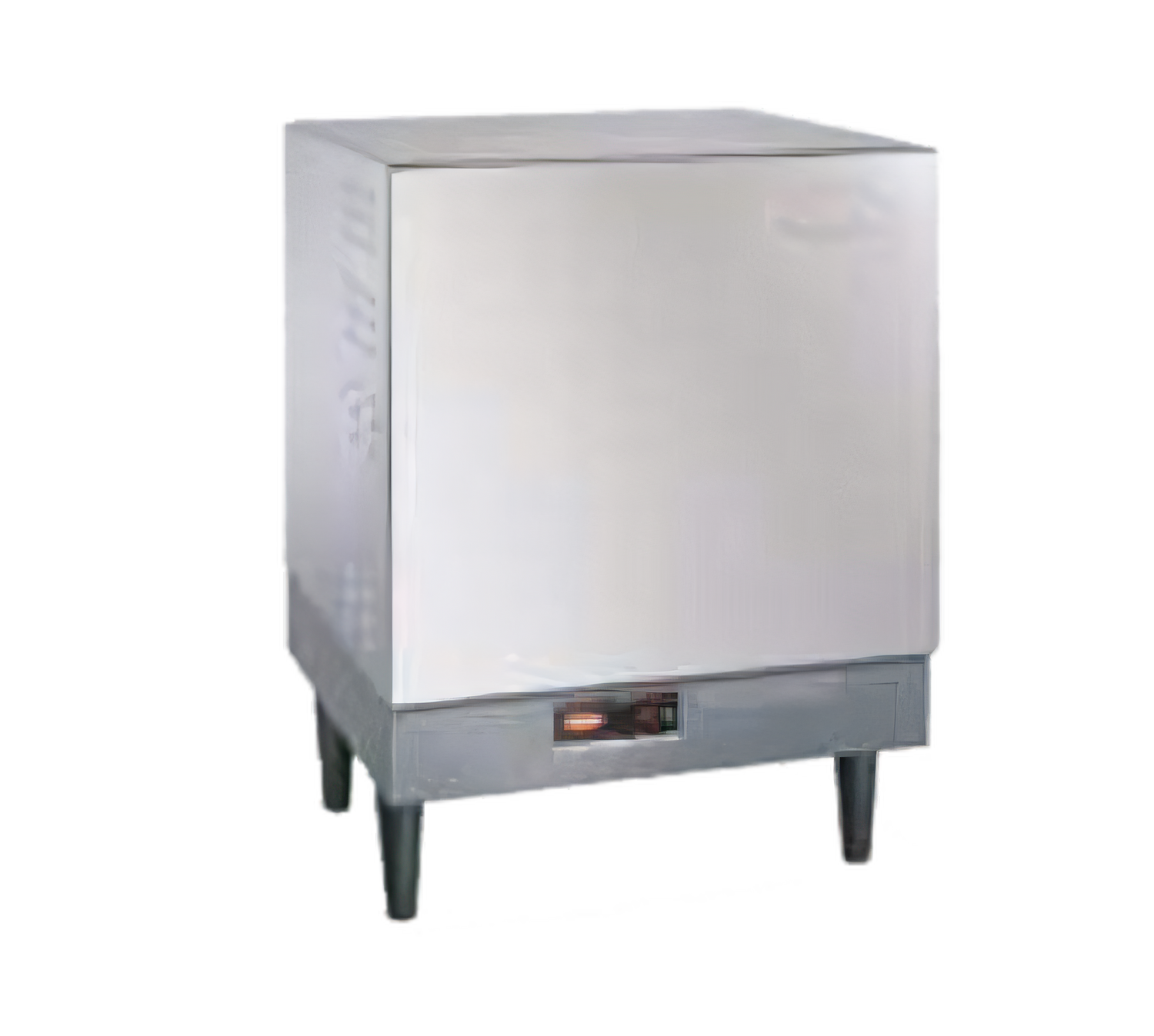

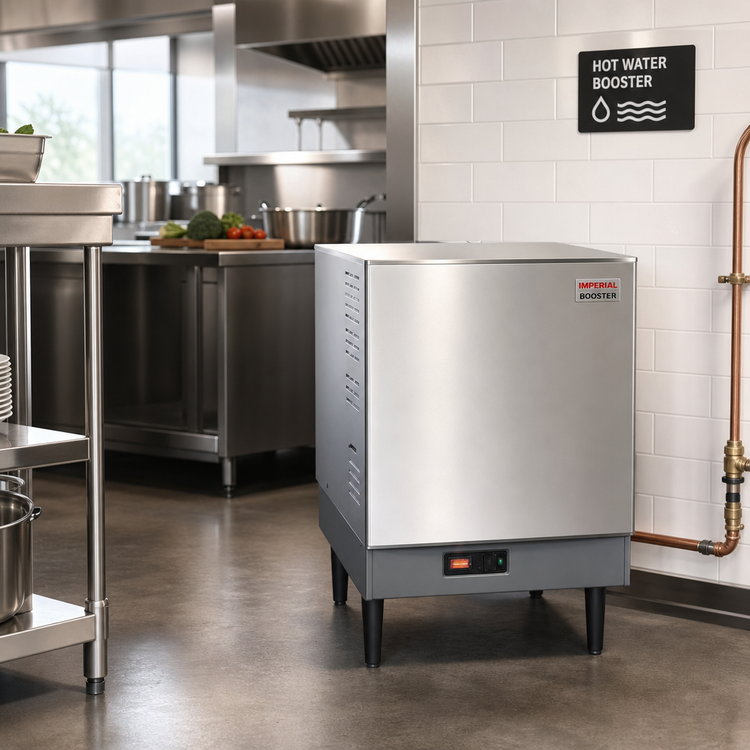

Hatco Imperial S-7 Electric Booster Water Heater
7 kW • 16 gal Castone®-Lined Tank • Made in USADeliver a constant supply of 180 °F (82 °C) sanitizing rinse water to your dishwasher — even during peak periods. The Hatco Imperial S-7 Booster Water Heater pairs rock-solid construction with simple front-access service, so you get dependable performance shift after shift and years of worry-free ownership.
Built for busy dishrooms
- 16 gal (60 L) storage provides up to 70 GPH at a 40 °F rise (40 GPH at 70 °F rise) — plenty for most door-type and conveyor machines.
- Castone® lined tank is non-toxic, non-corrosive and backed by a 10-year limited warranty.
- Low-water cut-off and high-temp limit protect the elements from burnout.
- Factory-installed temperature / pressure relief valve, pressure-reducing valve with bypass, and two combination temp/pressure gauges.
- Fiberglass insulation and an internal heat trap minimize stand-by heat loss.
- Stainless-steel front panel with durable silver-gray hammertone powder-coat sides — easy to clean and looks sharp in view-through kitchens.
- Arrives pre-plumbed & pre-wired; simply make the ¾" NPT water connections and hard-wire to the disconnect.
- Thermostat ships set for 180 °F but can be lowered to 140 °F for low-temp dishmachines.
- NSF & cULus listed for trusted code compliance.
Specifications

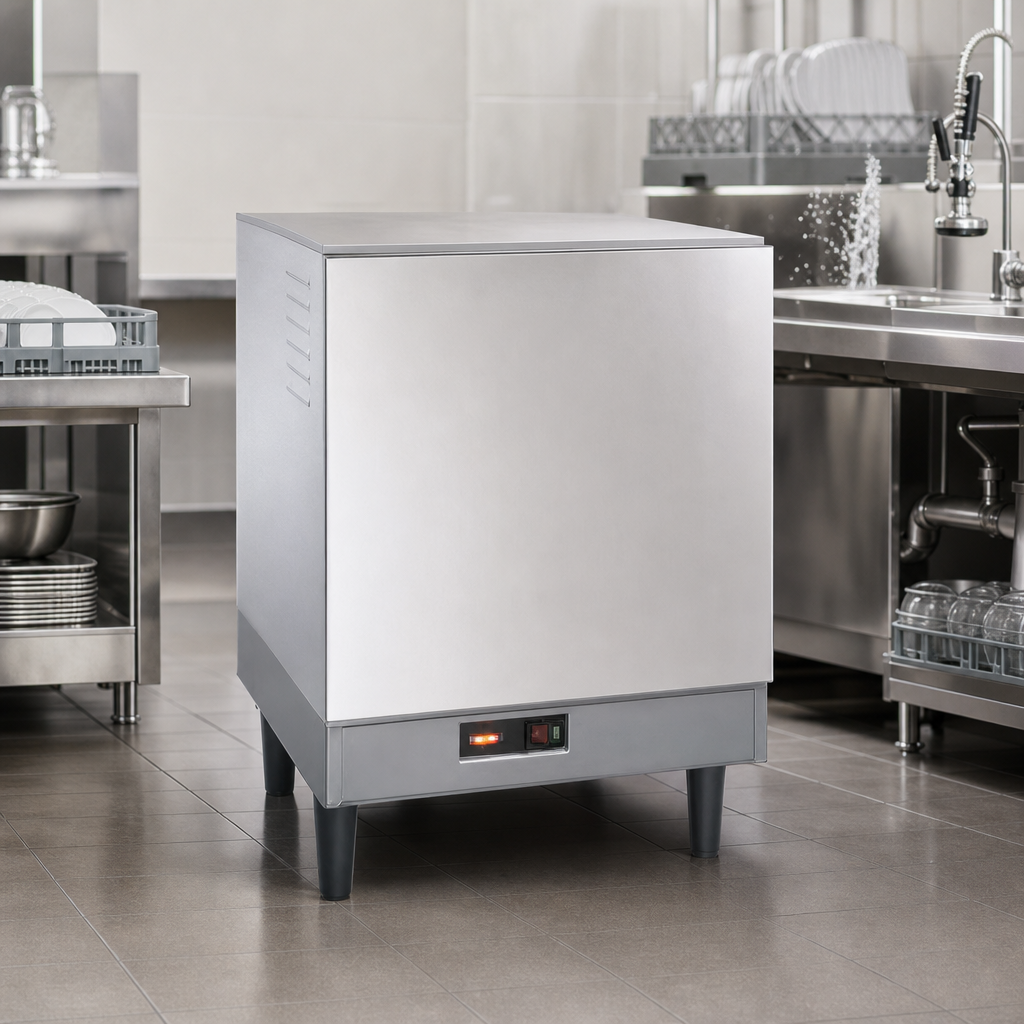

| Storage capacity | 16 gal / 60 L |
|---|---|

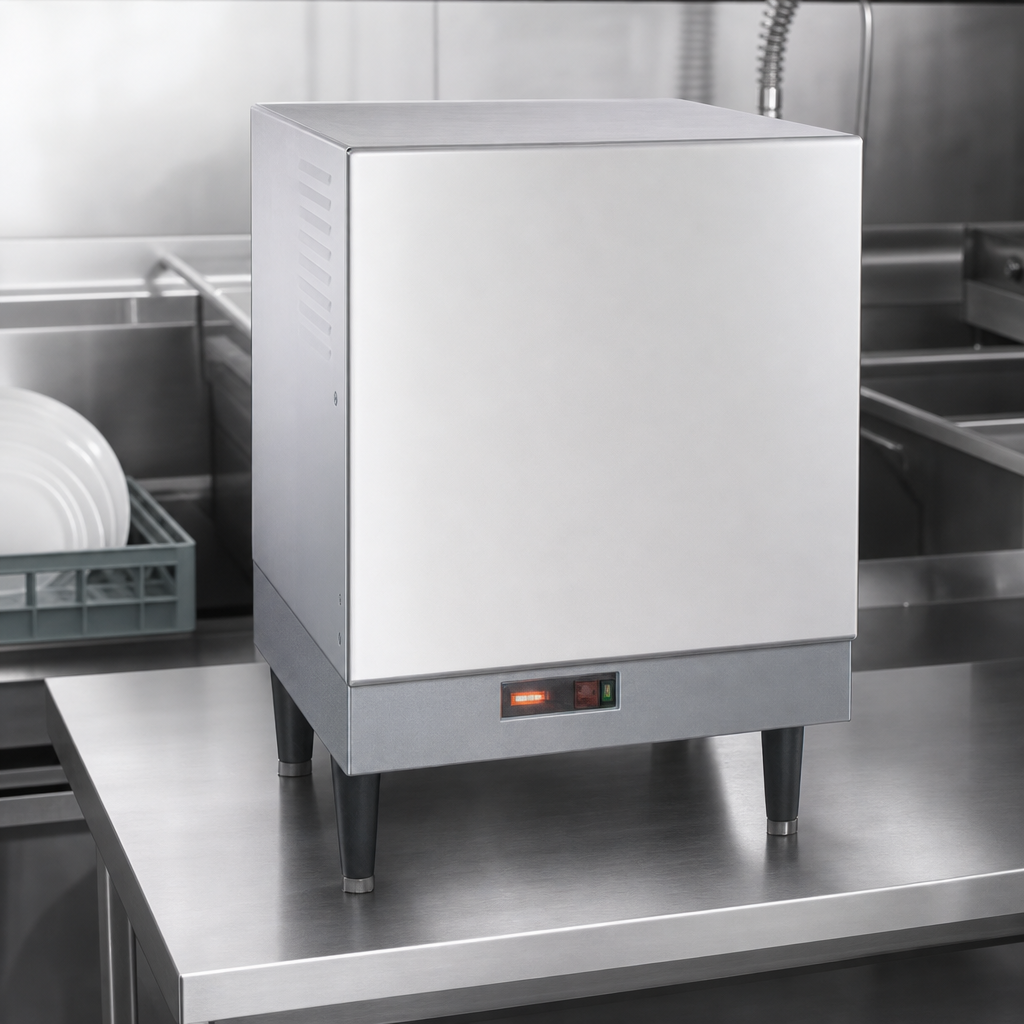

| Power rating | 7 kW electric, metal-sheathed elements |
| Voltage / Phase |
208 V or 240 V, 1- or 3-phase (field convertible to 1-phase) 208 V 1-ph: 34 A | 240 V 1-ph: 29 A 208 V 3-ph: 29 A | 240 V 3-ph: 25 A |
| Recovery rate | 70 GPH @ 40 °F rise | 40 GPH @ 70 °F rise |
| Water connections | ¾" NPT inlet & outlet (bottom) |
| Working pressure | 150 psi / 1034 kPa |
| Dimensions (w×d×h) | 23.53" × 22.75" × 31.03" with 6" legs (598 × 578 × 788 mm) |
| Legs | 6" (152 mm) non-adjustable composite |
| Shipping weight | ≈ 200 lb / 91 kg |
| Certifications | NSF, cULus |
| Country of origin | USA |
| Warranty | 10-year limited tank warranty + 24/7 parts & service support (US & Canada) |
Need stainless-steel body, security screws or other factory options? Contact us for a custom quote .
