Hatco S-6 Imperial High Temp & Low Temp Dishwashers
Description

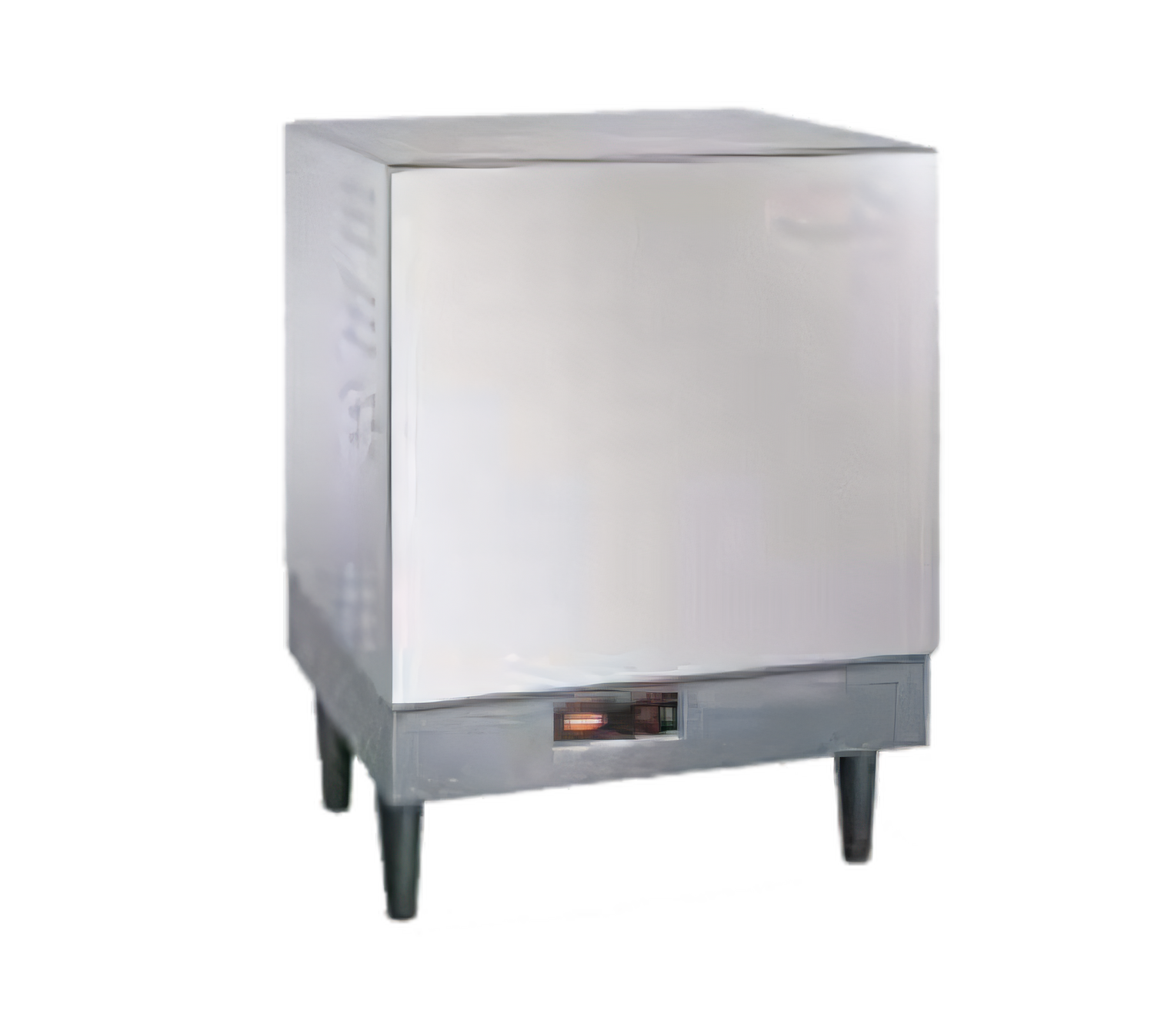

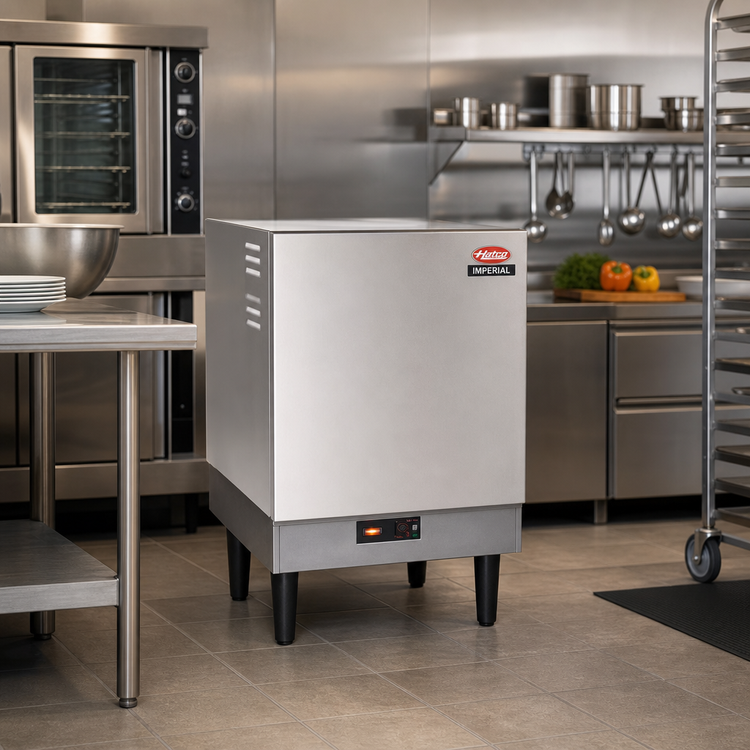

Hatco Imperial S-6 Electric Booster Water Heater
6 kW • 16 gal Castone® tank • NSF & cULus • Made in USADeliver a steady stream of 180 °F (82 °C) sanitizing rinse water for your warewasher—without taking up extra floor space. Hatco’s Imperial S-6 Booster Heater arrives factory-assembled, pre-wired and pre-plumbed so you can shorten install time, slash utility costs and keep dishes moving through the dishroom.
Why you’ll love it

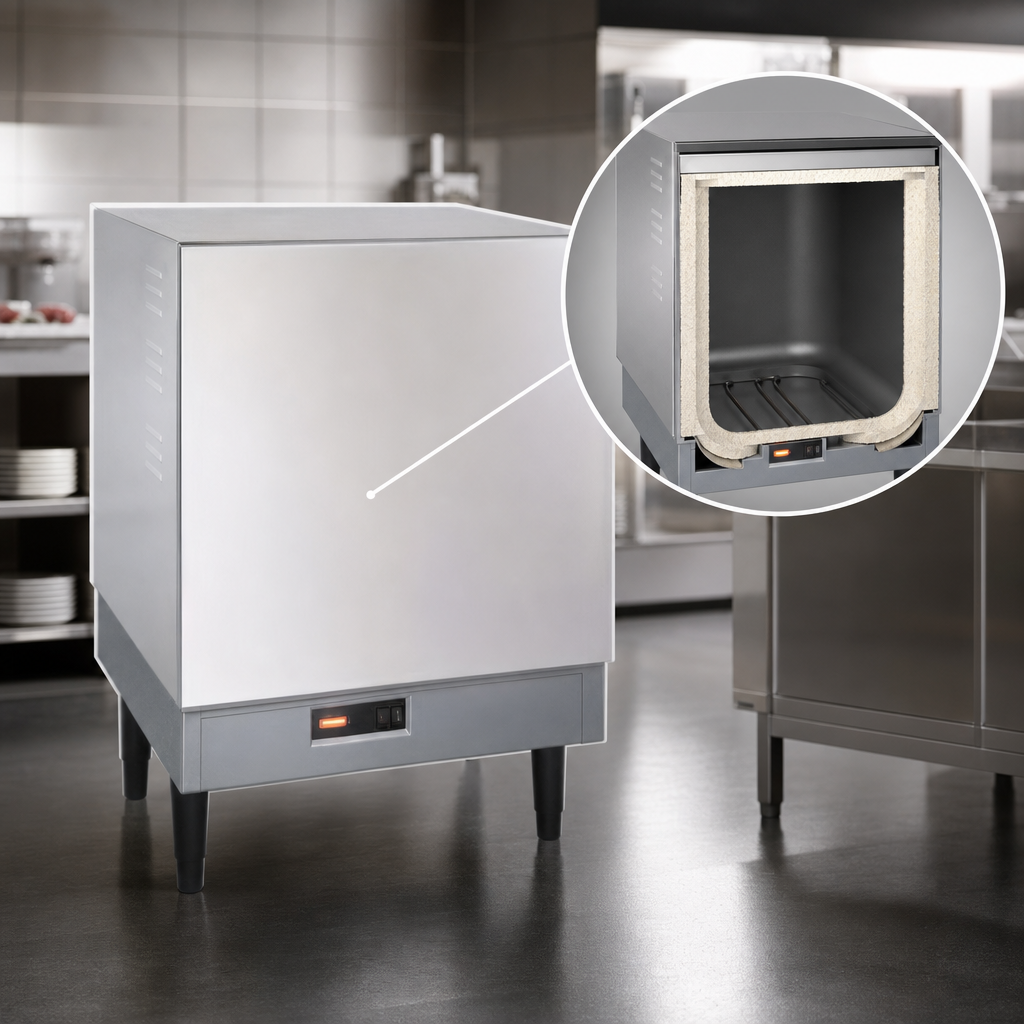

- 16 gal (60 L) Castone® lined tank backed by a 10-year limited warranty.
- 6 kW metal-sheathed elements heat up to 60 GPH at a 40 °F rise (34 GPH at 70 °F).
- Low-water cut-off prevents element burnout and signals the operator.
- Integrated temperature/pressure relief valve, pressure-reducing valve with by-pass and dual temp/pressure gauges.
- Fiberglass insulation plus built-in heat trap minimize standby heat loss.
- Durable stainless-steel front and powder-coated silver-gray hammertone body resist dents, scratches and corrosion.
- Simple front access for service; lighted On/Off toggle and status indicators keep staff informed at a glance.
- Ships on 6" (152 mm) NSF plastic legs—no field assembly required.
Performance you can count on
Sized for under-counter or adjacent installation, the S-6 produces a continuous 180 °F final rinse that lets flatware and dishware air-dry instantly—saving labor, rack time and towel costs. Built-in thermostats ship factory-set to 180 °F but can be lowered to 140 °F for low-temp dishmachines.
Specifications

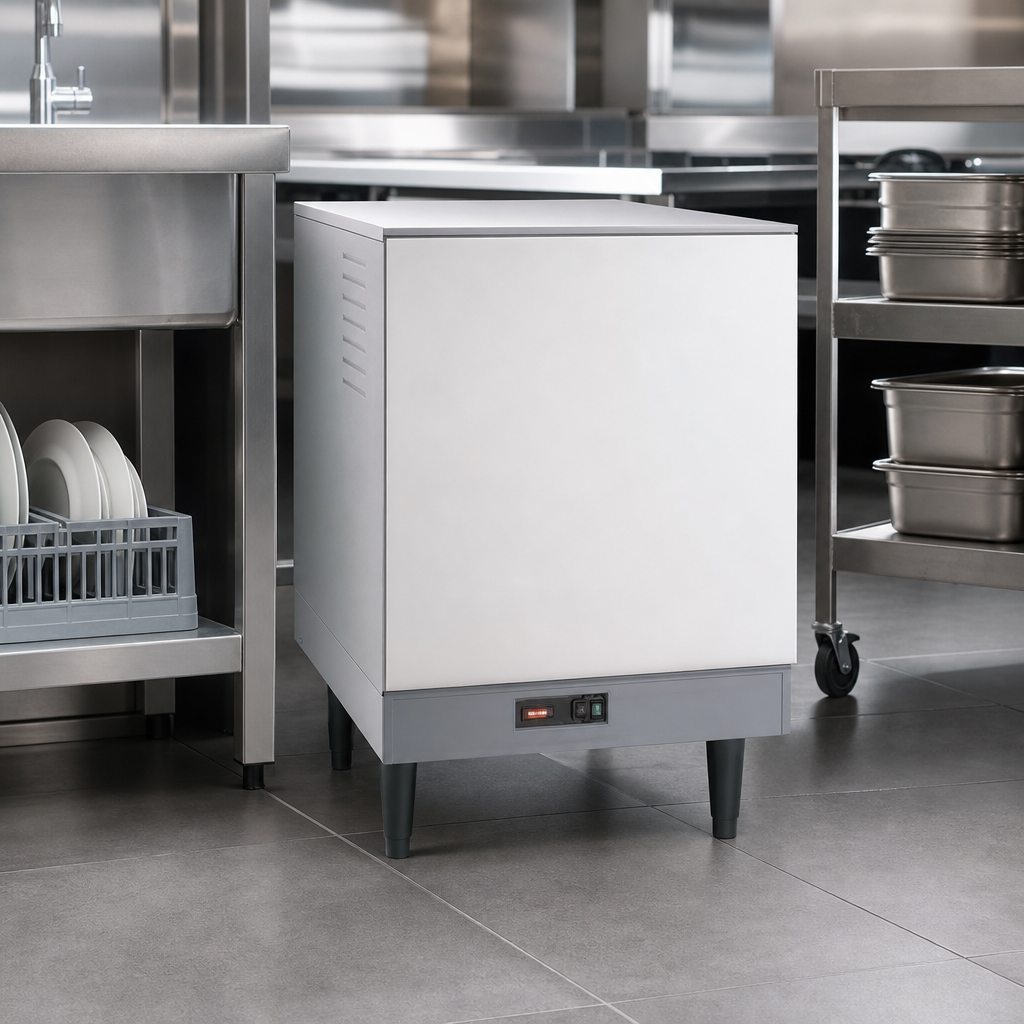

| Storage capacity | 16 gal / 60 L |
|---|---|
| Heating capacity | 6 kW total, metal-sheathed elements |
| Recovery rate | 60 GPH @ 40 °F rise • 34 GPH @ 70 °F rise |
| Voltage / Phase |
208 V 1-φ 29 A • 240 V 1-φ 25 A 208 V 3-φ 11 A • 240 V 3-φ 9 A (208 & 240 V models field-convertible between 1- & 3-phase) |
| Water connections | ¾" NPT inlet & outlet (bottom) |
| Maximum working pressure | 150 psi / 1034 kPa |
| Overall dimensions | 23.53"W × 22.75"D × 31.03"H (plus 5" for T&P valve) |
| Standard legs | 6" non-adjustable NSF plastic |
| Shipping weight | ≈ 200 lb / 91 kg |
| Certifications | NSF 5, UL EPH Classified, cULus #1453 |
| Country of origin | Made in USA |
Factory options (contact us to add)
- Stainless-steel body and base
- Security package with tamper-resistant Torx® hardware
- Blended phosphate injection system
- Stainless-steel adjustable legs (6" – 7")
- Shock absorber or back-pressure relief valve
Tank carries a 10-year limited warranty. All other components covered by Hatco’s standard 1-year parts & labor warranty with 24/7 service assistance (U.S. & Canada).
